2022 HYUNDAI VELOSTER N Owners Manual

7-81
7
Maintenance

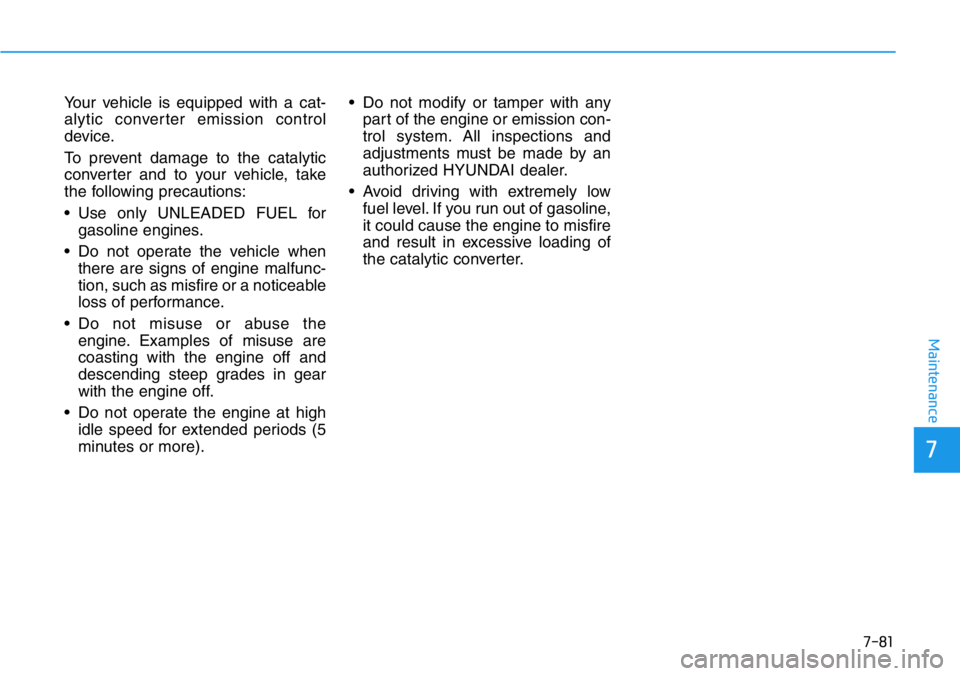

Your vehicle is equipped with a cat-
alytic converter emission control
device.
To prevent damage to the catalytic
converter and to your vehicle, take
the following precautions:
• Use only UNLEADED FUEL for
gasoline engines.
• Do not operate the vehicle when
there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
• Do not misuse or abuse the
engine. Examples of misuse are
coasting with the engine off and
descending steep grades in gear
with the engine off.
• Do not operate the engine at high
idle speed for extended periods (5
minutes or more).• Do not modify or tamper with any
part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer.
• Avoid driving with extremely low
fuel level. If you run out of gasoline,
it could cause the engine to misfire
and result in excessive loading of
the catalytic converter.

7-82
Maintenance

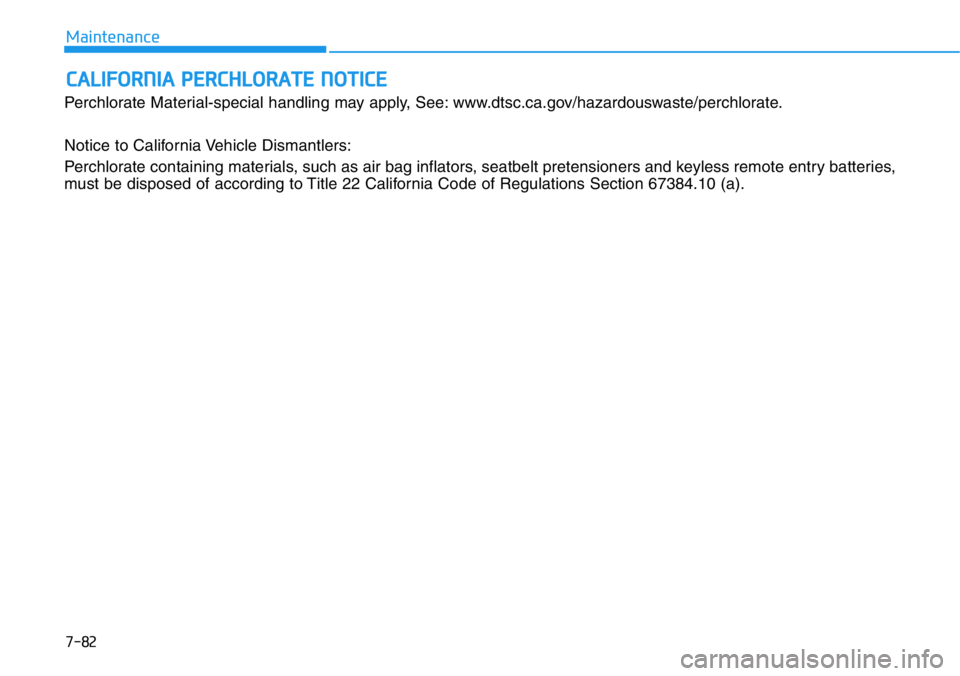

CALIFORNIA PERCHLORATE NOTICE
Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).

888
Specifications & Consumer information
8

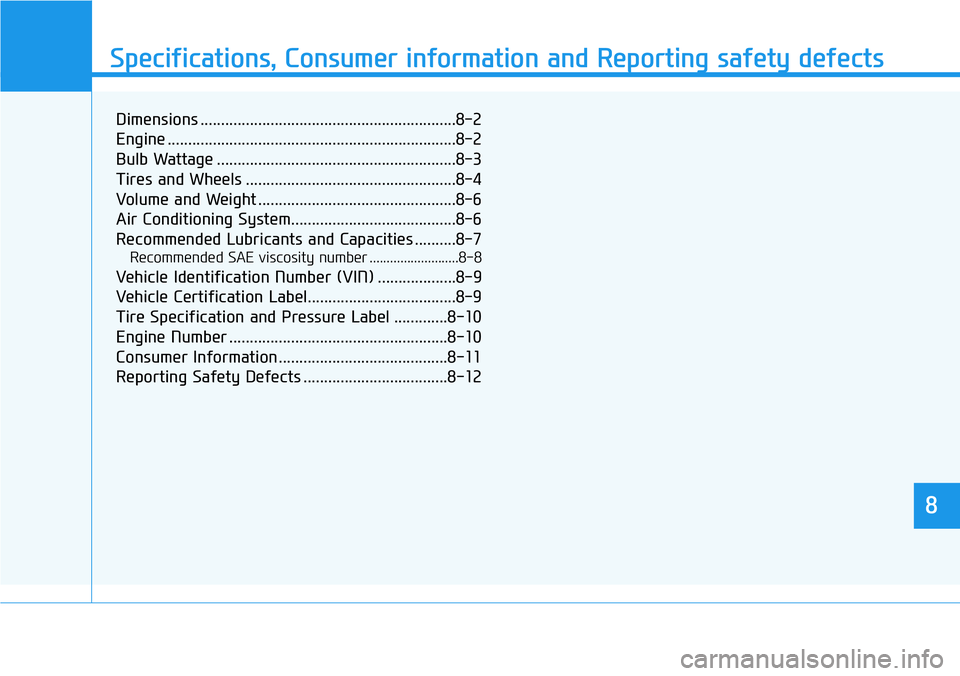

Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-4
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7
Recommended SAE viscosity number ..........................8-8
Vehicle Identification Number (VIN) ...................8-9
Vehicle Certification Label....................................8-9
Tire Specification and Pressure Label .............8-10
Engine Number .....................................................8-10
Consumer Information .........................................8-11
Reporting Safety Defects ...................................8-12

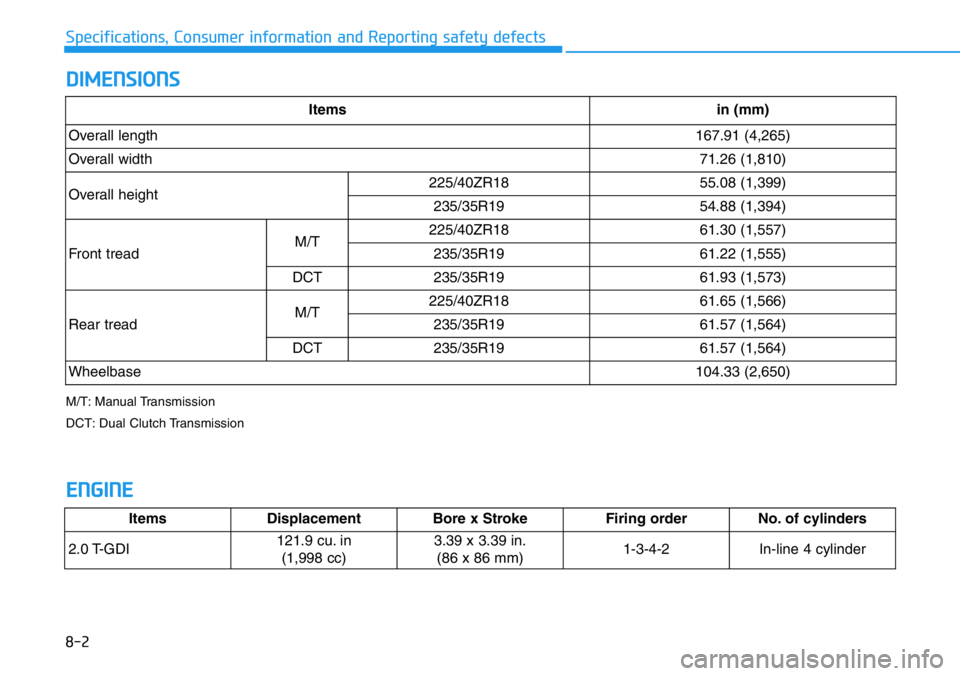

DIMENSIONS
8-2
Specifications, Consumer information and Reporting safety defects
ENGINE
ItemsDisplacement Bore x StrokeFiring orderNo. of cylinders
2.0 T-GDI121.9 cu. in
(1,998 cc)3.39 x 3.39 in.
(86 x 86 mm)1-3-4-2In-line 4 cylinder
Itemsin (mm)
Overall length167.91 (4,265)
Overall width71.26 (1,810)
Overall height225/40ZR1855.08 (1,399)
235/35R1954.88 (1,394)
Front treadM/T225/40ZR1861.30 (1,557)
235/35R1961.22 (1,555)
DCT235/35R1961.93 (1,573)
Rear treadM/T225/40ZR1861.65 (1,566)
235/35R1961.57 (1,564)
DCT235/35R1961.57 (1,564)
Wheelbase104.33 (2,650)
M/T: Manual Transmission
DCT: Dual Clutch Transmission

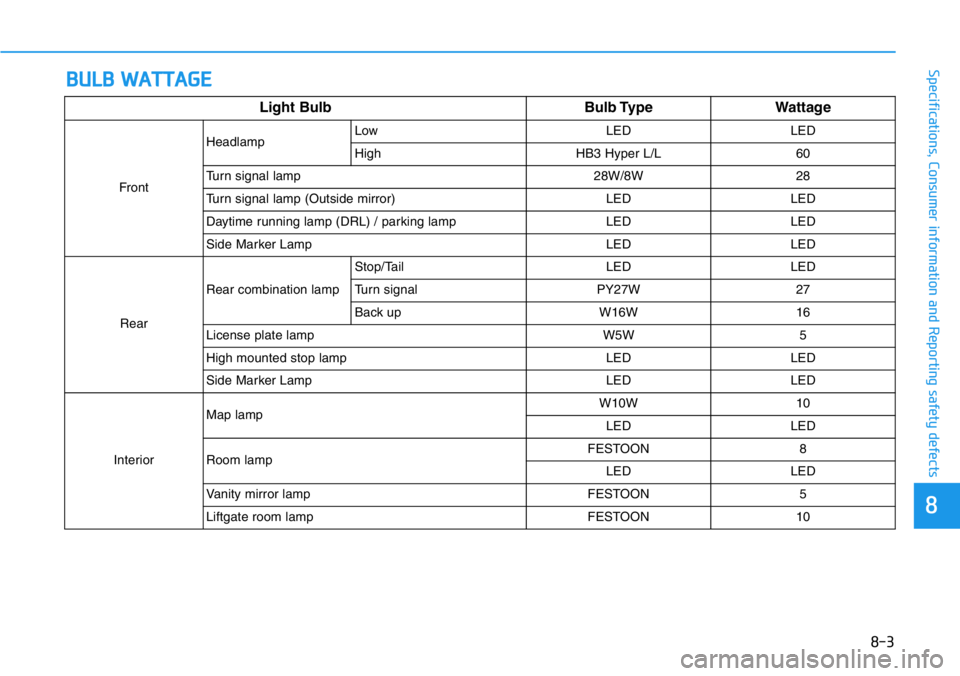

BULB WATTAGE
88
Specifications, Consumer information and Reporting safety defects
8-3 Light Bulb Bulb Type Wattage
FrontHeadlampLow LED LED
High HB3 Hyper L/L 60
Turn signal lamp 28W/8W 28
Turn signal lamp (Outside mirror) LED LED
Daytime running lamp (DRL) / parking lamp LED LED
Side Marker Lamp LED LED
RearRear combination lampStop/Tail LED LED
Turn signal PY27W 27
Back up W16W 16
License plate lamp W5W 5
High mounted stop lamp LED LED
Side Marker Lamp LED LED
InteriorMap lampW10W 10
LED LED
Room lampFESTOON 8
LED LED
Vanity mirror lamp FESTOON 5
Liftgate room lamp FESTOON 10

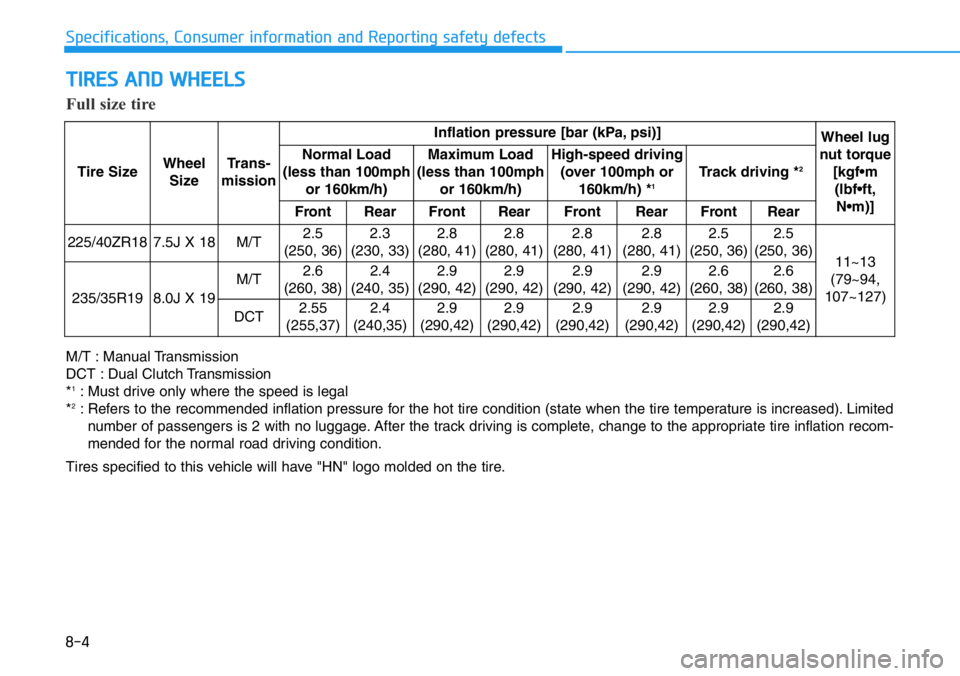

TIRES AND WHEELS
8-4
Specifications, Consumer information and Reporting safety defects
Tire SizeWheel
SizeTrans-
missionInflation pressure [bar (kPa, psi)]
Wheel lug
nut torque
[kgf•m
(lbf•ft,
N•m)] Normal Load
(less than 100mph
or 160km/h)Maximum Load
(less than 100mph
or 160km/h)High-speed driving
(over 100mph or
160km/h) *1Track driving *2
Front Rear Front Rear Front Rear Front Rear
225/40ZR18 7.5J X 18 M/T2.5
(250, 36)2.3
(230, 33)2.8
(280, 41)2.8
(280, 41)2.8
(280, 41)2.8
(280, 41)2.5
(250, 36)2.5
(250, 36)
11~13
(79~94,
107~127)
235/35R19 8.0J X 19M/T2.6
(260, 38)2.4
(240, 35)2.9
(290, 42)2.9
(290, 42)2.9
(290, 42)2.9
(290, 42)2.6
(260, 38)2.6
(260, 38)
DCT2.55
(255,37)2.4
(240,35)2.9
(290,42)2.9
(290,42)2.9
(290,42)2.9
(290,42)2.9
(290,42)2.9
(290,42)
Full size tire
M/T : Manual Transmission
DCT : Dual Clutch Transmission
*
1: Must drive only where the speed is legal
*2: Refers to the recommended inflation pressure for the hot tire condition (state when the tire temperature is increased). Limited
number of passengers is 2 with no luggage. After the track driving is complete, change to the appropriate tire inflation recom-
mended for the normal road driving condition.
Tires specified to this vehicle will have "HN" logo molded on the tire.

8-5
88
Specifications, Consumer information and Reporting safety defects

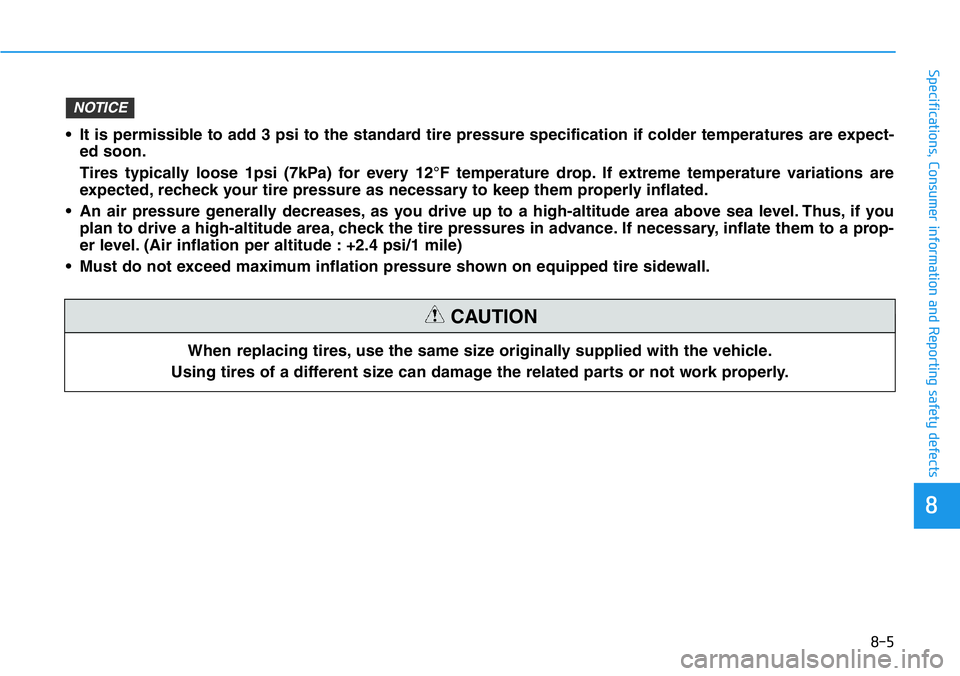

When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
• It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
• An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you
plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
• Must do not exceed maximum inflation pressure shown on equipped tire sidewall.
NOTICE

8-6
Specifications, Consumer information and Reporting safety defects

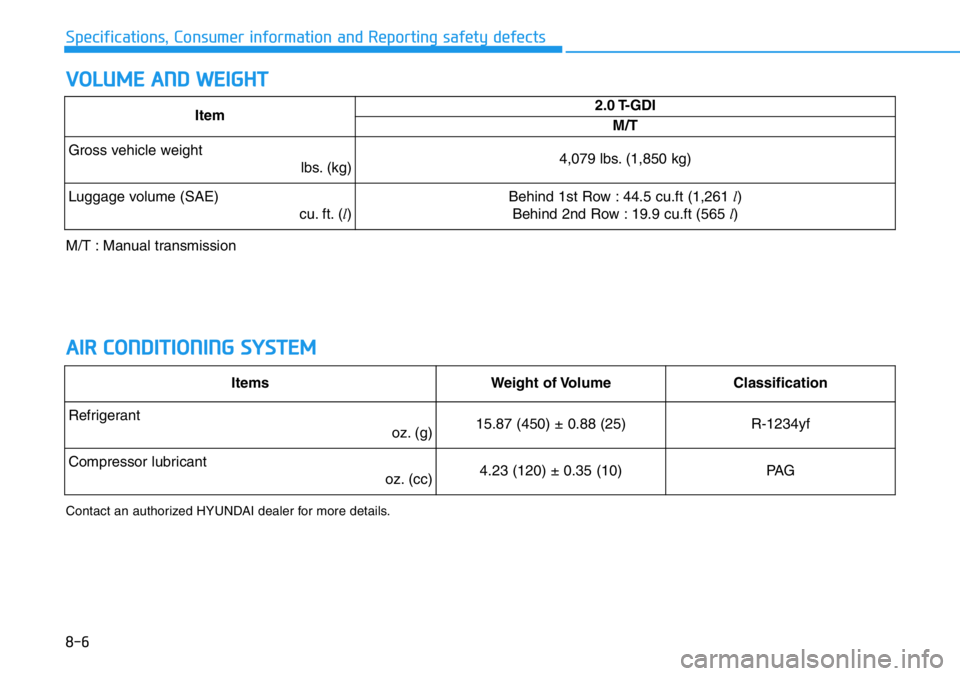

VOLUME AND WEIGHT
AIR CONDITIONING SYSTEM
Contact an authorized HYUNDAI dealer for more details.
Item2.0 T-GDI
M/T
Gross vehicle weight
lbs. (kg)4,079 lbs. (1,850 kg)
Luggage volume (SAE)
cu. ft. (l)Behind 1st Row : 44.5 cu.ft (1,261 l)
Behind 2nd Row : 19.9 cu.ft (565 l)
ItemsWeight of VolumeClassification
Refrigerant
oz. (g) 15.87 (450) ± 0.88 (25) R-1234yf
Compressor lubricant
oz. (cc) 4.23 (120) ± 0.35 (10)PA G
M/T : Manual transmission
