2022 HYUNDAI VELOSTER N Owners Manual

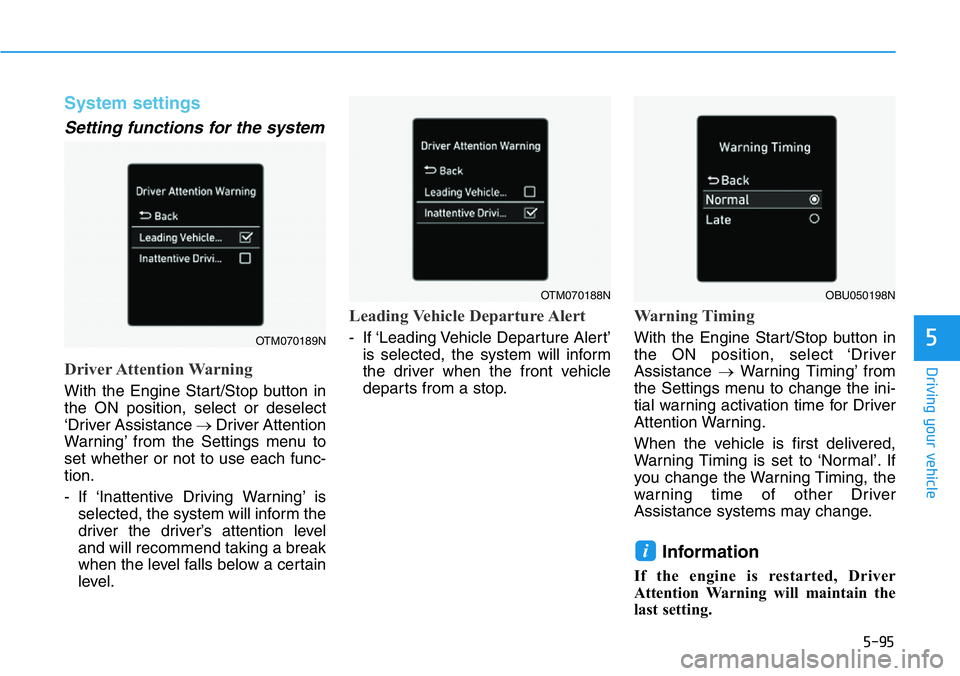

5-95
Driving your vehicle
5
System settings
Setting functions for the system
Driver Attention Warning
With the Engine Start/Stop button in
the ON position, select or deselect
‘Driver Assistance →Driver Attention
Warning’ from the Settings menu to
set whether or not to use each func-
tion.
- If ‘Inattentive Driving Warning’ is
selected, the system will inform the
driver the driver’s attention level
and will recommend taking a break
when the level falls below a certain
level.
Leading Vehicle Departure Alert
- If ‘Leading Vehicle Departure Alert’
is selected, the system will inform
the driver when the front vehicle
departs from a stop.
Warning Timing
With the Engine Start/Stop button in
the ON position, select ‘Driver
Assistance →Warning Timing’ from
the Settings menu to change the ini-
tial warning activation time for Driver
Attention Warning.
When the vehicle is first delivered,
Warning Timing is set to ‘Normal’. If
you change the Warning Timing, the
warning time of other Driver
Assistance systems may change.
Information
If the engine is restarted, Driver
Attention Warning will maintain the
last setting.
i
OTM070189N
OTM070188NOBU050198N

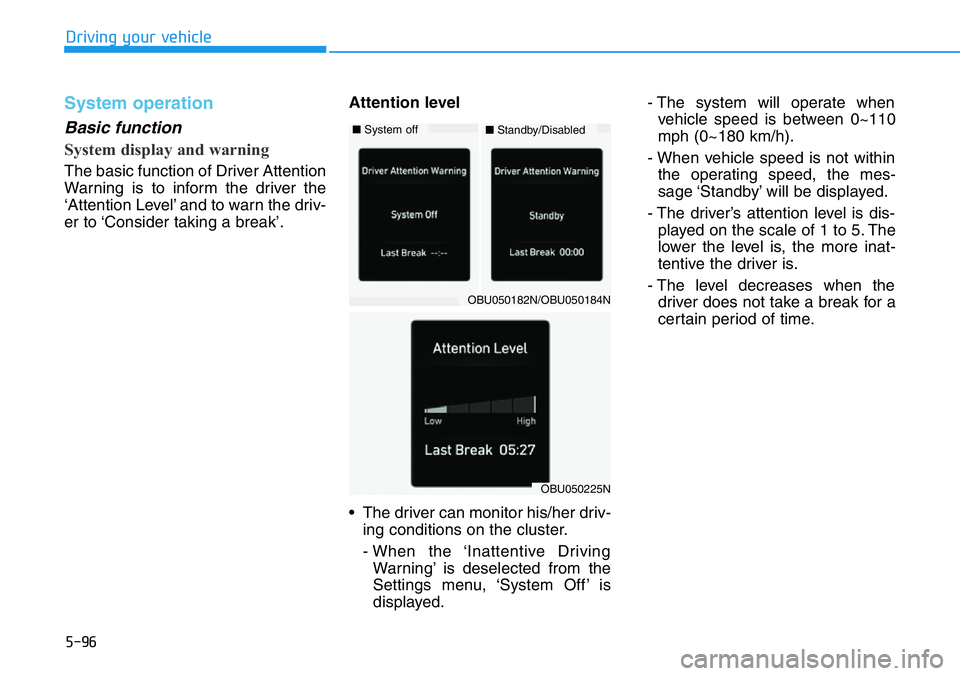

5-96
Driving your vehicle
System operation
Basic function
System display and warning
The basic function of Driver Attention
Warning is to inform the driver the
‘Attention Level’ and to warn the driv-
er to ‘Consider taking a break’.Attention level
• The driver can monitor his/her driv-
ing conditions on the cluster.
- When the ‘Inattentive Driving
Warning’ is deselected from the
Settings menu, ‘System Off’ is
displayed.- The system will operate when
vehicle speed is between 0~110
mph (0~180 km/h).
- When vehicle speed is not within
the operating speed, the mes-
sage ‘Standby’ will be displayed.
- The driver’s attention level is dis-
played on the scale of 1 to 5. The
lower the level is, the more inat-
tentive the driver is.
- The level decreases when the
driver does not take a break for a
certain period of time.
OBU050225N
OBU050182N/OBU050184N
■System off■Standby/Disabled

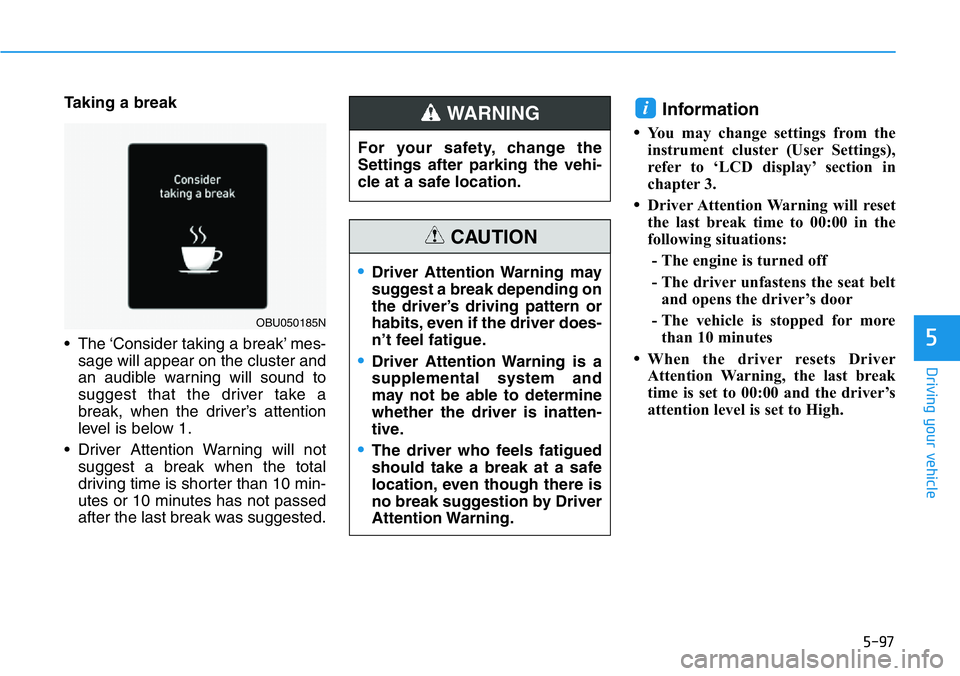

5-97
Driving your vehicle
5
Taking a break
• The ‘Consider taking a break’ mes-
sage will appear on the cluster and
an audible warning will sound to
suggest that the driver take a
break, when the driver’s attention
level is below 1.
• Driver Attention Warning will not
suggest a break when the total
driving time is shorter than 10 min-
utes or 10 minutes has not passed
after the last break was suggested.Information
•You may change settings from the
instrument cluster (User Settings),
refer to ‘LCD display’ section in
chapter 3.
•Driver Attention Warning will reset
the last break time to 00:00 in the
following situations:
- The engine is turned off
- The driver unfastens the seat belt
and opens the driver’s door
- The vehicle is stopped for more
than 10 minutes
•When the driver resets Driver
Attention Warning, the last break
time is set to 00:00 and the driver’s
attention level is set to High.
i
OBU050185N
For your safety, change the
Settings after parking the vehi-
cle at a safe location.
WARNING
•Driver Attention Warning may
suggest a break depending on
the driver’s driving pattern or
habits, even if the driver does-
n’t feel fatigue.
•Driver Attention Warning is a
supplemental system and
may not be able to determine
whether the driver is inatten-
tive.
•The driver who feels fatigued
should take a break at a safe
location, even though there is
no break suggestion by Driver
Attention Warning.
CAUTION

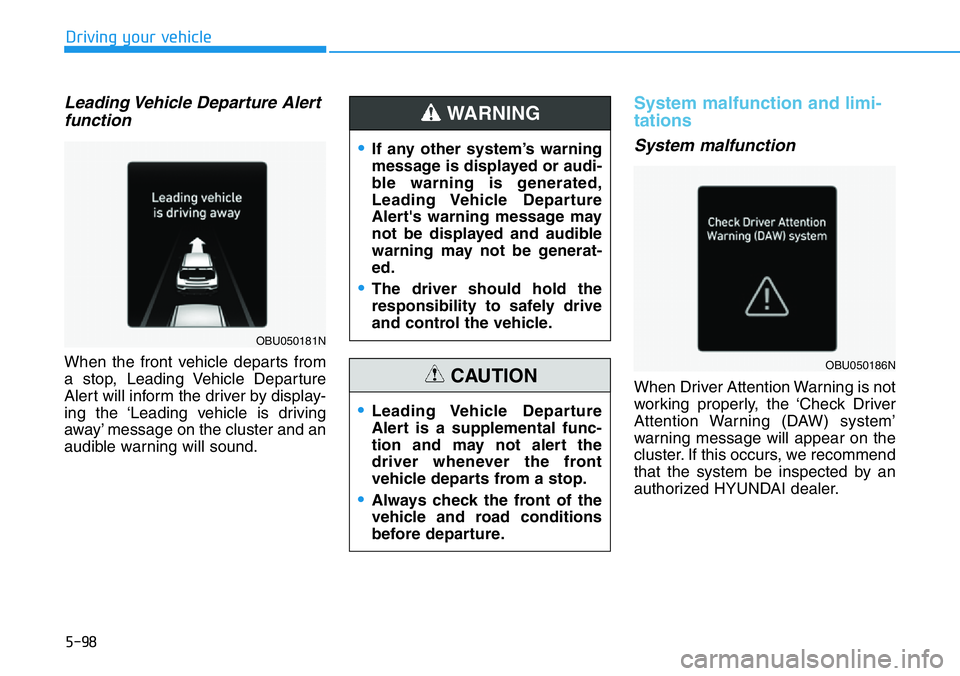

5-98
Driving your vehicle
Leading Vehicle Departure Alert
function
When the front vehicle departs from
a stop, Leading Vehicle Departure
Alert will inform the driver by display-
ing the ‘Leading vehicle is driving
away’ message on the cluster and an
audible warning will sound.
System malfunction and limi-
tations
System malfunction
When Driver Attention Warning is not
working properly, the ‘Check Driver
Attention Warning (DAW) system’
warning message will appear on the
cluster. If this occurs, we recommend
that the system be inspected by an
authorized HYUNDAI dealer.
OBU050181N
OBU050186N
•If any other system’s warning
message is displayed or audi-
ble warning is generated,
Leading Vehicle Departure
Alert's warning message may
not be displayed and audible
warning may not be generat-
ed.
•The driver should hold the
responsibility to safely drive
and control the vehicle.
WARNING
•Leading Vehicle Departure
Alert is a supplemental func-
tion and may not alert the
driver whenever the front
vehicle departs from a stop.
•Always check the front of the
vehicle and road conditions
before departure.
CAUTION

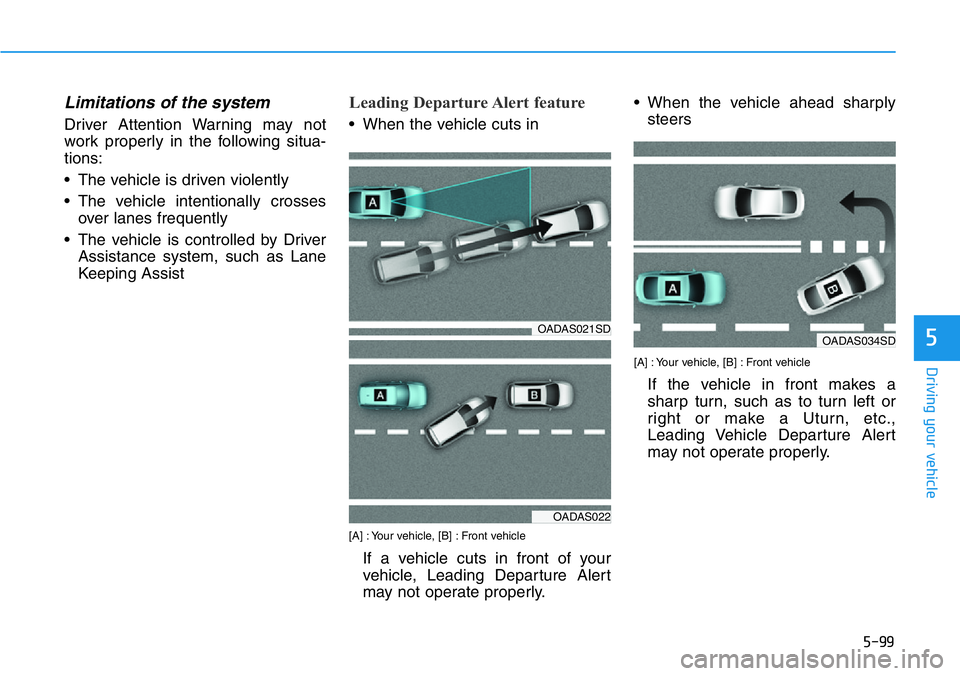

5-99
Driving your vehicle
5
Limitations of the system
Driver Attention Warning may not
work properly in the following situa-
tions:
• The vehicle is driven violently
• The vehicle intentionally crosses
over lanes frequently
• The vehicle is controlled by Driver
Assistance system, such as Lane
Keeping Assist
Leading Departure Alert feature
• When the vehicle cuts in
[A] : Your vehicle, [B] : Front vehicle
If a vehicle cuts in front of your
vehicle, Leading Departure Alert
may not operate properly.• When the vehicle ahead sharply
steers
[A] : Your vehicle, [B] : Front vehicle
If the vehicle in front makes a
sharp turn, such as to turn left or
right or make a Uturn, etc.,
Leading Vehicle Departure Alert
may not operate properly.
OADAS021SDOADAS034SD
OADAS022

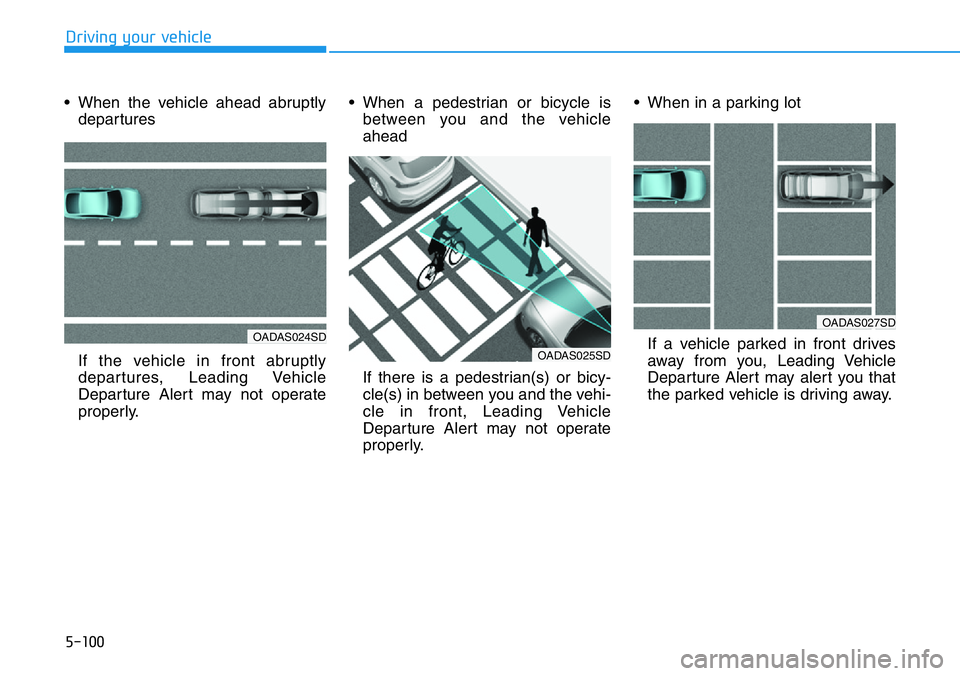

5-100
Driving your vehicle
• When the vehicle ahead abruptly
departures
If the vehicle in front abruptly
departures, Leading Vehicle
Departure Alert may not operate
properly.• When a pedestrian or bicycle is
between you and the vehicle
ahead
If there is a pedestrian(s) or bicy-
cle(s) in between you and the vehi-
cle in front, Leading Vehicle
Departure Alert may not operate
properly.• When in a parking lot
If a vehicle parked in front drives
away from you, Leading Vehicle
Departure Alert may alert you that
the parked vehicle is driving away.
OADAS025SD
OADAS024SDOADAS027SD

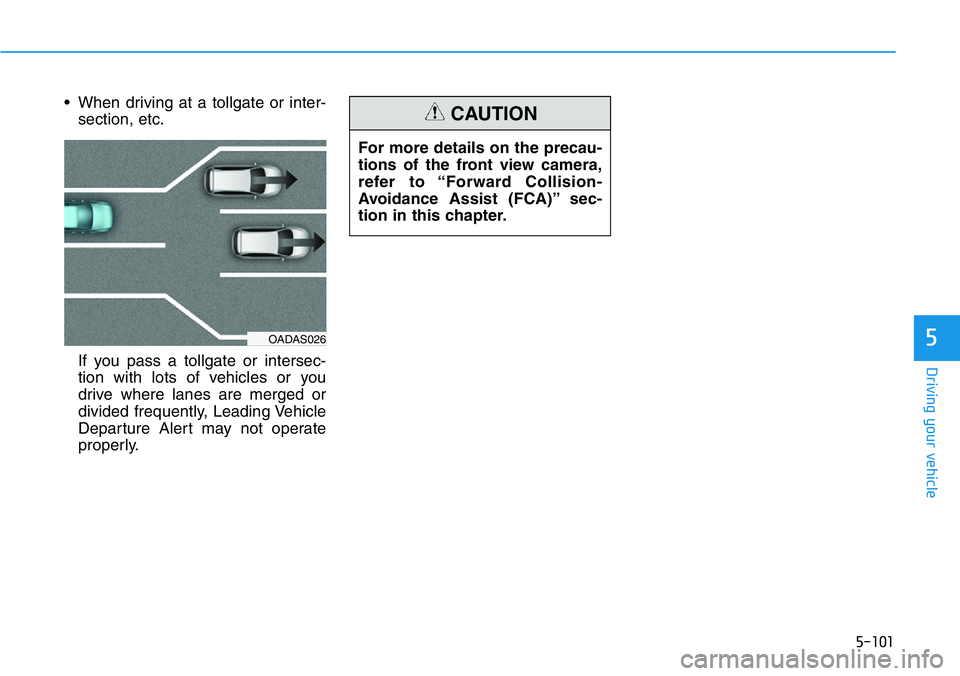

5-101
Driving your vehicle
5
• When driving at a tollgate or inter-
section, etc.
If you pass a tollgate or intersec-
tion with lots of vehicles or you
drive where lanes are merged or
divided frequently, Leading Vehicle
Departure Alert may not operate
properly.
OADAS026
For more details on the precau-
tions of the front view camera,
refer to “Forward Collision-
Avoidance Assist (FCA)” sec-
tion in this chapter.
CAUTION

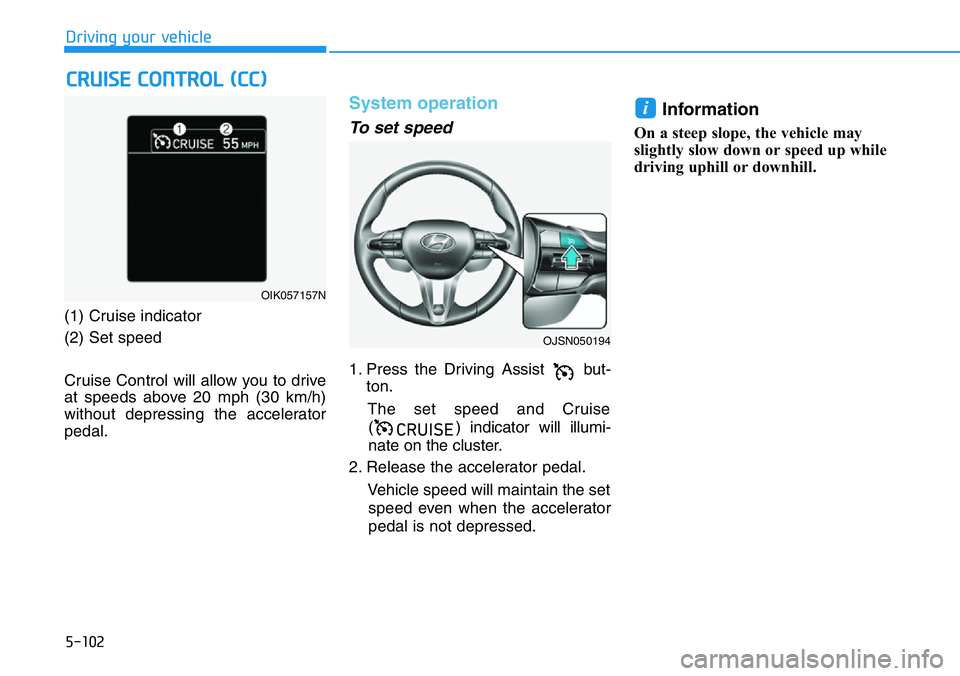

5-102
Driving your vehicle
(1) Cruise indicator
(2) Set speed
Cruise Control will allow you to drive
at speeds above 20 mph (30 km/h)
without depressing the accelerator
pedal.
System operation
To set speed
1. Press the Driving Assist but-
ton.
The set speed and Cruise
( ) indicator will illumi-
nate on the cluster.
2. Release the accelerator pedal.
Vehicle speed will maintain the set
speed even when the accelerator
pedal is not depressed.
Information
On a steep slope, the vehicle may
slightly slow down or speed up while
driving uphill or downhill.
i
&58,6(
CRUISE CONTROL (CC)
OIK057157N
OJSN050194
