2021 RAM PROMASTER CITY Owners Manual

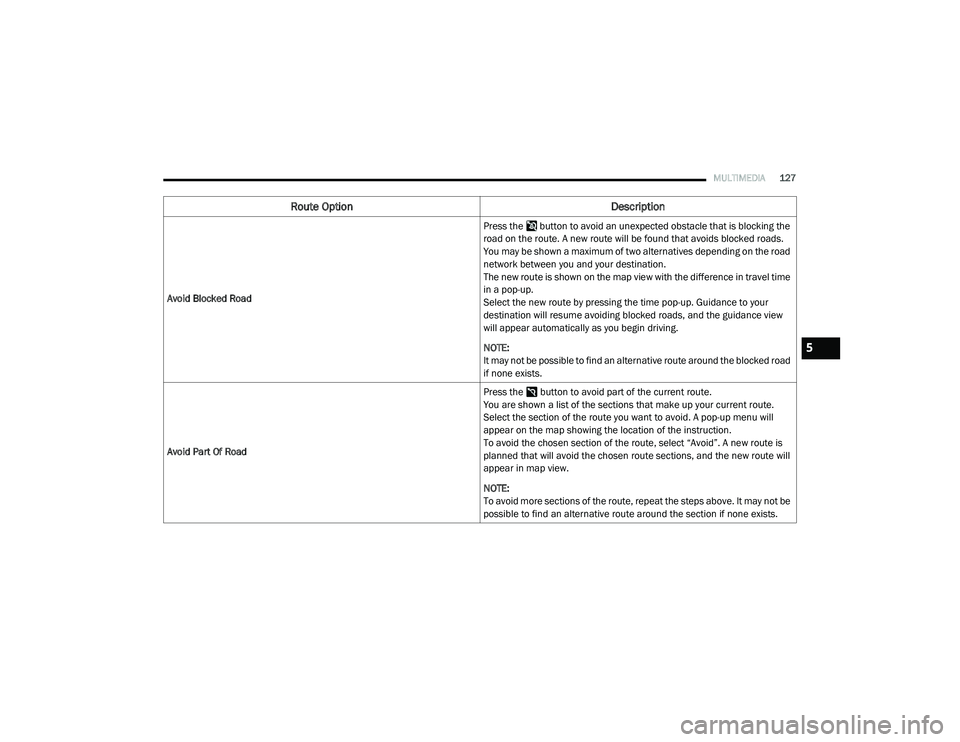

MULTIMEDIA127
Avoid Blocked Road Press the button to avoid an unexpected obstacle that is blocking the
road on the route. A new route will be found that avoids blocked roads.
You may be shown a maximum of two alternatives depending on the road
network between you and your destination.
The new route is shown on the map view with the difference in travel time
in a pop-up.
Select the new route by pressing the time pop-up. Guidance to your
destination will resume avoiding blocked roads, and the guidance view
will appear automatically as you begin driving.
NOTE:
It may not be possible to find an alternative route around the blocked road
if none exists.
Avoid Part Of Road Press the button to avoid part of the current route.
You are shown a list of the sections that make up your current route.
Select the section of the route you want to avoid. A pop-up menu will
appear on the map showing the location of the instruction.
To avoid the chosen section of the route, select “Avoid”. A new route is
planned that will avoid the chosen route sections, and the new route will
appear in map view.
NOTE:
To avoid more sections of the route, repeat the steps above. It may not be
possible to find an alternative route around the section if none exists.
Route Option
Description
5

21_VM_OM_EN_USC_t.book Page 127

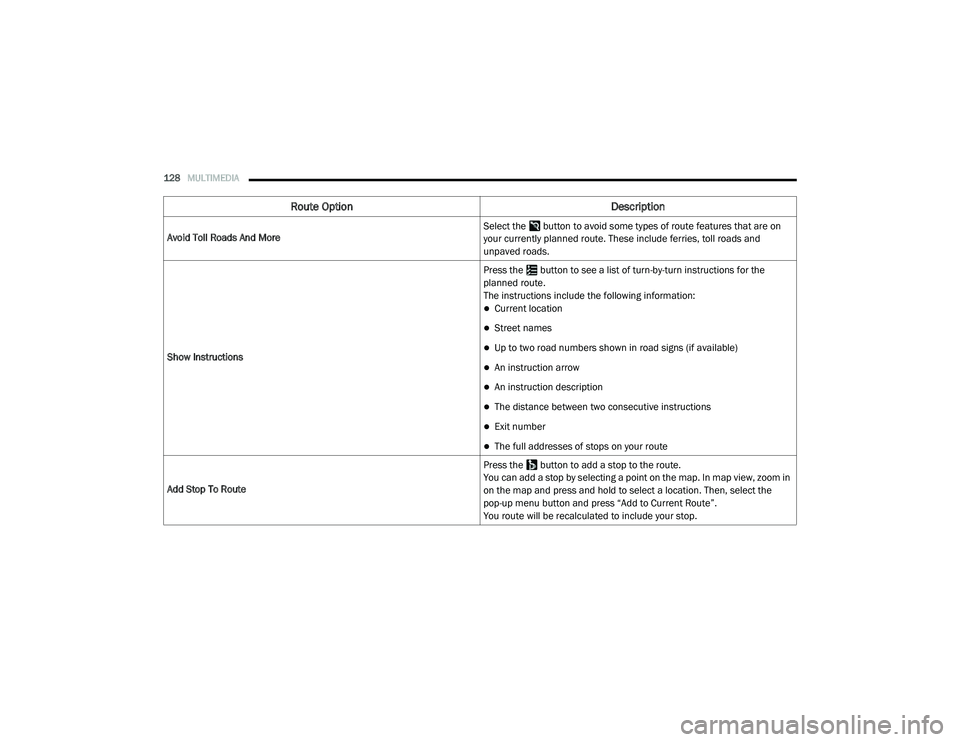

128MULTIMEDIA
Avoid Toll Roads And More Select the button to avoid some types of route features that are on
your currently planned route. These include ferries, toll roads and
unpaved roads.
Show Instructions Press the button to see a list of turn-by-turn instructions for the
planned route.
The instructions include the following information:
Current location
Street names
Up to two road numbers shown in road signs (if available)
An instruction arrow
An instruction description
The distance between two consecutive instructions
Exit number
The full addresses of stops on your route
Add Stop To Route Press the button to add a stop to the route.
You can add a stop by selecting a point on the map. In map view, zoom in
on the map and press and hold to select a location. Then, select the
pop-up menu button and press “Add to Current Route”.
You route will be recalculated to include your stop.
Route Option
Description

21_VM_OM_EN_USC_t.book Page 128

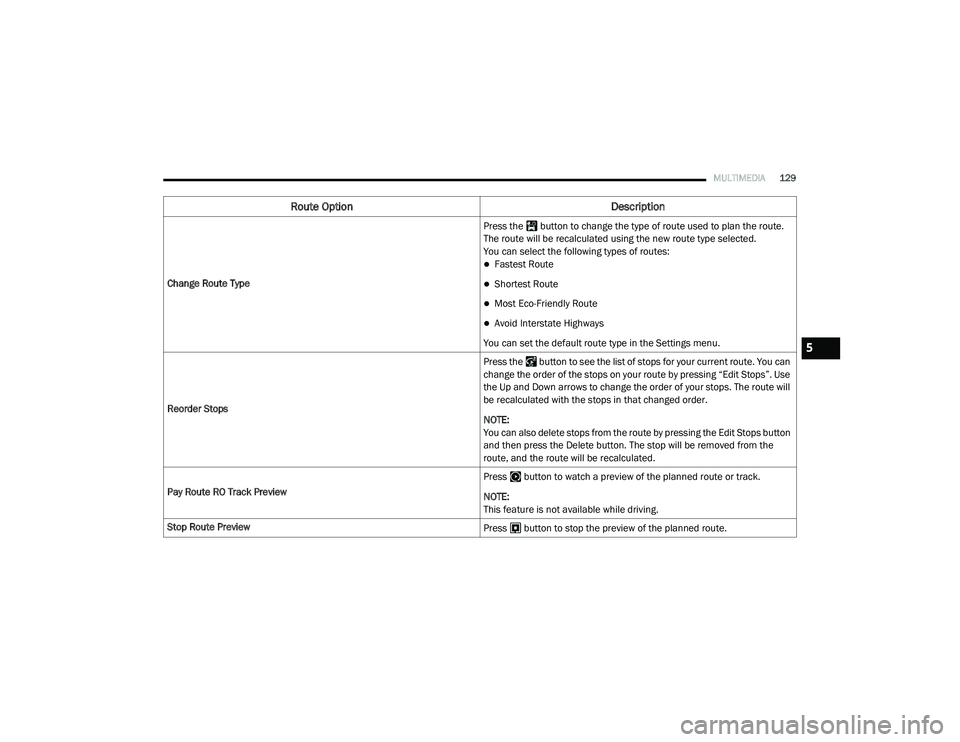

MULTIMEDIA129
Change Route Type Press the button to change the type of route used to plan the route.
The route will be recalculated using the new route type selected.
You can select the following types of routes:
Fastest Route
Shortest Route
Most Eco-Friendly Route
Avoid Interstate Highways
You can set the default route type in the Settings menu.
Reorder Stops Press the button to see the list of stops for your current route. You can
change the order of the stops on your route by pressing “Edit Stops”. Use
the Up and Down arrows to change the order of your stops. The route will
be recalculated with the stops in that changed order.
NOTE:
You can also delete stops from the route by pressing the Edit Stops button
and then press the Delete button. The stop will be removed from the
route, and the route will be recalculated.
Pay Route RO Track Preview Press button to watch a preview of the planned route or track.
NOTE:
This feature is not available while driving.
Stop Route Preview Press button to stop the preview of the planned route.
Route OptionDescription
5

21_VM_OM_EN_USC_t.book Page 129

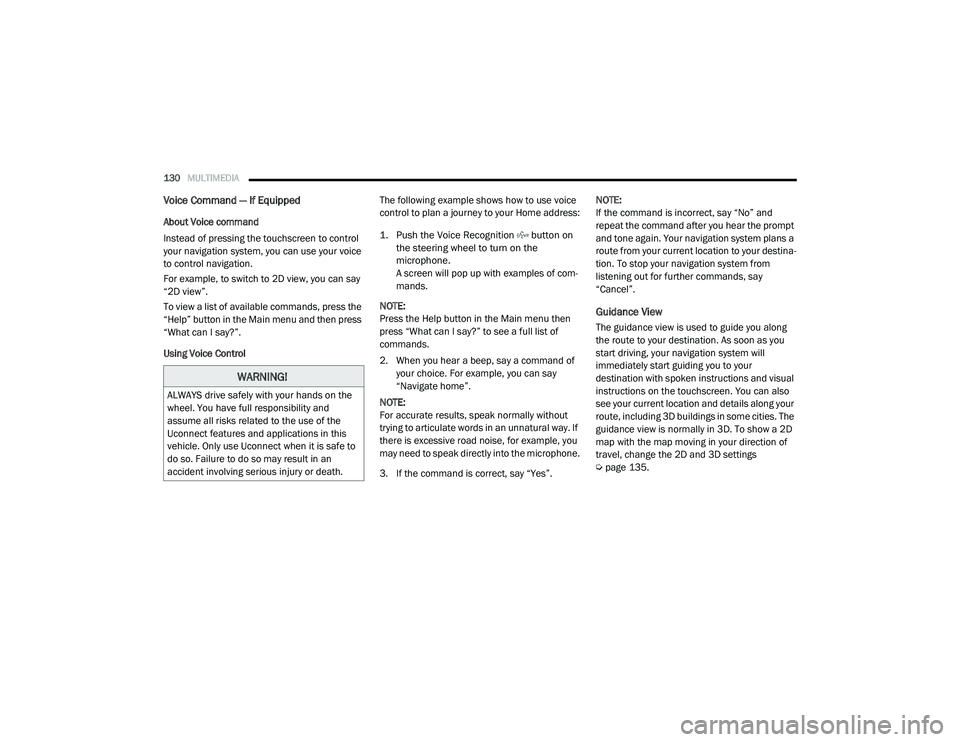

130MULTIMEDIA
Voice Command — If Equipped
About Voice command
Instead of pressing the touchscreen to control
your navigation system, you can use your voice
to control navigation.
For example, to switch to 2D view, you can say
“2D view”.
To view a list of available commands, press the
“Help” button in the Main menu and then press
“What can I say?”.
Using Voice Control The following example shows how to use voice
control to plan a journey to your Home address:

1. Push the Voice Recognition button on
the steering wheel to turn on the
microphone.

A screen will pop up with examples of com -
mands.
NOTE:
Press the Help button in the Main menu then
press “What can I say?” to see a full list of
commands.
2. When you hear a beep, say a command of your choice. For example, you can say
“Navigate home”.
NOTE:
For accurate results, speak normally without
trying to articulate words in an unnatural way. If
there is excessive road noise, for example, you
may need to speak directly into the microphone.
3. If the command is correct, say “Yes”. NOTE:
If the command is incorrect, say “No” and
repeat the command after you hear the prompt
and tone again. Your navigation system plans a
route from your current location to your destina-
tion. To stop your navigation system from
listening out for further commands, say
“Cancel”.
Guidance View
The guidance view is used to guide you along
the route to your destination. As soon as you
start driving, your navigation system will
immediately start guiding you to your
destination with spoken instructions and visual
instructions on the touchscreen. You can also
see your current location and details along your
route, including 3D buildings in some cities. The
guidance view is normally in 3D. To show a 2D
map with the map moving in your direction of
travel, change the 2D and 3D settings
Ú
page 135.
WARNING!
ALWAYS drive safely with your hands on the
wheel. You have full responsibility and
assume all risks related to the use of the
Uconnect features and applications in this
vehicle. Only use Uconnect when it is safe to
do so. Failure to do so may result in an
accident involving serious injury or death.

21_VM_OM_EN_USC_t.book Page 130

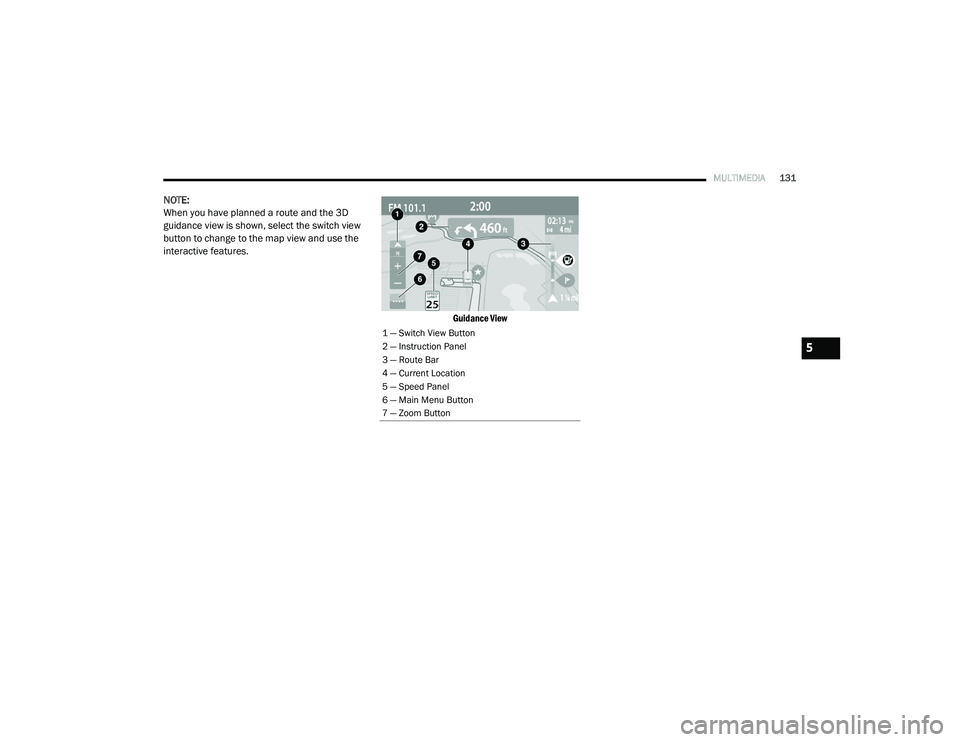

MULTIMEDIA131
NOTE:
When you have planned a route and the 3D
guidance view is shown, select the switch view
button to change to the map view and use the
interactive features.

Guidance View

1 — Switch View Button
2 — Instruction Panel
3 — Route Bar
4 — Current Location
5 — Speed Panel
6 — Main Menu Button
7 — Zoom Button
5

21_VM_OM_EN_USC_t.book Page 131

132MULTIMEDIA
Feature Description
Switch View Button Select the Switch View button to change between the map view and the
guidance view.
Instruction Panel Press this button to view the following information:
The direction of your next turn
The distance to your next turn
Lane guidance at some intersections
Route Bar The Route Bar is shown when you have planned a route. The Route Bar
contains arrival information, such as the estimated time of arrival, the
length of drive time from your current location, and information about the
next stop, if you have stops on the route. The bottom of the Route Bar
represents the current location and shows the distance to the next stop
on your route.
Current Location This symbol shows the current location. By pressing the icon, the location
will be saved.
Speed Panel Press the Speed Panel button to view the following information (if
available):
The speed limit at your location
The name of the street you are driving on
NOTE:
If you drive more than 3 mph (5 km/h) over the speed limit, the Speed
Panel turns red. If you drive less than 3 mph (5 km/h) over the speed limit,
the Speed Panel turns orange.

21_VM_OM_EN_USC_t.book Page 132

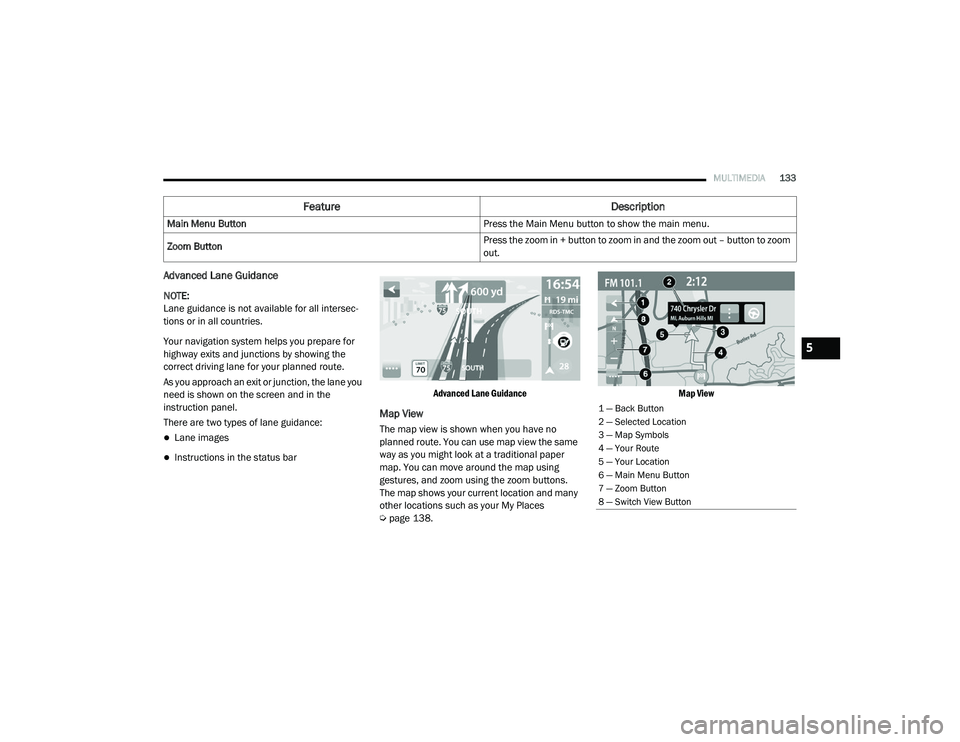

MULTIMEDIA133
Advanced Lane Guidance
NOTE:
Lane guidance is not available for all intersec -
tions or in all countries.
Your navigation system helps you prepare for
highway exits and junctions by showing the
correct driving lane for your planned route.
As you approach an exit or junction, the lane you
need is shown on the screen and in the
instruction panel.
There are two types of lane guidance:
Lane images
Instructions in the status bar
Advanced Lane Guidance

Map View
The map view is shown when you have no
planned route. You can use map view the same
way as you might look at a traditional paper
map. You can move around the map using
gestures, and zoom using the zoom buttons.
The map shows your current location and many
other locations such as your My Places
Ú
page 138.
Map View

Main Menu Button
Press the Main Menu button to show the main menu.
Zoom Button Press the zoom in + button to zoom in and the zoom out – button to zoom
out.
Feature
Description
1 — Back Button
2 — Selected Location
3 — Map Symbols
4 — Your Route
5 — Your Location
6 — Main Menu Button
7 — Zoom Button
8 — Switch View Button
5

21_VM_OM_EN_USC_t.book Page 133

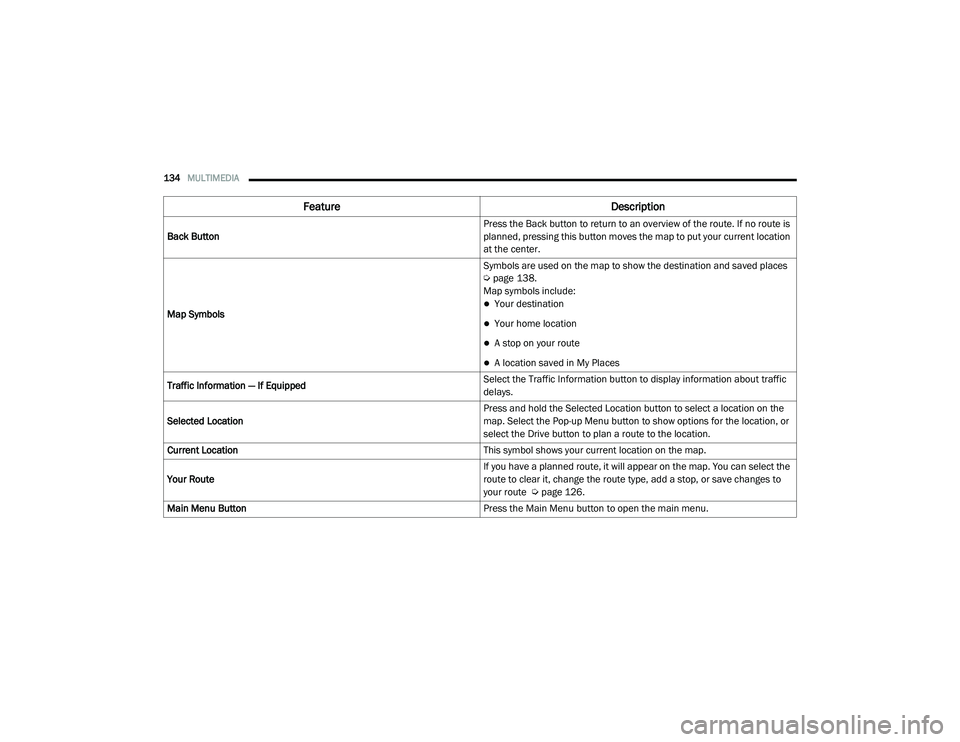

134MULTIMEDIA
Feature Description
Back Button Press the Back button to return to an overview of the route. If no route is
planned, pressing this button moves the map to put your current location
at the center.
Map Symbols Symbols are used on the map to show the destination and saved places
Ú
page 138.
Map symbols include:
Your destination
Your home location
A stop on your route
A location saved in My Places
Traffic Information — If Equipped Select the Traffic Information button to display information about traffic
delays.
Selected Location Press and hold the Selected Location button to select a location on the
map. Select the Pop-up Menu button to show options for the location, or
select the Drive button to plan a route to the location.
Current Location This symbol shows your current location on the map.
Your Route If you have a planned route, it will appear on the map. You can select the
route to clear it, change the route type, add a stop, or save changes to
your route Ú
page 126.
Main Menu Button Press the Main Menu button to open the main menu.

21_VM_OM_EN_USC_t.book Page 134
