2020 MAZDA MODEL 6 Owner's Manual (in English)

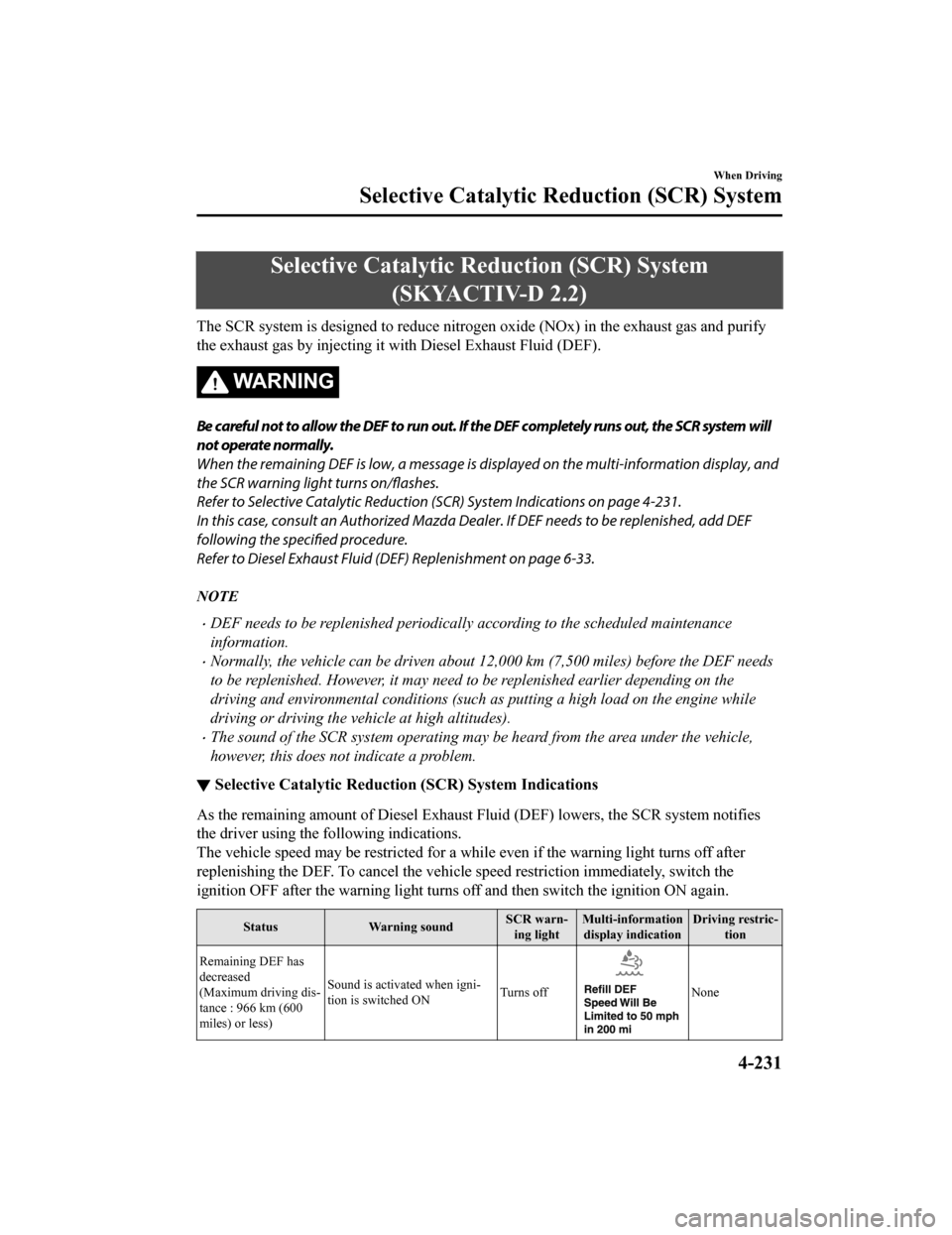

Selective Catalytic Reduction (SCR) System(SKYACTIV-D 2.2)
The SCR system is designed to reduce nitrogen oxide (NOx) in the exhaust gas and purify
the exhaust gas by injecting it w ith Diesel Exhaust Fluid (DEF).
WA R N I N G
Be careful not to allow the DEF to run out. If the DEF completely runs out, the SCR system will
not operate normally.
When the remaining DEF is low, a message is displayed on the multi-information display, and
the SCR warning light turns on/flashes.
Refer to Selective Catalytic Reduction (SCR) System Indications on page 4-231.
In this case, consult an Authorized Mazda De aler. If DEF needs to be replenished, add DEF
following the specified procedure.
Refer to Diesel Exhaust Fluid (DEF) Replenishment on page 6-33.
NOTE
DEF needs to be replenished periodically according to the scheduled maintenance
information.
Normally, the vehicle can be driven about 12,000 km (7,500 miles) before the DEF needs
to be replenished. However, it may need to be replenished earlier depending on the
driving and environmental conditions (such as putting a high load on the engine while
driving or driving the vehicle at high altitudes).
The sound of the SCR system operating may be heard from the area under the vehicle,
however, this does not indicate a problem.
▼ Selective Catalytic Reduction
(SCR) System Indications
As the remaining amount of Diesel Exhaust Fluid (DEF) lowers, t he SCR system notifies
the driver using the fo llowing indications.
The vehicle speed may be restric ted for a while even if the warning light turns off after
replenishing the DEF. To cancel the vehicle speed restriction i mmediately, switch the
ignition OFF after the warning li ght turns off and then switch the ignition ON again.
Status Warning sound SCR warn‐
ing light Multi-information
display indication Driving restric‐
tion
Remaining DEF has
decreased
(Maximum driving dis‐
tance : 966 km (600
miles) or less) Sound is activated when igni‐
tion is switched ON
Turns off
None
When Driving
Selective Catalytic Re
duction (SCR) System
4-231
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

StatusWarning sound SCR warn‐
ing light Multi-information
display indication Driving restric‐
tion
Remaining DEF is low
(Maximum driving dis‐
tance : 644 km (400
miles) or less) Sound is activated when igni‐
tion is switched ON
Turns on
Vehicle speed of
80 km/h (50
mph) or slower
Remaining DEF is ex‐
tremely low
(Maximum driving dis‐
tance : 322 km (200
miles) or less) Sound is activated when igni‐
tion is switched ON
Flashes
Vehicle speed of
48 km/h (30
mph) or slower
No remaining DEF
(Maximum driving dis‐
tance : 0 km (0 miles)) Sound is activated when re‐
maining-distance-to-empty in‐
dication is 0 km (0 miles)
Flashes
Creep travel*1
*1 The vehicle speed will be restricted (Creep travel) the next t
ime the vehicle is driven
after the maximum driving distance reaches 0 km (0 miles).

The following indications are displayed when there is a problem with the SCR system/DEF.
If there is a problem with the SCR system/DEF, consult an Autho rized Mazda Dealer.
The vehicle speed may be restricted for a while even if the war ning light turned off after
having the vehicle repaired. To cancel the vehicle speed restri ction immediately, switch the
ignition OFF after the warning light turns off, and then switch the ignition ON again.
StatusWarning sound SCR warn‐
ing light Multi-information
display indication Driving restric‐
tion
There is a problem
with the SCR
system/DEF
(Maximum driving dis‐
tance : 402 km (250
miles) or less)
Sound is activated when
there is a problem
Sound is activated when igni‐
tion is switched ON FlashesNone
Condition in which a
problem with SCR sys‐
tem/DEF continues
(Maximum driving dis‐
tance : 201 km (125
miles) or less) Sound is activated when igni‐
tion is switched ON
Flashes
Vehicle speed of
48 km/h (30
mph) or slower
When Driving
Selective Catalytic Re
duction (SCR) System
4-232
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

StatusWarning sound SCR warn‐
ing light Multi-information
display indication Driving restric‐
tion
Condition in which a
problem with SCR sys‐
tem/DEF continues
(Maximum driving dis‐
tance : 0 km (0 miles)) Sound is activated when re‐
maining-distance-to-empty in‐
dication is 0 km (0 miles)
Flashes
Creep travel*1
DEF has been replen‐
ished over the specified
amount
― Turns onNone
*1 The vehicle speed will be rest
ricted (Creep travel) the next time the vehicle is driven
after the maximum driving distance reaches 0 km (0 miles).
When Driving
Selective Catalytic Re duction (SCR) System
4-233
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Rear View Monitor*
The rear view monitor provides visual images of the rear of the vehicle when reversing.
WA R N I N G
Always drive carefully
confirming the safety of the rear and the surrounding conditions by
looking directly with your eyes:
Reversing the vehicle by only looking at the screen is dangerous as it may cause an accident
or a collision with an object. The rear view monitor is only a visual assist device when
reversing the vehicle. The images on the screen may be different from the actual conditions.
CAUTION
Do not use the rear view monitor under the following conditions: Using the rear view
monitor under the following conditions is dang erous and could result in injury or vehicle
damage or both.
 Icy or snow-covered roads.
 Tire chains or a temporary spare tire is installed.
 The trunk lid is not fully closed.
 The vehicle is on a road incline.
 When the display is cold, images may course across the monitor or the screen and may be
dimmer than usual, which could cause difficul ty in confirming the surrounding conditions
of the vehicle. Always drive carefully confirm ing the safety of the rear and the surrounding
conditions by looking directly with your eyes.
 Do not apply excessive force to the camera. The camera position and angle may deviate.
 Do not disassemble, modify, or remove it as it may no longer be waterproof.
 The camera cover is made of plastic. Do not apply degreasing agents, organic solvents,
wax, or glass coating agents to the camera co ver. If any are spilled on the cover, wipe off
with a soft cloth immediately.
 Do not rub the camera cover forcefully with an abrasive or hard brush. The camera cover or
lens may be scratched which might affect the images.
NOTE
If water, snow, or mud is stuck on the camera lens, wipe it off using a soft cloth. If it
cannot be wiped off, use a mild detergent.
If the camera temperature changes rapidly (Hot to cold, cold to hot), the rear view
monitor may not ope rate correctly.
When replacing the tires, consult an Author ized Mazda Dealer. Replacing the tires could
result in deviation of the guide lines which appear on the display.
When Driving
Rear View Monitor
4-234*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

If the vehicle's front, side, or rear has been involved in a collision, the alignment of the
rear view parking camera (location, installation angle) may have deviated. Always
consult an Authorized Mazda Dealer to have the vehicle inspected.
If “No Video Signal Available” is indicated in the display, there could be a problem with
the camera. Have your vehicle inspected at an Authorized Mazda Dealer.
▼ Rear View Parking Camera Location
Rear View Parking Camera
▼
Switching to the Rear View Monitor Display
Shift the shift lever/selector l
ever to R with the ignition swi tched ON to switch the display
to the rear view monitor display.
NOTE
When the shift lever/selector lever is shifted from R to another shift lever/selector lever
position, the screen return s to the previous display.
When Driving
Rear View Monitor
4-235
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Displayable Range on the Screen
The images on the screen may be different from the actual condi
tions.

(Screen display)
(Actual view) Object
Garnish
Bumper
NOTE
The displayable range varies depending on the vehicle and road conditions.
The displayable range is limited. Objects under the bumper or around the bumper ends
cannot be displayed.
The distance appearing in the displayed imag
e is different from the actual distance
because the rear view parking camera is equipped with a specific lens.
Some optionally installed vehicle accessories may be picked up by the camera. Do not
install any optional part s that can interfere with the camera view, such as illuminating
parts or parts made of reflective material.
It may be difficult to see the display under the following conditions, however, it does not
indicate a malfunction.
In darkened areas.
When the temperature around the lens is high/low.
When the camera is wet such as on a rainy day or during periods of high humidity.
When foreign material such as mud is stuck around the camera.
When the camera lens reflects sunlight or headlight beams.
Image display may be delayed if the temperature around the camera is low.
When Driving
Rear View Monitor
4-236
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Viewing the Display
Guide lines which indicate the wid
th of the vehicle (yellow) are displayed on the screen as a
reference to the approximate width of the vehicle in comparison to the width of the parking
space you are about to back into.
Use this display view for parking your vehicle in a parking spa ce or garage.
b
a
a) Vehicle width guide lines (yellow)
These guide lines serve as a reference to the approximate width of the vehicle.
b) Distance guide lines. These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
The red and yellow lines indicate the points about 50 cm (19 in ) for the red line and
100 cm (39.3 in) for the yellow l ines from the rear bumper (at the center point of each
of the lines).
CAUTION
The guide lines on the screen are fixed lines. They are not synced to the driver's turning of the
steering wheel. Always be careful and check the area to the vehicle's rear and the surrounding
area directly with your eyes while backing up.
▼ Rear View Monitor Operation
The operation of the rear view monitor when reversing the vehic
le varies depending on the
traffic, road, and vehicle conditions. The amount of steering a nd the timing also varies
depending on conditions, so conf irm the surrounding conditions directly with your eyes and
steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear vie w monitor.
NOTE
Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).
When Driving
Rear View Monitor
4-237
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

1. Shift the shift lever/selector lever to R to switch the display to the rear view monitor
display.
2. Confirming the surrounding conditions, reverse the vehicle.

(Display condition) (Vehicle condition)
3. After your vehicle begins entering the parking space, continue backing up slowly so that
the distance between the vehicle w idth lines and the sides of the parking space on the
left and right are roughly equal.
4. Continue to adjust the steering wheel until the vehicle width guide lines are parallel to
the left and right sides of the parking space.
5. Once they are parallel, straighten the wheels and back your v ehicle slowly into the
parking space. Continue checking the vehicle's surroundings and then stop the vehicle in
the best possible position.

(Display condition) (Vehicle condition)
6. When the shift lever/selector lever is shifted from R to anot her shift lever/selector lever
position, the screen returns to the previous display.
When Driving
Rear View Monitor
4-238
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
