2020 MAZDA MODEL 6 Owner's Manual (in English)

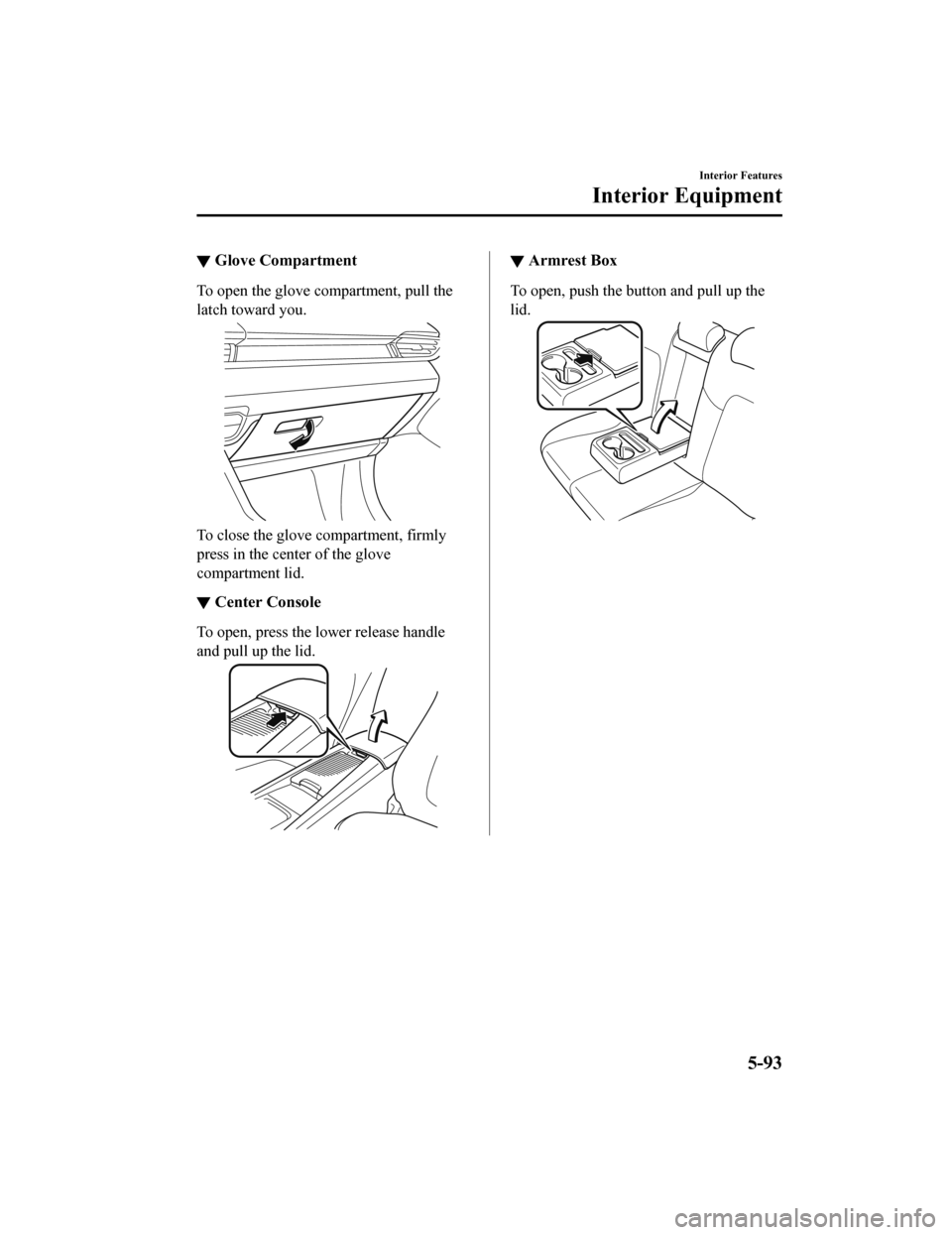

▼Glove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
▼
Center Console
To open, press the lower release handle
and pull up the lid.
▼Armrest Box
To open, push the button and pull up the
lid.
Interior Features
Interior Equipment
5-93
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17

▼Luggage Compartment
Cargo Sub-Compartment*
Lift the trunk mat.
Trunk mat
NOTE
Loading golf bags
(Some golf bags may not fit using the following methods depending on their sizes.)
Up to three golf bags can be carried in the trunk.

Bottom: Place the first and second golf bags in
the trunk with the bottoms pointed to the left.
Top: Place the third golf bag with its bottom pointed to the left in the trunk.
The arrows indicate the bottoms of the golf bags. To p
Bottom
Interior Features
Interior Equipment
5-94*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Rear Coat Hooks
WA R N I N G
Never hang heavy or sharp objects on the
assist grips and coat hooks:
Hanging heavy or sharp-ended objects
such as a coat hanger from the assist grips
or coat hooks is dangerous as they can fly
off
and hit an occupant in the cabin if a
curtain air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
Interior Features
Interior Equipment
5-95
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

MEMO
5-96
Mazda6_8HX3-EA-19I_Edition1_old2019-6-18 9:25:17

6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information........................6-2 Introduction.................................. 6-2
Scheduled Maintenance.................... 6-4 Scheduled Maintenance (U.S.A.,
Canada, and Puerto Rico)............. 6-4
Scheduled Maintenance
(Mexico)..................................... 6-11
Maintenance Monitor................. 6-16
Owner Maintenance........................ 6-19 Owner Maintenance
Precautions................................. 6-19
Hood........................................... 6-21
Engine Compartment
Overview.................................... 6-23
Engine Oil...................................6-25
Engine Coolant........................... 6-29
Brake/Clutch Fluid ..................... 6-31
Washer Fluid............................... 6-32
Diesel Exhaust Fluid (DEF)
(SKYACTIV-D 2.2).................... 6-33
Body Lubrication...... .................. 6-37
Wiper Blades.............................. 6-38
Battery........................................ 6-42
Key Battery Replacement........... 6-44
Tires............................................ 6-48
Light Bulbs................................. 6-52
Fuses........................................... 6-56
Appearance Care............................. 6-63
Exterior Care.............................. 6-63
Interior Care................................6-69
6-1
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Introduction
Be careful not to hurt yourself when inspecting your vehicle, replacing a tire, or doing some
kind of maintenance such as car w ashing. In particular, wear thick work gloves such as
cotton gloves when touching areas that are difficult to see whi le inspecting or working on
your vehicle. Doing inspections or procedures with your bare ha nds could cause injury.

If you are unsure about any procedure this manual describes, we strongly urge you to have a
reliable and qualified service shop perform the work, preferabl y an Authorized Mazda
Dealer.

Factory-trained Mazda technicians and genuine Mazda parts are b est for your vehicle.
Without this expertise and the parts that have been designed an d made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may r esult in problems. This
could lead to vehicle damage or an accident and injuries.

For expert advice and quality service, consult an Authorized Ma zda Dealer.

To continue warranty eligibility and to protect your investment , it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in this
manual. As part of this you mu st keep your maintenance records, receipts, repair orders and
any other documents as evidence this maintenance was performed. You must present these
documents, should any warranty coverage disagreement occur. Fai lure to do so can result in
your warranty being voided ei ther in whole or in part.

This evidence may consist of the following:
The Mazda Scheduled Maintenance Record, refer to the Warranty B ooklet, must be
completely filled out showing mileage, repair order number, dat e for each service, and
signed by a qualified automotive service technician who service vehicles.
Original copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.
For self maintenance, a statement that you completed the mainte nance yourself,
displaying mileage and the date t he work was performed. Also, receipts for the
replacement parts (fluid, filters , etc.) indicating the date and mileage must accompany this
statement.

Maintenance and Care
Essential Information
6-2
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

NOTE
If you elect to perform maintenance yourself or have your vehicle serviced at a location
other than an Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials
must meet Mazda standards for durability and performance as described in this manual.

Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda wo rkmanship, will not be honored.

Any auto repair shop using parts equivalent to your Mazda's ori ginal equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using ge nuine Mazda parts.
Selecting “Maintenance Monitor” enables the system to notify yo u of your vehicle's
approaching inspection/servicing period (page 6-16).

The malfunction diagnosis connector is designed exclusively for connecting the specially
designed device to perform on-board diagnosis.
Do not connect any devices other than the specially designed ma lfunction diagnosis devices
for servicing. If any device othe r than the malfunction diagnosis device is connected, it may
affect the vehicle's electrical devices or lead to damage such as battery depletion.
Malfunction
diagnosis
connector
Maintenance and Care
Essential Information
6-3
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Scheduled Maintenance (U.S.A., Canada, and Puerto
Rico)
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
(severe driving conditions)apply.
Repeated short-distance driving
Driving in dusty conditions
Driving with extended use of brakes
Driving in areas where salt or other corrosive materials are us ed
Driving on rough or muddy roads
Extended periods of idling or low-speed operation
Driving for long periods in cold temperatures or extremely humi d climates
Driving in extremely hot conditions
Driving in mountainous conditions continually
If any do apply, follow Schedule 2. (Canada residents follow Sc hedule 2.)
Vehicles using Engine Oil Flexible Maintenance
Engine Oil Flexible Maintenance is selected by default for U.S.A. and Puerto Rico
residents.
If any following conditions do apply, follow Schedule 2 with en gine oil fixed maintenance.
Extended periods of idling or low-speed operation such as police car, taxi or driving
school car
Driving in dusty conditions
The vehicle calculates the remaining oil life based on engine o perating conditions. The
vehicle lets you know when an oil change is due by illuminating the wrench indicator light
in the instrument cluster. Change the oil as soon as possible w ithin the next 1,000 km (600
mile) or 15 days. Refe r to Maintenance Mon itor on page 6-16 for the details.
NOTE
Please ensure that the Flexible Oil Maintenance Setting is reset after each Oil and Filter
replacement.
For maintenance guidelines beyond the miles/months listed, follow the maintenance
intervals provided in the Scheduled Maintenance Tables.
Maintenance and Care
Scheduled Maintenance
6-4
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
