NOTE
When only a vehicle lane line (yellow) on
either the left or right is detected, the LAS
& LDWS indication on the active driving
display turns off.
Detection only on
either left or rightDetects on both
left and right sides
Detection only on
either left or rightDetects on both
left and right sides
(Gray) (White)
No indication
Active Driving Display
Multi-information Display
If the indication on the active driving
display has been turned off using the
personalization features, the LAS & LDWS
indication on the
multi-information
display is disp layed in gray and the system
goes on standby.
The LAS & LDWS goes on stand-by
status in the following cases:
The system cannot detect white (yellow)
lane lines.
The vehicle speed is less than about 60
km/h (37 mph).
The ABS/TCS/DSC is operating.
The DSC is turned off.
(If the DSC is turned off while the
system is operational, a warning beep is
heard and the system goes on standby.)
The vehicle is making a sharp curve.
The brake pedal is depressed.
The steering wheel is operated abruptly.
The width of a lane is excessively
narrow or wide.
NOTE
The LAS & LDWS does not operate until
the system detects white (yellow) lane
lines on either the left or right.
When the system detects a white
(yellow) lane line on one side only, the
system will not operate the steering
wheel operation assist and the warning
for the lane line on the side that is not
being detected. The steering wheel
operation assist and the warning is only
for a lane deviation on the side that is
being detected.
If the driver takes his or her hands off
the steering wheel (not holding the
steering wheel), the warning sound is
activated and an alert is indicated in the
multi-information di splay or the active
driving display.

Active Driving Display Multi-information Display
If the steering wheel is held lightly, or
depending on the road conditions, the
system may detect that you have
released the steering wheel (not holding
the steering wheel) even if you are
holding it, and display a message in the
multi-information di splay or the active
driving display.
When Driving
i-ACTIVSENSE
4-167
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

The timing at which the lane departure
warning is activated and the steering
wheel operation assist is performed
varies.
The following settings for the LAS &
LDWS can be changed. Refer to Safety
Equipment on page 9-12.
Steering operation assist operational/
non-operational
Cancel sensitivity (likelihood of
steering assist)
Vehicle lane line display
When the LAS & LDWS becomes
operational while on standby, the vehicle
lane lines are displayed in the
multi-information di splay and the active
driving display. In the vehicle lane lines
display indicating the operation status, the
color of the vehicle lane lines being
detected changes to white.
(Stand-by status)
Multi-information Display
Active Driving Display
(Operational status)
Multi-information Display
Active Driving Display
Auto cancel
In the following cases, the LAS & LDWS
is automatically canceled, the LAS &
LDWS warning indication (amber) turns
on, and an alert is displayed. When the
LAS & LDWS become operational, the
system turns back on automatically.
The temperature inside the camera is
high or low.
The windshield around the camera is
foggy.
The windshield around the camera is
blocked by an obstruction, causing poor
forward visibility.
Auto cancel of warning/steering assist
When the following operations are
performed, the LAS & LDWS operation is
canceled automatically. The LAS &
LDWS resumes automatically after the
operation.
The steering wheel is operated abruptly.
The brake pedal is operated.
The accelerator pedal is operated.
(To cancel the automatic sensitivity
cancel function, deselect “Cancel
sensitivity” in the personalization
features setting.)
The turn signal lever is operated.
When Driving
i-ACTIVSENSE
4-168
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

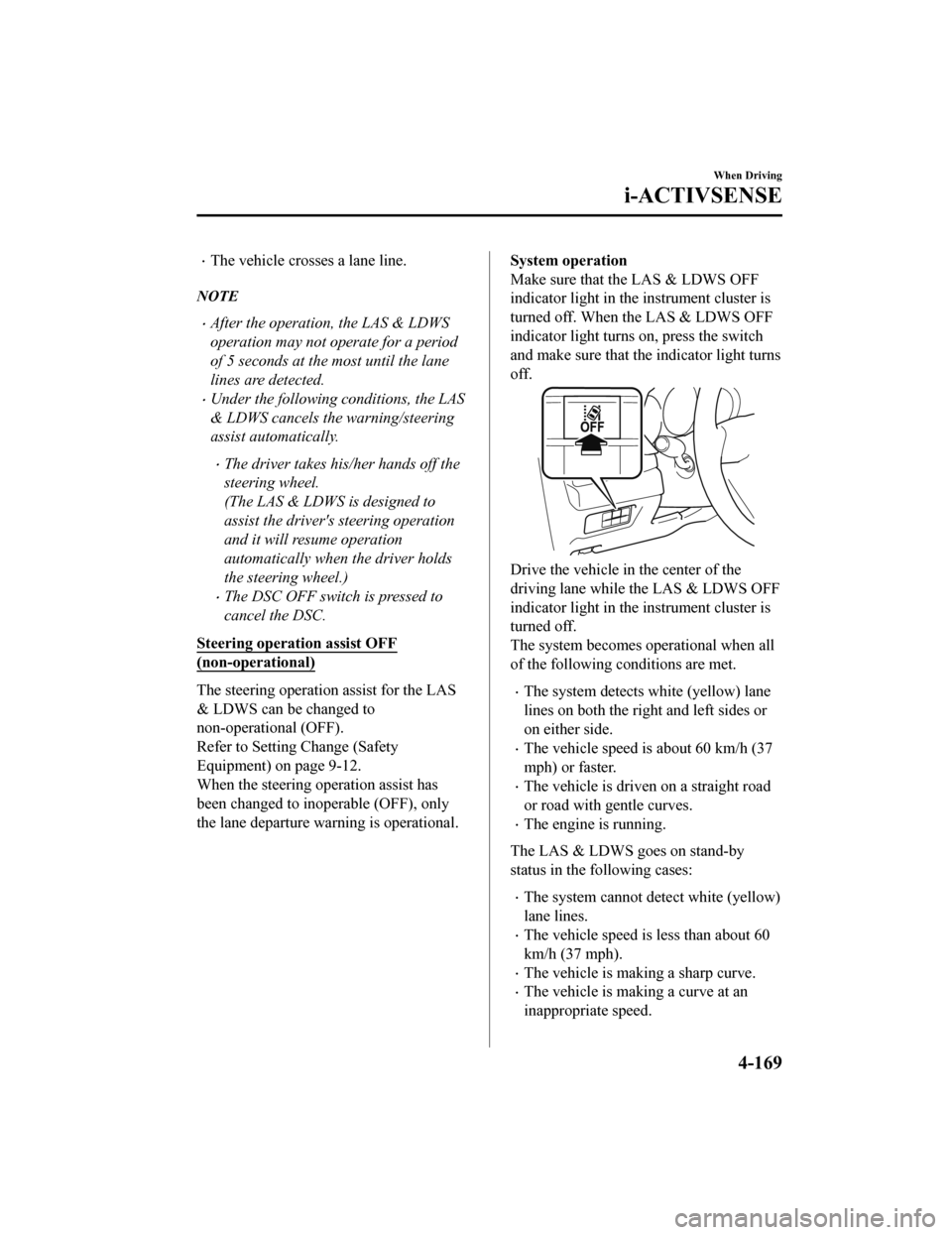

The vehicle crosses a lane line.
NOTE
After the operation, the LAS & LDWS
operation may not operate for a period
of 5 seconds at the most until the lane
lines are detected.
Under the following conditions, the LAS
& LDWS cancels the warning/steering
assist automatically.
The driver takes his/her hands off the
steering wheel.
(The LAS & LDWS is designed to
assist the driver's steering operation
and it will resume operation
automatically when the driver holds
the steering wheel.)
The DSC OFF switch is pressed to
cancel the DSC.
Steering operation assist OFF
(non-operational)
The steering operation assist for the LAS
& LDWS can be changed to
non-operational (OFF).
Refer to Setting Change (Safety
Equipment) on page 9-12.
When the steering operation assist has
been changed to inoperable (OFF), only
the lane departure warning is operational.
System operation
Make sure that the LAS & LDWS OFF
indicator light in the instrument cluster is
turned off. When the LAS & LDWS OFF
indicator light turns on, press the switch
and make sure that the indicator light turns
off.
Drive the vehicle in the center of the
driving lane while the LAS & LDWS OFF
indicator light in the instrument cluster is
turned off.
The system becomes operational when all
of the following conditions are met.
The system detects white (yellow) lane
lines on both the right and left sides or
on either side.
The vehicle speed is about 60 km/h (37
mph) or faster.
The vehicle is driven on a straight road
or road with gentle curves.
The engine is running.
The LAS & LDWS goes on stand-by
status in the following cases:
The system cannot detect white (yellow)
lane lines.
The vehicle speed is less than about 60
km/h (37 mph).
The vehicle is making a sharp curve.
The vehicle is making a curve at an
inappropriate speed.
When Driving
i-ACTIVSENSE
4-169
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

NOTE
The LAS & LDWS remains on stand-by
until it detects white (yellow) lines on
both the left and right sides, or on either
side.
When the system detects a white
(yellow) lane line on one side only, the
system will not activate warnings for the
lane line on the side that is not being
detected.
The distance and warning sensitivity
(likelihood of a warning) which the
system uses to determine the possibility
of a lane departure can be changed.
Refer to Setting Change (Safety
Equipment) on page 9-12.
Vehicle lane line display
When the LAS & LDWS becomes
operational while on standby, the vehicle
lane lines are displayed in the
multi-information display and the active
driving display. The system changes to
operational status display when the system
detects a white (yellow) line on either the
left or right.
(Stand-by status)
(Operational status)
Auto cancel
In the following cases, the LAS & LDWS
is automatically canceled, the LAS &
LDWS warning indication (amber) turns
on, and an alert is displayed. When the
LAS & LDWS become operational, the
system turns back on automatically.
The temperature inside the camera is
high or low.
The windshield around the camera is
foggy.
The windshield around the camera is
blocked by an obstruction, causing poor
forward visibility.
When Driving
i-ACTIVSENSE
4-170
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

(Auto cancel of warnings)
When the following operations are
performed, the LAS & LDWS determines
that the driver intends to make a lane
change and the system operation is
canceled automatically. The LAS &
LDWS resumes automatically after the
operation.
The steering wheel is operated abruptly.
The brake pedal is depressed.
The accelerator pedal is depressed.
(To cancel the automatic sensitivity
cancel function, deselect “Warning
sensitivity” in the personalization
features setting.)
The turn signal lever is operated.
The vehicle crosses a lane line.
▼System Canceling
When the LAS & LDWS is turned off,
press the LAS & LDWS OFF switch.
The LAS & LDWS OFF
indicator light
turns on.
NOTE
In the following cases, the LAS & LDWS
is canceled automatically and the LAS
& LDWS OFF indicator light turns on.
Have your vehicle inspected at an
Authorized Mazda Dealer.
There is a malfunction in the power
steering.
There is a malfunction in the DSC.
There is a malfunction in the Forward
Sensing Camera (FSC).
When the ignition is switched OFF, the
system status before it was turned off is
maintained. For examp le, if the ignition
is switched OFF with the lane-keep
system operable, the system will be
operable when the ignition is switched
ON the next time.
When the LAS & LDWS is turned off, the
vehicle lane line indication in the
multi-information display and the active
driving display turn off.
When Driving
i-ACTIVSENSE
4-171
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Lane Departure Warning
If the system determines that the vehicle may deviate from its
lane, the lane departure
warning (beep sound, rumble sound
*1, or steering wheel vibration) is activated and the
direction in which the system determines that the vehicle may d eviate is indicated in the
multi-information display an d the active driving display.
If the system determines that the vehicle may deviate from its lane, the color of the lane line
on the side being detected by the system changes from white to amber, and flashes.
Multi-information Display Active Driving Display
NOTE
If you have set the lane departure warning sound to the beep sound/rumble sound*1
setting, the warning sound may not be heard depending on the surrounding noise
conditions.
If you have set the lane departure warning system to the steering wheel vibrations setting,
the vibration may not be felt dependi ng on the road surface conditions.
When the setting for the steering operation assist is changed to operational, the warnings
can be set to activate/not activate. (When the setting for the steering operation assist is
changed to non-operational, the warnings cannot be set to not activate.)
Refer to Setting Change (Safety Equipment) on page 9-12.
The LAS & LDWS can be changed to the following settings regardless of whether the
steering operation assist has been set to operational/non-operational. Always check the
setting status when driving the vehicle and make setting changes if necessary.
Refer to Setting Change (Safety Equipment) on page 9-12.
Steering wheel vibr ation: Strong/weak
Warning sound volume
Types of warnings (steering wheel vibration/beep sound/rumble sound*1)
*1 A rumble strip is a series of grooves in the road pavement surface positioned at specific
intervals, and when the vehicle passes over it a vibration and rumble sound is produced
which alerts the driver that the vehicle is departing from the lane.
When Driving
i-ACTIVSENSE
4-172
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

The rumble sound is a reproduction of the sound which occurs when a vehicle passes
over a rumble strip.
Rumble
Groove
When Driving
i-ACTIVSENSE
4-173
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Advanced Smart City Brake Support (Advanced SCBS)*
The Advanced SCBS alerts the driver of a possible collision using the display and a warning
sound when the Forward Sensing Camera (FSC) detects a vehicle a head or pedestrian and
determines that a collision with the object is unavoidable whil e the vehicle is driven at a
vehicle speed of about 4 to 80 k m/h (2 to 50 mph) if the object is a vehicle ahead and about
10 to 80 km/h (6.2 to 50 mph) if the object is a pedestrian. In addition, the system reduces
damage in the event of a collision by operating the brake contr ol (Advanced SCBS brake)
when the system determines that a collision is unavoidable. In addition, when the driver
depresses the brake pedal, the brakes are applied firmly and qu ickly to assist. (Brake Assist
(Advanced SCBS brake assist))

Forward Sensing
Camera (FSC)
WA R N I N G
Do not rely completely on the Advanced SCBS system:
 The Advanced SCBS system is only designed to reduce damage in the event of a collision.
Over reliance on the system leading to the accelerator pedal or brake pedal being
mistakenly operated could result in an accident.
 The Advanced SCBS system operates in respo nse to a vehicle ahead or a pedestrian. The
system does not operate in response to obstru ctions such as a wall, 2-wheeled vehicles, or
animals.
When Driving
i-ACTIVSENSE
4-174*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
