2020 MAZDA MODEL 6 Owner's Manual (in English)

Personalization Features
▼Changeable System Sett
ings/Equipment List
Safety Equipment (page 9-12)
Advanced Smart City Brake Support (Advanced SCBS)
Smart City Brake Support (SCBS)
Smart Brake Support (SBS)
Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS)
Blind Spot Monitoring (BSM)
Distance Recognition Support System (DRSS)
Traffic Sign Recognition System (TSR)
Vehicle Equipment (page 9-14)
Illuminated entry system
Auto-wiper control
Auto headlight off
Auto-light control
High Beam Control System (HBC)
Adaptive Front Lighting System (AFS)
Lights-on reminder
Coming home light
Leaving home light
Turn signal indicator
Three-flash turn signal
Ambient lights
Other Equipment/Functions (page 9-15)
Door locks
Keyless entry system
Advanced keyless entry system
Active Driving Display
Fuel Economy Monitor
Display
Sound quality
Clock
Each system
Daytime running lights
Rear window defogger
Specifications
Personalization Features
9-11
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Safety Equipment
You can change the function settings according to your preferen
ce.
Personalization features which can be changed differ depending on the vehicle specifica‐
tion.
Personalization features which can be changed may change withou t notice depending on
software updates.
The following personalization feat ures can be set or changed by the customer or an Author‐
ized Mazda Dealer. Consult an Authorized Mazda Dealer for detai ls.
Personalization features which can be changed differ depending on the specification.
Setting change method
1. Select on the home screen and display the setting screen.
2. Switch the tab to [Safety] and select the setting item you want to change.
Function and how it can be changed (underlined item is initial setting)
Advanced Smart City Brake Support (Advanced SCBS) (page 4-174)
Smart Brake Support (SBS) (page 4-180)
The system can be changed so that Advanced Smart City
Brake Support (Advanced SCBS)/Smart Brake Support
(SBS) does not operate.
*1On/Off
The distance at which the collis ion warning activates can be
changed. Far/Med.
/Near
The volume of the collision wa rning can be changed. High
/Low/Off
Smart City Brake Support (SCBS) (page 4-177)
The system can be changed so that Smart City Brake Sup‐
port (SCBS) does not operate.
*1On/Off
Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS) (page 4-163)
The system can be changed so that the steering wheel assist
does not operate. On
/Off
The sensitivity of the warning for the Lane-keep Assist Sys‐
tem (LAS) & Lane Departure Warning System (LDWS) can
be changed. High
/Low
When the steering
wheel operation as‐
sistance is turned on The system can be changed so that
the Lane Departure Warning does not
activate.
On
/Off
When the steering
wheel operation as‐
sistance is turned off The warning timing in which the sys‐
tem determines that the vehicle may
be deviating from
its lane can be
changed. At
/Before
The sensitivity of th e warning for the
system can be changed. Often
/Rare
Specifications
Personalization Features
9-12
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17

Function and how it can be changed (underlined item is initial setting)
The type of Lane-keep Assist System (LAS) & Lane Depar‐
ture Warning System (LDWS) warning can be changed. Vi b r a t i o n
/Beep/Rumbl.
The warning intensi‐
ty/volume of the sys‐
tem can be changed. Vibration High/Low
Rumbl.
High/Mid/Low
Beep High/Low
Blind Spot Monitoring (BSM) (page 4-127)
The system can be changed so that Blind Spot Monitoring
(BSM) does not operate.
*1On/Off
Warning beep volume
*2High/Low/Off
Distance Recognition Support System (DRSS) (page 4-141)
The system can be changed so that Distance Recognition
Support System (DRSS) does not operate.
*1On/Off
The distance at which the vehic le ahead and your vehicle in‐
dicated in the display flashe s in white can be changed. Far/Med./Near
Traffic Sign Recognition System (TSR)*3 (page 4-133)
The Traffic Sign Recognition System (TSR) can be set to
inoperable.
*1On/Off
The warning pattern of the ex cessive speed warning can be
changed. Off
/Visual/Audio & Visual
The activation timing for th e excessive speed warning can
be changed. +0 km/h (+0 mph)
/+5 km/h (+5 mph)/+10 km/h
(+10 mph)
360°View Monitor (page 4-183)
Setting can be changed so that the 360° view monitor is au‐
tomatically displayed when th e ignition is switched to ON. On/Off
Setting can be changed so that
the display of the estimated
forward line of progress is not displayed. On/Off
Setting can be changed so that the top view/front view dis‐
played while the vehicle is m oving in the forward direction
after reversing is not displayed. On
/Off
Parking sensor system (page 4-246)
Display
*4/non-display On/Off
*1 Though these systems can be tur
ned Off, doing so will defeat the purpose of the system and Mazda
recommends that these systems remain On.
*2 Only the volume of the warning beep during Blind Spot Monitoring (BSM) operation ca n be changed. The
volume of the warning beep during Rear Cross Traffic Alert (RCT A) operation cannot be changed.
*3 This system functions only when the navigation system is funct ioning.*4 When the ultrasonic sensors detect an obstruction, the contents indicated on the center display switches to the
360°View Monitor.
Specifications
Personalization Features
9-13
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Vehicle Equipment
You can change the function settings according to your preferen
ce.
Personalization features which can be changed differ depending on the vehicle specifica‐
tion.
Personalization features which can be changed may change withou t notice depending on
software updates.
The following personalization feat ures can be set or changed by the customer or an Author‐
ized Mazda Dealer. Consult an Authorized Mazda Dealer for detai ls.
Personalization features which can be changed differ depending on the specification.
Setting change method
1. Select on the home screen and display the setting screen.
2. Switch the tab to [Vehicle] and select the setting item you want to change.
Function and how it can be changed (underlined item is initial setting)
Illuminated entry system (page 5-87)
Time until interior lights turn o ff after closing door 60 second s/30 seconds/15 seconds
/7.5 seconds
Time until interior lights turn off automatically when any
door is not closed completely 60 minutes/30 minutes
/10 minutes
Auto-wiper control (page 4-84)
Operational/non-operational On
/Off*1
Auto headlight off*2 (page 4-78)
Time until headlights turn off 120 seconds/90 second
s/60 seconds/30 seconds
/
Off*3
Auto-light control (page 4-78)
Timing by which lights turn on Low/Med. Low/Medium
/Med. High/High
High Beam Control System (HBC) (page 4-124)
Operational/non-operational
*4On/Off
Adaptive Front Lighting System (AFS) (page 4-123)
Operational/non-operational
*4On/Off
Lights-on reminder
*5 (page 7-45)
Warning beep volume High
/Low/Off
Coming home light (page 4-81)
Time until headlights turn off 120 seconds/90 seconds/60 seconds/30 seconds
/Off
Leaving home light (page 4-82)
Operational/non-operational On
/Off
Turn signal indicator (page 4-83)
Beep volume High
/Low
Specifications
Personalization Features
9-14
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

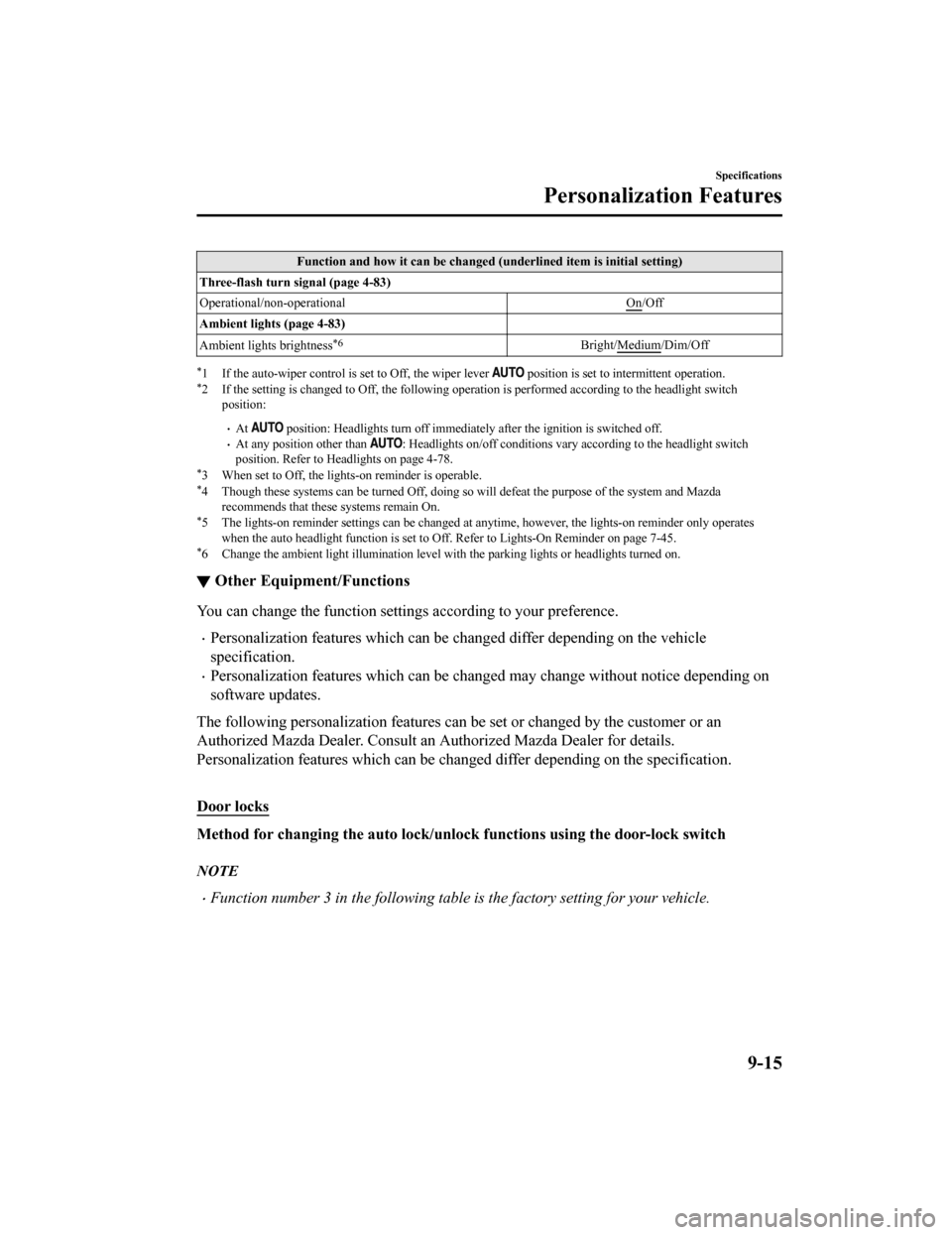

Function and how it can be changed (underlined item is initial setting)
Three-flash turn signal (page 4-83)
Operational/non-operational On
/Off
Ambient lights (page 4-83)
Ambient lights brightness
*6Bright/Medium/Dim/Off
*1 If the auto-wiper control is s et to Off, the wiper lever position is set to intermittent operation.*2 If the setting is changed to Of f, the following operation is performed according to the headlight switch
position:
At position: Headlights turn off i mmediately after the ignition i s switched off.At any position other than : Headlights on/off conditions vary according to the headlight switch
position. Refer to Headlights on page 4-78.
*3 When set to Off, the light s-on reminder is operable.*4 Though these systems can be tur ned Off, doing so will defeat the purpose of the system and Mazda
recommends that these systems remain On.
*5 The lights-on reminder settings c an be changed at anytime, however, the lights-on reminder only operates
when the auto headlight function is set to Off. Refer to Lights-On Reminder on page 7-45.
*6 Change the ambient light illumi nation level with the parking lights or headlights turned on.
▼Other Equipment/Functions
You can change t
he function settings acco rding to your preference.
Personalization features which c an be changed differ depending on the vehicle
specification.
Personalization features which can be changed may change withou t notice depending on
software updates.
The following personalization features can be set or changed by the customer or an
Authorized Mazda Dealer. Consult an Authorized Mazda Dealer for details.
Personalization features which can be changed differ depending on the specification.

Door locks
Method for changing the auto loc k/unlock functions using the door-lock switch
NOTE
Function number 3 in the following table is the factory setting for your vehicle.
Specifications
Personalization Features
9-15
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

There are only a total of six auto lock/unlock settings available for automatic transaxle
vehicles, and three for manual transaxle vehicles. Be sure to press the unlock side of the
door-lock switch the correct number of times according to the selected function number. If
the switch is mistakenly pressed seven ti mes on an automatic transaxle vehicle or four
times on a manual transaxle, the procedure will be cancelled. If this occurs, start the
procedure from the beginning.

Function number Function*1
1The auto door-lock function is disabled.
2 All the doors lock automatically
when the vehicle speed is about 20 km/h (12 mph)
or more.
3 (Factory Setting) All the doors lock automatically
when the vehicle speed is about 20 km/h (12 mph)
or more. All the doors unlock whe n the ignition is switched from ON to Off.
4 (Automatic transaxle vehicles only)
When the ignition is switched ON and the selector lever is shif
ted from park (P) to
any other gear position, all th e doors lock automatically.
5 (Automatic transaxle vehicles only)
When the ignition is switched ON and the selector lever is shif
ted from park (P) to
any other gear position, all th e doors lock automatically.
When the selector lever is shif ted to park (P) while the ignition is switched ON, all
the doors unlock automatically.
6 (Automatic transaxle vehicles only)
All the doors lock automatically
when the vehicle speed is about 20 km/h (12 mph)
or more.
When the selector lever is shif ted to park (P) while the ignition is switched ON, all
the doors unlock automatically.
*1 Other settings for the auto door lock function are available at an Authorized Mazda Dealer. For details consult
an Authorized Mazda Dealer
1. Safely park the vehicle. All doors must remain closed.
2. Switch the ignition ON.
3. Press and hold the lock side of the driver's door-lock switch within 20 seconds of
switching the ignition ON, and make sure a beep sound is heard about eight seconds
afterwards.
4. Refer to the auto lock/unlock function setting table, determine the function number for
the desired setting. Press the unlock side of the driver's door -lock switch the same
number of times as the selected function number (Ex. If you sel ect function 2, press the
unlock side of the switch only 2 times).
5. Three seconds after the function setting has been changed, a beep sound will beep in the amount of the selected function number. (Ex. Function number 3 = 3 beep sounds)
Specifications
Personalization Features
9-16
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

(Manual transaxle vehicles)
Press 2 times
Press 3 times
Current Function Number
Function Number 1
Function Number 2
Function Number 3 Press 4 times
Press unlock side of
lock switch once
Cancel setting Cancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number)
Press lock side of
lock switch
Wait for 3 second
(Automatic transaxle vehicles)
Press unlock side of
lock switch once
Press 2 times
Press 3 times
Current Function Number
Function Number 1
Function Number 2
Press 4 times
Function Number 3
Press 5 times
Function Number 4
Press 7 times
Function Number 5
Press 6 times
Function Number 6
Cancel setting Cancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number)
Press lock side of
lock switch
Wait for 3 second
Specifications
Personalization Features
9-17
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Method for changing functions using the center display
1. Select
on the home screen and display the setting screen.
2. Switch the tab to [Vehicle] and select the setting item you want to change.

Function and how it can be changed (underlined item is initial setting)
Door locks (page 3-16)
Operation condition of auto lock/unlock function Lock: Out of Park
Unlock: In Park/
Lock: Shifting Out of Park/
Lock: When Driving Unlock: In Park/
Lock: When Driving Unlock: IGN Off
/
Lock: When Driving/ Off

Keyless entry system
Method for changing the unlo ck functions using the key
1. Switch the ignition off and close all of the doors and the tr unk lid.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's door, press and hol d the UNLOCK button on
the key for 5 seconds or longer (the sound of the doors locking /unlocking can be heard).
After this, the system switches the setting of pressing the driver's request switch once or
twice to unlock all doors each time the UNLOCK button is presse d (the sound of the
doors locking/unlocki ng can be heard).
4. The setting change is completed by doing any one of the follo wing:
Switching the ignition to ACC or ON.
Closing the driver's door.
Opening the trunk lid.
Not operating the key for ten seconds.
Pressing any button except the UNLOCK button on the key.
Pressing a request switch.
Specifications
Personalization Features
9-18
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
