2020 MAZDA MODEL 6 Owner's Manual (in English)

SignalWarning
Master Warning In‐
dication/Warning
Light
*
With Multi-information Display (Type A/Type B)
Displays when notification of the system malfunctions is required.
Check the message indicated in th e display and consult an Authorized Mazda Dealer.
Master warning
indication
Master
warning lightMaster
warning light
Master warning
indication
Multi-information Display
Type A Type B
Indication in display and master warning light in instrument cl uster are illuminated at
same time.
This indicates a malfunction with the vehicle system. Check the message indicated in the
display and consult an Authorized Mazda Dealer.
For details, refer to the explanations for the warning/indicato r lights, in the warning/indi‐
cator lights section, which match the symbol in the upper part of the display.
If a message is not indicated in the display, operate the INFO switch to display the “Warn‐
ing” screen.
Refer to Message Indicated in Multi-information Display (Type A ) on page 4-15.
Refer to Message Indicated in Multi-information Display (Type B ) on page 4-33.
With Multi-information Display (Type C)
The light illuminates continuously if any one of the following occurs. Consult an Author‐
ized Mazda Dealer.
There is a malfunction in the battery management system.There is a malfunction in the brake switch.
Electric Parking
Brake (EPB) Warn‐ ing Indication/Warning Light The warning light illuminates when the system has a malfunction
. Have your vehicle in‐
spected at an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-29
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

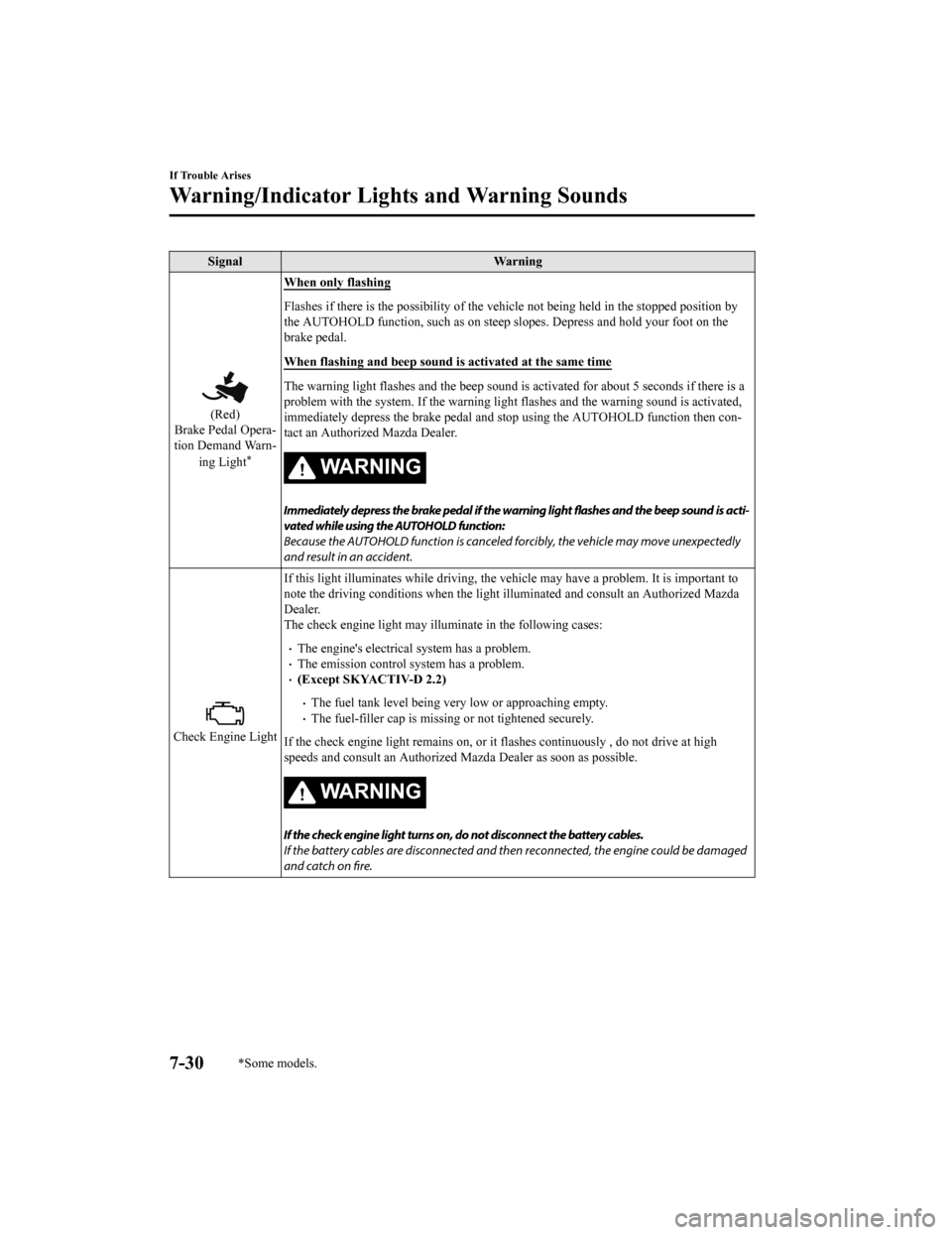

SignalWarning
(Red)
Brake Pedal Opera‐
tion Demand Warn‐
ing Light
*
When only flashing
Flashes if there is the possibility of the vehicle not being he ld in the stopped position by
the AUTOHOLD function, such as on steep slopes. Depress and hol d your foot on the
brake pedal.
When flashing and beep sound is activated at the same time
The warning light flashes and the beep sound is activated for a bout 5 seconds if there is a
problem with the system. If the warning light flashes and the warning sound is activated,
immediately depress the brake pedal and stop using the AUTOHOLD function then con‐
tact an Authorized Mazda Dealer.
WA R N I N G
Immediately depress the brake pedal if the warning light flashes and the beep sound is acti‐
vated while using the AUTOHOLD function:
Because the AUTOHOLD function is canceled forcibly, the vehicle may move unexpectedly
and result in an accident.
Check Engine Light If this light illuminates while d
riving, the vehicle may have a problem. It is important to
note the driving conditions whe n the light illuminated and consult an Authorized Mazda
Dealer.
The check engine light may illuminate in the following cases:
The engine's electrical system has a problem.The emission control system has a problem.(Except SKYACTIV-D 2.2)
The fuel tank level being very low or approaching empty.The fuel-filler cap is missing o r not tightened securely.
If the check engine light remains on, or it flashes continuously , do not drive at high
speeds and consult an Authorized Mazda Dealer as soon as possible.
WA R N I N G
If the check engine light turns on, do not disconnect the battery cables.
If the battery cables are disconnected and th en reconnected, the engine could be damaged
and catch on fire.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-30*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

SignalWarning
Selective Catalytic
Reduction (SCR)
Warning Light
*
If the light turns on
The amount of Diesel Exhaust Flui d (DEF) is low or too much was added. Check the mes‐
sage indicated on the display a nd consult an Authorized Mazda D ealer.
NOTE
If the vehicle continues to be driven while the SCR warning light is turned on, the vehi ‐
cle's speed may be restricted.
If the light is flashing
There is a problem with the SCR sy stem or the remaining amount of DEF is extremely
low. Check the message indicated on the display and have the vehicle inspected by an Au‐
thorized Mazda Dealer.
CAUTION
If the vehicle continues to be driven while th e SCR warning light is flashing, the vehicle may
stop running. If the SCR warnin g light flashes, have the vehicle inspected immediately at an
Authorized Mazda Dealer.
Automatic Trans‐
axle Warning Indi‐ cation/Warning
Light
*
The indication/light illuminates when the transaxle has a problem.
CAUTION
If the automatic transaxle warning indication/ light illuminates, the transaxle has an electri‐
cal problem. Continuing to drive your Mazda in this condition could cause damage to your
transaxle. Consult an Authorized Mazda Dealer as soon as possible.
AWD Warning Indi‐
cation*
“4WD System Malfunction” is displayed
The indication is displayed under the following conditions. The system may have a mal‐
function. Have the vehicle checked at an Authorized Mazda Deale r.
When there is a malfunction in the AWD system.When there is a large difference between the tire size of the front and rear wheels.
“4WD System High Load” is displayed
The indication is displayed unde r the following conditions. Park the vehicle in a safe place
and check that the warning indi cation light turns off, and then drive the vehicle. Contact
an Authorized Mazda Dealer if th e indication is continuously displayed.
When the differential oil temp erature is excessively high.When there is a large difference between the front and rear whe el rotation, such as
when trying to remove the vehicle from mud.
(Turns on)
TCS/DSC Indicator Light If the light stays on, the TCS, DSC or the brake assist system may have a malfunction and
they may not operate correctly.
Take your vehicle to an Authori zed Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-31
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

SignalWarning
Air Bag/Front Seat
Belt PretensionerSystem Warning Light A system malfunction is indicated if the warning light constant
ly flashes, constantly illu‐
minates or does not illuminate a t all when the ignition is switched ON. If any of these oc‐
cur, consult an Authorized Mazda Dealer as soon as possible. The system may not operate
in an accident.WA R N I N G
Never tamper with the air bag/pretensioner systems and always have an Authorized Mazda
Dealer perform all servicing and repairs:
Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner could
accidentally activate or become disabled causing serious injury or death.
(Flashing)
Tire Pressure Moni‐ toring System
Warning Light If the tire pressure monitoring s
ystem has a malfunction, the tire pressure warning light
flashes. Have your vehicle check ed by an Authorized Mazda Deale r as soon as possible.
WA R N I N G
If the tire pressure monitoring system warning light illuminates or
flashes, or the tire pres‐
sure warning beep sound is heard, decrease vehicle speed immediately and avoid sudden
maneuvering and braking:
If the tire pressure monitoring system warning light illuminates or flashes, or the tire pres‐
sure warning beep sound is heard, it is dang erous to drive the vehicle at high speeds, or
perform sudden maneuver ing or braking. Vehicle drivabilit y could worsen and result in an
accident.
To determine if you have a slow leak or a flat, pull over to a safe position where you can
check the visual condition of the tire and determine if you have enough air to proceed to a
place where air may be added and the system monitored again by an Authorized Mazda
Dealer or a tire repair station.
Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated. Have
the problem taken care of as soon as possible before it develops into a more serious situa‐
tion that could lead to tire failure and a dangerous accident.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-32
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

SignalWarning
(Amber)
KEY Warning Indi‐
cation
*
“Keyless System Malfunction” is displayed
This message is displayed if the advanced keyless entry & push button start system has a
problem.
Contact an Authorized Mazda Dealer.
CAUTION
If the message is indicated, or the push button start indicator light (amber) flashes, the en‐
gine may not start. If the engine cannot be started, try starting it using the emergency oper‐
ation for starting the engine, and have the vehicle inspected at an Authorized Mazda Deal‐
er as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-10.
“Ignition is On” is displayed
This message is displayed when the driver's door is opened with out switching the ignition
off.
“Key Not Detected” is displayed
This message is displayed when any of the following operations is performed with the key
out of the operational range or placed in areas inside the cabi n where it is difficult for the
key to be detected.
The push button start is pressed with the ignition switched offThe ignition is switched onAll doors are closed withou t switching the ignition off
(Red)
(Turns on)
KEY Warning
Light
*
If any malfunction occurs in the keyless entry system, it illuminates continuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light (amber)
flashes, the engine may not start. If the engine cannot be started, try starting it using the
emergency operation for starting the engine, and have the vehicle inspected at an Author‐
ized Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-10.
(Amber)
High Beam Control System (HBC)
Warning Indication/
Warning Light
*
The light remains turned on if th ere is a problem with the system. Have your vehicle in‐
spected at an Authorized Mazda Dealer.
NOTE
If the Forward Sensing Camera (FSC) field of view is impaired during bad weather condi ‐
tions (such as rain, fog, and snow) and when the windshield is dirty, the warning indica ‐
tion/warning light for the High Beam Control System (HBC) may display/turn on. Howev ‐
er, this does not indicate a problem.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-33
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

SignalWarning
Blind Spot Monitor‐
ing (BSM) Warning
Indication
*
The Warning indication turns on i f there is any malfunction in the Blind Spot Monitoring
(BSM). Have your vehicle inspect ed by an Authorized Mazda Deale r.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause. How ever, it does not indicate a malfunction.
Blind Spot Monitor‐
ing (BSM) OFF In‐
dicator Light
*
A problem in the system may be indicated under the following co nditions.
Have your vehicle inspected at an Authorized Mazda Dealer.
The light does not tur n on when the ignition is switched ON.The light remains on even when the Blind Spot Monitoring (BSM) system can be oper‐
ated.
It turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause (The Blin d Spot Monitoring (BSM) OFF indicator light
in the instrument cluster illuminates). Ho wever, it does not indicate a malfunction.
(Amber)
Mazda Radar Cruise Control with Stop & Go function
(MRCC with Stop & Go function)
Warning Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspect‐
ed at an Authorized Mazda Dealer.
Lane-keep Assist System (LAS) & Lane Departure
Wa r n i n g S y s t e m
(LDWS) Warning
Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspect‐
ed at an Authorized Mazda Dealer.
The system does not operate when the warning message is displayed.
CAUTION
Always use tires for all wheels that are of the specified size, and the same manufacture,
brand, and tread pattern. In addition, do no t use tires with significantly different wear
patterns on the same vehicle. If such improper tires are used, the system may not operate
normally.
 When an emergency spare tire is used, the system may not operate normally.
LED Headlight
Warning Light This light illuminates if there
is a malfunction in the LED hea dlight. Have your vehicle
inspected by an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-34*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Taking Action
Take the appropriate action and verify that the warning light t
urns off.
SignalWarning Action to be taken
(Amber)
Smart Brake Support/
Smart City Brake Sup‐ port (SBS/SCBS)
Warning Indication/
Wa r n i n g L i g h t
*
The light turns on if the windshield or the
radar sensor are dirty, or there is a malfunc‐
tion in the system. Verify the reason why the warning light is
illuminated on the center display.
If the reason why the warning light is illu‐
minated is due to a dirty windshield, clean
the windshield.
If the warning light is illuminated because
of a dirty radar sensor, clean the front em‐
blem.
For any other reasons, have the vehicle in‐
spected at an Authorized Mazda Dealer.
Low Fuel Warning In‐
dication/Warning Light The light turns on when the remaining fuel
is about 9.0 L (2.3 US gal, 1.9 Imp gal).NOTE
The light illumination timing may vary be
‐
cause fuel inside the fuel tank moves
around according to the driving conditions
and the vehicle posture. Add fuel.
Check Fuel Cap Warn‐
ing Indication/Warning Light If the check fuel cap warning light illumi‐
nates while driving, the fuel-filler cap may
not be installed properly.
Stop the engine and rein
stall the fuel-filler
cap.
Refer to Refueling on page 3-27.
Engine Oil Level Warning Light This warning light indicates that the engine
oil level is around the MIN mark (page
6-28).
Add 1 L (0.3 US gal, 0.2 Imp gal) of en‐
gine oil (page 6-25).
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-35
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17

SignalWarning Action to be taken
Seat Belt Warning
Light (Front seat) Except Mexico
The seat belt warning light turns on if the
driver or front passeng
er's seat is occupied
and the seat belt is not fastened with the ig‐
nition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's
seat is occupied) and the vehicle is driven at
a speed faster than abo ut 20 km/h (12 mph),
the warning light flash es. After a short time,
the warning light stops flashing, but re‐
mains illuminated.
NOTE
The warning light fla shes for about 6
seconds if the driver's seat belt is not fas ‐
tened when the ignition is switched ON.
To allow the front passenger occupant
classification sensor to function properly,
do not place and sit on an additional seat
cushion on the front passenger's seat.
The sensor may not function properly be‐
cause the additional seat cushion could
cause sensor interference.
If a small child is seated on the front pas ‐
senger's seat, the warning light may not
operate. Fasten the seat belts.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-36
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17
