2020 MAZDA MODEL 6 Owner's Manual (in English)

▼Opening/Closing Windows
The window opens while the switch is pressed and it closes whil
e the switch is pulled up
with the ignition switched ON. Do not open or close 3 or more w indows at the same time.
The front passenger's side and rear windows can be opened/close d when the power window
lock switch on the driver's door is in the unlock position. Kee p this switch in the locked
position while children are in the vehicle.

Close
Open Close
Open
Right rear window
Driver's
window
Power window
lock switch
Master control switches Front passenger's
switch/ Rear window
switches
Locked position
Unlocked position
Front passenger's
window
Left rear
window
NOTE
A power window may no longer open/close if you continue to press the switch after fully
opening/closing the power window. If the power window does not open/close, wait a
moment and then operate the switch again.
The passenger windows may be opened or closed using the master control switches on the
driver's door.
The power window can be operated for about 40 seconds after the ignition is switched
from ON to ACC or off with all doors closed. If any door is opened, the power window
will stop operating.
For engine-off operation of the power windo
w, the switch must be held up firmly
throughout window closure because the auto -closing function will be inoperable.
When the power window lock switch is in the locked position, the light on each power
window switch, except for the driver's power window switch, turns off. The light may be
difficult to see depending on the surrounding brightness.
Before Driving
Windows
3-35
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Auto-opening/Closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.

To stop the window p
artway, pull or press
the switch in the opposite direction and
then release it.
NOTE
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
window will not fully open and close
automatically.
The power window auto function will only
resume on a power window that has been
reset.
1. Switch the ignition ON.
2. Make sure that the power window lock switch located on the driver's door is
not depressed.
3. Press the switch and fully open the window.
4. Pull up the switch to fully close the window and continue holding the
switch for about 2 seconds after the
window fully closed.
5. Make sure that the power windows
operate correctly using the door
switches.
▼Jam-safe Window
If foreign matter is
detected between the
window and the window frame while the
window is closing automatically (refer to
Auto-opening/Closing on page 3-36), the
window stops closing and automatically
opens partway.
NOTE
The jam-safe function may operate
under the following conditions:
A strong impact is detected while the
window is closing automatically.
Window is closing automatically in
very low temperatures.
In the event the jam-safe function
activates and the power window cannot
be closed automatically, pull and hold
the switch and the window will close.
The jam-safe window function does not
operate until the system has been reset.
Before Driving
Windows
3-36
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Moonroof*
The moonroof can be opened or closed
when operating the overhead tilt/slide
switch at the front seats.
WA R N I N G
Do not let passengers stand up or extend
part of the body through the open
moonroof while the vehicle is moving:
Extending the head, arms, or other parts of
the body through the moonroof is
dangerous. The head or arms could hit
something while the vehicle is moving. This
could cause serious injury or death.
Never allow children to play with the tilt/
slide switch:
The tilt/slide switch would allow children to
operate the moonroof unintentionally,
which could result in serious injury if a
child's hands, head or neck becomes
caught by the moonroof.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person,
especially a child, could be caught in it as it
closes, causing serious injury or even death.
Make sure nothing blocks the moonroof
just before it reaches the fully closed
position:
Blocking the moonroof just before it
reaches the closed position is dangerous.
In this case, the jam-safe function cannot
prevent the moonroof from closing. If
fingers are caught, serious injuries could
occur.
CAUTION
 Do not sit on or put heavy items on the
area where the moonroof opens and
closes. Otherwise, the moonroof could be
damaged.
 Do not open or close the moonroof
forcefully during freezing temperatures
or snowfall. Otherwise, the moonroof
could be damaged.
 The sunshade does not tilt. To avoid
damaging the sunshade, do not push it
up.
 Do not close the sunshade while the
moonroof is opening. Trying to force the
sunshade closed could damage it.
▼ Tilt/Slide Operation
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Before leaving the vehicle or washing
your Mazda, make sure the moonroof is
completely closed so that water does not
get inside the cabin area.
After washing your Mazda or after it
rains, wipe the water off the moonroof
before operating it to avoid water
penetration which could cause rust and
water damage to your headliner.
Tilt/Slide switch
Before Driving
Windows
*Some models.3-37
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17

Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.

To fully tilt automatically, momentarily
press the tilt/slide switch.
To fully close automatically, momentarily
press the tilt/slide s witch in the forward
direction.
To stop tilting partway, press the tilt/slide
switch.
When the moonroof is already slid open
and you want to tilt it open, first close the
moonroof and then do a tilt operation.
Close (Tilt down) Tilt up
Slide Operation
To fully open automa
tically, momentarily
press the tilt/slide sw itch in the backward
direction.
To fully close automatically, momentarily
press the tilt/slide s witch in the forward
direction.
To stop sliding partway, press the tilt/slide
switch.
When the moonroof is already tilted open
and you want to slide it open, first close
the moonroof and then do a slide
operation.
Close Open
NOTE
If the moonroof does not operate normally,
do the following procedure:
1. Switch the ignition ON.
2. Press the tilt switch, to partially tilt
open the rear of the moonroof.
3. Repeat Step 2. The rear of the moonroof tilts open to the fully open
position, then closes a little.
If the reset procedure is performed while
the moonroof is in the slide position
(partially open) it will close before the
rear tilt opens.
Before Driving
Windows
3-38
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

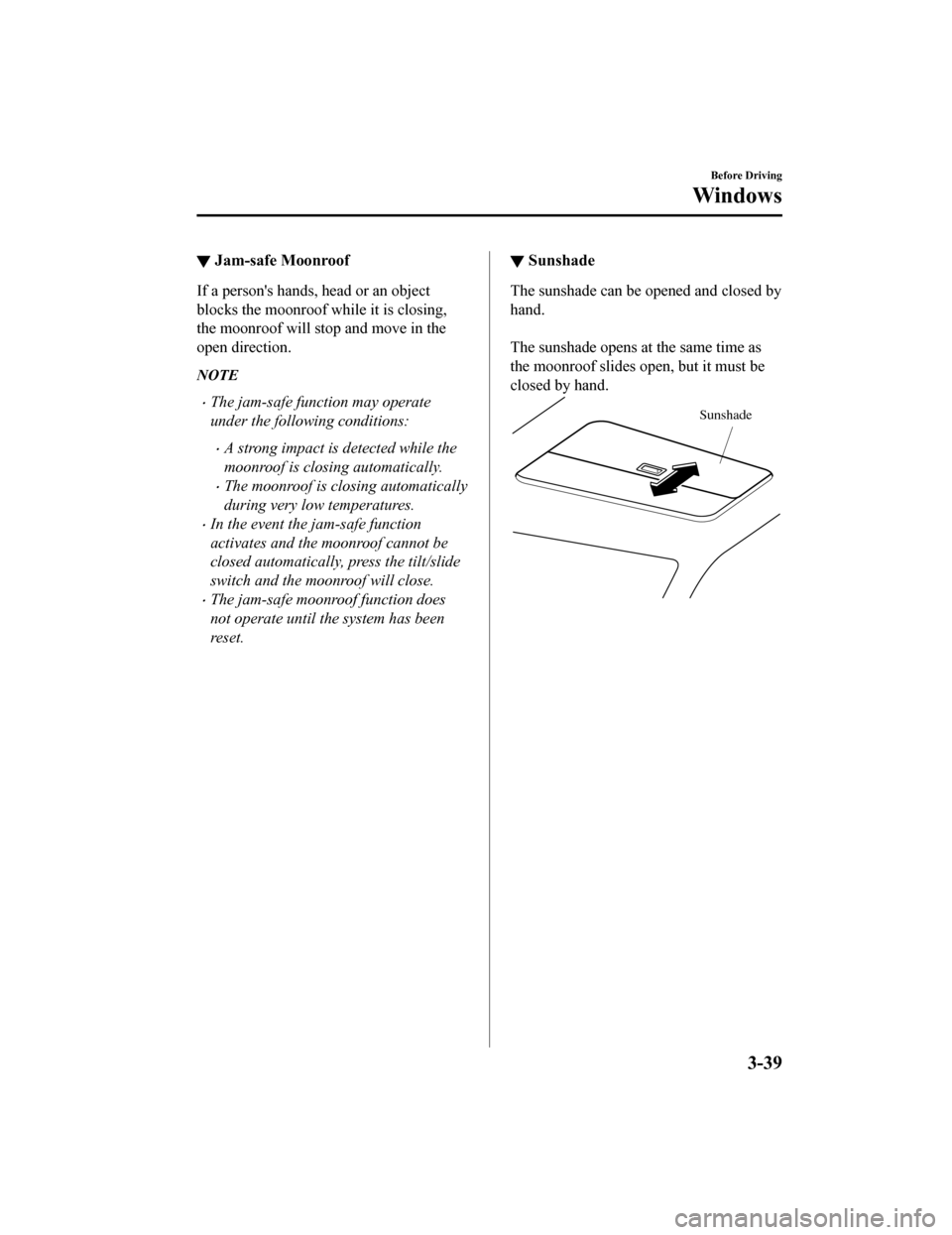

▼Jam-safe Moonroof
If a person's hands, head or an object
blocks the moonroof while it is closing,
the moonroof will stop and move in the
open direction.
NOTE
The jam-safe function may operate
under the following conditions:
A strong impact is detected while the
moonroof is closing automatically.
The moonroof is closing automatically
during very low temperatures.
In the event the jam-safe function
activates and the moonroof cannot be
closed automatically, press the tilt/slide
switch and the moonroof will close.
The jam-safe moonroof function does
not operate until the system has been
reset.
▼Sunshade
The sunshade can be opened and closed by
hand.

The sunshade opens at the same time as
the moonroof slides open, but it must be
closed by hand.
Sunshade
Before Driving
Windows
3-39
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17

Modification and Add-OnEquipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modified or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do not
modify the system or install any add-on
equipment to the immobilizer and the
theft-deterrent systems or the vehicle.
Immobilizer System
The immobilizer system allows the engine
to start only with a key the system
recognizes.

If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent
vehicle theft.
If you have a pr oblem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
 Radio equipment like this is governed by
laws in the United States.
Changes or
modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
 To avoid damage to the key, do not:
 Drop the key.
 Get the key wet.
 Expose the key to any kind of magnetic
field.
 Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
 If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
Before Driving
Security System
3-40
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

NOTE
The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.
Always keep a spare key in case one is
lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
If you lose a key, an Authorized Mazda
Dealer, will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
the Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
▼ Operation
NOTE
The engine may not start and security
indicator light may illuminate or flash if
the key is placed in an area where it is
difficult for the system to detect the
signal, such as on the dashboard or in
the glove compartment. Move the key to
a location within the signal range,
switch the ignition off, and then restart
the engine.
Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indica
tor light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.

Disarming
The system is disarmed when the ignition
is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after 3
or more tries, contact an Authorized
Mazda Dealer.
NOTE
If the security indicator light flashes
continuously while you are driving, do
not shut off the engine. Go to an
Authorized Mazda Dealer, and have it
checked. If the engine is shut off while
the indicator light is flashing, you will
not be able to restart it.
Because the electronic codes are reset
when the immobilizer system is repaired,
the keys are needed. Make sure to bring
all the keys to an Authorized Mazda
Dealer, so that they can be programmed.
Before Driving
Security System
3-41
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Theft-Deterrent System*
If the theft-deterrent system detects an
inappropriate entry into the vehicle, which
could result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
▼ Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the sys
tem is triggered by
any one of the following:
Unlocking a door with the auxiliary key,
door lock switch, or an inside door-lock
knob.
Forcing open a door, the hood or the
trunk lid.
Opening the hood by operating the hood
release handle.
Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activate until the driver's
door or the trunk lid is unlocked with the
transmitter.
(With the advanced keyless function)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
NOTE
If the battery goes dead while the
theft-deterrent system is armed, the horn
will activate and the hazard warning
lights will flash wh en the battery is
charged or replaced.
▼ How to Arm the System
1. Close the windows and the moonroof*
securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the trunk lid are closed.
4. Press the lock butto n on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
The following method will also arm
the theft-deterrent system:
Press the door-lock switch “
” while
any door is open and then close all of
the doors.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully
armed.
NOTE
The theft-deterrent system can also be
armed by activating the auto relock
function with all the doors, the trunk lid
and the hood closed.
Refer to Transmitter on page 3-5.
Before Driving
Security System
3-42*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
