2019 MERCEDES-BENZ SPRINTER MY19 with 7” screen

Fr

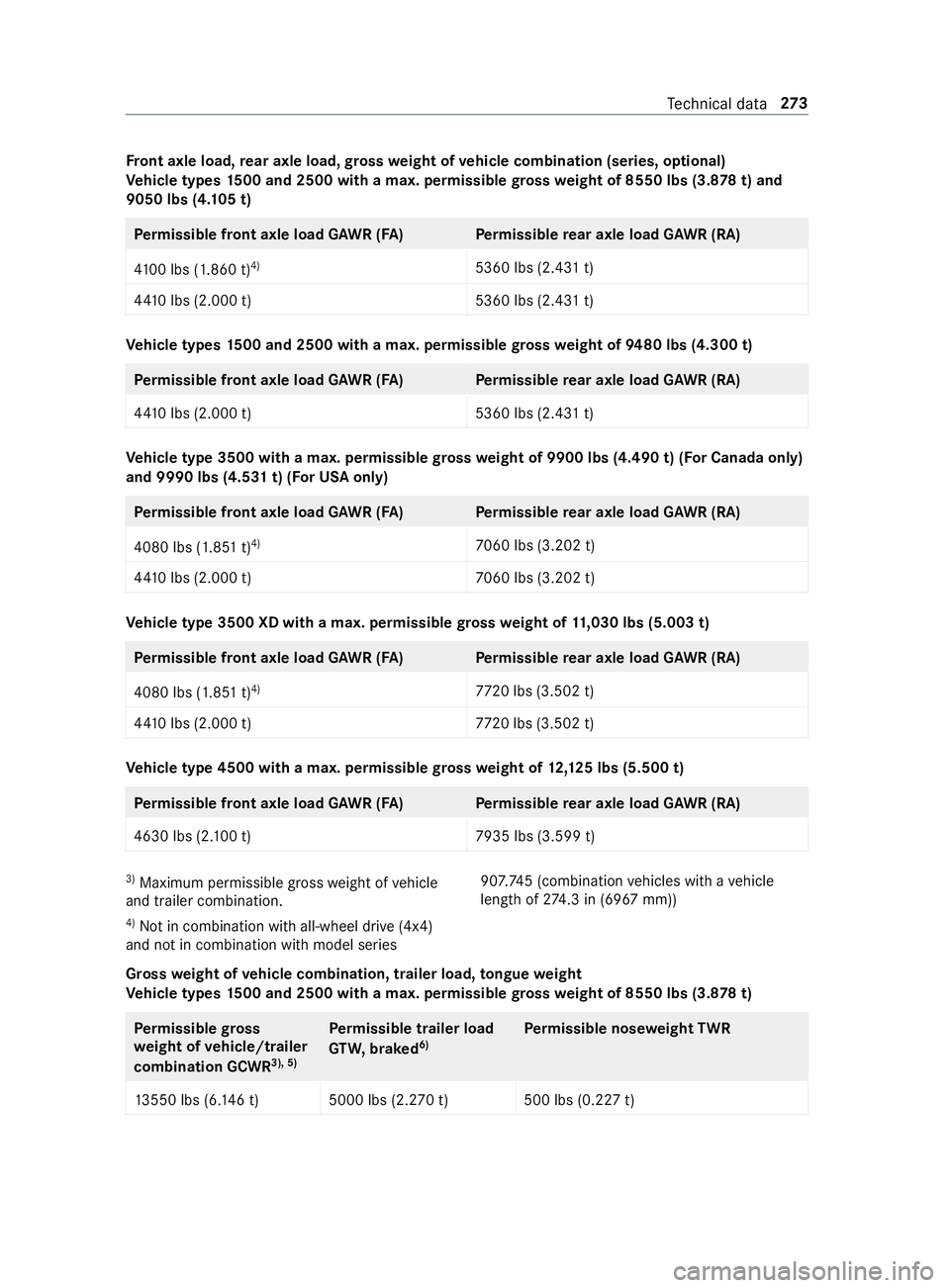

ont axle load, rear axle load, gross weight of vehicle combination (se ries, optional)
Ve hicle types 1500 and 2500 with a max. permissible gross weight of 8550 lbs (3.8 78t) and
9050 lbs (4 .105 t) Pe
rm issible front axle load GAWR (FA) Perm issible rear axle load GAWR (RA)
41 00 lbs (1.860 t) 4)
5360 lbs (2.431 t)
44 10 lbs (2.000 t) 5360 lbs (2.431 t)Ve
hicle types 1500 and 2500 with a max. permissible gross weight of 9480 lbs (4.300 t) Pe
rm issible front axle load GAWR (FA) Perm issible rear axle load GAWR (RA)
44 10 lbs (2.000 t) 5360 lbs (2.431 t)Ve
hicle type 3500 with a max. permissible gross weight of 9900 lbs (4.490 t) (For Canada only)
and 9990 lbs (4.531 t) (For USA only) Pe
rm issible front axle load GAWR (FA) Perm issible rear axle load GAWR (RA)
4080 lbs (1.851 t) 4)
7060 lbs (3.202 t)
44 10 lbs (2.000 t) 7060 lbs (3.202 t)Ve
hicle type 3500 XD with a max. permissible gross weight of 11,030 lbs (5.003 t) Pe
rm issible front axle load GAWR (FA) Perm issible rear axle load GAWR (RA)
4080 lbs (1.851 t) 4)
7720 lbs (3.502 t)
44 10 lbs (2.000 t) 7720 lbs (3.502 t) Ve
hicle type 4500 with a max. permissible gross weight of 12,125 lbs (5.500 t) Pe
rm issible front axle load GAWR (FA) Perm issible rear axle load GAWR (RA)
4630 lbs (2. 100 t) 7935 lbs (3.599 t)3)
Maximum permissible gross weight of vehicle
and trailer combination.
4) Not in combination with all-wheel drive (4x4)
and not in combination with model series 90
7.74 5 (combination vehicles with a vehicle
length of 274.3 in (6967 mm))
Gross weight of vehicle combination, trailer load, tongue weight
Ve hicle types 1500 and 2500 with a max. permissible gross weight of 8550 lbs (3.8 78t) Pe
rm issible gross
we ight of vehicle/trailer
combination GCWR 3), 5)Pe
rm issible trailer load
GT W, braked 6) Pe
rm issible nose weight TWR
13 550 lbs (6. 146 t) 5000 lbs (2.270 t) 500 lbs (0.227 t) Te
ch nical da ta273

Ve

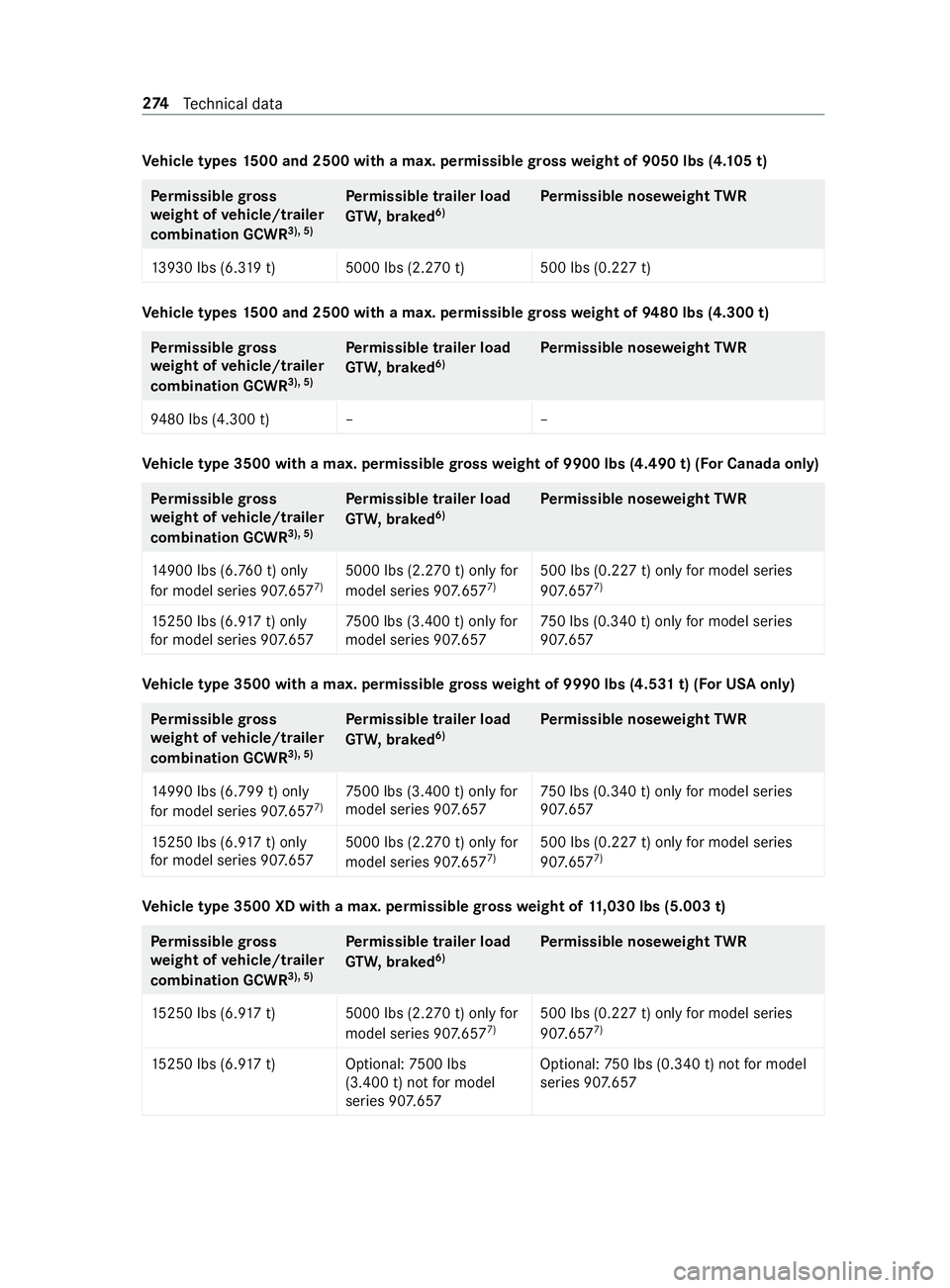

hicle types 1500 and 2500 with a max. permissible gross weight of 9050 lbs (4. 105 t) Pe
rm issible gross
we ight of vehicle/trailer
combination GCWR 3), 5)Pe
rm issible trailer load
GT W, braked 6) Pe
rm issible nose weight TWR
13 930 lbs (6.3 19t) 5000 lb s (2.270 t) 500 lbs (0.227 t) Ve
hicle types 1500 and 2500 with a max. permissible gross weight of 9480 lbs (4.300 t) Pe
rm issible gross
we ight of vehicle/trailer
combination GCWR 3), 5)Pe
rm issible trailer load
GT W, braked 6) Pe
rm issible nose weight TWR
94 80 lbs (4.300 t) ––Ve
hicle type 3500 with a max. permissible gross weight of 9900 lbs (4.490 t) (For Canada only) Pe
rm issible gross
we ight of vehicle/trailer
combination GCWR 3), 5)Pe
rm issible trailer load
GT W, braked 6) Pe
rm issible nose weight TWR
14 900 lbs (6.760 t) only
fo r model series 90 7.657 7) 5000 lbs (2.270 t) only
for
model series 90 7.657 7) 500 lbs (0.227 t) only
for model series
90 7.657 7)
15 250 lbs (6.9 17t) only
fo r model series 90 7.657 75
00 lbs (3.400 t) only for
model series 90 7.657 75
0 lbs (0.340 t) only for model series
90 7.657 Ve
hicle type 3500 with a max. permissible gross weight of 9990 lbs (4.531 t) (For USA only) Pe
rm issible gross
we ight of vehicle/trailer
combination GCWR 3), 5)Pe
rm issible trailer load
GT W, braked 6) Pe
rm issible nose weight TWR
14 990 lbs (6.799 t) only
fo r model series 90 7.657 7) 75
00 lbs (3.400 t) only for
model series 90 7.657 75
0 lbs (0.340 t) only for model series
90 7.657
15 250 lbs (6.9 17t) only
fo r model series 90 7.657 5000 lbs (2.270 t) only
for
model series 90 7.657 7) 500 lbs (0.227 t) only
for model series
90 7.657 7) Ve
hicle type 3500 XD with a max. permissible gross weight of 11,030 lbs (5.003 t) Pe
rm issible gross
we ight of vehicle/trailer
combination GCWR 3), 5)Pe
rm issible trailer load
GT W, braked 6) Pe
rm issible nose weight TWR
15 250 lbs (6.9 17t) 5000 lb s (2.270 t) only for
model series 90 7.657 7) 500 lbs (0.227 t) only
for model series
90 7.657 7)
15 250 lbs (6.9 17t) Optional: 7500 lbs
(3.400 t) not for model
series 90 7.657 Optional:
750 lbs (0.340 t) not for model
series 90 7.657 274
Tech nical da ta

Ve

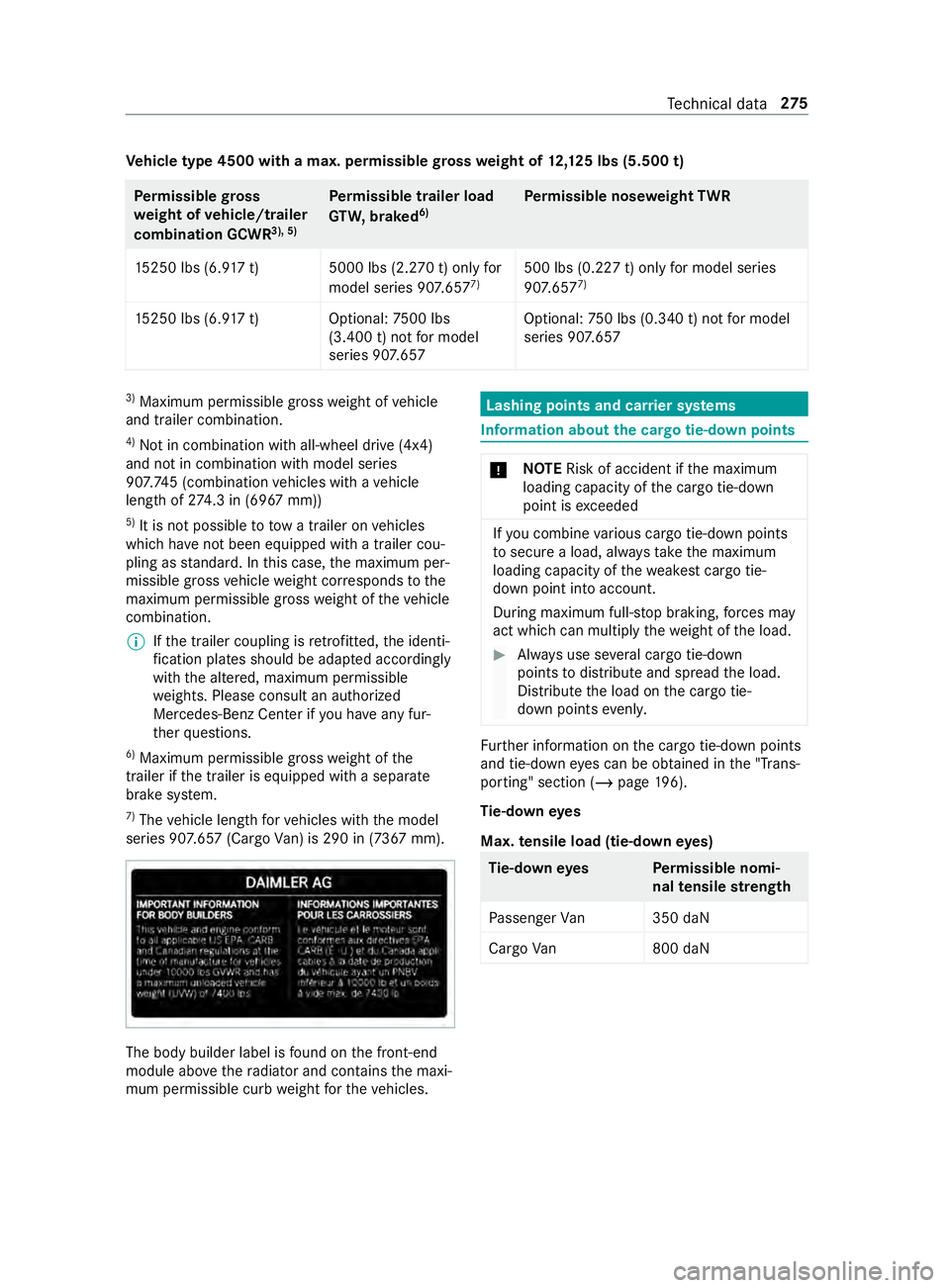

hicle type 4500 with a max. permissible gross weight of 12,125 lbs (5.500 t) Pe
rm issible gross
we ight of vehicle/trailer
combination GCWR 3), 5)Pe
rm issible trailer load
GT W, braked 6) Pe
rm issible nose weight TWR
15 250 lbs (6.9 17t) 5000 lb s (2.270 t) only for
model series 90 7.657 7) 500 lbs (0.227 t) only
for model series
90 7.657 7)
15 250 lbs (6.9 17t) Optional: 7500 lbs
(3.400 t) not for model
series 90 7.657 Optional:
750 lbs (0.340 t) not for model
series 90 7.657 3)
Maximum permissible gross weight of vehicle
and trailer combination.
4) Not in combination with all-wheel drive (4x4)
and not in combination with model series
90 7.74 5 (combination vehicles with a vehicle
length of 274.3 in (6967 mm))
5) It is not possible to tow a trailer on vehicles
which ha venot been equipped wi tha trailer cou‐
pling as standard. In this case, the maximum per‐
missible gross vehicle weight cor responds tothe
maximum permissible gross weight of theve hicle
combination.
% If
th e trailer coupling is retrofitted, the identi‐
fi cation pla tes should be adap ted according ly
with the altered, maximum permissible
we ights. Please consult an authorized
Mercedes-Benz Center if you ha veany fur‐
th er questions.
6) Maximum permissible gross weight of the
trailer if the trailer is equipped with a separate
brake sy stem.
7) The vehicle length forve hicles with the model
series 90 7.657 (Cargo Van) is 290 in (7367 mm). The body builder label is
found on the front-end
module abo vethera diator and con tains the maxi‐
mum permissible curb weight forth eve hicles. Lashing points and car
rier sy stems Information about
the cargo tie-down points *
NO
TERisk of accident if the maximum
loading capacity of the cargo tie-down
point is exceeded If
yo u combine various cargo tie-down points
to secure a load, alw aysta ke the maximum
loading capacity of thewe akest cargo tie-
down point into account.
During maximum full- stop braking, forc es may
act which can multiply thewe ight of the load. #
Always use se veral cargo tie-down
points todistribute and spread the load.
Distribute the load on the cargo tie-
down points evenly. Fu
rther information on the cargo tie-down points
and tie-down eyes can be obtained in the "T rans‐
porting" section (/ page 196).
Ti e-d owney es
Max. tensile load (tie-down eyes) Ti
e-d owney es Perm issible nomi‐
nal tensile stre ngth
Pa ssenger Van3 50 daN
Cargo Van8 00 daN Te
ch nical da ta275

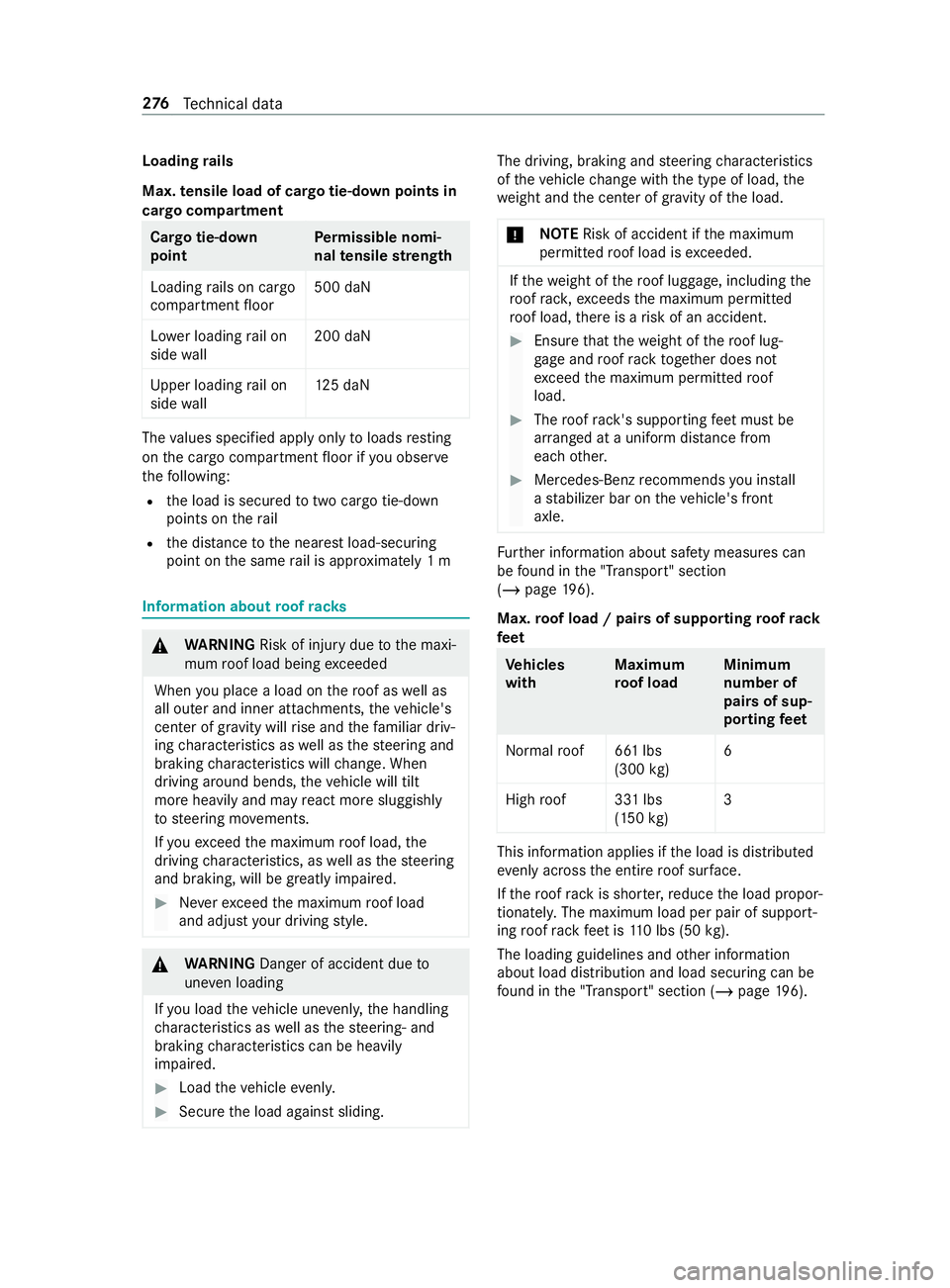

Loading
rails
Max. tensile load of cargo tie-down points in
cargo compartment Cargo tie-down
point
Pe
rm issible nomi‐
nal tensile stre ngth
Loading rails on cargo
compartment floor 500 daN
Lo we r loading rail on
side wall 200 daN
Up per loading rail on
side wall 12
5 daN The
values specified apply only toloads resting
on the cargo compartment floor if you obse rve
th efo llowing:
R the load is secured totwo cargo tie-down
points on thera il
R the dis tance tothe nearest load-securing
point on the same rail is appr oximately 1 m Information about
roof racks &
WARNING Risk of inju rydue tothe maxi‐
mum roof load being exceeded
When you place a load on thero of as well as
all outer and inner attachments, theve hicle's
center of gr avity will rise and thefa miliar driv‐
ing characteristics as well as thesteering and
braking characteristics will change. When
driving around bends, theve hicle will tilt
more heavily and may react more sluggishly
to steering mo vements.
If yo uexc eed the maximum roof load, the
driving characteristics, as well as thesteering
and braking, will be greatly impaired. #
Neverexc eed the maximum roof load
and adjust your driving style. &
WARNING Danger of accident due to
une ven loading
If yo u load theve hicle une venly, the handling
ch aracteristics as well as thesteering‑ and
braking characteristics can be heavily
impaired. #
Load theve hicle evenly. #
Secu rethe load against sliding. The driving, braking and
steering characteristics
of theve hicle change with the type of load, the
we ight and the center of gr avity of the load.
* NO
TERisk of accident if the maximum
permitted roof load is exceeded. If
th ewe ight of thero of luggage, including the
ro of rack ,exc eeds the maximum permitted
ro of load, there is a risk of an accident. #
Ensure that thewe ight of thero of lug‐
ga ge and roof rack toget her does not
exc eed the maximum permitted roof
load. #
The roof rack 's supporting feet must be
ar ranged at a uni form distan ce from
ea ch other. #
Mercedes-Benz recommends you ins tall
a st abilizer bar on theve hicle's front
axle. Fu
rther information about saf ety measures can
be found in the "T ranspo rt" section
(/ page 196).
Max. roof load / pairs of supporting roof rack
fe et Ve
hicles
with Maximum
ro
of load Minimum
number of
pairs of sup‐
porting
feet
Normal roof 661 lbs
(300kg) 6
High roof 331 lbs
(150kg) 3 This information applies if
the load is distributed
eve nly across the entire roof sur face.
If th ero of rack is shor ter,re duce the load propor‐
tionatel y.The maximum load per pair of support‐
ing roof rack feet is110 lbs (50 kg).
The loading guidelines and other information
about load distribution and load securing can be
fo und in the "T ranspo rt" section (/ page196). 276
Tech nical da ta

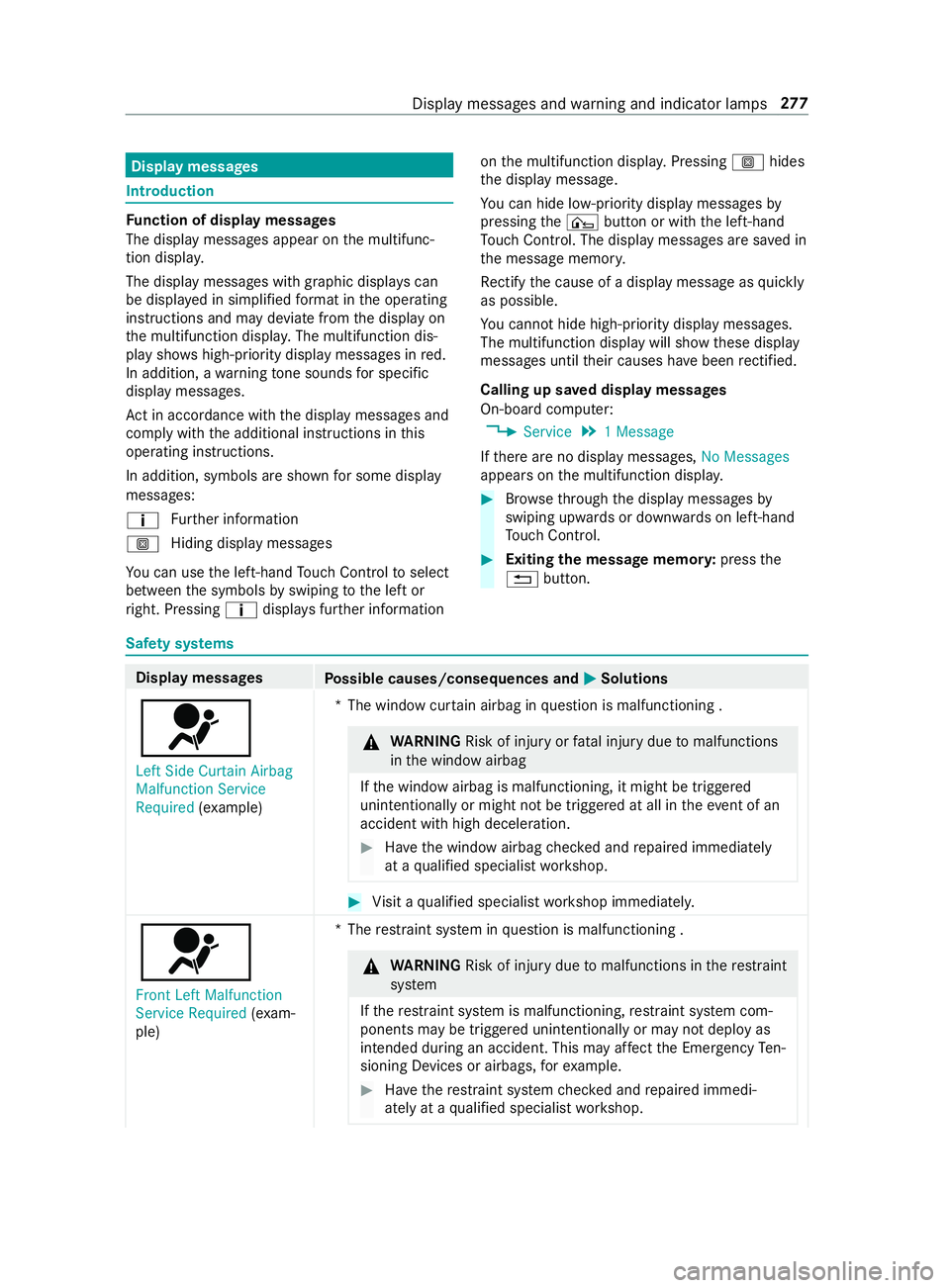

Display messages
Int
roduction Fu
nction of display messages
The display messages appear on the multifunc‐
tion displa y.
The display messages with graphic displa yscan
be displa yed in simplified form at in the operating
instructions and may deviate from the display on
th e multifunction displa y.The multifunction dis‐
play sho wshigh-priority display messages in red.
In addition, a warning tone sounds for specific
display messa ges.
Ac t in accordance wi th the display messages and
comply with the additional instructions in this
operating instructions.
In addition, symbols are shown for some display
messa ges:
0091 Fu
rther information
0061 Hiding display messages
Yo u can use the left-hand Touch Control toselect
between the symbols byswiping tothe left or
ri ght. Pressing 0091displa ysfur ther information on
the multifunction displa y.Pressing 0061hides
th e display message.
Yo u can hide lo w-priority display messages by
pressing the¤ button or with the left-hand
To uch Control. The displ aymessages are sa ved in
th e message memor y.
Re ctify the cause of a display message as quickly
as possible.
Yo u cannot hide high-priority displ aymessages.
The multifunction display will show these display
messages until their causes ha vebeen rectified.
Calling up sa ved displ aymessages
On-boa rdcompu ter:
4 Service 5
1 Message
If th ere are no display messages, No Messages
appears on the multifunction displa y. #
Brows eth ro ugh the display messages by
swiping upwards or down wards on left-hand
To uch Control. #
Exiting the message memor y:press the
0038 button. Saf
ety sy stems Display messages
Possible causes/consequences and 0050 0050Solutions
0075
Left Side Curtain Airbag
Malfunction Service
Required (exa mp le) *T
he window cur tain airbag in question is malfunctioning . &
WARNING Risk of inju ryor fata l injury due tomalfunctions
in the window airbag
If th e window airbag is malfunctioning, it might be triggered
unintentionally or might not be triggered at all in theeve nt of an
accident wi thhigh deceleration. #
Have the window airbag checked and repaired immediately
at a qualified specialist workshop. #
Visit a qualified specialist workshop immediately.
0075 Front Left Malfunction
Service Required (exa m‐
ple) *T
herestra int sy stem in question is malfunctioning . &
WARNING Risk of inju rydue tomalfunctions in there stra int
sy stem
If th ere stra int sy stem is malfunctioning, restra int sy stem com‐
ponents may be triggered unintentionally or may not deploy as
intended during an accident. This may af fect the Emer gency Ten‐
sioning Devices or airbags, forex ample. #
Have there stra int sy stem checked and repaired immedi‐
ately at a qualified specialist workshop. Display messages and
warning and indicator lamps 277

Display messages
Possible causes/consequences and 0050 0050Solutions

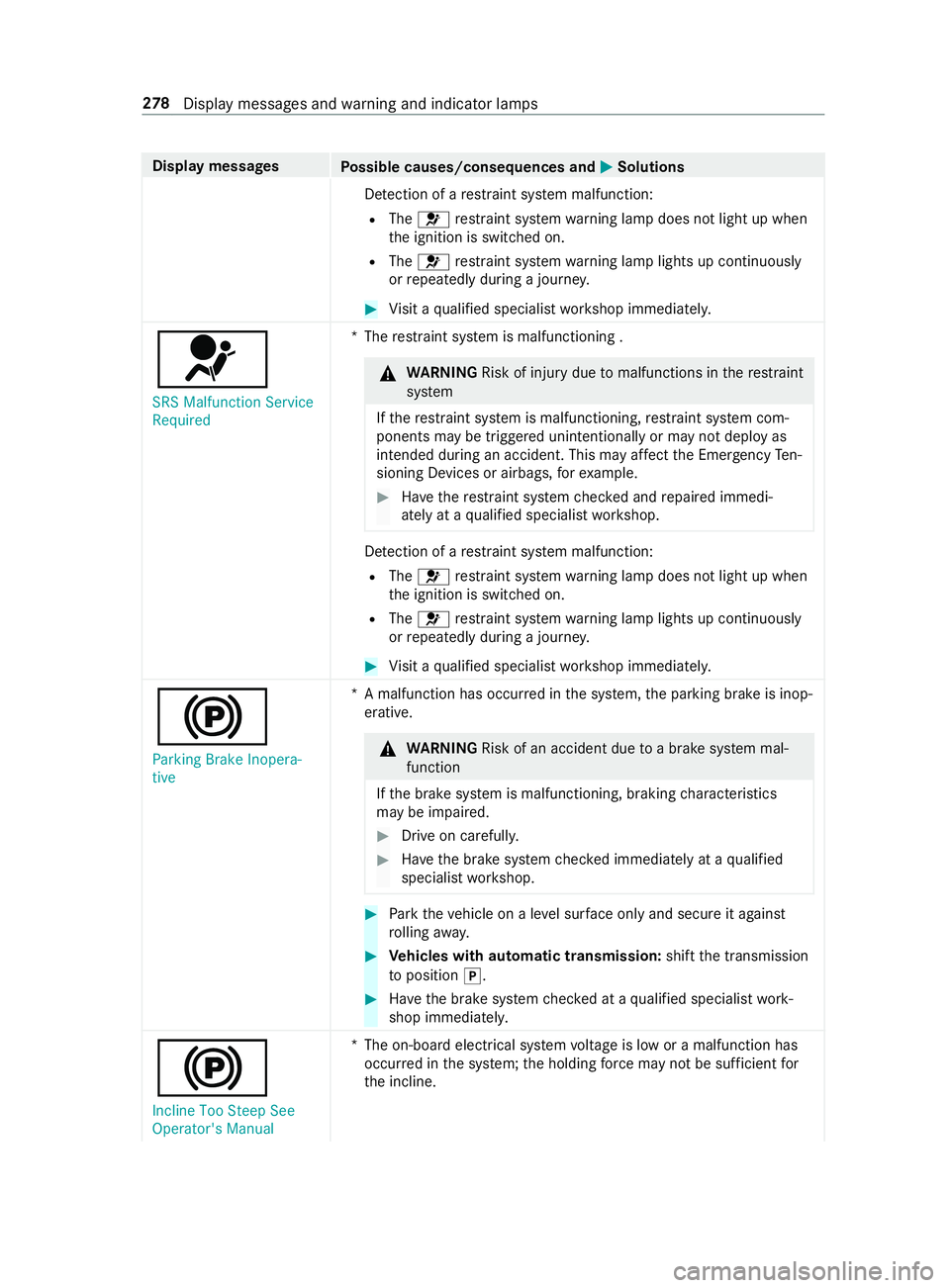

De tection of a restra int sy stem malfunction:
R The 0075 restra int sy stem warning lamp does not light up when
th e ignition is switched on.
R The 0075 restra int sy stem warning lamp lights up continuously
or repeatedly during a journe y. #
Visit a qualified specialist workshop immediately.
0075 SRS Malfunction Service
Required *T
herestra int sy stem is malfunctioning . &
WARNING Risk of inju rydue tomalfunctions in there stra int
sy stem
If th ere stra int sy stem is malfunctioning, restra int sy stem com‐
ponents may be triggered unintentionally or may not deploy as
intended during an accident. This may af fect the Emer gency Ten‐
sioning Devices or airbags, forex ample. #
Have there stra int sy stem checked and repaired immedi‐
ately at a qualified specialist workshop. De
tection of a restra int sy stem malfunction:
R The 0075 restra int sy stem warning lamp does not light up when
th e ignition is switched on.
R The 0075 restra int sy stem warning lamp lights up continuously
or repeatedly during a journe y. #
Visit a qualified specialist workshop immediately.
0024 Parking Brake Inopera-
tive *A
malfunction has occur red in the sy stem, the parking brake is inop‐
erative. &
WARNING Risk of an accident due toa brake sy stem mal‐
function
If th e brake sy stem is malfunctioning, braking characteristics
may be impaired. #
Drive on carefull y. #
Have the brake sy stem checked immediately at a qualified
specialist workshop. #
Park theve hicle on a le vel sur face only and secu reit against
ro lling away. #
Vehicles with automatic transmission: shiftthe transmission
to position 005D. #
Have the brake sy stem checked at a qualified specialist work‐
shop immediatel y.
0024 Incline Too Steep See
Operator's Manual *T
he on-board electrical sy stem voltage is low or a malfunction has
occur red in the sy stem; the holding forc e may not be suf ficient for
th e incline. 278
Displaymessa ges and warning and indicator lamps

Display messages

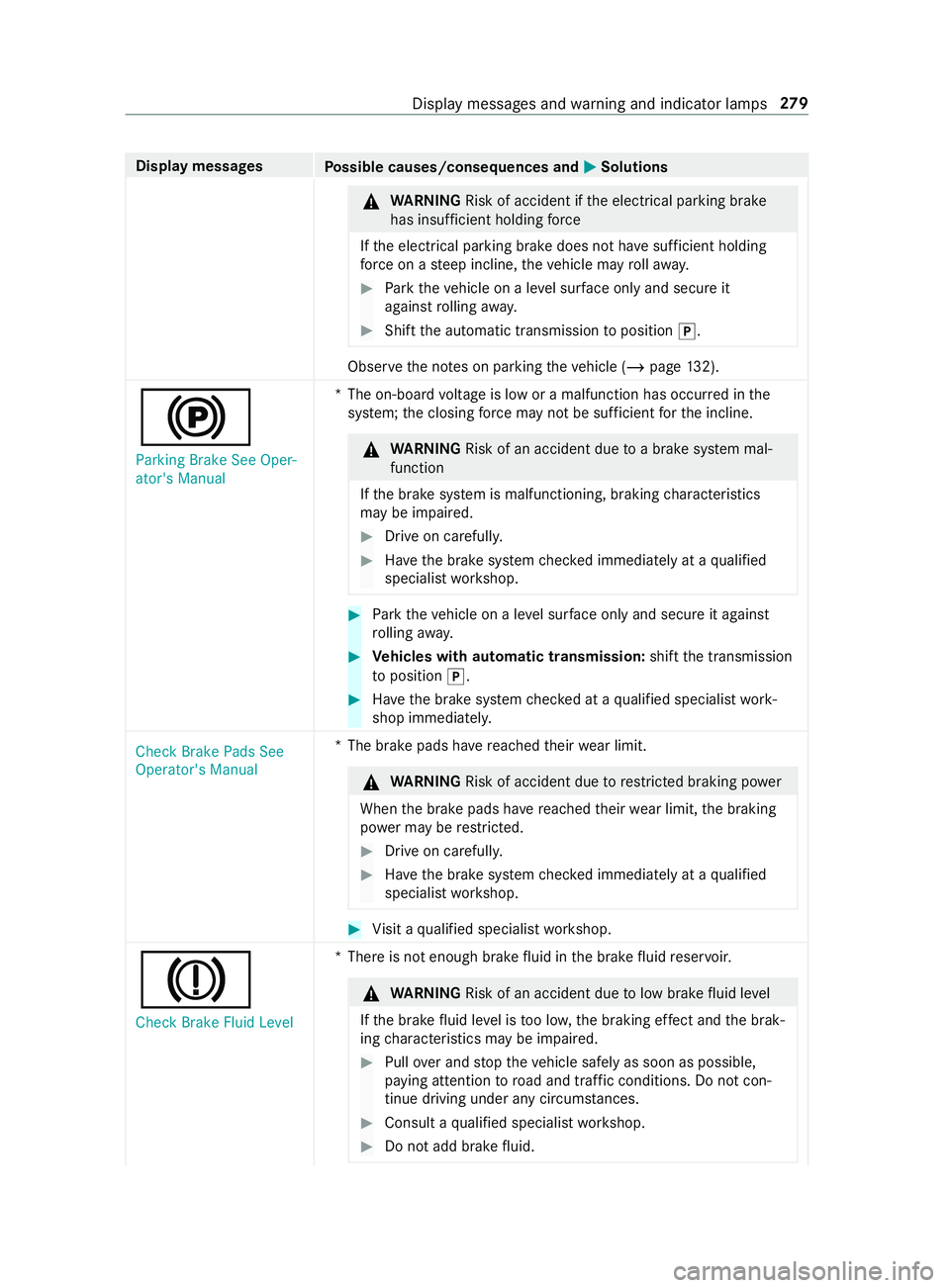

Possible causes/consequences and 0050 0050Solutions &
WARNING Risk of accident if the electrical parking brake
has insuf ficient holding force
If th e electrical parking brake does not ha vesuf ficient holding
fo rc e on a steep incline, theve hicle may rollaw ay. #
Park theve hicle on a le vel sur face only and secu reit
against rolling away. #
Shift the automatic transmission toposition 005D. Obser
vethe no tes on parking theve hicle (/ page132).
0024
Parking Brake See Oper-
ator's Manual *T
he on-board voltage is low or a malfunction has occur red in the
sy stem; the closing forc e may not be suf ficient forth e incline. &
WARNING Risk of an accident due toa brake sy stem mal‐
function
If th e brake sy stem is malfunctioning, braking characteristics
may be impaired. #
Drive on carefull y. #
Have the brake sy stem checked immediately at a qualified
specialist workshop. #
Park theve hicle on a le vel sur face only and secu reit against
ro lling away. #
Vehicles with automatic transmission: shiftthe transmission
to position 005D. #
Have the brake sy stem checked at a qualified specialist work‐
shop immediatel y.
Check Brake Pads See
Operator's Manual *T
he brake pads ha vereached their wear limit. &
WARNING Risk of accident due torestricted braking po wer
When the brake pads ha vereached their wear limit, the braking
po we r may be restricted. #
Drive on carefully. #
Have the brake sy stem checked immediately at a qualified
specialist workshop. #
Visit a qualified specialist workshop.
004D
Check Brake Fluid Level *T
here is not enough brake fluid in the brake fluid reser voir. &
WARNING Risk of an accident due tolow brake fluid le vel
If th e brake fluid le vel is too lo w,the braking ef fect and the brak‐
ing characteristics may be impaired. #
Pull over and stop theve hicle safely as soon as possible,
paying attention toroad and traf fic conditions. Do not con‐
tinue driving under any circums tances. #
Consult a qualified specialist workshop. #
Do not add brake fluid. Display messages and
warning and indicator lamps 279

Display messages
Possible causes/consequences and 0050 0050Solutions #
Stop in a safe location immediately. Do not continue driving. #
Consult a qualified specialist workshop. #
Do not add brake fluid.
Caution Brakes Overhea-
ted Drive Carefully *I
fth e all-wheel drive has been switched on, the brake sy stem can
ove rheat during extreme off-road use. #
Decele rate or stop and let the brake sy stem cool down.
Active Brake Assist Func-
tions Limited See Opera-
tor's Manual *A
ctive Brake Assi stis malfunctioning. #
Visit a qualified specialist workshop.
Active Brake Assist Func-
tions Currently Limited
See Operator's Manual *A
ctive Brake Assi stistemp orarily una vailable.
The ambient conditions are outside the sy stem limits (/ page139). #
Continue driving.
When the ambient conditions are within the sy stem limits, the
sy stem will be available again. #
Ifth e display message does not go out, stop in a safe location
and re-sta rt the engine.
Radar Sensors Dirty See
Operator's Manual *
The radar sensor sy stem is malfunctioning. Possible causes:
R dirt on the sensors
R heavy precipitation
R extended country drives wi thout other traf fic, e.g. in the desert
Driving sy stems and driving saf ety sy stems may be malfunctioning
or temp orarily una vailable.
When the causes ha vebeen eliminated, the driving sy stems and
driving saf ety sy stems will be available again.
If th e display message does not disappear, proceed as follo ws: #
Stop in accordance with the tra ffic conditions. #
Clean all sensors (/ page212). #
Re-sta rt the engine.
SOS NOT READY *T
he emergency call sy stem is not available.
Po ssible causes forth is include:
R The ignition is switched off
R The emer gency call sy stem is malfunctioning. #
Switch on the ignition.
If an emer gency call is una vailable, a message tothis ef fect will
appear on the multifunction display of the instrument clus ter. #
Visit a qualified specialist workshop.
% Yo
u can find more information on there gional availability of the
emer gency call sy stem at: http://www.mercedes-benz.com/
connect_ecall 280
Display messages and warning and indicator lamps
