2018 SUBARU BRZ Owners Manual

65
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
BRZ_U (A4450BE-A)

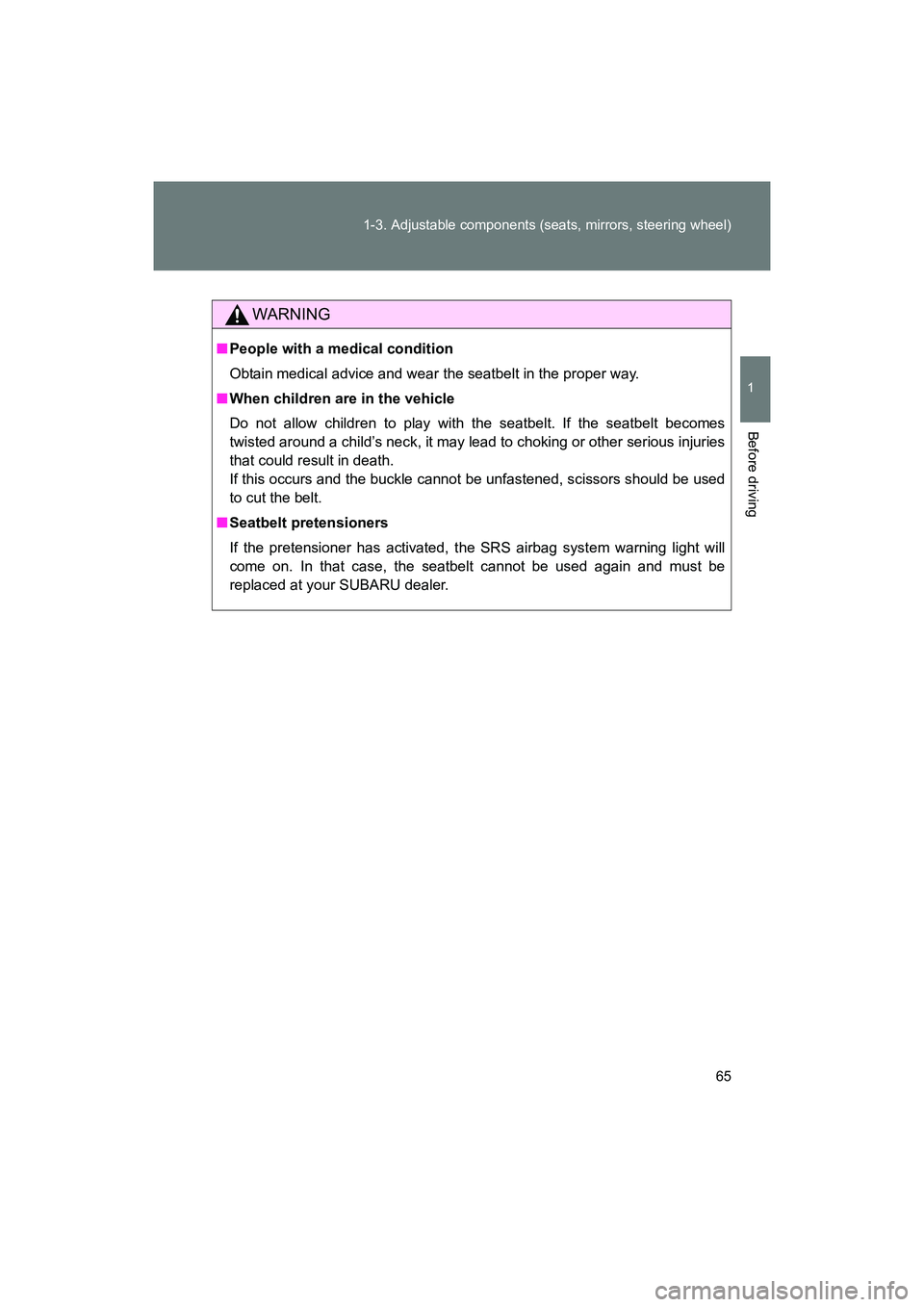

WARNING
■
People with a medical condition
Obtain medical advice and wear the seatbelt in the proper way.
■ When children are in the vehicle
Do not allow children to play with the seatbelt. If the seatbelt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ Seatbelt pretensioners
If the pretensioner has activated, the SRS airbag system warning light will
come on. In that case, the seatbelt cannot be used again and must be
replaced at your SUBARU dealer.

66 1-3. Adjustable components (seats, mirrors, steering wheel)
BRZ_U (A4450BE-A)

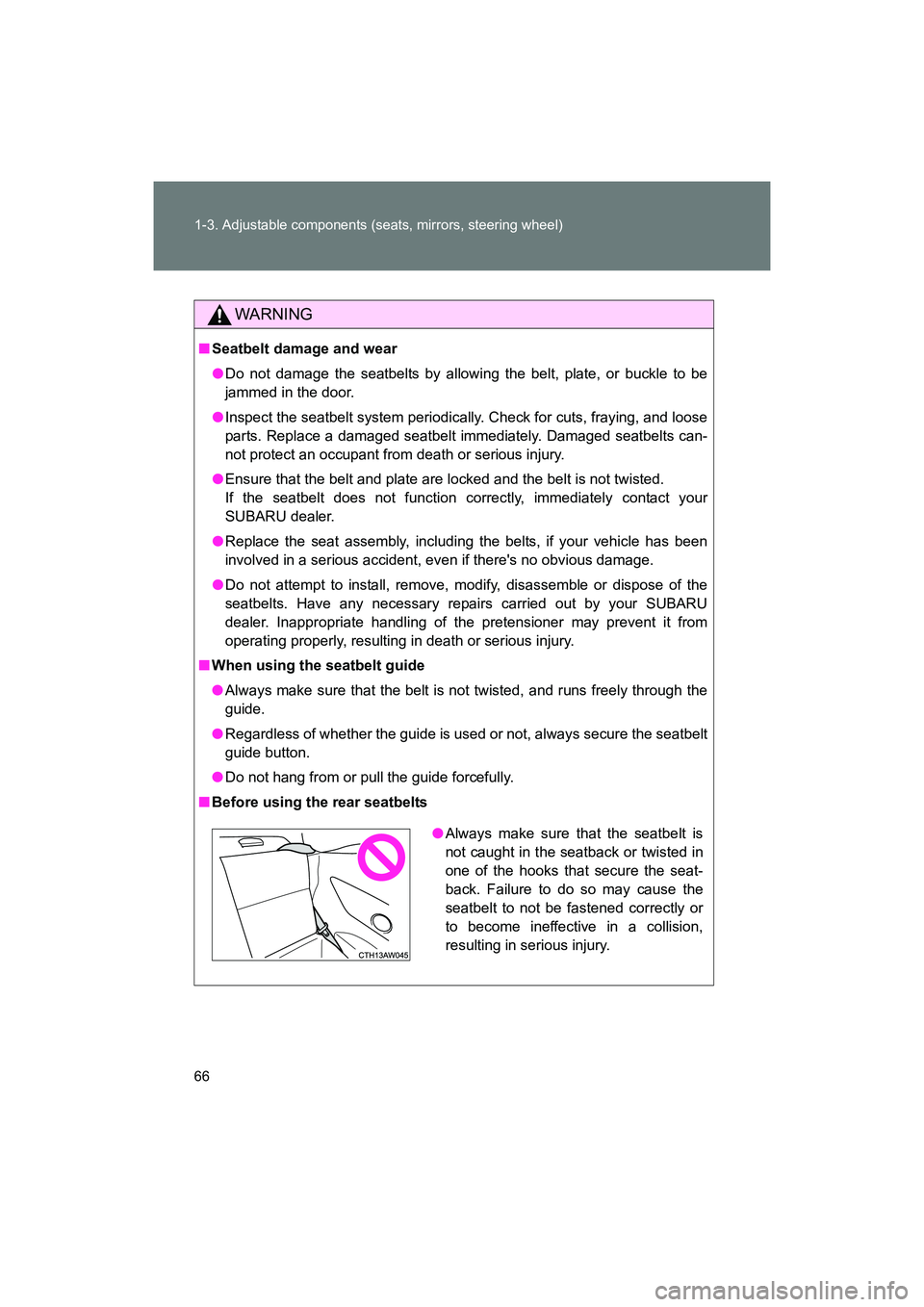

WARNING
■Seatbelt damage and wear
●Do not damage the seatbelts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seatbelt system periodically. Check for cuts, fraying, and loose
parts. Replace a damaged seatbelt immediately. Damaged seatbelts can-
not protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seatbelt does not function corr ectly, immediately contact your
SUBARU dealer.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there's no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the
seatbelts. Have any necessary repairs carried out by your SUBARU
dealer. Inappropriate handling of the pretensioner may prevent it from
operating properly, resulting in death or serious injury.
■ When using the seatbelt guide
●Always make sure that the belt is not twisted, and runs freely through the
guide.
● Regardless of whether the guide is used or not, always secure the seatbelt
guide button.
● Do not hang from or pull the guide forcefully.
■ Before using the rear seatbelts
●Always make sure that the seatbelt is
not caught in the seatback or twisted in
one of the hooks that secure the seat-
back. Failure to do so may cause the
seatbelt to not be fastened correctly or
to become ineffective in a collision,
resulting in serious injury.

67
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
BRZ_U (A4450BE-A)

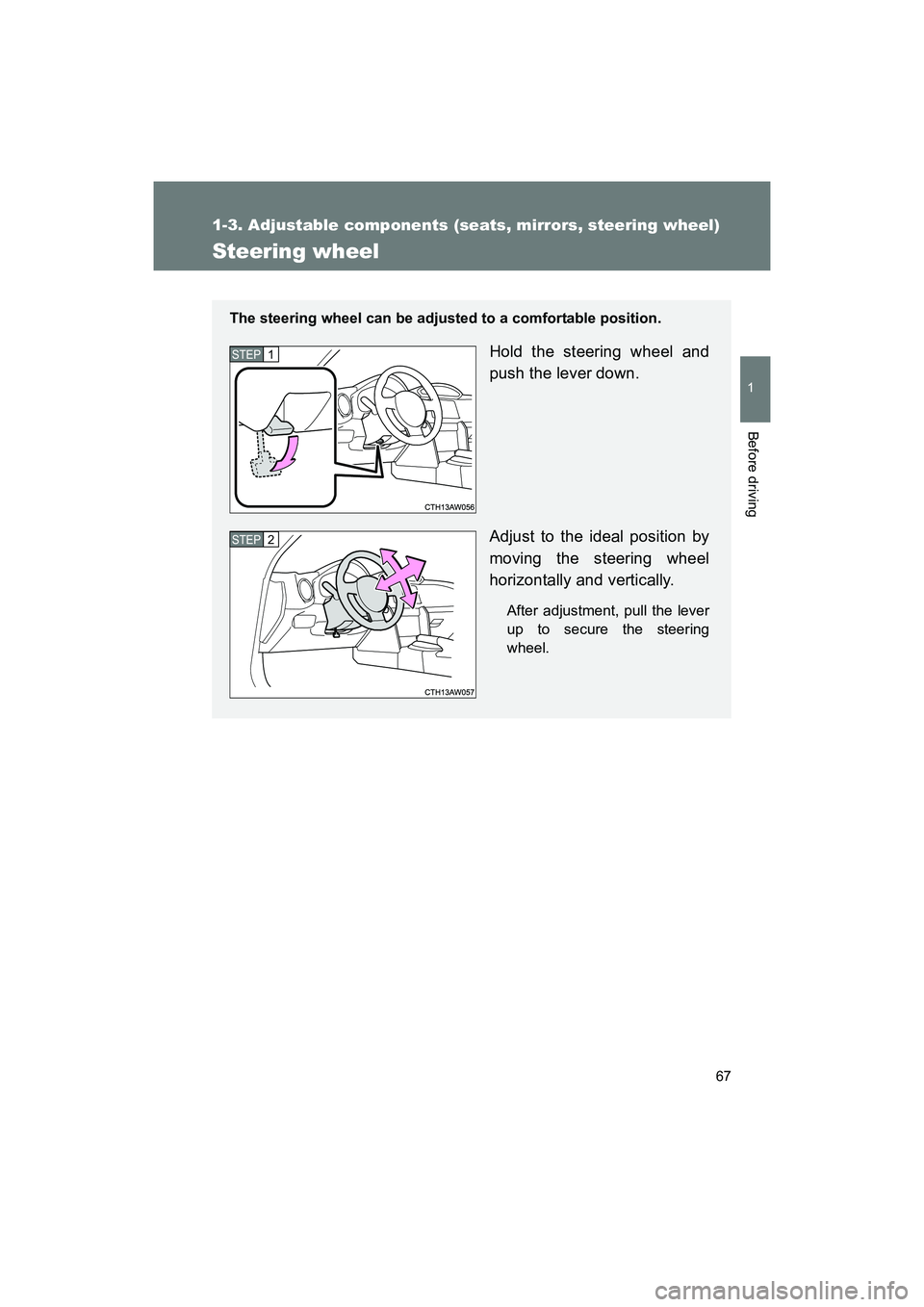

Steering wheel
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.
After adjustment, pull the lever
up to secure the steering
wheel.
STEP 1
STEP 2

68 1-3. Adjustable components (seats, mirrors, steering wheel)
BRZ_U (A4450BE-A)

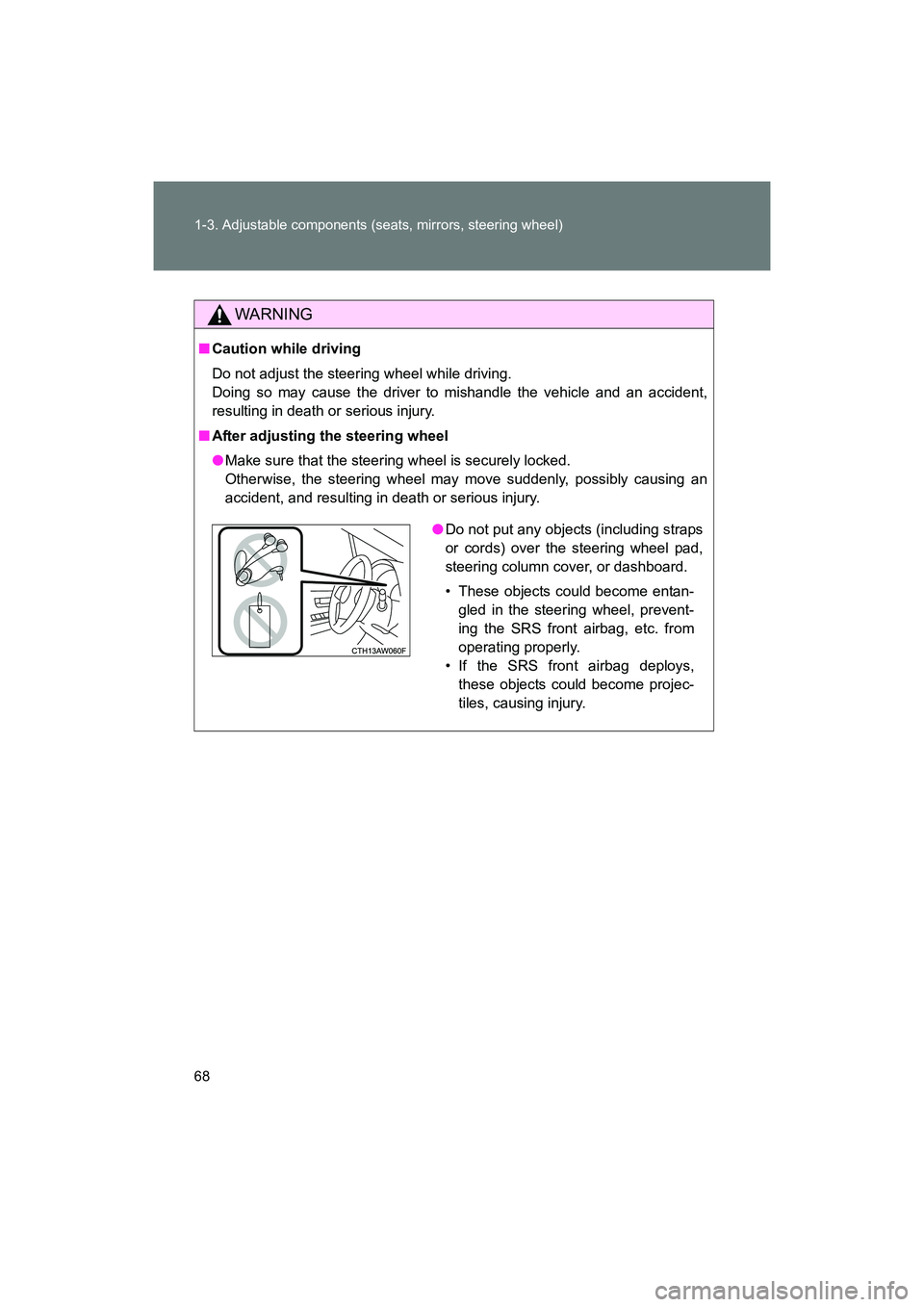

WARNING
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident,
resulting in death or serious injury.
■ After adjusting the steering wheel
●Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.
●Do not put any objects (including straps
or cords) over the steering wheel pad,
steering column cover, or dashboard.
• These objects could become entan-
gled in the steering wheel, prevent-
ing the SRS front airbag, etc. from
operating properly.
• If the SRS front airbag deploys, these objects could become projec-
tiles, causing injury.

69
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
BRZ_U (A4450BE-A)

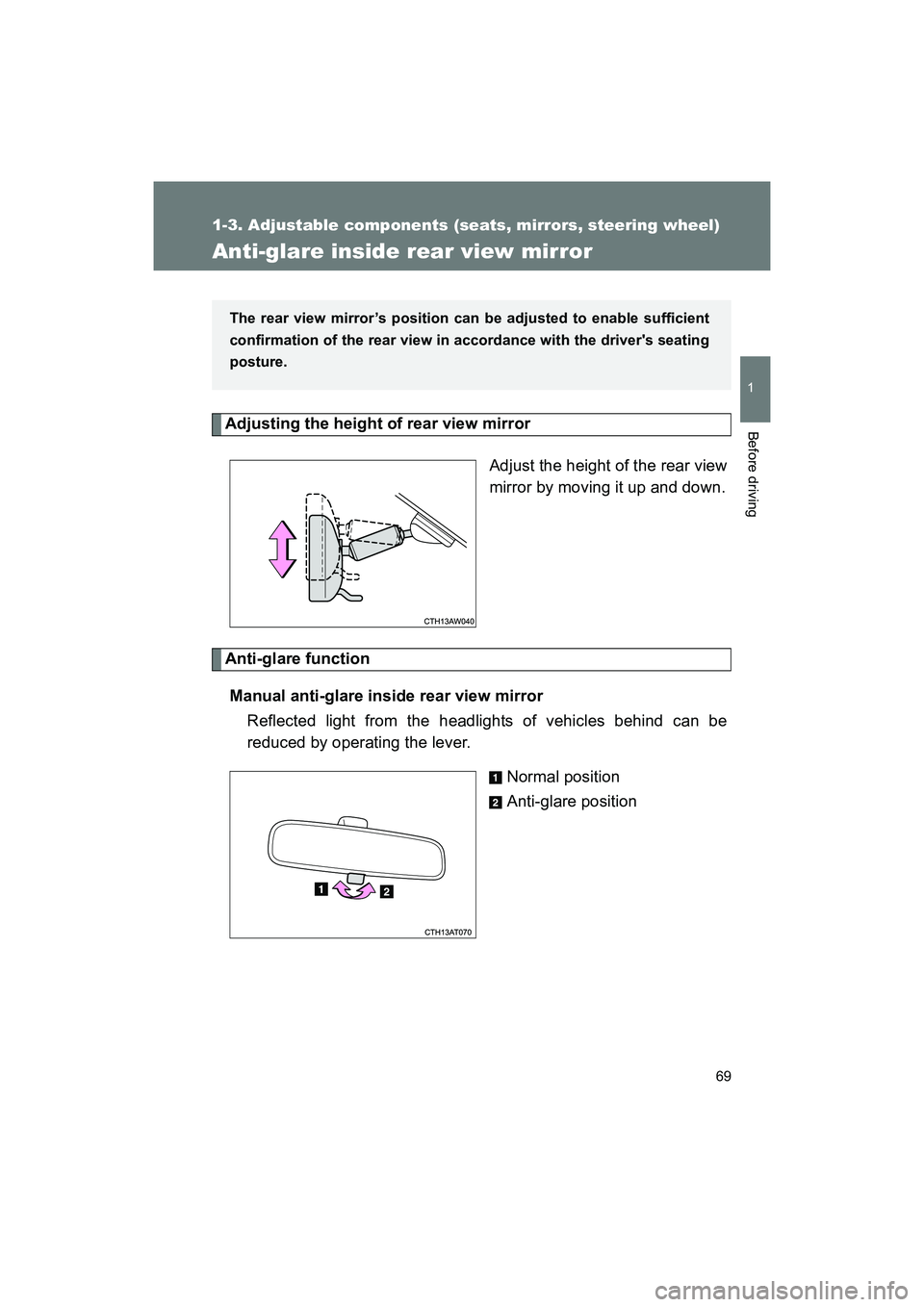

Anti-glare inside rear view mirror
Adjusting the height of rear view mirror Adjust the height of the rear view
mirror by moving it up and down.
Anti-glare functionManual anti-glare inside rear view mirror Reflected light from the headlights of vehicles behind can be
reduced by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable sufficient
confirmation of the rear view in accordance with the driver's seating
posture.

70 1-3. Adjustable components (seats, mirrors, steering wheel)
BRZ_U (A4450BE-A)Auto anti-glare inside rear view mirror
During nighttime driving, the auto-dimming feature senses distract-
ing glare from vehicle headlights behind you and automatically
dims to eliminate the glare and preserve your vision.
Press the switch to turn the
auto-dimming feature on/off. The
auto-dimming feature is enabled
when the switch’s green LED
indicator is on. The auto-dim-
ming feature will default to on
with each ignition cycle.
WARNING
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

71
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
BRZ_U (A4450BE-A)

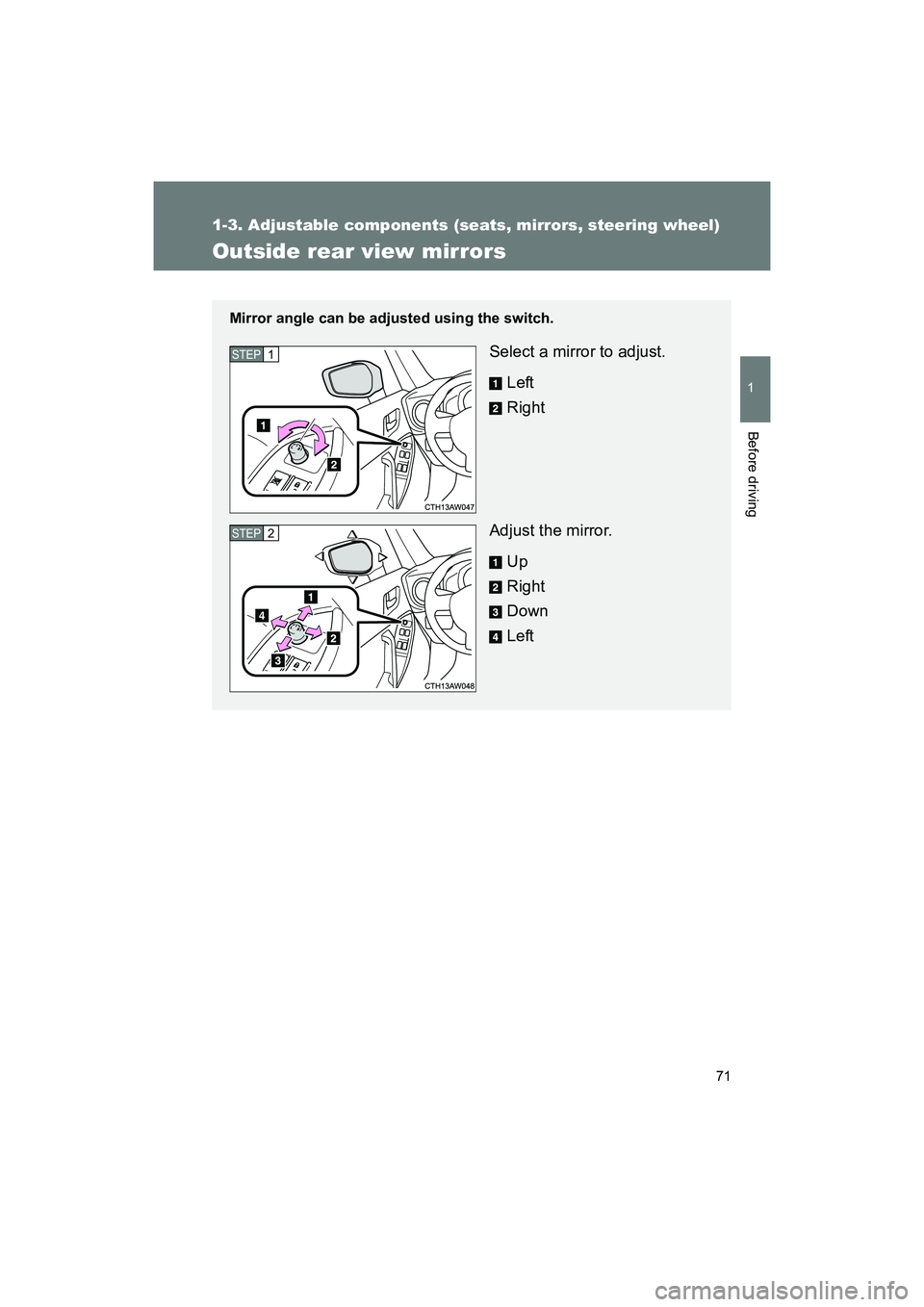

Outside rear view mirrors
Mirror angle can be adjusted using the switch.
Select a mirror to adjust.Left
Right
Adjust the mirror. Up
Right
Down
LeftSTEP 1
STEP 2

72 1-3. Adjustable components (seats, mirrors, steering wheel)
BRZ_U (A4450BE-A)

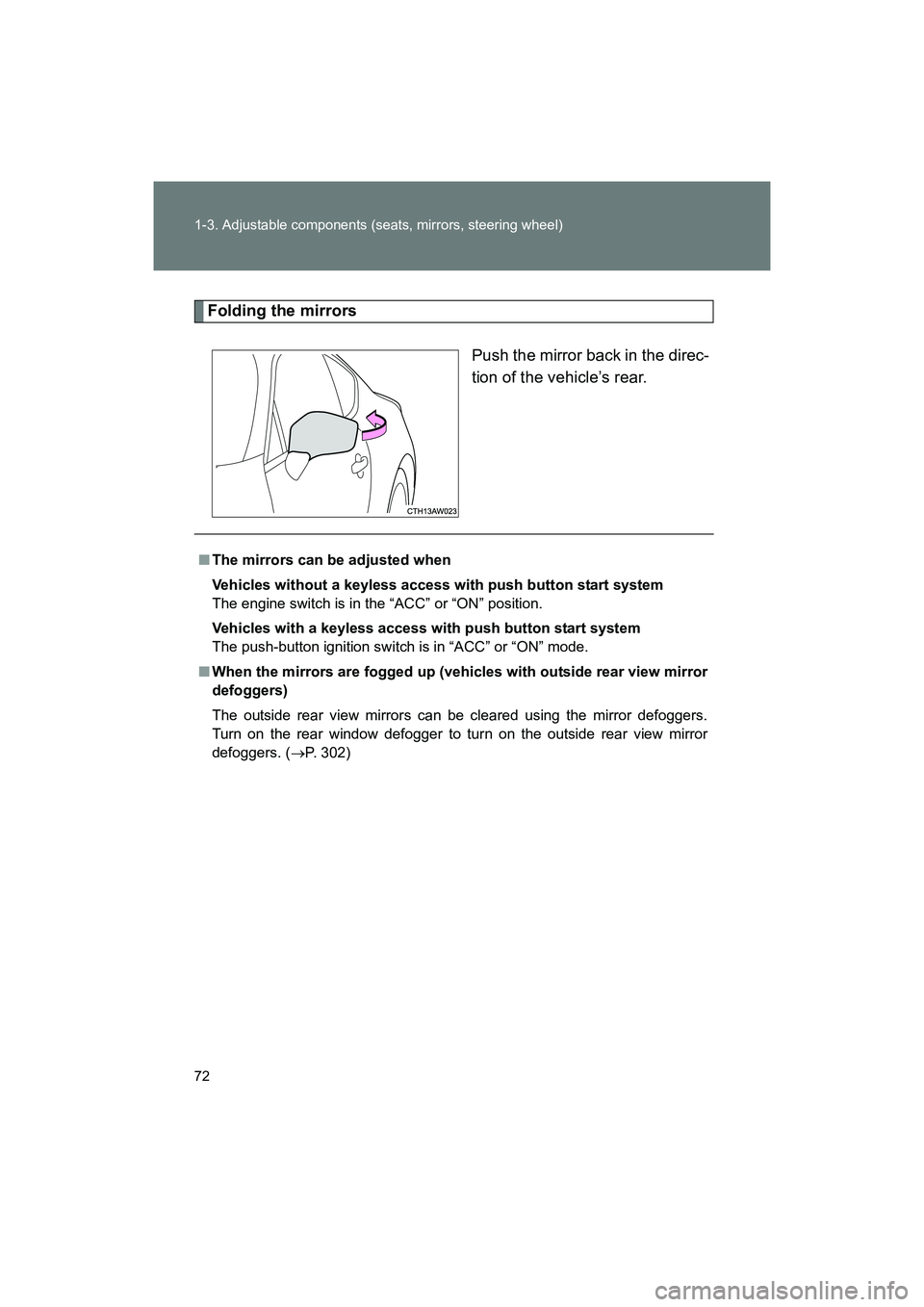

Folding the mirrorsPush the mirror back in the direc-
tion of the vehicle’s rear.
■The mirrors can be adjusted when
Vehicles without a keyless access with push button start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a keyless access with push button start system
The push-button ignition switch is in “ACC” or “ON” mode.
■ When the mirrors are fogged up (veh icles with outside rear view mirror
defoggers)
The outside rear view mirrors can be cleared using the mirror defoggers.
Turn on the rear window defogger to tu rn on the outside rear view mirror
defoggers. ( →P. 302)
