2018 SUBARU BRZ Owners Manual

5
When trouble arises
489
5-2. Steps to take in an emergency
BRZ_U (A4450BE-A)

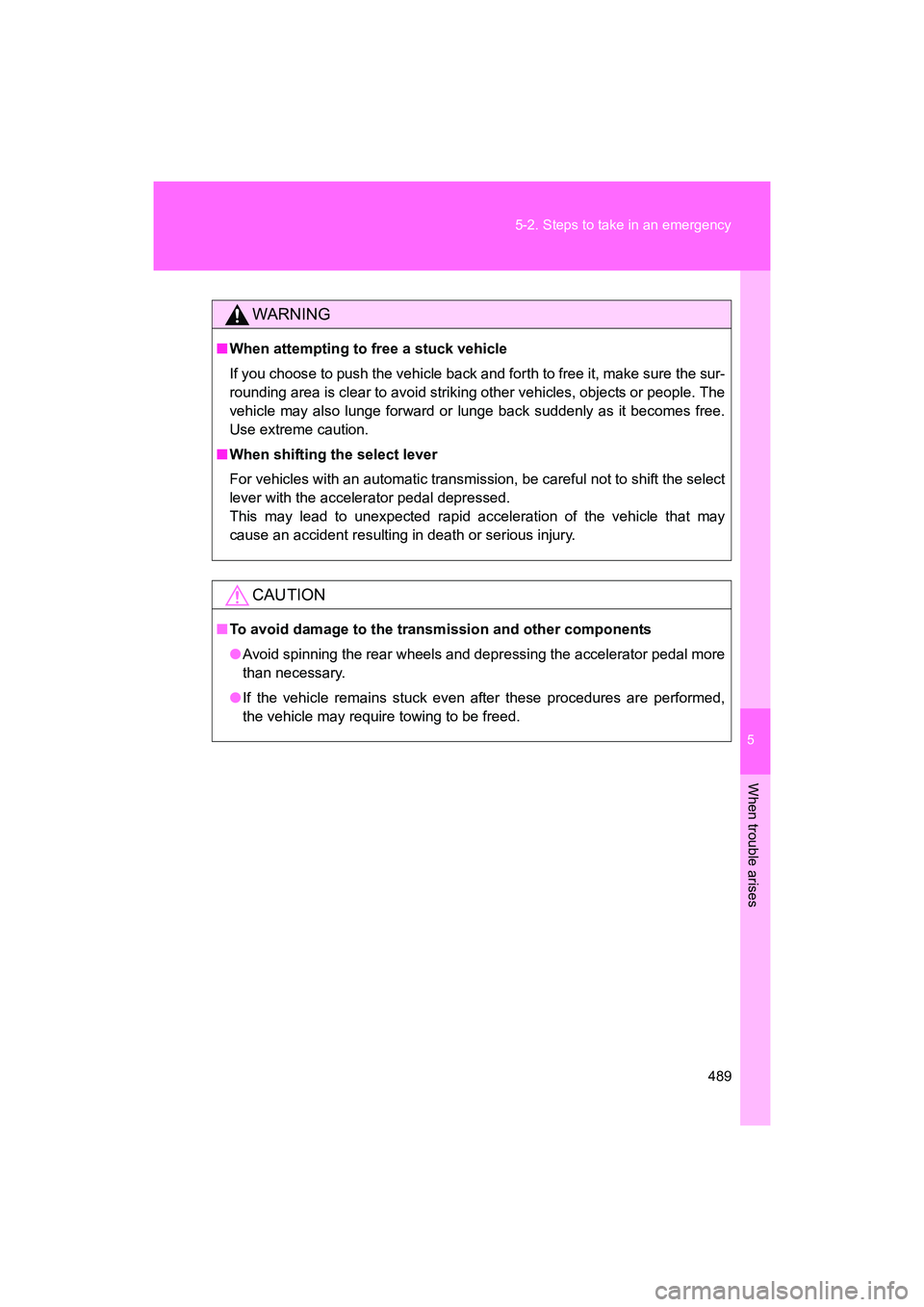

WARNING
■
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
■ When shifting the select lever
For vehicles with an automatic transmission, be careful not to shift the select
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
CAUTION
■To avoid damage to the transmission and other components
● Avoid spinning the rear wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

490 5-2. Steps to take in an emergency
BRZ_U (A4450BE-A)

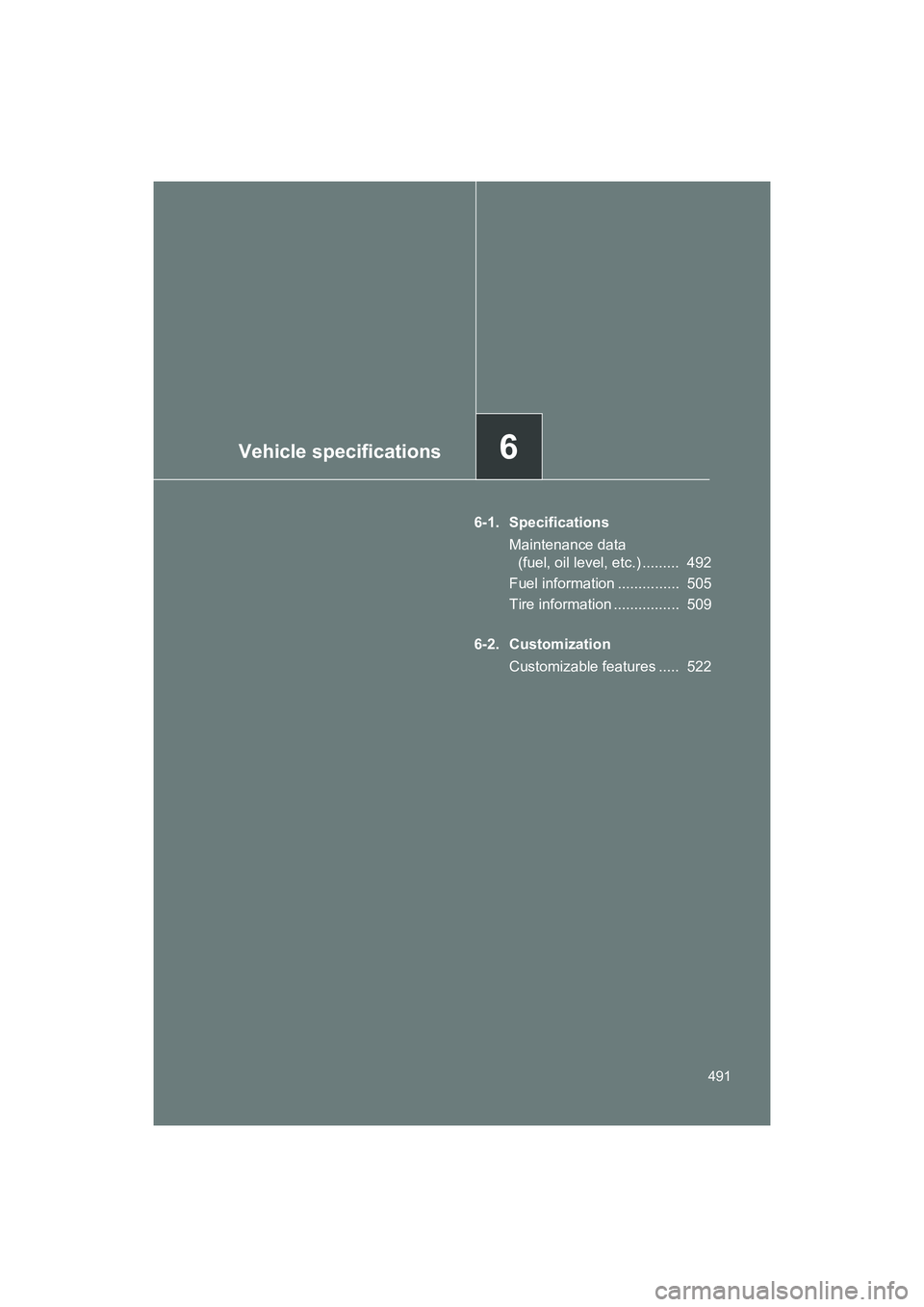

Vehicle specifications6
491
BRZ_U (A4450BE-A)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 492
Fuel information ............... 505
Tire information ................ 509
6-2. Customization Customizable features ..... 522

492
BRZ_U (A4450BE-A)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1: Except tS models
*2: tS models
*3: Unladen vehicle
Overall length166.7 in. (4235 mm)*1
167.7 in. (4260 mm)*2
Overall width 69.9 in. (1775 mm)
Overall height*352.0 in. (1320 mm)
Wheelbase 101.2 in. (2570 mm)
TreadFront 59.8 in. (1520 mm)
Rear 60.6 in. (1540 mm)
Vehicle capacity weight
(Occupants + luggage)Details are described on the tire and load-
ing information label. (
→P. 382)

493
6-1. Specifications
6
Vehicle specifications
BRZ_U (A4450BE-A)
Vehicle identification
■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
SUBARU. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is located on the
top left of the body panel.
This number is also on the Certi-
fication Label.

494 6-1. Specifications
BRZ_U (A4450BE-A)■

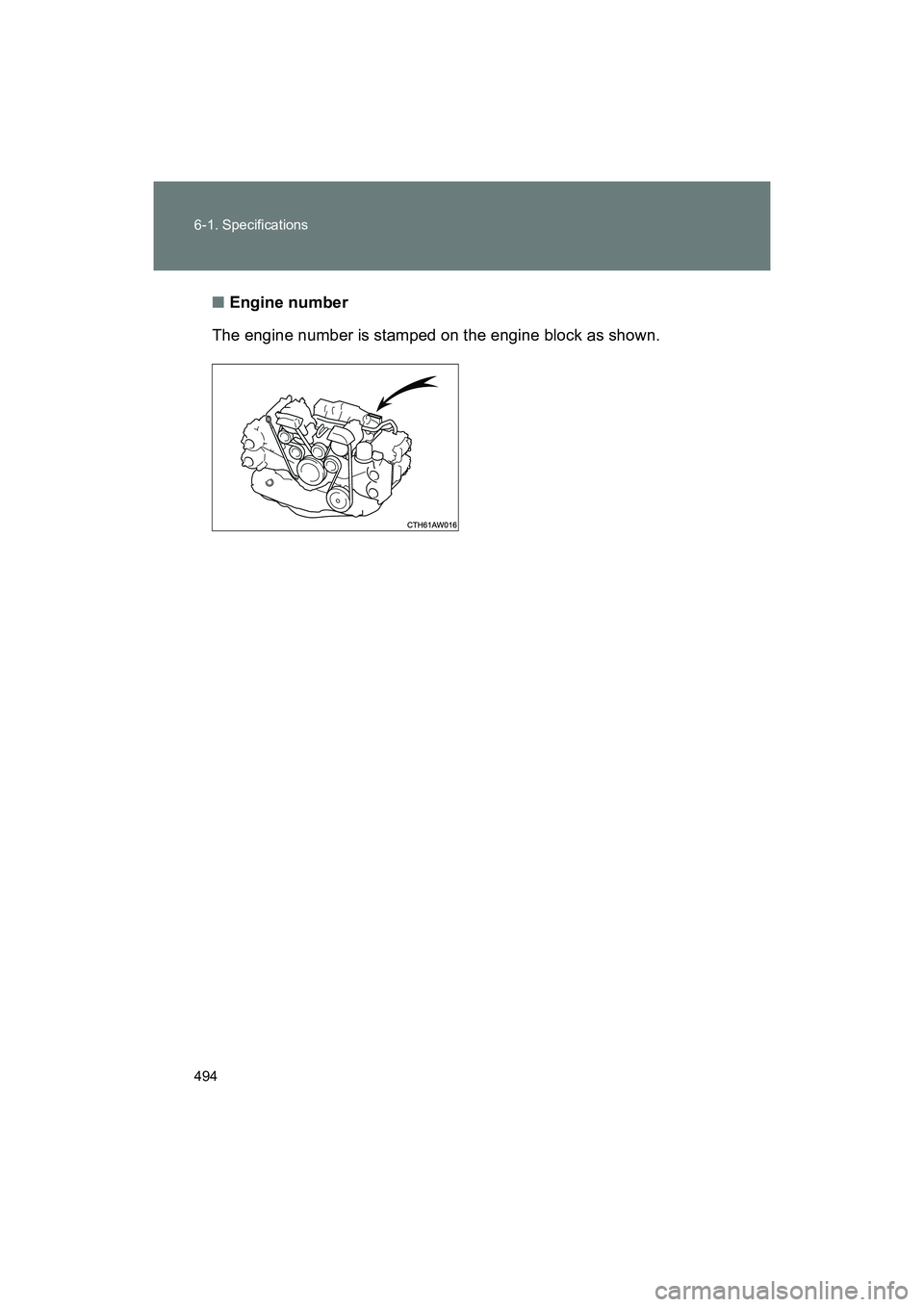

Engine number
The engine number is stamped on the engine block as shown.

495
6-1. Specifications
6
Vehicle specifications
BRZ_U (A4450BE-A)

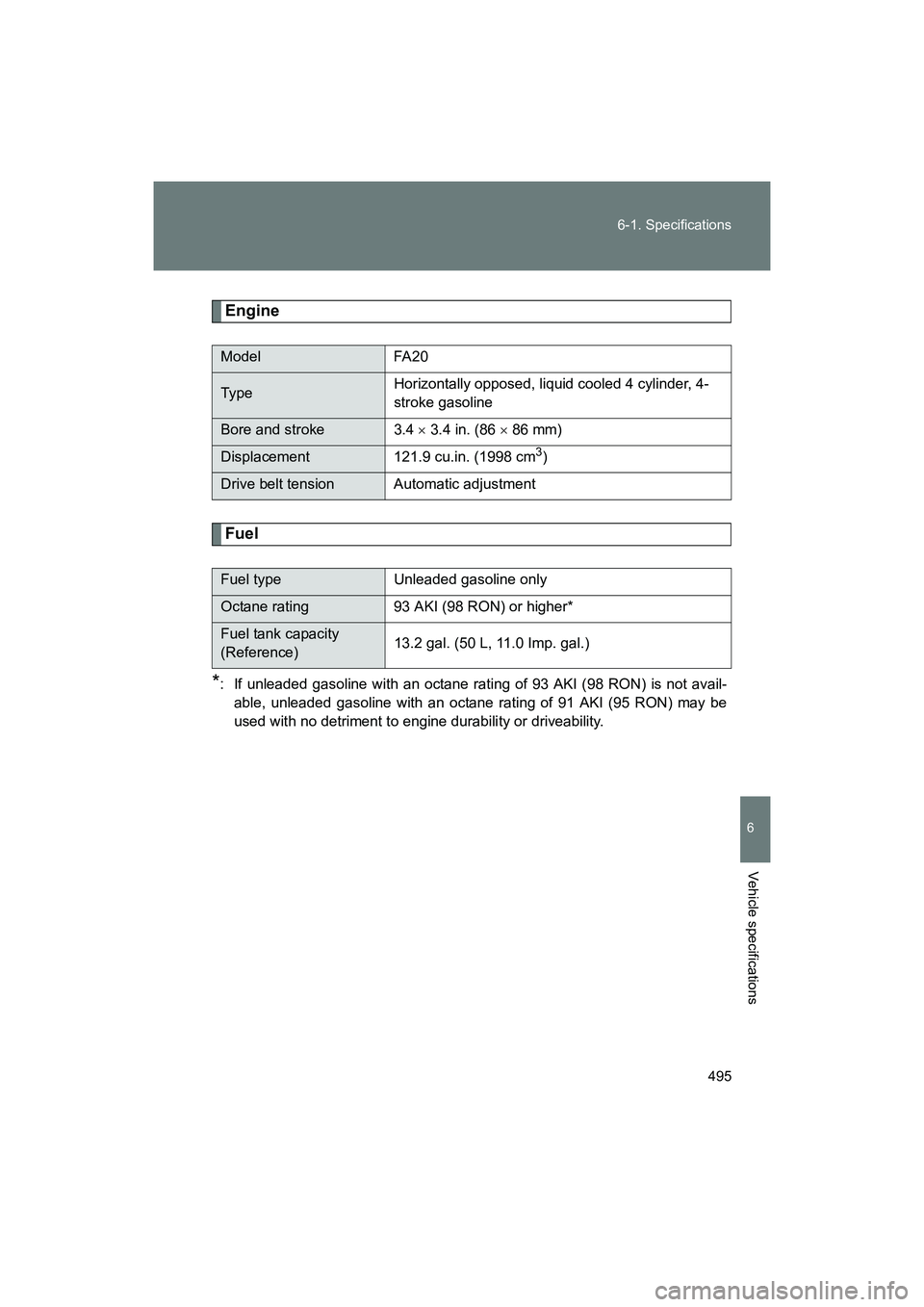

Engine
Fuel
*: If unleaded gasoline with an octane rating of 93 AKI (98 RON) is not avail-
able, unleaded gasoline with an octane rating of 91 AKI (95 RON) may be
used with no detriment to engine durability or driveability.
Model FA20
Ty p e Horizontally opposed, liquid cooled 4 cylinder, 4-
stroke gasoline
Bore and stroke 3.4
× 3.4 in. (86 × 86 mm)
Displacement 121.9 cu.in. (1998 cm3)
Drive belt tension Automatic adjustment
Fuel type Unleaded gasoline only
Octane rating 93 AKI (98 RON) or higher*
Fuel tank capacity
(Reference) 13.2 gal. (50 L, 11.0 Imp. gal.)

496 6-1. Specifications
BRZ_U (A4450BE-A)

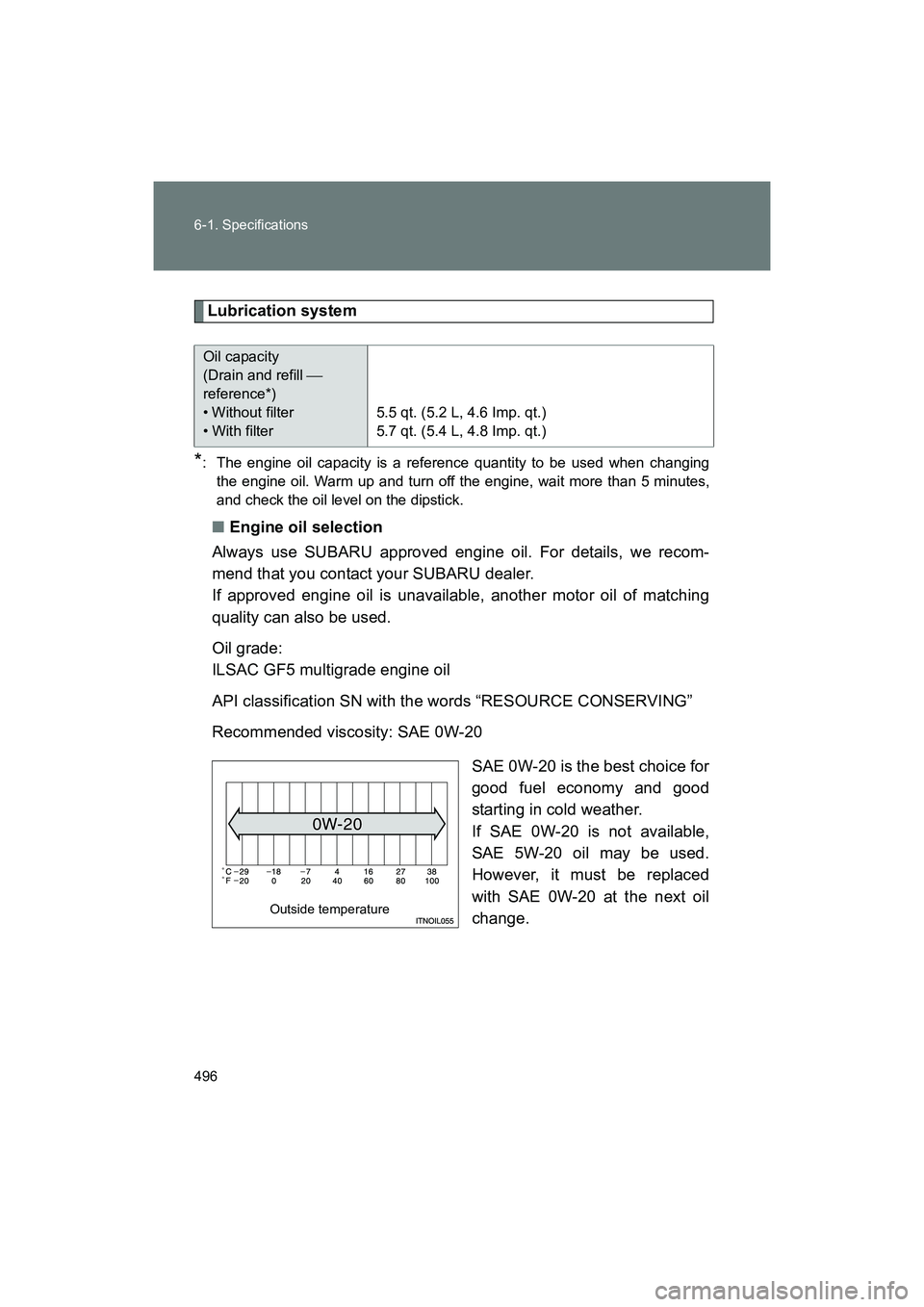

Lubrication system
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■ Engine oil selection
Always use SUBARU approved engine oil. For details, we recom-
mend that you contact your SUBARU dealer.
If approved engine oil is unavailable, another motor oil of matching
quality can also be used.
Oil grade:
ILSAC GF5 multigrade engine oil
API classification SN with the words “RESOURCE CONSERVING”
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil capacity
(Drain and refill 
reference*)
• Without filter
• With filter 5.5 qt. (5.2 L, 4.6 Imp. qt.)
5.7 qt. (5.4 L, 4.8 Imp. qt.)
Outside temperature
