2018 SUBARU BRZ Owners Manual

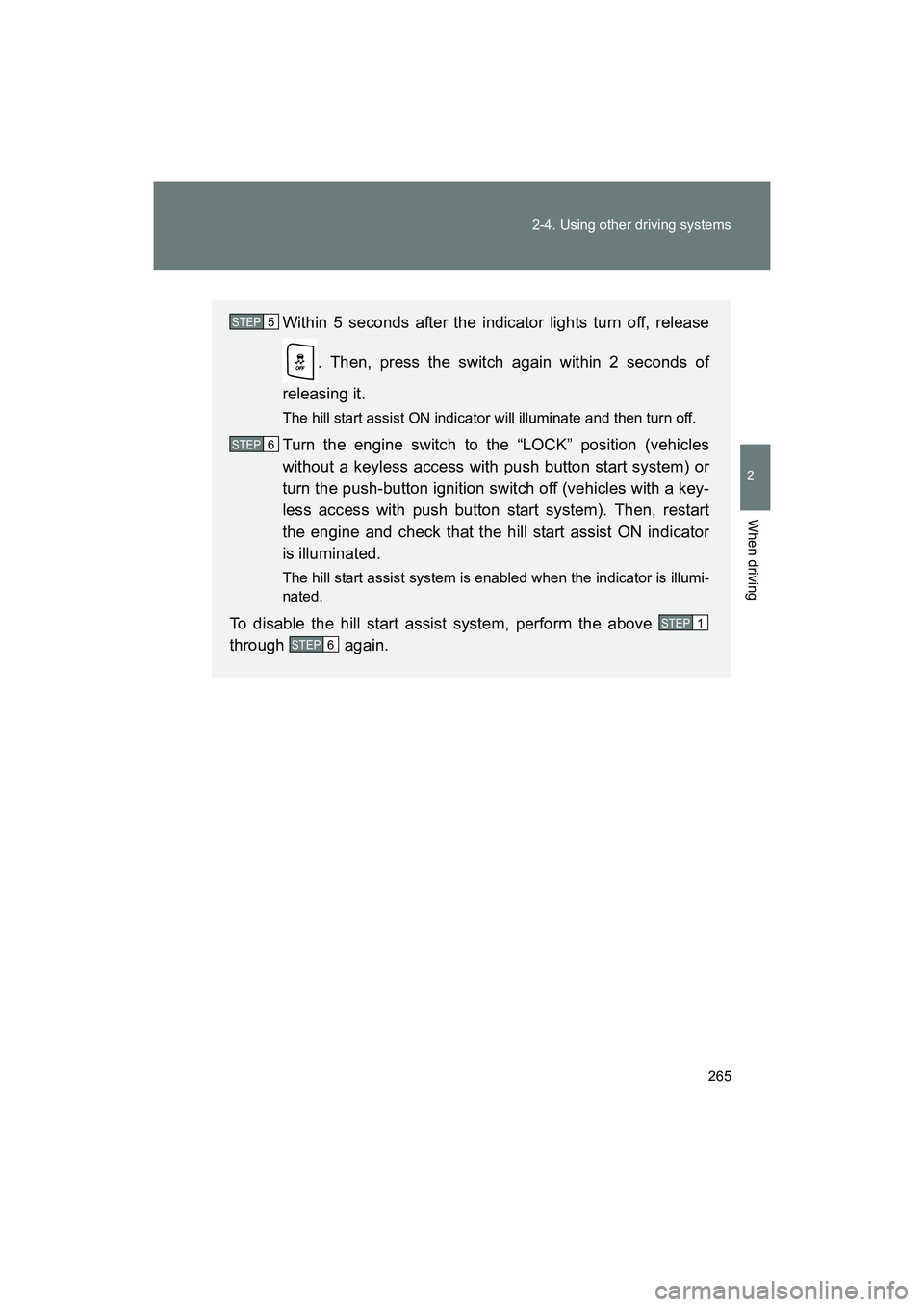

265
2-4. Using other driving systems
2
When driving
BRZ_U (A4450BE-A)
Within 5 seconds after the indicator lights turn off, release
. Then, press the switch again within 2 seconds of
releasing it.
The hill start assist ON indicato r will illuminate and then turn off.
Turn the engine switch to the “LOCK” position (vehicles
without a keyless access with push button start system) or
turn the push-button ignition switch off (vehicles with a key-
less access with push button start system). Then, restart
the engine and check that the hill start assist ON indicator
is illuminated.
The hill start assist system is enabled when the indicator is illumi-
nated.
To disable the hill start assist system, perform the above
through again.
STEP 5
STEP 6
STEP 1
STEP 6

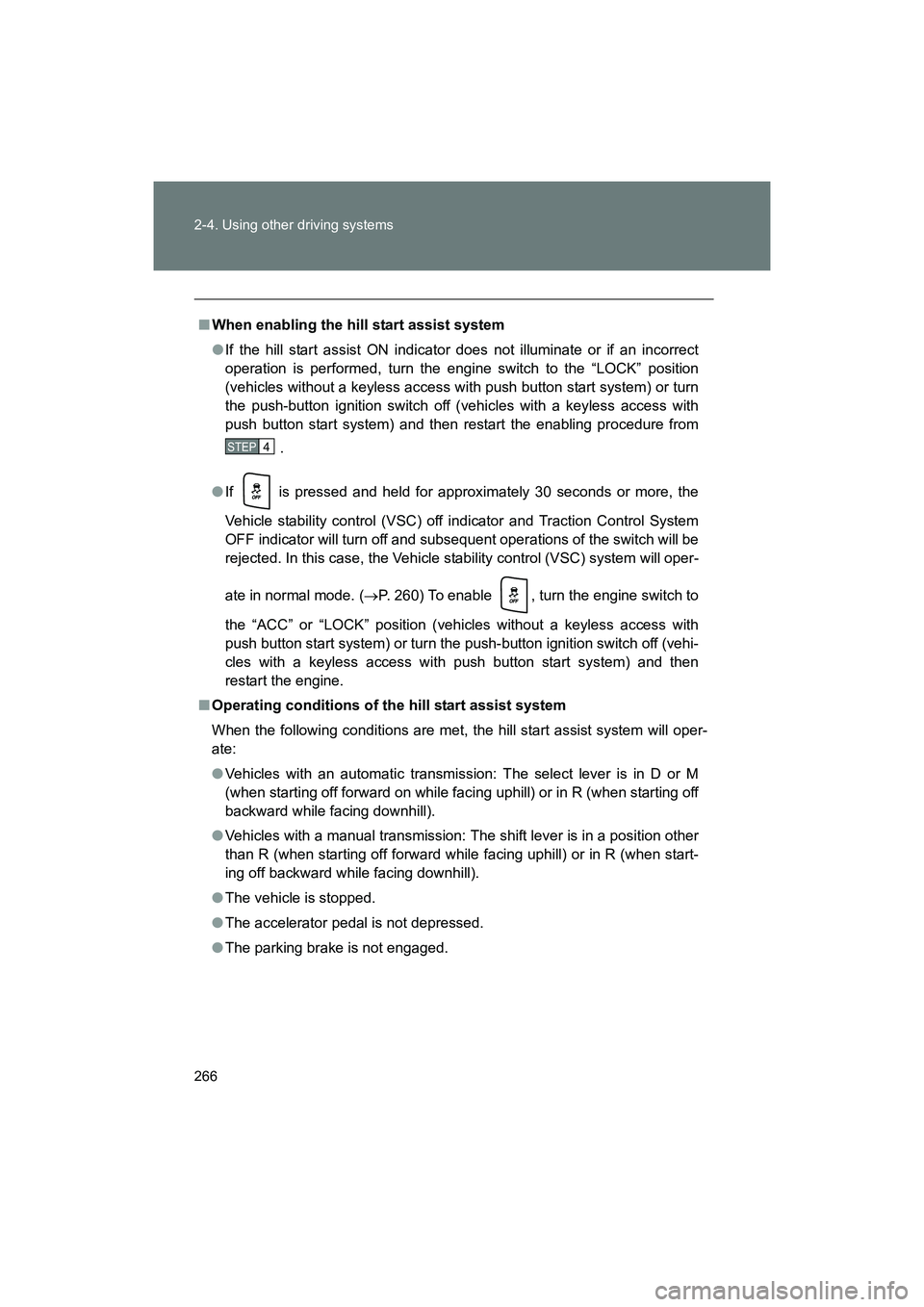

266 2-4. Using other driving systems
BRZ_U (A4450BE-A)
■When enabling the hill start assist system
●If the hill start assist ON indicator does not illuminate or if an incorrect
operation is performed, turn the engine switch to the “LOCK” position
(vehicles without a keyless access with push button start system) or turn
the push-button ignition switch off (vehicles with a keyless access with
push button start system) and then restart the enabling procedure from
.
● If is pressed and held for approximately 30 seconds or more, the
Vehicle stability control (VSC) off indicator and Traction Control System
OFF indicator will turn off and subsequent operations of the switch will be
rejected. In this case, the Vehicle stability control (VSC) system will oper-
ate in normal mode. ( →P. 260) To enable , turn the engine switch to
the “ACC” or “LOCK” position (vehicles without a keyless access with
push button start system) or turn the push-button ignition switch off (vehi-
cles with a keyless access with push button start system) and then
restart the engine.
■ Operating conditions of the hill start assist system
When the following conditions are met, t he hill start assist system will oper-
ate:
● Vehicles with an automatic transmission: The select lever is in D or M
(when starting off forward on while facing uphill) or in R (when starting off
backward while facing downhill).
● Vehicles with a manual transmission: The shift lever is in a position other
than R (when starting off forward while facing uphill) or in R (when start-
ing off backward while facing downhill).
● The vehicle is stopped.
● The accelerator pedal is not depressed.
● The parking brake is not engaged.
STEP 4

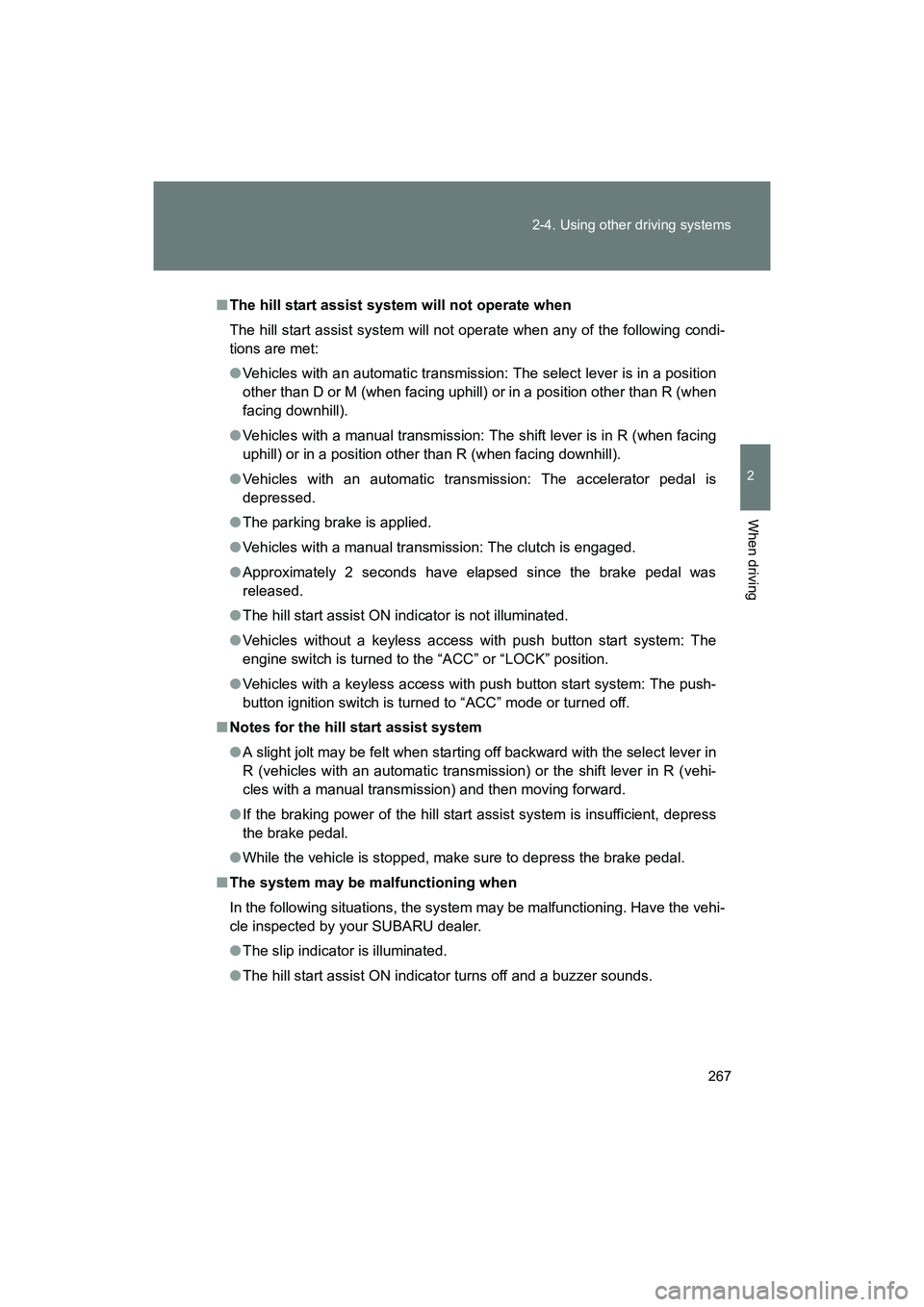

267
2-4. Using other driving systems
2
When driving
BRZ_U (A4450BE-A)
■
The hill start assist system will not operate when
The hill start assist system will not operate when any of the following condi-
tions are met:
● Vehicles with an automatic transmission: The select lever is in a position
other than D or M (when facing uphill) or in a position other than R (when
facing downhill).
● Vehicles with a manual transmission: The shift lever is in R (when facing
uphill) or in a position other than R (when facing downhill).
● Vehicles with an automatic transmission: The accelerator pedal is
depressed.
● The parking brake is applied.
● Vehicles with a manual transmission: The clutch is engaged.
● Approximately 2 seconds have elapsed since the brake pedal was
released.
● The hill start assist ON indicator is not illuminated.
● Vehicles without a keyless access with push button start system: The
engine switch is turned to the “ACC” or “LOCK” position.
● Vehicles with a keyless access with push button start system: The push-
button ignition switch is turned to “ACC” mode or turned off.
■ Notes for the hill start assist system
● A slight jolt may be felt when starting off backward with the select lever in
R (vehicles with an automatic transmission) or the shift lever in R (vehi-
cles with a manual transmission) and then moving forward.
● If the braking power of the hill start assist system is insufficient, depress
the brake pedal.
● While the vehicle is stopped, make sure to depress the brake pedal.
■ The system may be malfunctioning when
In the following situations, the system may be malfunctioning. Have the vehi-
cle inspected by your SUBARU dealer.
● The slip indicator is illuminated.
● The hill start assist ON indicator turns off and a buzzer sounds.

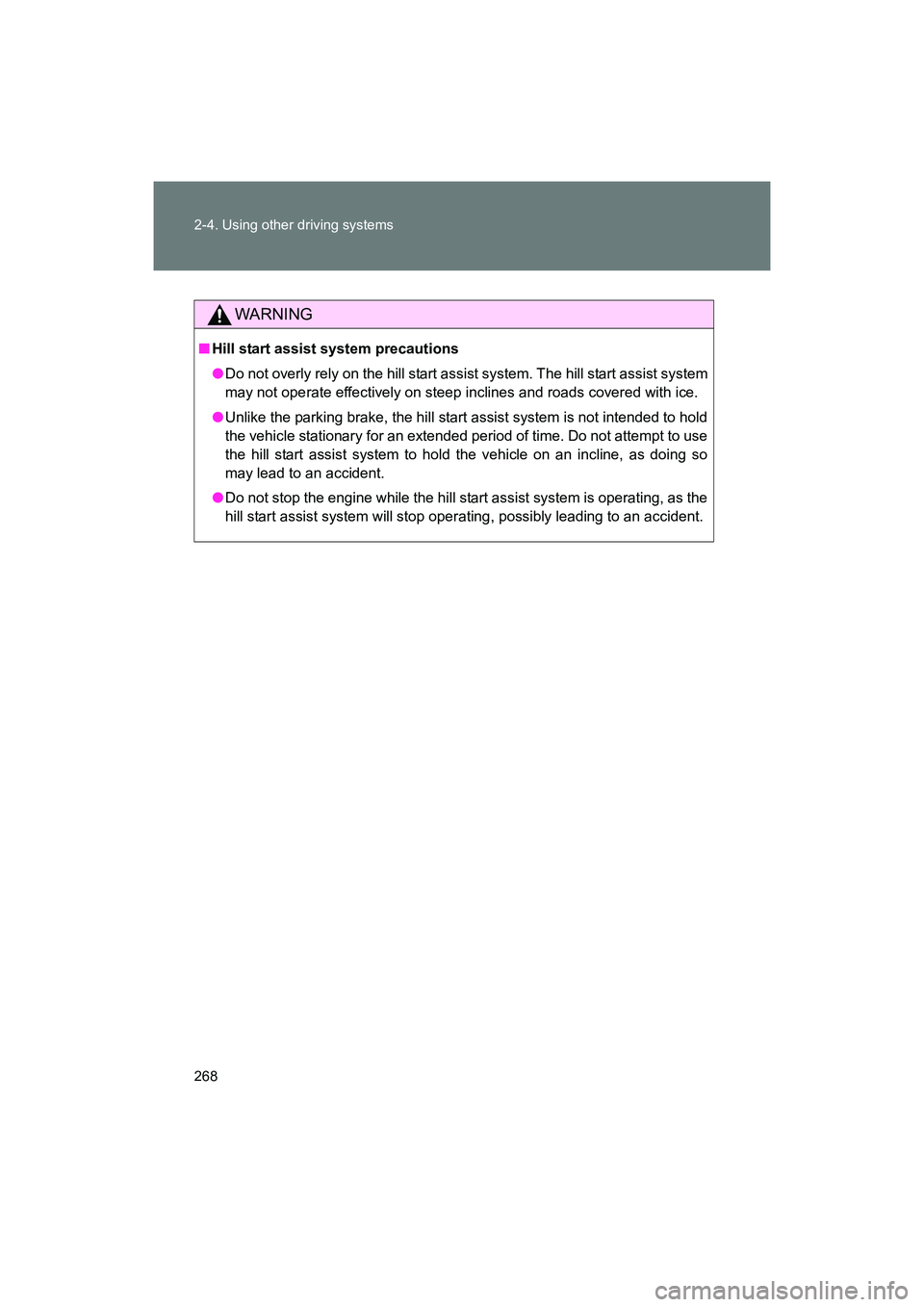

268 2-4. Using other driving systems
BRZ_U (A4450BE-A)
WARNING
■Hill start assist system precautions
●Do not overly rely on the hill start assist system. The hill start assist system
may not operate effectively on steep inclines and roads covered with ice.
● Unlike the parking brake, the hill start assist system is not intended to hold
the vehicle stationary for an extended period of time. Do not attempt to use
the hill start assist system to hold the vehicle on an incline, as doing so
may lead to an accident.
● Do not stop the engine while the hill start assist system is operating, as the
hill start assist system will stop operating, possibly leading to an accident.

269
2-4. Using other driving systems
2
When driving
BRZ_U (A4450BE-A)
Rear wing∗
Adjusting the angle of the rear wing■ Before adjusting the angle of the rear wing
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to N.
● Stop the engine.
■ Necessary tools
●TORX wrench (T30)
● Wrench, socket wrench and socket, or a similar tool (diameter
10 mm)
On initial delivery, the rear wing is adjusted to an angle at which both
stability at high speeds and enhan ced handling can be attained.
The rear wing can be adjusted
to 2 different angles.
∗: If equipped

270 2-4. Using other driving systems
BRZ_U (A4450BE-A)■
Adjusting the angle of the rear wing
While holding the bolt on the rear
side with a TORX wrench, using
a wrench, socket wrench and
socket, or similar tool, remove
the nut and washers.
Remove the bolt and washers.
Adjust the angle of the rear wing.
Standard (initial delivery) posi-
tion
High downforce position
We recommend position for
attaining both stability at high
speeds and enhanced handling.
Install the bolt and washers.
While holding the bolt with a
TORX wrench, install the wash-
ers and nut and tighten the nut
using a wrench, socket wrench
and socket, or similar tool.
Tightening torque:
2.2 ft•lbf (3 N•m, 0.3 kgf•m)
Front of vehicleSTEP 1
STEP 2 Front of vehicle
STEP 3
STEP 4 Front of vehicle

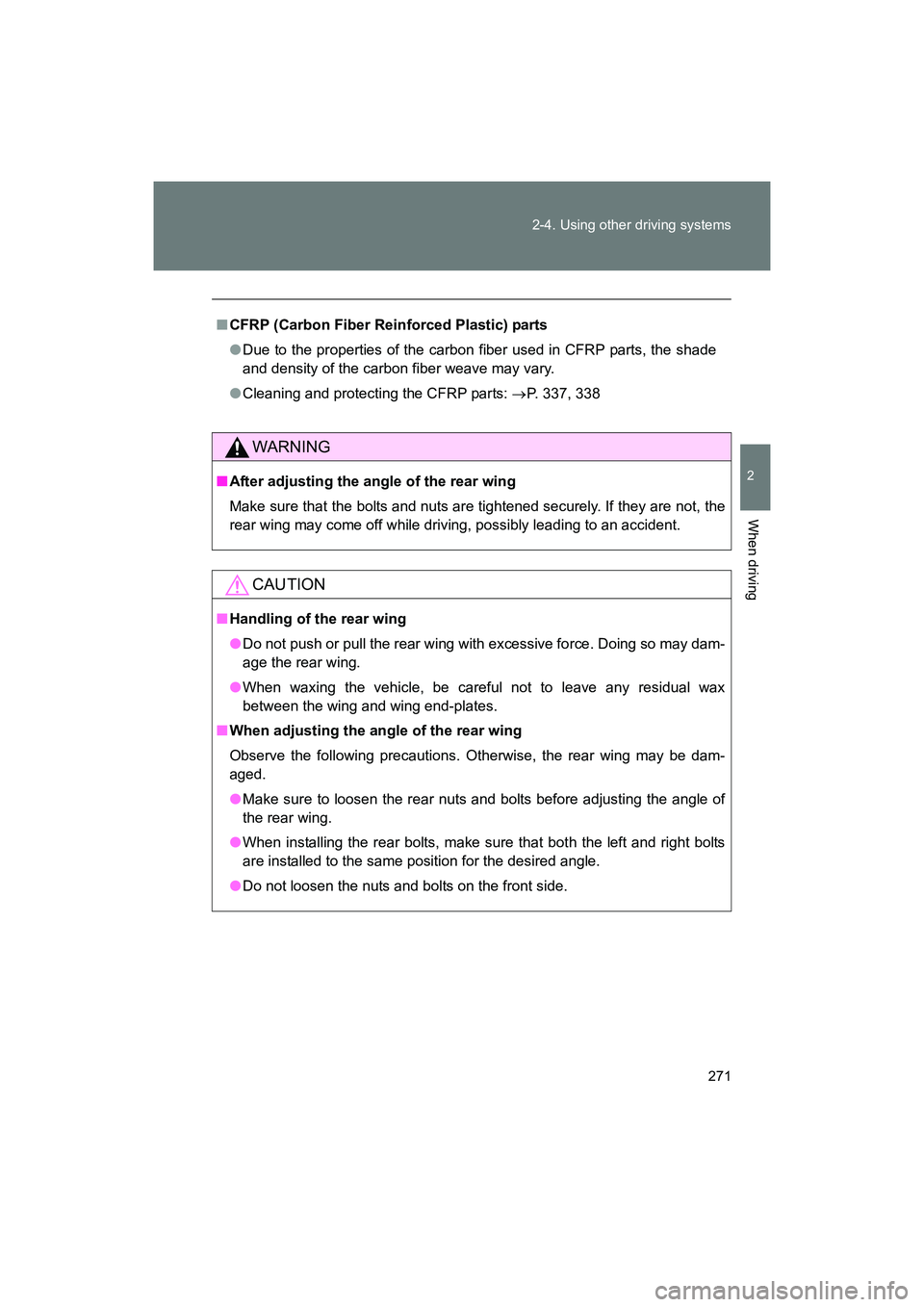

271
2-4. Using other driving systems
2
When driving
BRZ_U (A4450BE-A)
■
CFRP (Carbon Fiber Reinforced Plastic) parts
● Due to the properties of the carbon fiber used in CFRP parts, the shade
and density of the carbon fiber weave may vary.
● Cleaning and protecting the CFRP parts: →P. 337, 338
WARNING
■After adjusting the angle of the rear wing
Make sure that the bolts and nuts are tightened securely. If they are not, the
rear wing may come off while driving, possibly leading to an accident.
CAUTION
■Handling of the rear wing
● Do not push or pull the rear wing with excessive force. Doing so may dam-
age the rear wing.
● When waxing the vehicle, be careful not to leave any residual wax
between the wing and wing end-plates.
■ When adjusting the angle of the rear wing
Observe the following precautions. Otherwise, the rear wing may be dam-
aged.
● Make sure to loosen the rear nuts and bolts before adjusting the angle of
the rear wing.
● When installing the rear bolts, make sure that both the left and right bolts
are installed to the same position for the desired angle.
● Do not loosen the nuts and bolts on the front side.

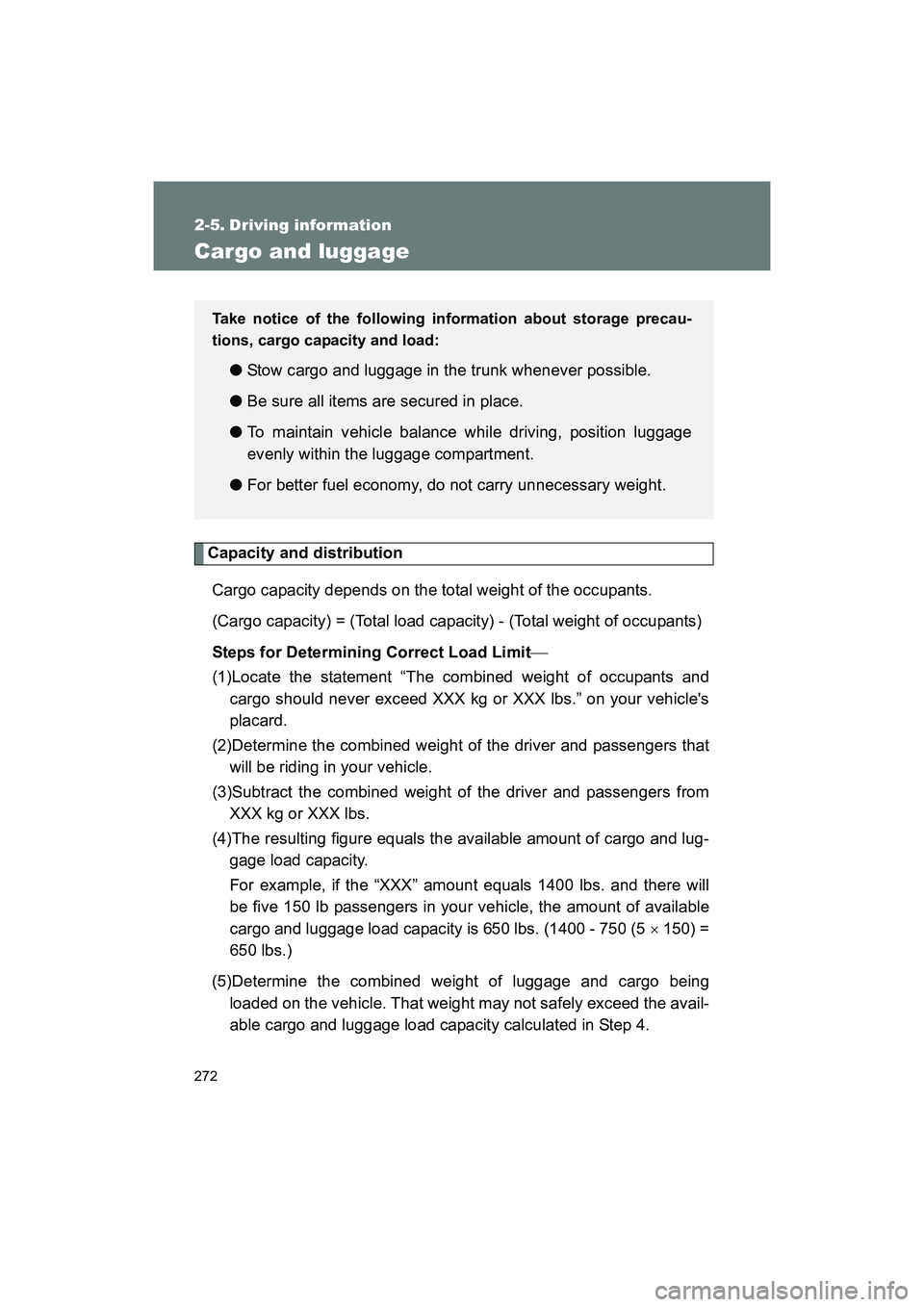

272
BRZ_U (A4450BE-A)
2-5. Driving information
Cargo and luggage
Capacity and distributionCargo capacity depends on the total weight of the occupants.
(Cargo capacity) = (Total load capacity) - (Total weight of occupants)
Steps for Determining Correct Load Limit 
(1)Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.” on your vehicle's
placard.
(2)Determine the combined weight of the driver and passengers that will be riding in your vehicle.
(3)Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4)The resulting figure equals the available amount of cargo and lug- gage load capacity.
For example, if the “XXX” amount equals 1400 lbs. and there will
be five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400 - 750 (5 × 150) =
650 lbs.)
(5)Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the avail-
able cargo and luggage load capacity calculated in Step 4.
Take notice of the following information about storage precau-
tions, cargo capacity and load:
● Stow cargo and luggage in the trunk whenever possible.
● Be sure all items are secured in place.
● To maintain vehicle balance while driving, position luggage
evenly within the luggage compartment.
● For better fuel economy, do not carry unnecessary weight.
