2018 SUBARU BRZ Owners Manual

5
When trouble arises
441
5-2. Steps to take in an emergency
BRZ_U (A4450BE-A)
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your SUBARU dealer.
Warning messageDetails
(Comes on in red)
Indicates that the engine is almost overheating.
( → P. 485)
A buzzer also sounds.

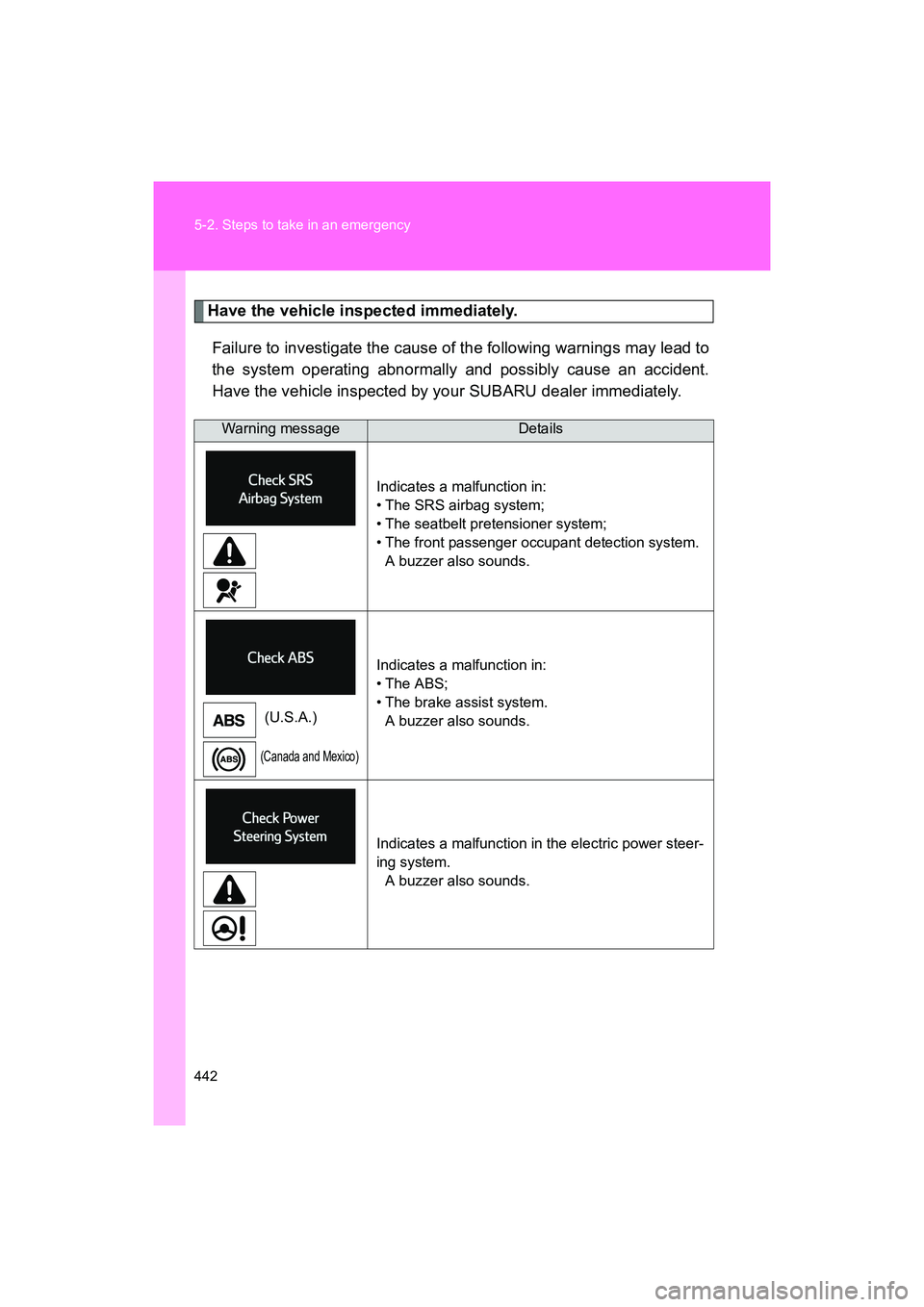

442 5-2. Steps to take in an emergency
BRZ_U (A4450BE-A)
Have the vehicle inspected immediately.Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your SUBARU dealer immediately.
Warning messageDetails
Indicates a malfunction in:
• The SRS airbag system;
• The seatbelt pretensioner system;
• The front passenger occupant detection system. A buzzer also sounds.
(U.S.A.)
(Canada and Mexico)
Indicates a malfunction in:
• The ABS;
• The brake assist system. A buzzer also sounds.
Indicates a malfunction in the electric power steer-
ing system. A buzzer also sounds.

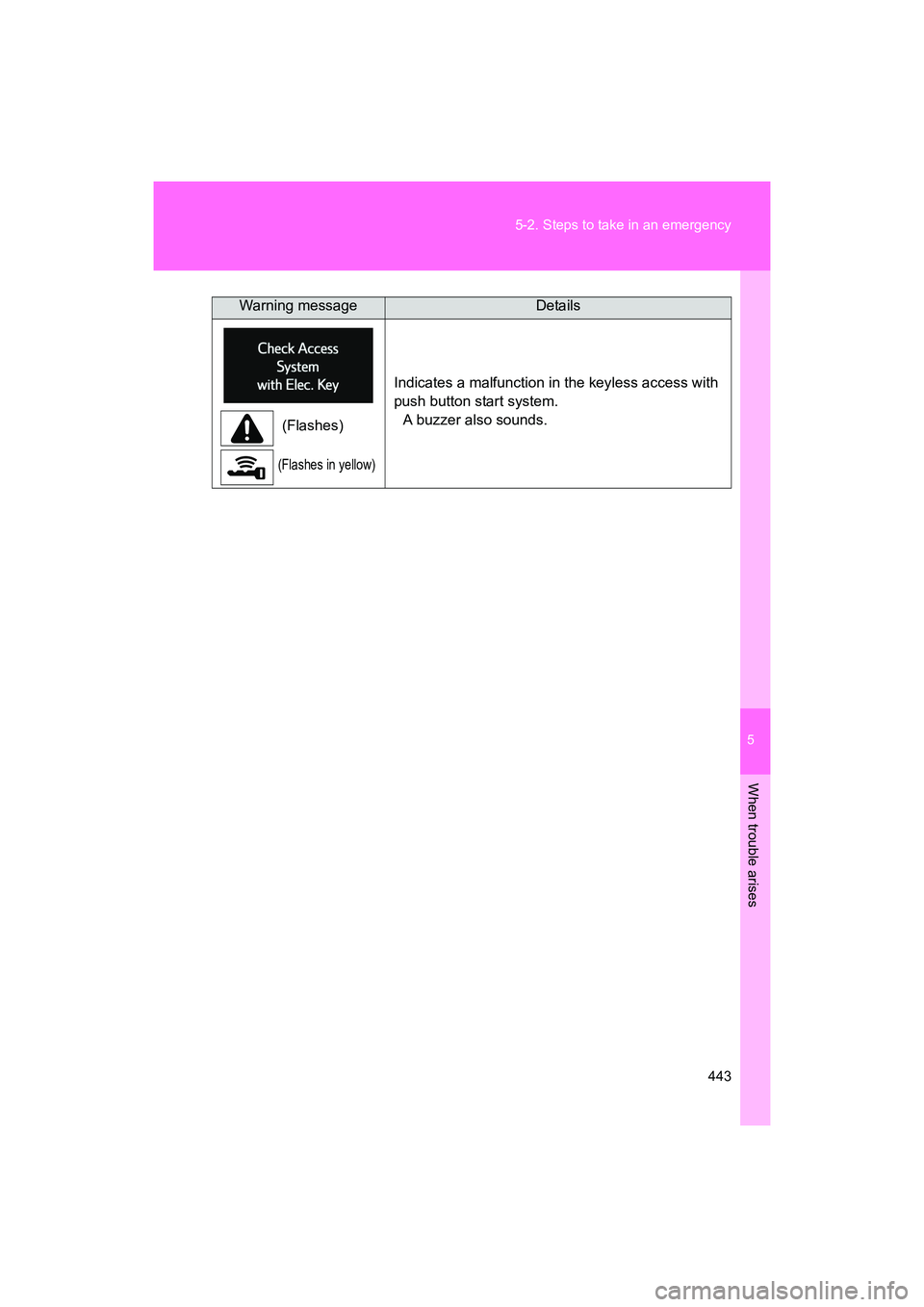

5
When trouble arises
443
5-2. Steps to take in an emergency
BRZ_U (A4450BE-A)
(Flashes)
(Flashes in yellow)
Indicates a malfunction in the keyless access with
push button start system.
A buzzer also sounds.
Warning messageDetails

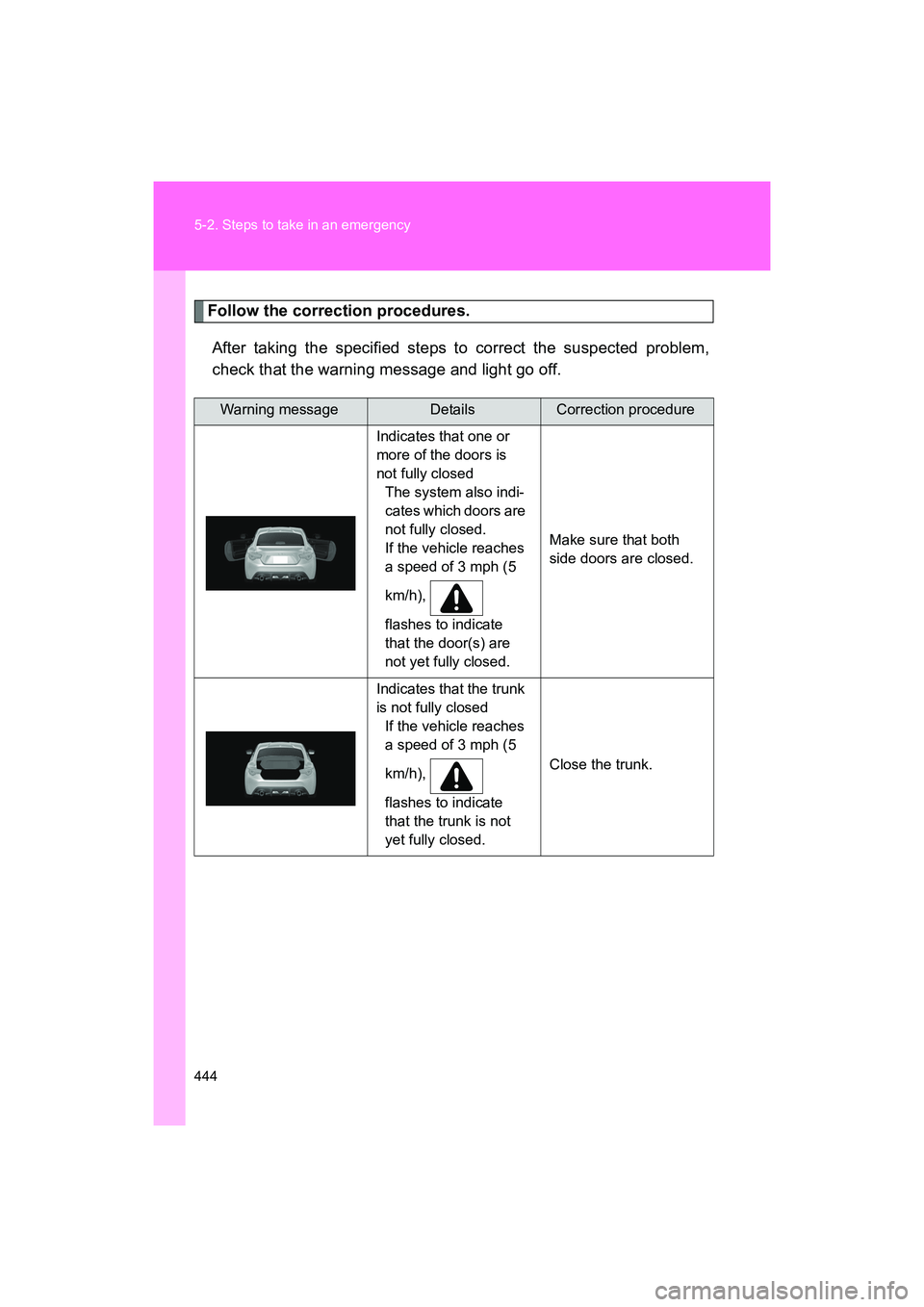

444 5-2. Steps to take in an emergency
BRZ_U (A4450BE-A)
Follow the correction procedures.After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is
not fully closed The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches
a speed of 3 mph (5
km/h),
flashes to indicate
that the door(s) are
not yet fully closed. Make sure that both
side doors are closed.
Indicates that the trunk
is not fully closed If the vehicle reaches
a speed of 3 mph (5
km/h),
flashes to indicate
that the trunk is not
yet fully closed. Close the trunk.

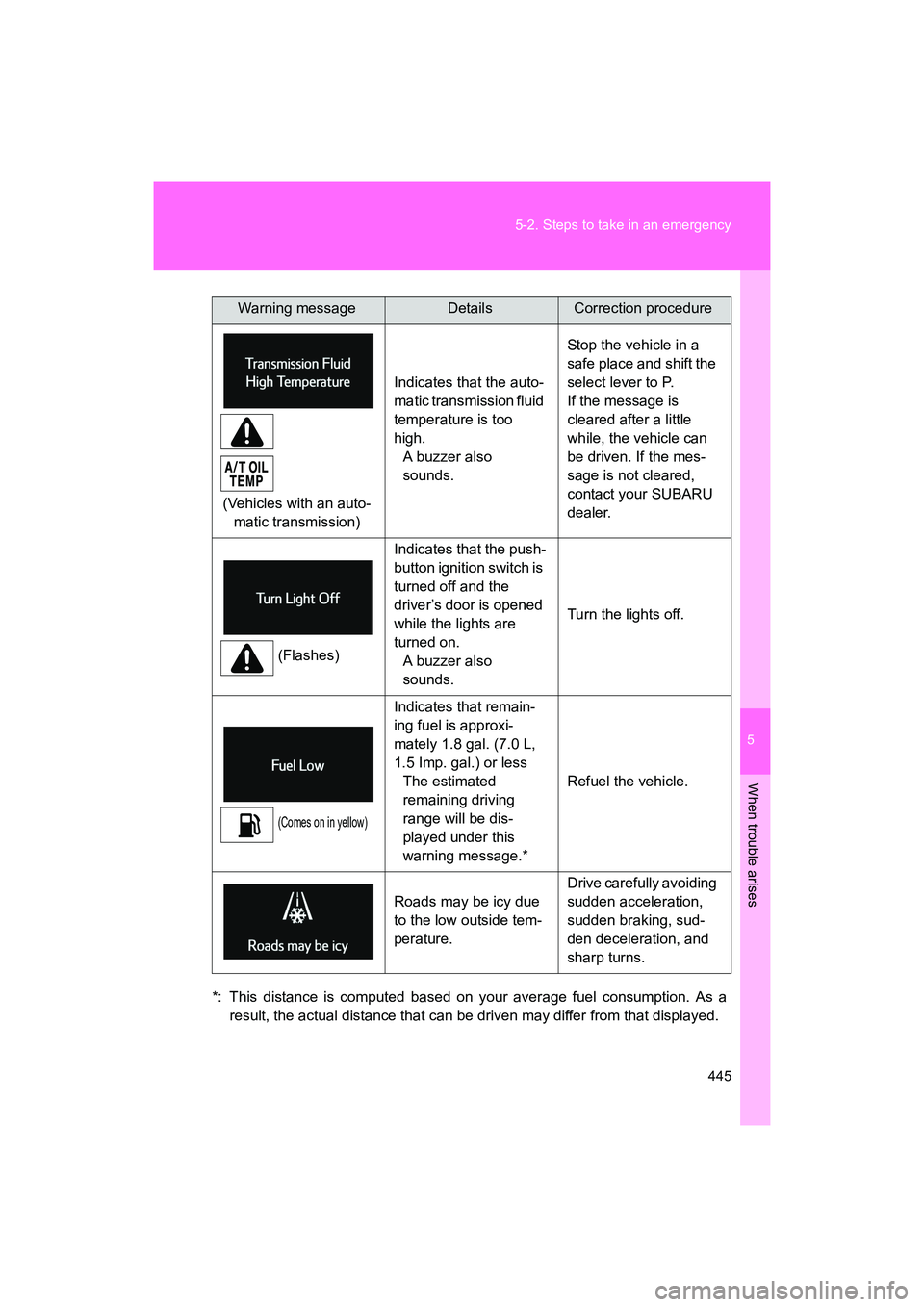

5
When trouble arises
445
5-2. Steps to take in an emergency
BRZ_U (A4450BE-A)
*: This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
(Vehicles with an auto-
matic transmission) Indicates that the auto-
matic transmission fluid
temperature is too
high.
A buzzer also
sounds. Stop the vehicle in a
safe place and shift the
select lever to P.
If the message is
cleared after a little
while, the vehicle can
be driven. If the mes-
sage is not cleared,
contact your SUBARU
dealer.
(Flashes) Indicates that the push-
button ignition switch is
turned off and the
driver’s door is opened
while the lights are
turned on.
A buzzer also
sounds. Turn the lights off.
(Comes on in yellow)
Indicates that remain-
ing fuel is approxi-
mately 1.8 gal. (7.0 L,
1.5 Imp. gal.) or less
The estimated
remaining driving
range will be dis-
played under this
warning message.* Refuel the vehicle.
Roads may be icy due
to the low outside tem-
perature. Drive carefully avoiding
sudden acceleration,
sudden braking, sud-
den deceleration, and
sharp turns.
Warning messageDetailsCorrection procedure

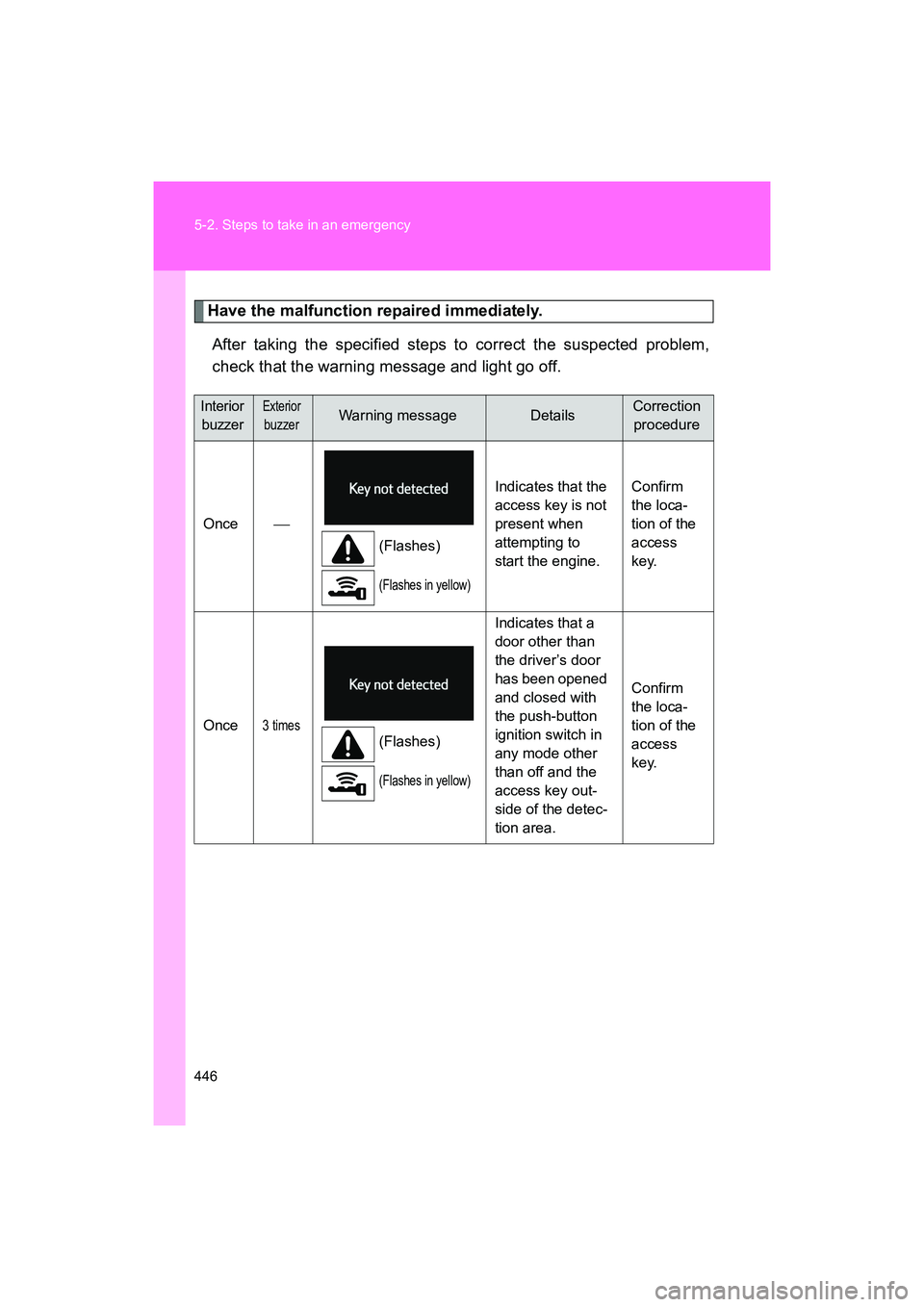

446 5-2. Steps to take in an emergency
BRZ_U (A4450BE-A)
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
InteriorbuzzerExterior
buzzerWarning messageDetailsCorrection procedure
Once 
(Flashes)
(Flashes in yellow)
Indicates that the
access key is not
present when
attempting to
start the engine. Confirm
the loca-
tion of the
access
key.
Once
3 times
(Flashes)
(Flashes in yellow)
Indicates that a
door other than
the driver’s door
has been opened
and closed with
the push-button
ignition switch in
any mode other
than off and the
access key out-
side of the detec-
tion area. Confirm
the loca-
tion of the
access
key.

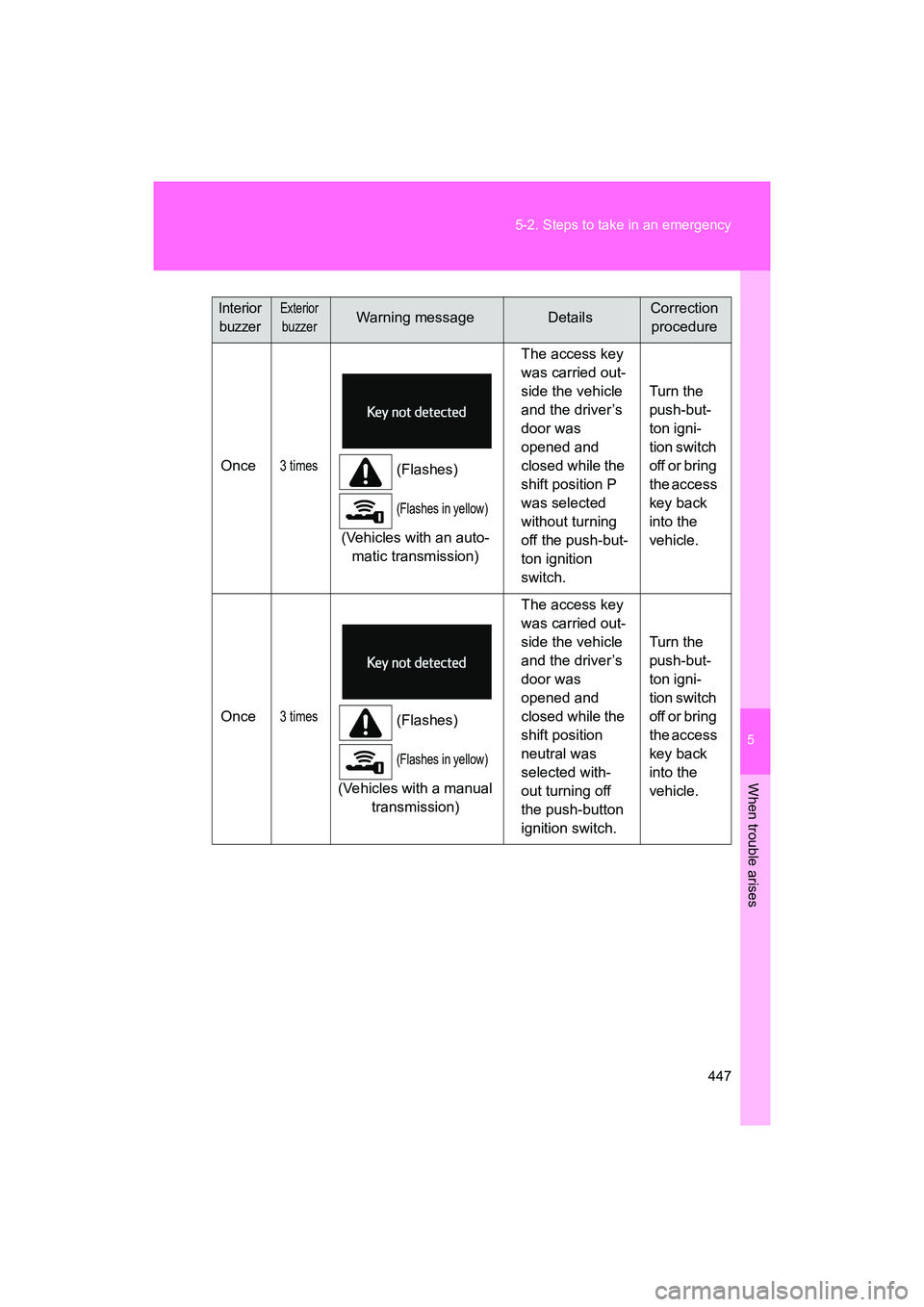

5
When trouble arises
447
5-2. Steps to take in an emergency
BRZ_U (A4450BE-A)
Once3 times(Flashes)
(Flashes in yellow)
(Vehicles with an auto-
matic transmission) The access key
was carried out-
side the vehicle
and the driver’s
door was
opened and
closed while the
shift position P
was selected
without turning
off the push-but-
ton ignition
switch.
Turn the
push-but-
ton igni-
tion switch
off or bring
the access
key back
into the
vehicle.
Once
3 times(Flashes)
(Flashes in yellow)
(Vehicles with a manual transmission) The access key
was carried out-
side the vehicle
and the driver’s
door was
opened and
closed while the
shift position
neutral was
selected with-
out turning off
the push-button
ignition switch.
Turn the
push-but-
ton igni-
tion switch
off or bring
the access
key back
into the
vehicle.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

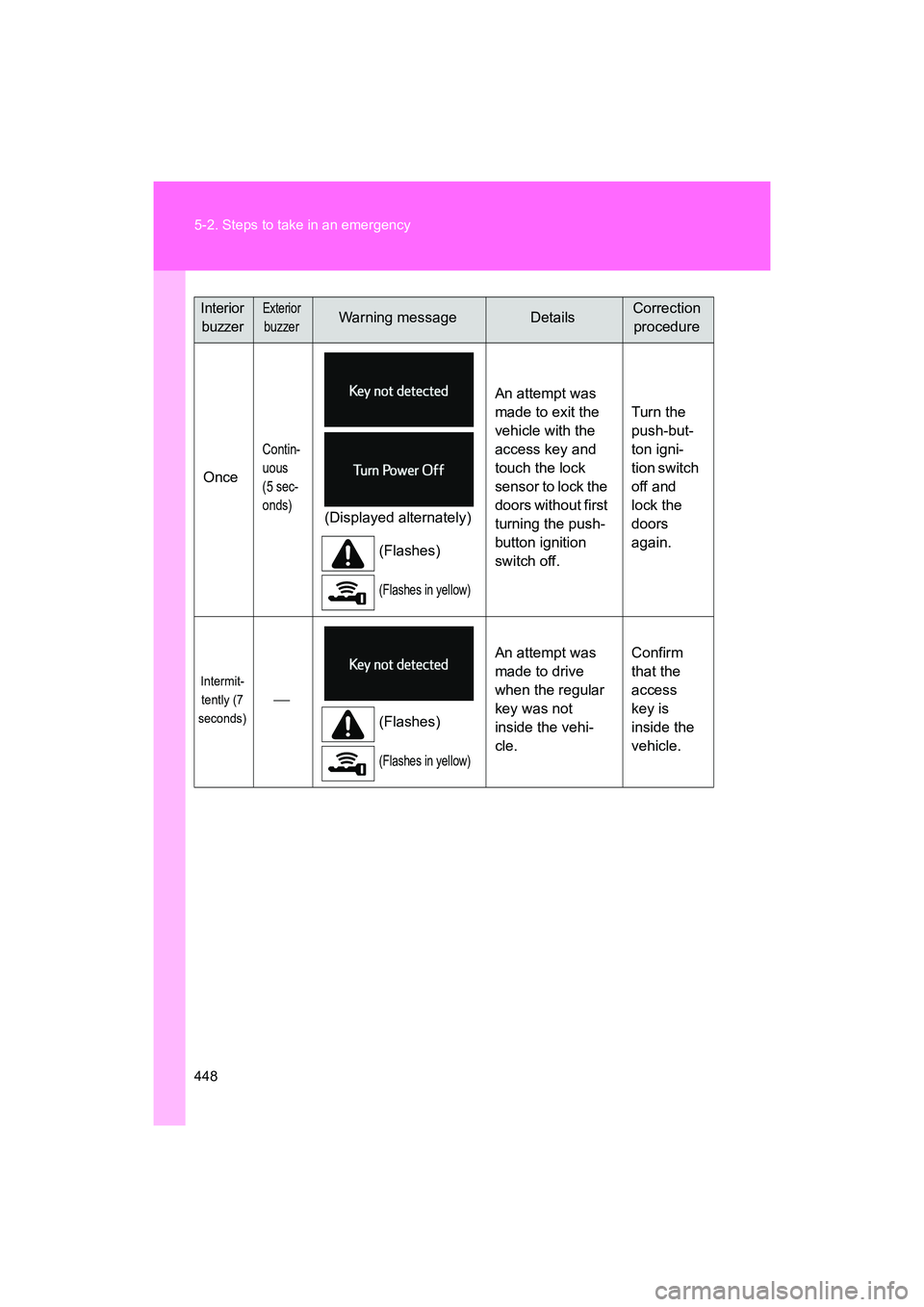

448 5-2. Steps to take in an emergency
BRZ_U (A4450BE-A)
Once
Contin-
uous
(5 sec-
onds)
(Displayed alternately)(Flashes)
(Flashes in yellow)
An attempt was
made to exit the
vehicle with the
access key and
touch the lock
sensor to lock the
doors without first
turning the push-
button ignition
switch off. Turn the
push-but-
ton igni-
tion switch
off and
lock the
doors
again.
Intermit-
tently (7
seconds)

(Flashes)
(Flashes in yellow)
An attempt was
made to drive
when the regular
key was not
inside the vehi-
cle. Confirm
that the
access
key is
inside the
vehicle.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure
