2018 SUBARU BRZ Owners Manual

329
3-5. Other interior features
3
Interior features
BRZ_U (A4450BE-A)

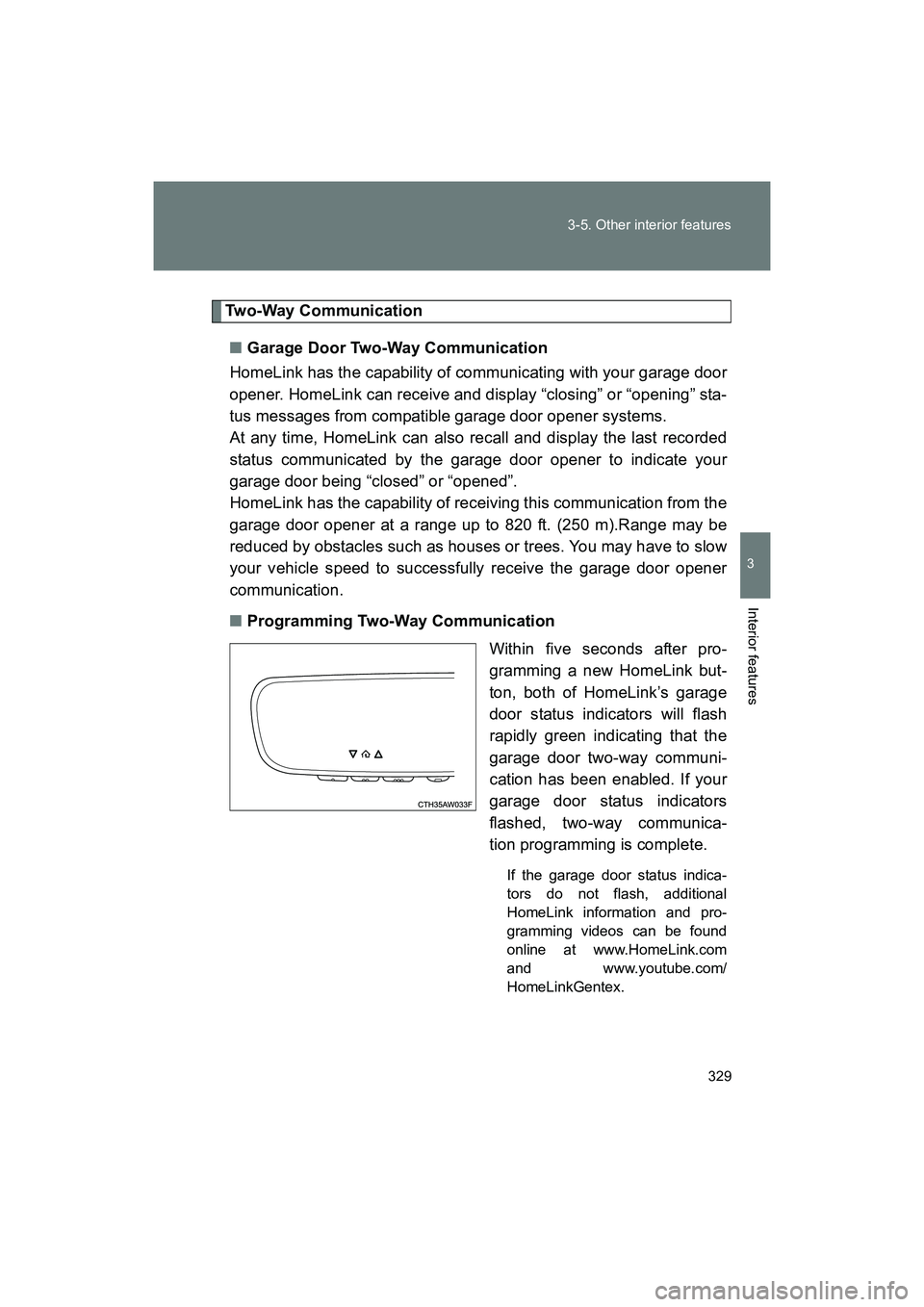

Two-Way Communication
■ Garage Door Two-Way Communication
HomeLink has the capability of communicating with your garage door
opener. HomeLink can receive and display “closing” or “opening” sta-
tus messages from compatible garage door opener systems.
At any time, HomeLink can also recall and display the last recorded
status communicated by the garage door opener to indicate your
garage door being “closed” or “opened”.
HomeLink has the capability of receiving this communication from the
garage door opener at a range up to 820 ft. (250 m).Range may be
reduced by obstacles such as houses or trees. You may have to slow
your vehicle speed to successfully receive the garage door opener
communication.
■ Programming Two-Way Communication
Within five seconds after pro-
gramming a new HomeLink but-
ton, both of HomeLink’s garage
door status indicators will flash
rapidly green indicating that the
garage door two-way communi-
cation has been enabled. If your
garage door status indicators
flashed, two-way communica-
tion programming is complete.
If the garage door status indica-
tors do not flash, additional
HomeLink information and pro-
gramming videos can be found
online at www.HomeLink.com
and www.youtube.com/
HomeLinkGentex.

330 3-5. Other interior features
BRZ_U (A4450BE-A)■

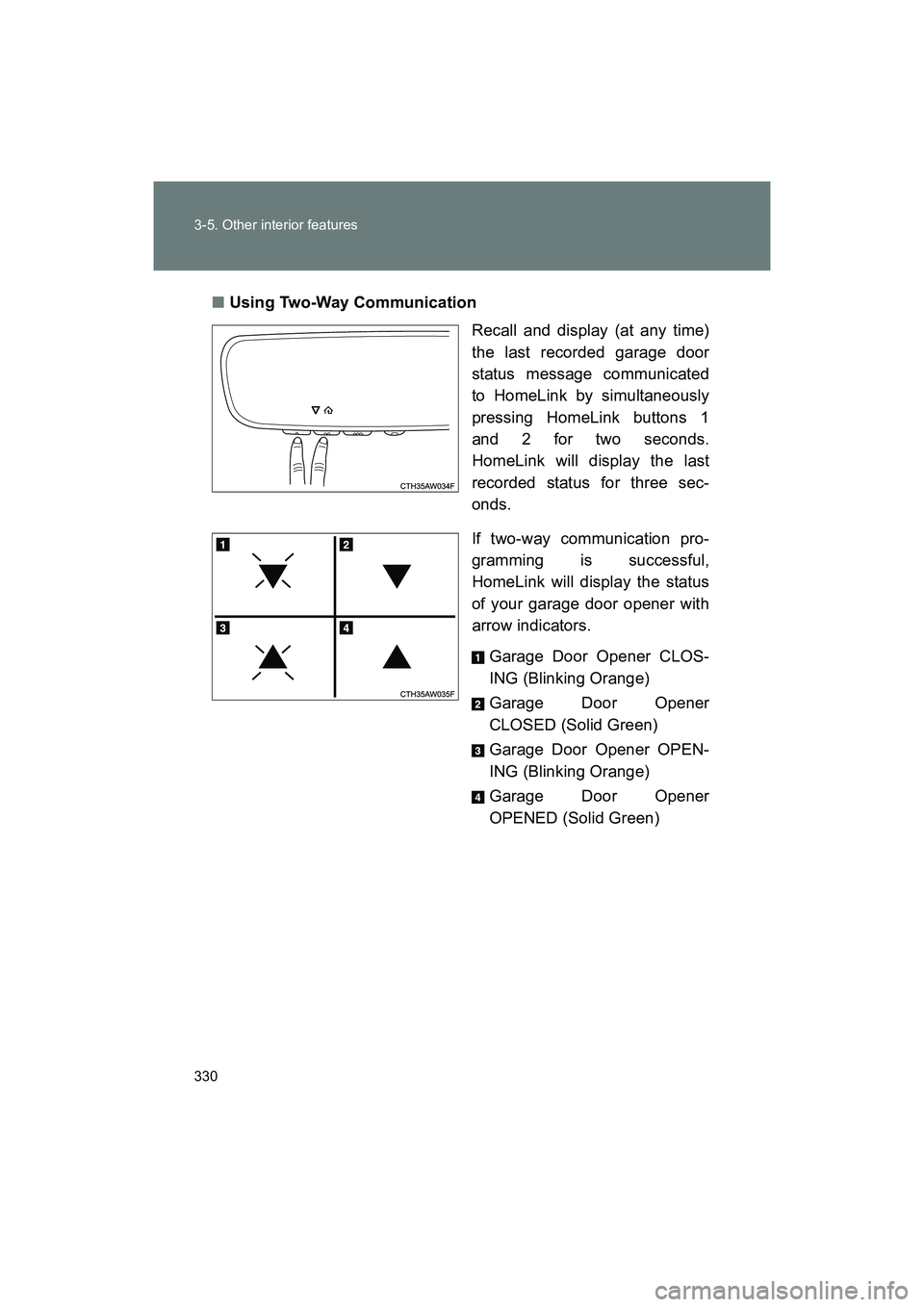

Using Two-Way Communication
Recall and display (at any time)
the last recorded garage door
status message communicated
to HomeLink by simultaneously
pressing HomeLink buttons 1
and 2 for two seconds.
HomeLink will display the last
recorded status for three sec-
onds.
If two-way communication pro-
gramming is successful,
HomeLink will display the status
of your garage door opener with
arrow indicators.
Garage Door Opener CLOS-
ING (Blinking Orange)
Garage Door Opener
CLOSED (Solid Green)
Garage Door Opener OPEN-
ING (Blinking Orange)
Garage Door Opener
OPENED (Solid Green)

331
3-5. Other interior features
3
Interior features
BRZ_U (A4450BE-A)
■

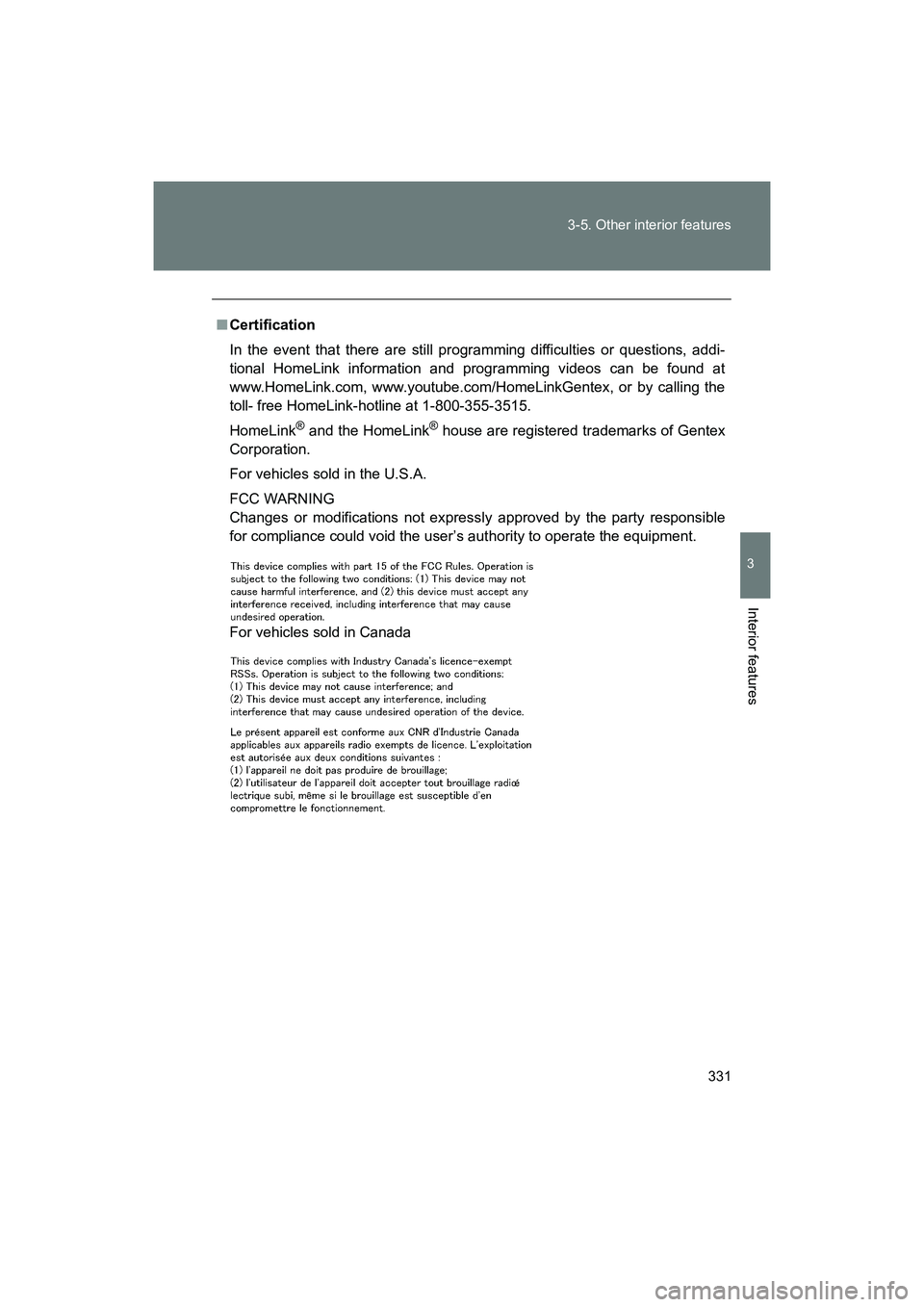

Certification
In the event that there are still programming difficulties or questions, addi-
tional HomeLink information and programming videos can be found at
www.HomeLink.com, www.youtube.com/HomeLinkGentex, or by calling the
toll- free HomeLink-hotline at 1-800-355-3515.
HomeLink
® and the HomeLink® house are registered trademarks of Gentex
Corporation.
For vehicles sold in the U.S.A.
FCC WARNING
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada

332 3-5. Other interior features
BRZ_U (A4450BE-A)
WARNING
■When programming a garage door or other remote control devices
When programming the HomeLink
® Wireless Control System, you may be
operating a garage door opener or other device. Make sure that people and
objects are out of the way of the garage door or other device to prevent
potential harm or damage.
■ Conforming to federal safety standards
Do not use the HomeLink
® Wireless Control System with a garage door
opener that lacks the safety stop and reverse feature as required by applica-
ble safety standards. A garage door opener which cannot detect an object,
signaling the door to stop and reverse, does not meet these safety stan-
dards. Using a garage door opener without these features increases risk of
serious injury or death. For more information, consult the HomeLink website
at www.homelink.co m or call 1-800-355-3515.
CAUTION
■Hand-held remote (garage door opener remote)
Keep the hand-held remote (garage door opener remote) of the device you
are programming for use in other vehicles as well as for future HomeLink
programming. It is also suggested that upon the sale of the vehicle, the pro-
grammed HomeLink buttons be erased for security purposes. Refer to
“Erasing HomeLink Buttons”. ( →P. 328)

333
3-5. Other interior features
3
Interior features
BRZ_U (A4450BE-A)

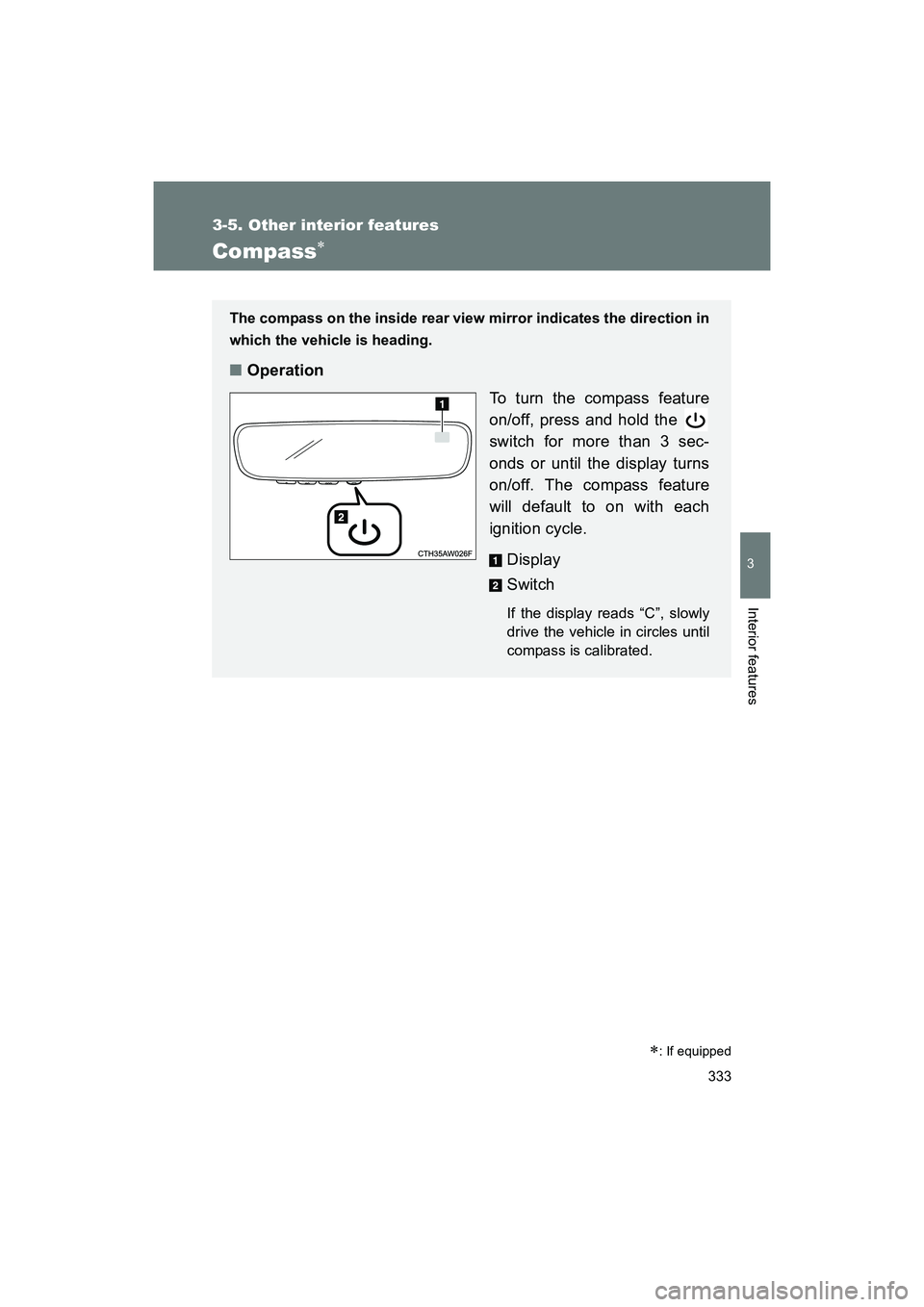

Compass∗
∗: If equipped
The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
■Operation
To turn the compass feature
on/off, press and hold the
switch for more than 3 sec-
onds or until the display turns
on/off. The compass feature
will default to on with each
ignition cycle.
Display
Switch
If the display reads “C”, slowly
drive the vehicle in circles until
compass is calibrated.

334 3-5. Other interior features
BRZ_U (A4450BE-A)

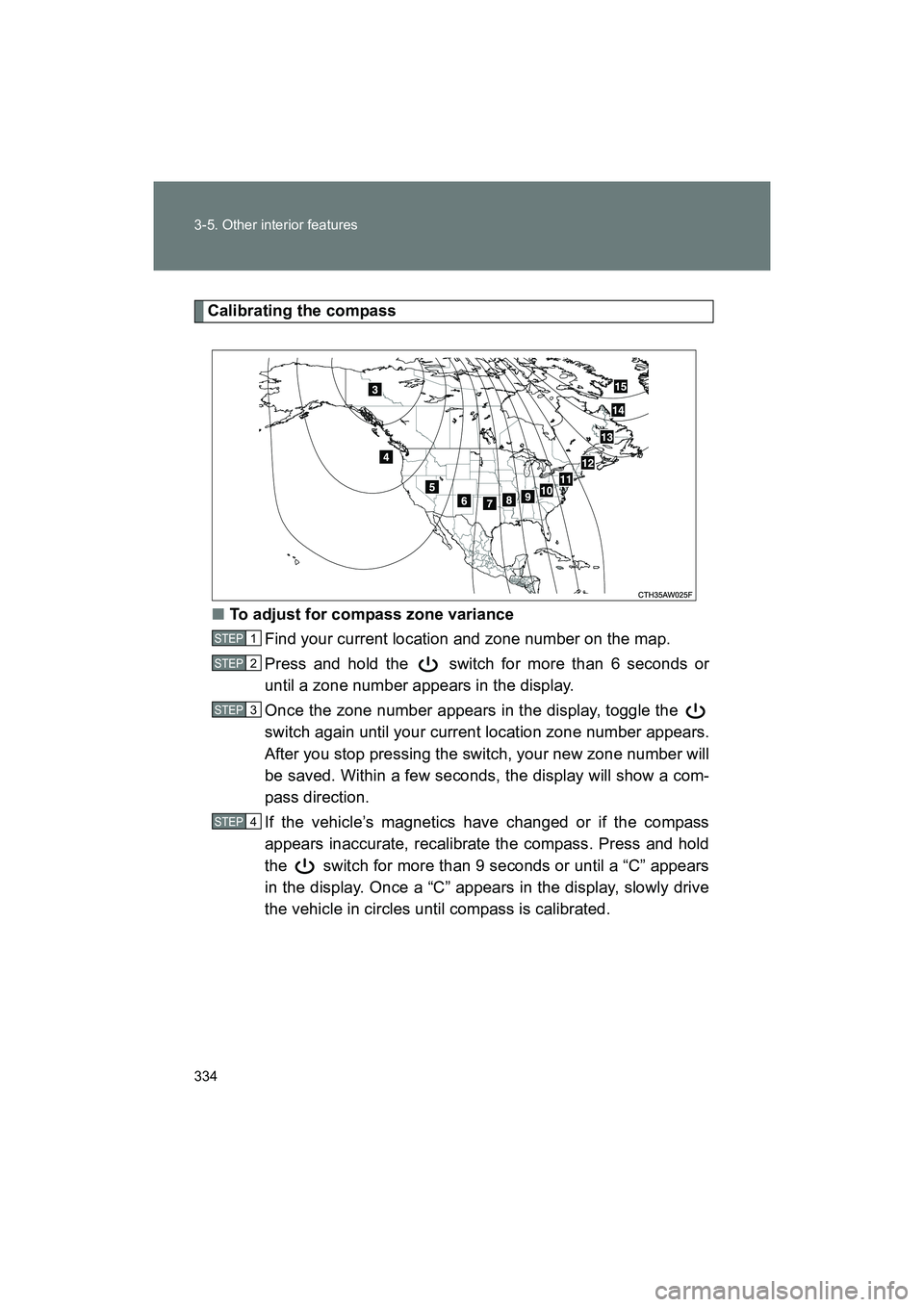

Calibrating the compass■ To adjust for compass zone variance
Find your current location and zone number on the map.
Press and hold the switch for more than 6 seconds or
until a zone number appears in the display.
Once the zone number appears in the display, toggle the
switch again until your current location zone number appears.
After you stop pressing the switch, your new zone number will
be saved. Within a few seconds, the display will show a com-
pass direction.
If the vehicle’s magnetics have changed or if the compass
appears inaccurate, recalibrate the compass. Press and hold
the switch for more than 9 seconds or until a “C” appears
in the display. Once a “C” appears in the display, slowly drive
the vehicle in circles until compass is calibrated.
STEP 1
STEP 2
STEP 3
STEP 4

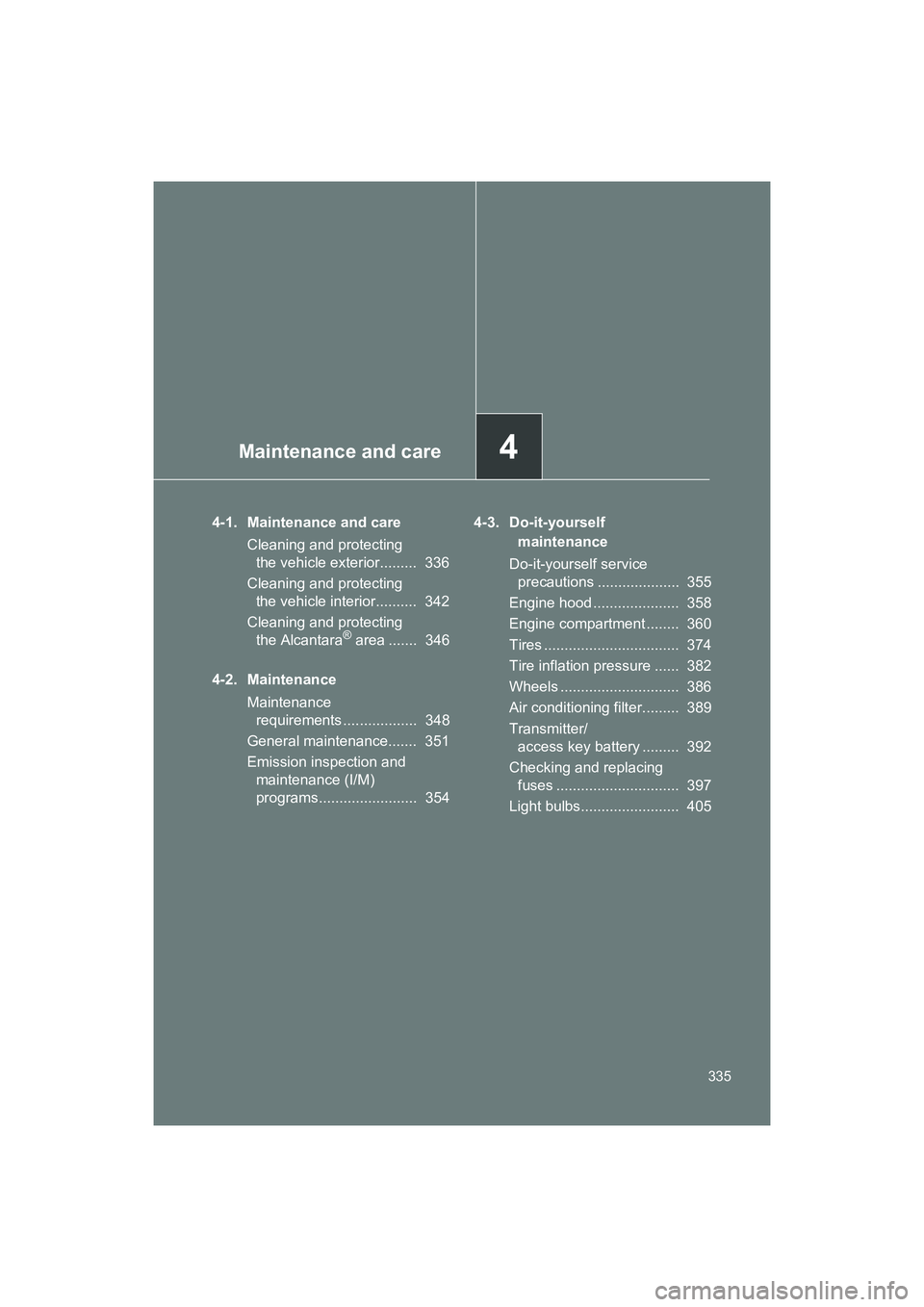

Maintenance and care4
335
BRZ_U (A4450BE-A)
4-1. Maintenance and careCleaning and protecting the vehicle exterior......... 336
Cleaning and protecting the vehicle interior.......... 342
Cleaning and protecting the Alcantara
® area ....... 346
4-2. Maintenance Maintenance requirements .................. 348
General maintenance....... 351
Emission inspection and maintenance (I/M)
programs........................ 354 4-3. Do-it-yourself
maintenance
Do-it-yourself service precautions .................... 355
Engine hood ..................... 358
Engine compartment ........ 360
Tires ................................. 374
Tire inflation pressure ...... 382
Wheels ............................. 386
Air conditioning filter......... 389
Transmitter/ access key battery ......... 392
Checking and replacing fuses .............................. 397
Light bulbs........................ 405

336
BRZ_U (A4450BE-A)
4-1. Maintenance and care

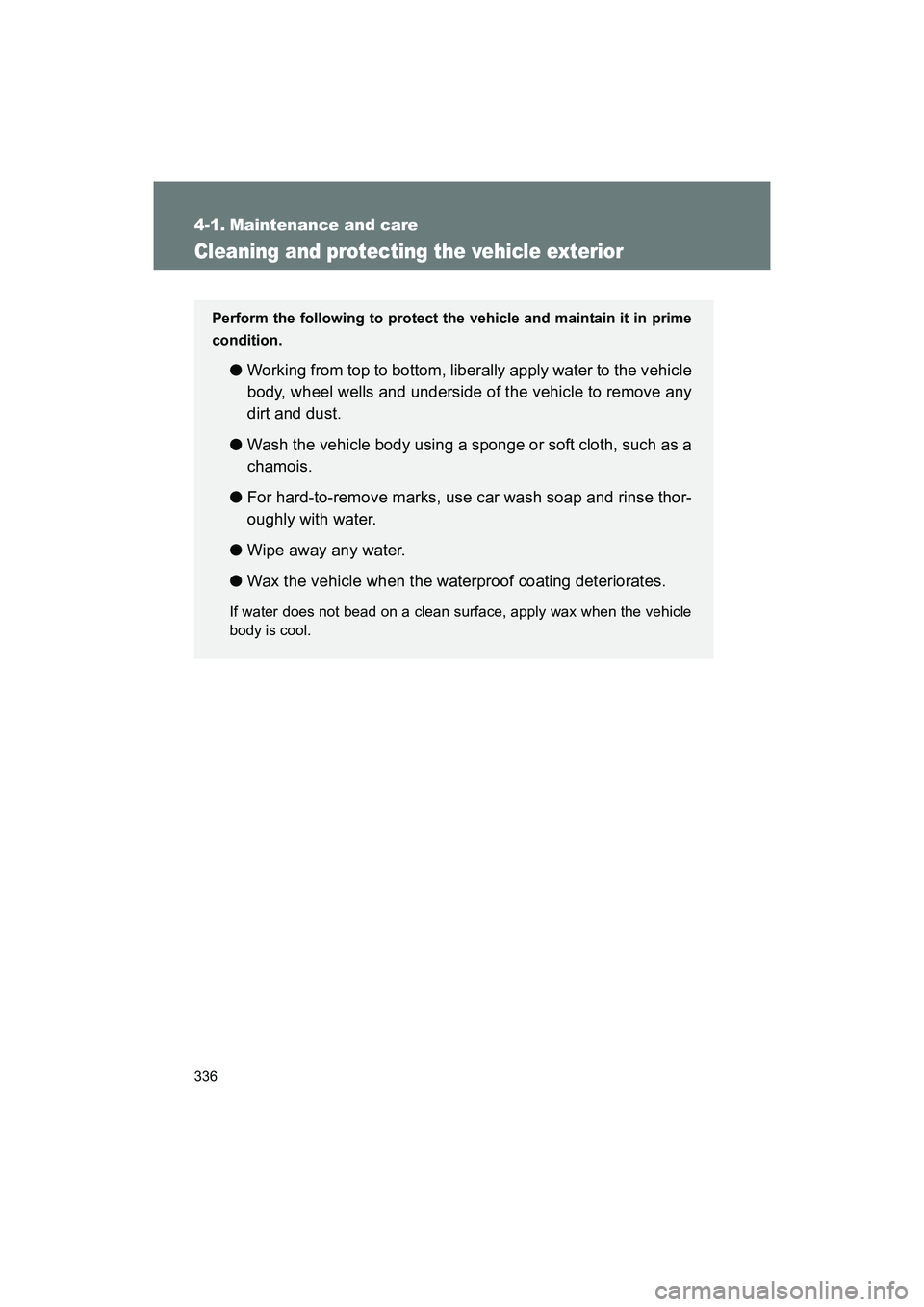

Cleaning and protecting the vehicle exterior
Perform the following to protect the vehicle and maintain it in prime
condition.
● Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
