2018 SUBARU BRZ Owners Manual

169
2-1. Driving procedures
2
When driving
BRZ_U (A4450BE-A)
CAUTION
Vehicles with a manual transmission
●
If the accelerator and brake pedals are depressed at the same time, driv-
ing torque may be restrained. This is not a malfunction.
● Do not shift gears unless the clutch pedal is fully depressed. After shifting,
do not release the clutch pedal abruptly. Doing so may damage the clutch,
transmission and gears.
● Observe the following to prevent the clutch from being damaged.
• Do not rest your foot on the clutch pedal while driving.
Doing so may cause clutch trouble.
• Do not use any gear other than the 1st gear when starting off and mov- ing forward.
Doing so may damage the clutch.
• Do not use the clutch to hold the vehicle when stopping on an uphill grade.
Doing so may damage the clutch.
● Do not shift the shift lever to R when the vehicle is still moving. Doing so
may damage the clutch, transmission and gears.
● Do not release the clutch pedal too quickly. Doing so may damage the
transmission.
■ When parking the vehicle
● Vehicles with an automatic transmission: Always shift the select lever to P.
Failure to do so may cause the vehicle to move or the vehicle may accel-
erate suddenly if the accelerator pedal is accidentally depressed. Also set
the parking brake.
● When parking the vehicle, be careful not to contact a wheel stop, etc. as
doing so may damage the bumpers, underside of the vehicle, etc.

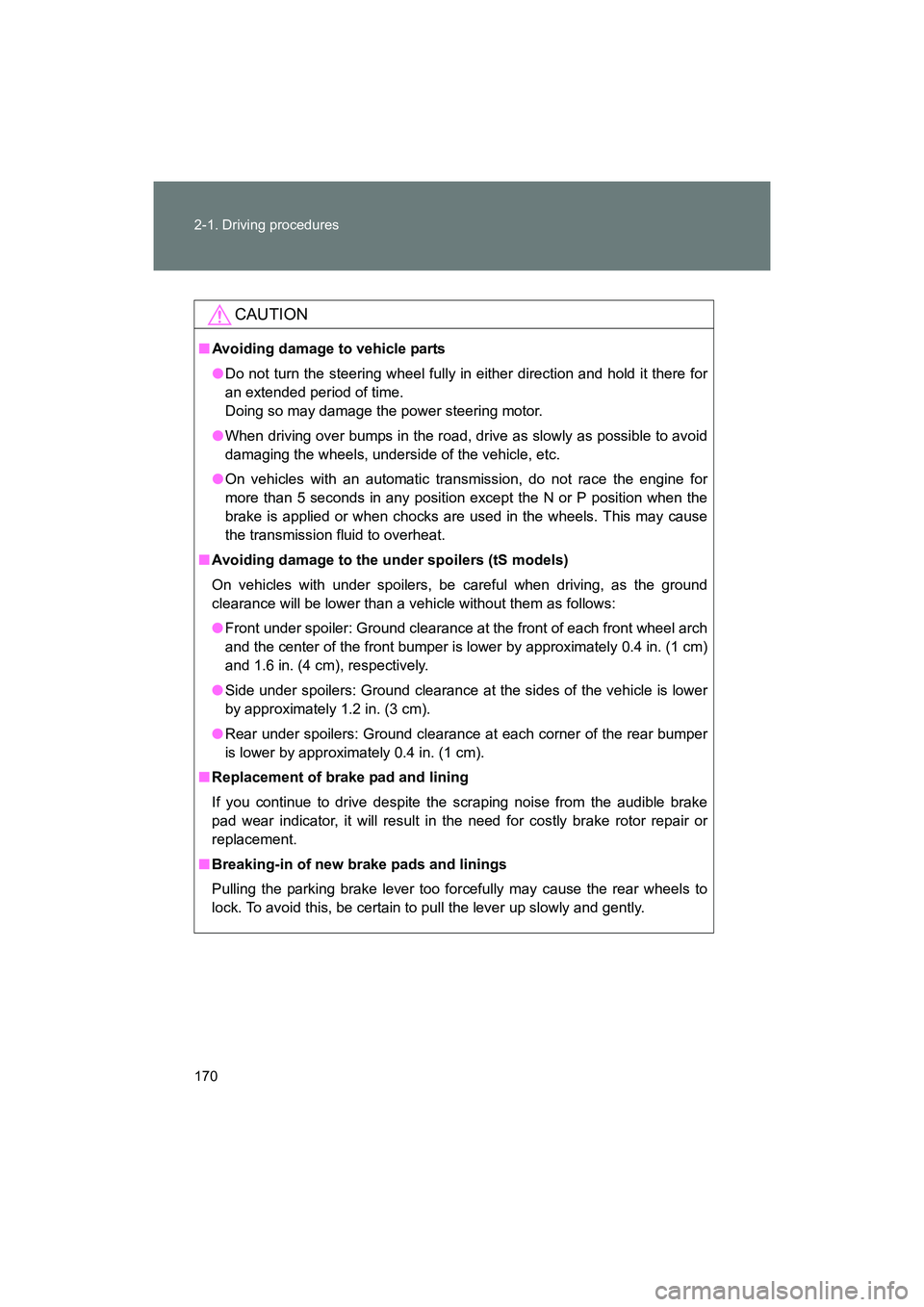

170 2-1. Driving procedures
BRZ_U (A4450BE-A)
CAUTION
■Avoiding damage to vehicle parts
●Do not turn the steering wheel fully in either direction and hold it there for
an extended period of time.
Doing so may damage the power steering motor.
● When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
● On vehicles with an automatic transmission, do not race the engine for
more than 5 seconds in any position except the N or P position when the
brake is applied or when chocks are used in the wheels. This may cause
the transmission fluid to overheat.
■ Avoiding damage to the under spoilers (tS models)
On vehicles with under spoilers, be careful when driving, as the ground
clearance will be lower than a vehicle without them as follows:
●Front under spoiler: Ground clearance at the front of each front wheel arch
and the center of the front bumper is lower by approximately 0.4 in. (1 cm)
and 1.6 in. (4 cm), respectively.
● Side under spoilers: Ground clearance at the sides of the vehicle is lower
by approximately 1.2 in. (3 cm).
● Rear under spoilers: Ground clearance at each corner of the rear bumper
is lower by approximately 0.4 in. (1 cm).
■ Replacement of brake pad and lining
If you continue to drive despite the scraping noise from the audible brake
pad wear indicator, it will result in the need for costly brake rotor repair or
replacement.
■ Breaking-in of new brake pads and linings
Pulling the parking brake lever too forcefully may cause the rear wheels to
lock. To avoid this, be certain to pull the lever up slowly and gently.

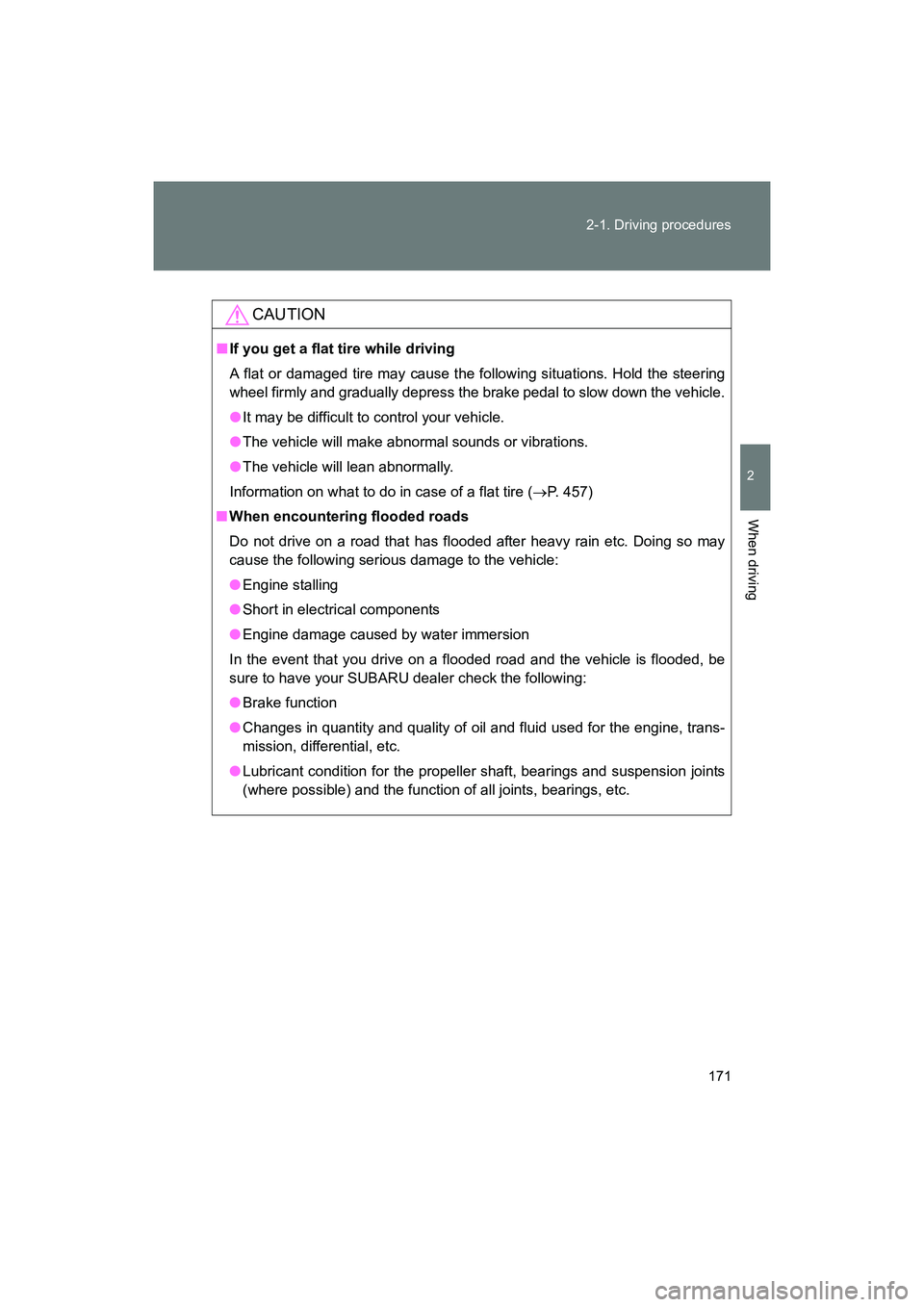

171
2-1. Driving procedures
2
When driving
BRZ_U (A4450BE-A)
CAUTION
■
If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually depress the brake pedal to slow down the vehicle.
● It may be difficult to control your vehicle.
● The vehicle will make abnormal sounds or vibrations.
● The vehicle will lean abnormally.
Information on what to do in case of a flat tire ( →P. 457)
■ When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle:
● Engine stalling
● Short in electrical components
● Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your SUBARU dealer check the following:
● Brake function
● Changes in quantity and quality of oil and fluid used for the engine, trans-
mission, differential, etc.
● Lubricant condition for the propeller shaft, bearings and suspension joints
(where possible) and the function of all joints, bearings, etc.

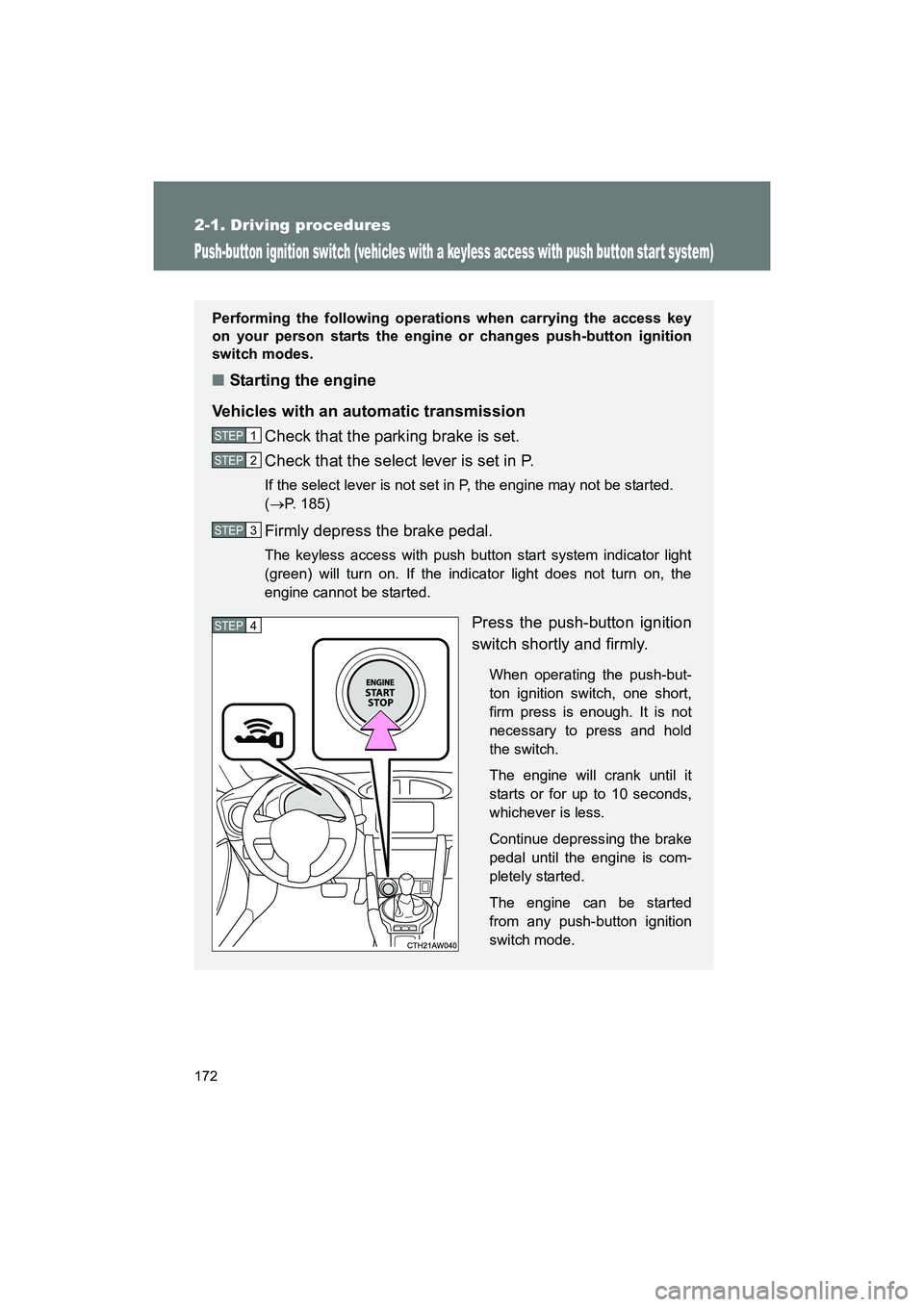

172
2-1. Driving procedures
BRZ_U (A4450BE-A)
Push-button ignition switch (vehicles with a keyless access with push button star t system)
Performing the following operations when carrying the access key
on your person starts the engine or changes push-button ignition
switch modes.
■Starting the engine
Vehicles with an automatic transmission Check that the parking brake is set.
Check that the select lever is set in P.
If the select lever is not set in P, the engine may not be started.
(→ P. 185)
Firmly depress the brake pedal.
The keyless access with push button start system indicator light
(green) will turn on. If the indicator light does not turn on, the
engine cannot be started.
Press the push-button ignition
switch shortly and firmly.
When operating the push-but-
ton ignition switch, one short,
firm press is enough. It is not
necessary to press and hold
the switch.
The engine will crank until it
starts or for up to 10 seconds,
whichever is less.
Continue depressing the brake
pedal until the engine is com-
pletely started.
The engine can be started
from any push-button ignition
switch mode.
STEP 1
STEP 2
STEP 3
STEP 4

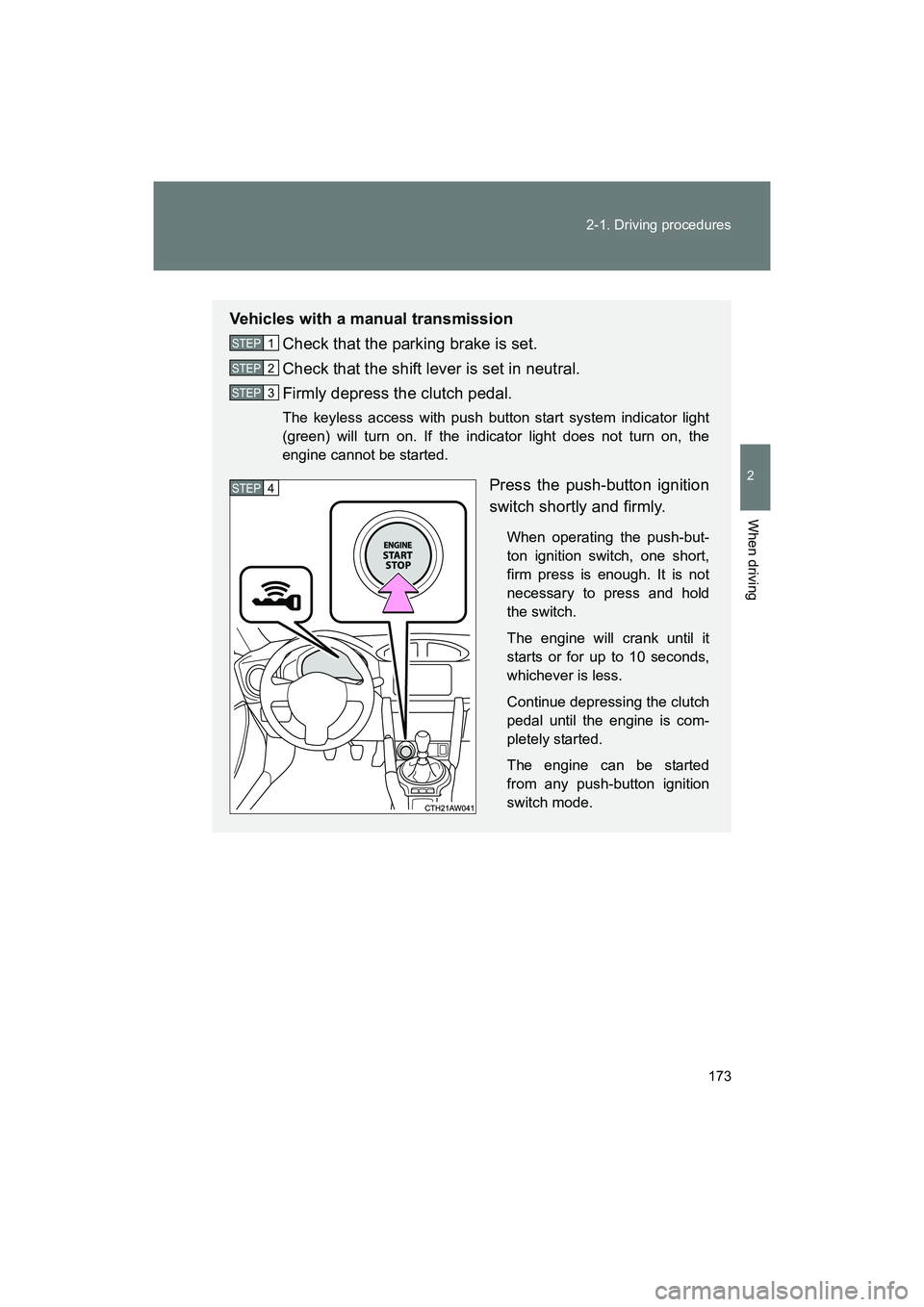

173
2-1. Driving procedures
2
When driving
BRZ_U (A4450BE-A)
Vehicles with a manual transmission
Check that the parking brake is set.
Check that the shift lever is set in neutral.
Firmly depress the clutch pedal.
The keyless access with push button start system indicator light
(green) will turn on. If the indicator light does not turn on, the
engine cannot be started.
Press the push-button ignition
switch shortly and firmly.
When operating the push-but-
ton ignition switch, one short,
firm press is enough. It is not
necessary to press and hold
the switch.
The engine will crank until it
starts or for up to 10 seconds,
whichever is less.
Continue depressing the clutch
pedal until the engine is com-
pletely started.
The engine can be started
from any push-button ignition
switch mode.
STEP 1
STEP 2
STEP 3
STEP 4

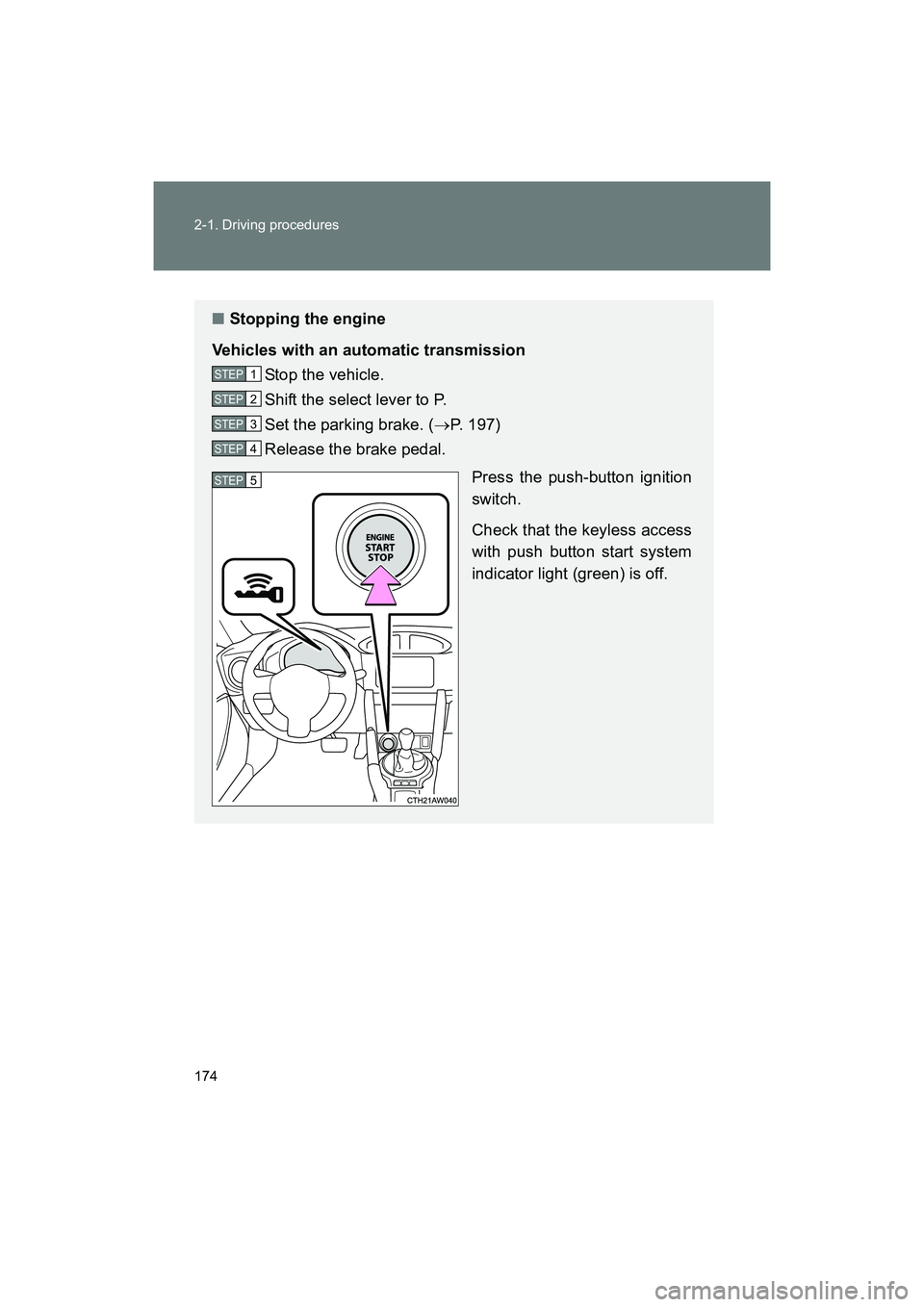

174 2-1. Driving procedures
BRZ_U (A4450BE-A)
■Stopping the engine
Vehicles with an automatic transmission Stop the vehicle.
Shift the select lever to P.
Set the parking brake. ( →P. 197)
Release the brake pedal.
Press the push-button ignition
switch.
Check that the keyless access
with push button start system
indicator light (green) is off.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

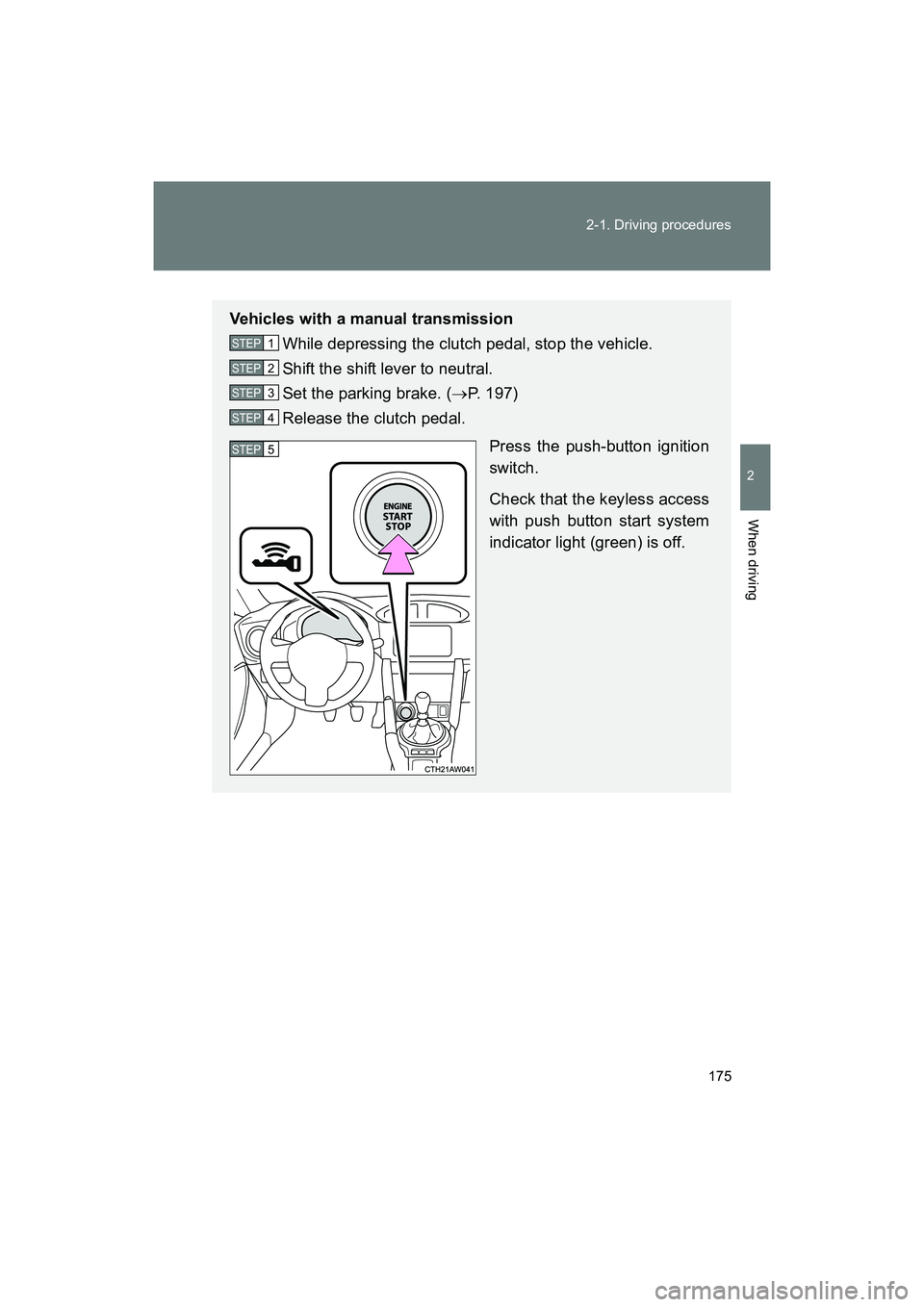

175
2-1. Driving procedures
2
When driving
BRZ_U (A4450BE-A)
Vehicles with a manual transmission
While depressing the clutch pedal, stop the vehicle.
Shift the shift lever to neutral.
Set the parking brake. ( →P. 197)
Release the clutch pedal.
Press the push-button ignition
switch.
Check that the keyless access
with push button start system
indicator light (green) is off.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

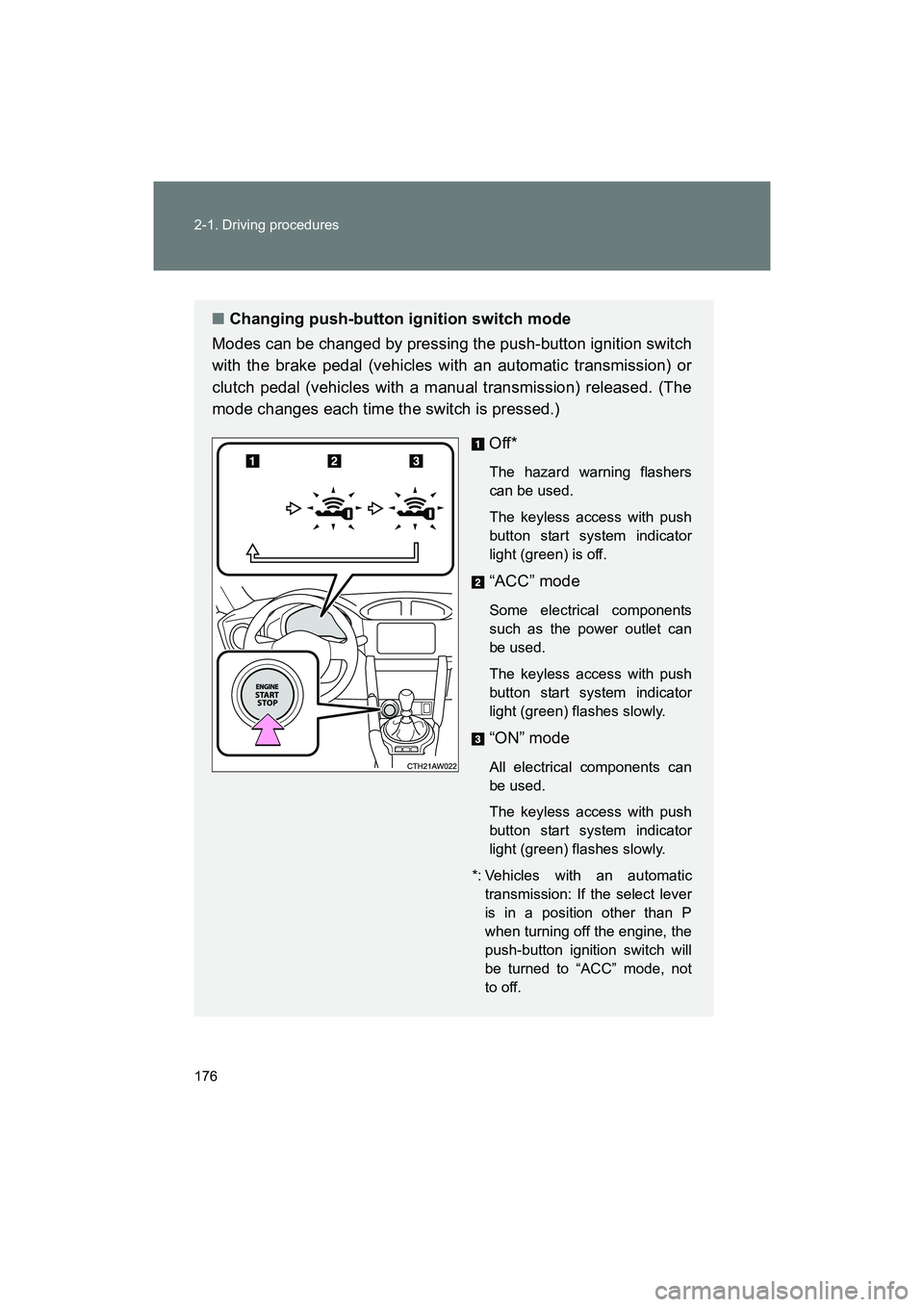

176 2-1. Driving procedures
BRZ_U (A4450BE-A)
■Changing push-button ignition switch mode
Modes can be changed by pressing the push-button ignition switch
with the brake pedal (vehicles with an automatic transmission) or
clutch pedal (vehicles with a manual transmission) released. (The
mode changes each time the switch is pressed.)
Off*
The hazard warning flashers
can be used.
The keyless access with push
button start system indicator
light (green) is off.
“ACC” mode
Some electrical components
such as the power outlet can
be used.
The keyless access with push
button start system indicator
light (green) flashes slowly.
“ON” mode
All electrical components can
be used.
The keyless access with push
button start system indicator
light (green) flashes slowly.
*: Vehicles with an automatic transmission: If the select lever
is in a position other than P
when turning off the engine, the
push-button ignition switch will
be turned to “ACC” mode, not
to off.
