2018 SUBARU BRZ Owners Manual

25
1
Before driving
BRZ_U (A4450BE-A)
1-2. Opening, closing and locking the doors and trunk lid

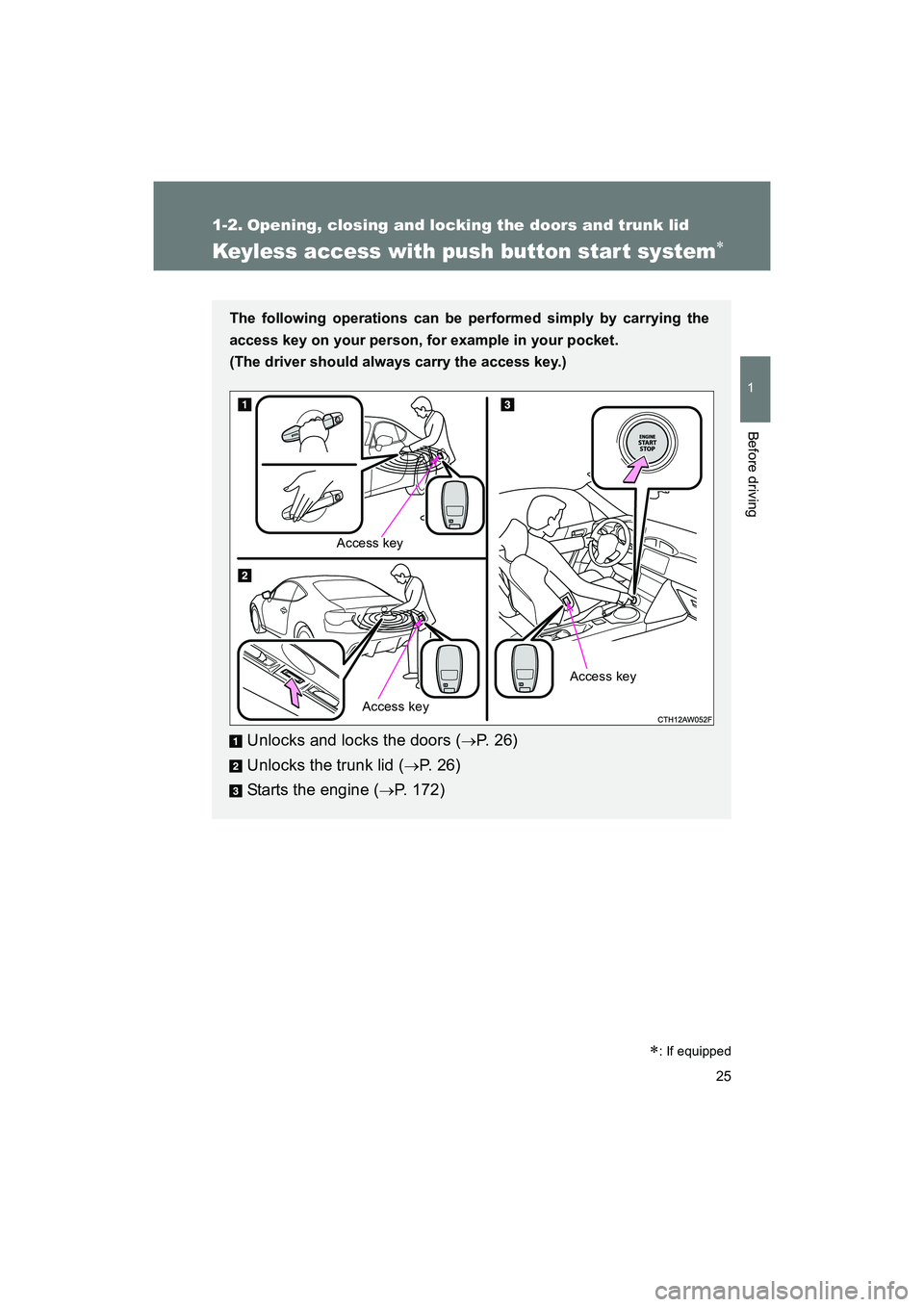

Keyless access with push button start system∗
The following operations can be performed simply by carrying the
access key on your person, for example in your pocket.
(The driver should always carry the access key.)
Unlocks and locks the doors (→P. 2 6 )
Unlocks the trunk lid (
→P. 2 6 )
Starts the engine (
→P. 172)
Access key
Access key
Access key
∗: If equipped

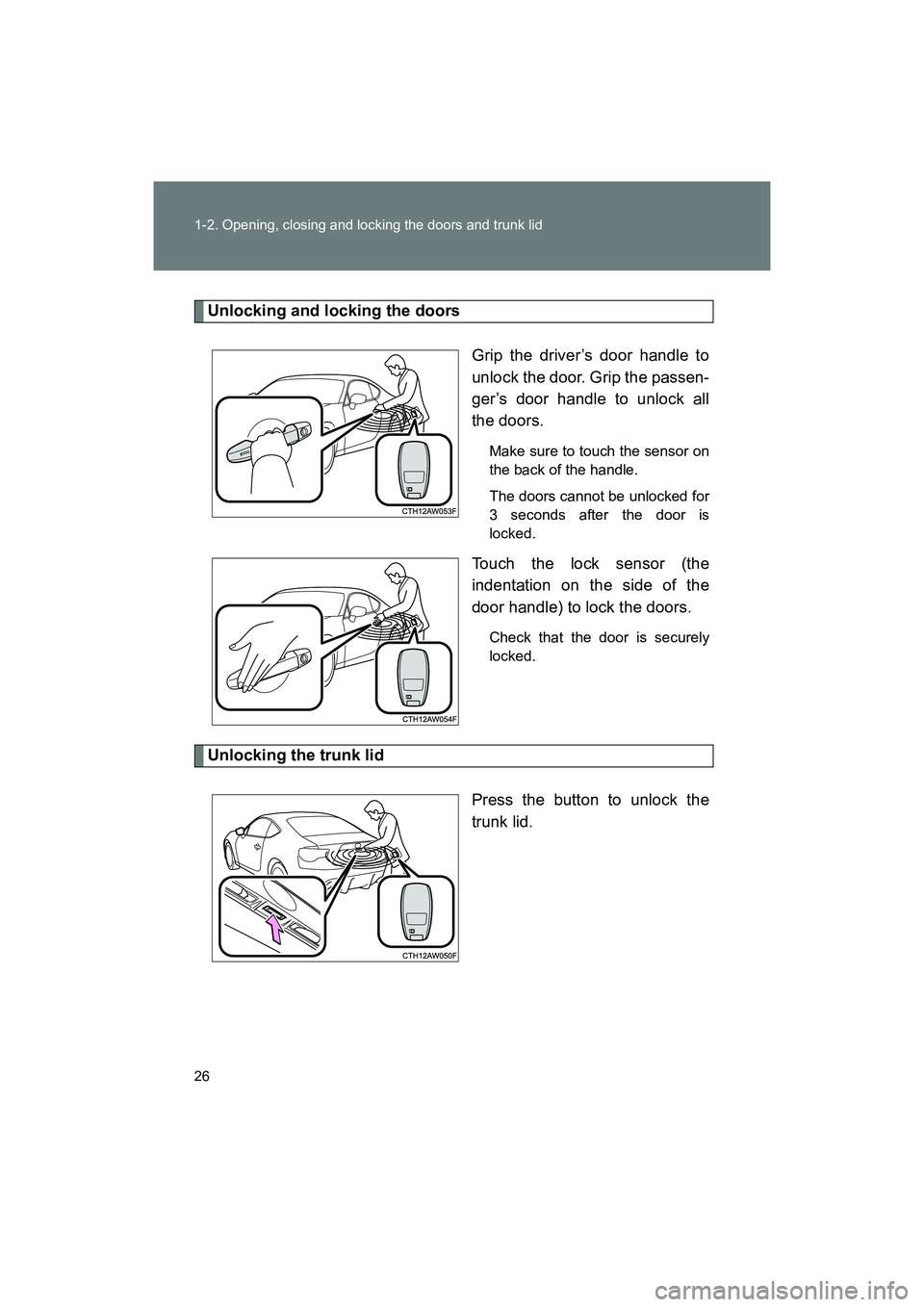

26 1-2. Opening, closing and locking the doors and trunk lid
BRZ_U (A4450BE-A)
Unlocking and locking the doorsGrip the driver’s door handle to
unlock the door. Grip the passen-
ger’s door handle to unlock all
the doors.
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the door is
locked.
Touch the lock sensor (the
indentation on the side of the
door handle) to lock the doors.
Check that the door is securely
locked.
Unlocking the trunk lidPress the button to unlock the
trunk lid.

27
1-2. Opening, closing and locking the doors and trunk lid
1
Before driving
BRZ_U (A4450BE-A)

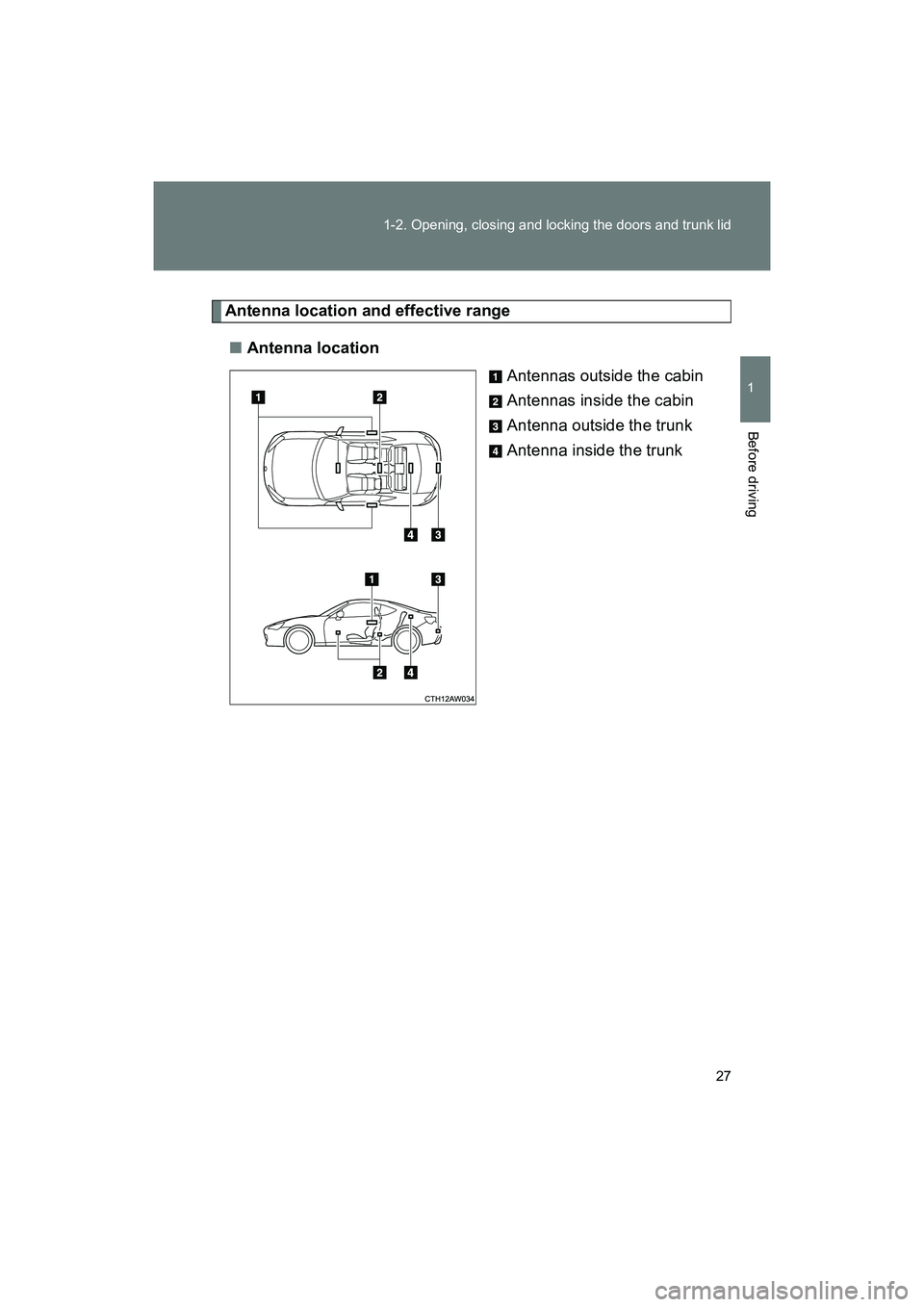

Antenna location and effective range
■ Antenna location
Antennas outside the cabin
Antennas inside the cabin
Antenna outside the trunk
Antenna inside the trunk

28 1-2. Opening, closing and locking the doors and trunk lid
BRZ_U (A4450BE-A)■

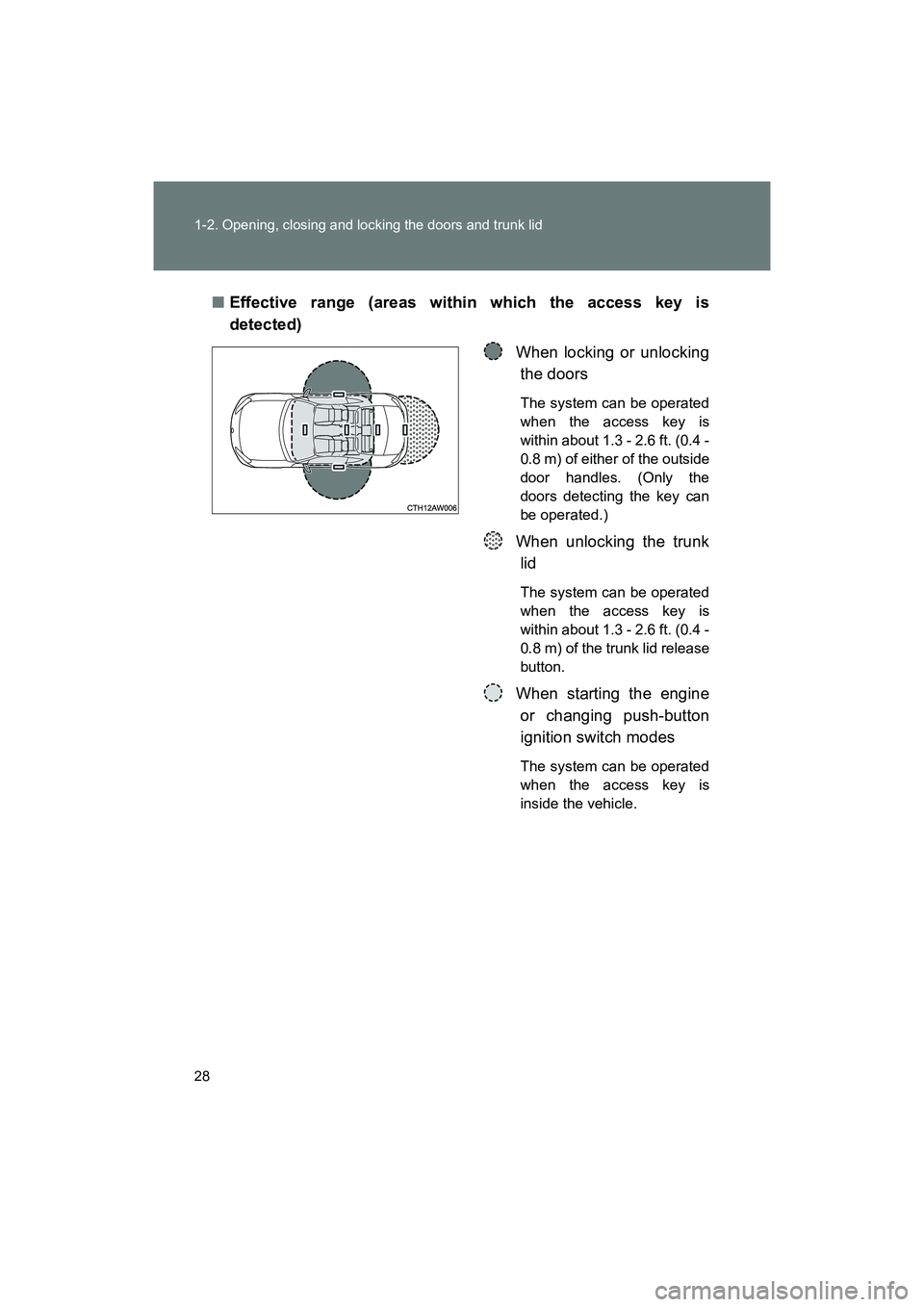

Effective range (areas within which the access key is
detected)
When locking or unlockingthe doors
The system can be operated
when the access key is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of either of the outside
door handles. (Only the
doors detecting the key can
be operated.)
When unlocking the trunklid
The system can be operated
when the access key is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of the trunk lid release
button.
When starting the engine
or changing push-button
ignition switch modes
The system can be operated
when the access key is
inside the vehicle.

29
1-2. Opening, closing and locking the doors and trunk lid
1
Before driving
BRZ_U (A4450BE-A)
■

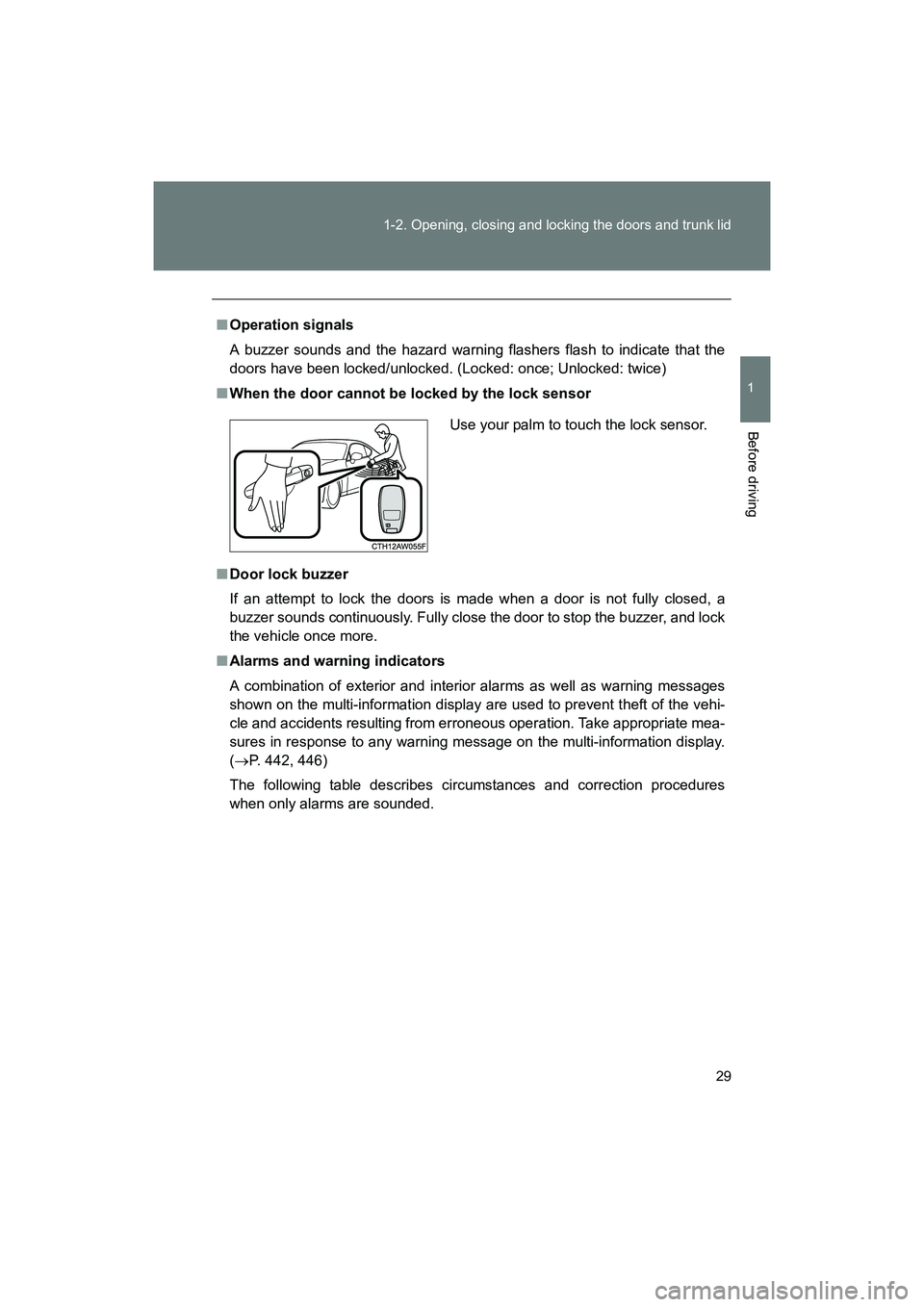

Operation signals
A buzzer sounds and the hazard warning flashers flash to indicate that the
doors have been locked/unlocked. (Locked: once; Unlocked: twice)
■ When the door cannot be locked by the lock sensor
■ Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■ Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages
shown on the multi-information display are used to prevent theft of the vehi-
cle and accidents resulting from erroneous operation. Take appropriate mea-
sures in response to any warning message on the multi-information display.
(→ P. 442, 446)
The following table describes circumstances and correction procedures
when only alarms are sounded. Use your palm to touch the lock sensor.

30 1-2. Opening, closing and locking the doors and trunk lid
BRZ_U (A4450BE-A)
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again. (How-
ever, depending on the location of the access key, the key may be detected
as being in the vehicle. In this case, the vehicle may be unlocked.)
■ Battery-saving function
The battery-saving function will be activated in order to prevent the access
key battery and the vehicle battery from being discharged while the vehicle
is not in operation for a long time.
●In the following situations, the keyless access with push button start sys-
tem may take some time to unlock the doors.
• The access key has been left in an area of approximately 6 ft. (2 m) of
the outside of the vehicle for 10 minutes or longer.
• The keyless access with push button start system has not been used for 5 days or longer.
● If the keyless access with push button start system has not been used for
14 days or longer, the doors cannot be unlocked at any door except the
driver’s door.
In this case, take hold of the driver’s door handle, or use the remote key-
less entry system or the mechanical key, to unlock the doors.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for
5 seconds An attempt was made to
lock the vehicle while a
door was open. Close all of the doors
and lock the doors
again.
Interior alarm
sounds continu-
ously The push-button ignition
switch was turned to
“ACC” mode while the
driver’s door was open (or
the driver’s door was
opened while the push-
button ignition switch was
in “ACC” mode). Turn the push-button
ignition switch off and
close the driver’s
door.

31
1-2. Opening, closing and locking the doors and trunk lid
1
Before driving
BRZ_U (A4450BE-A)
■

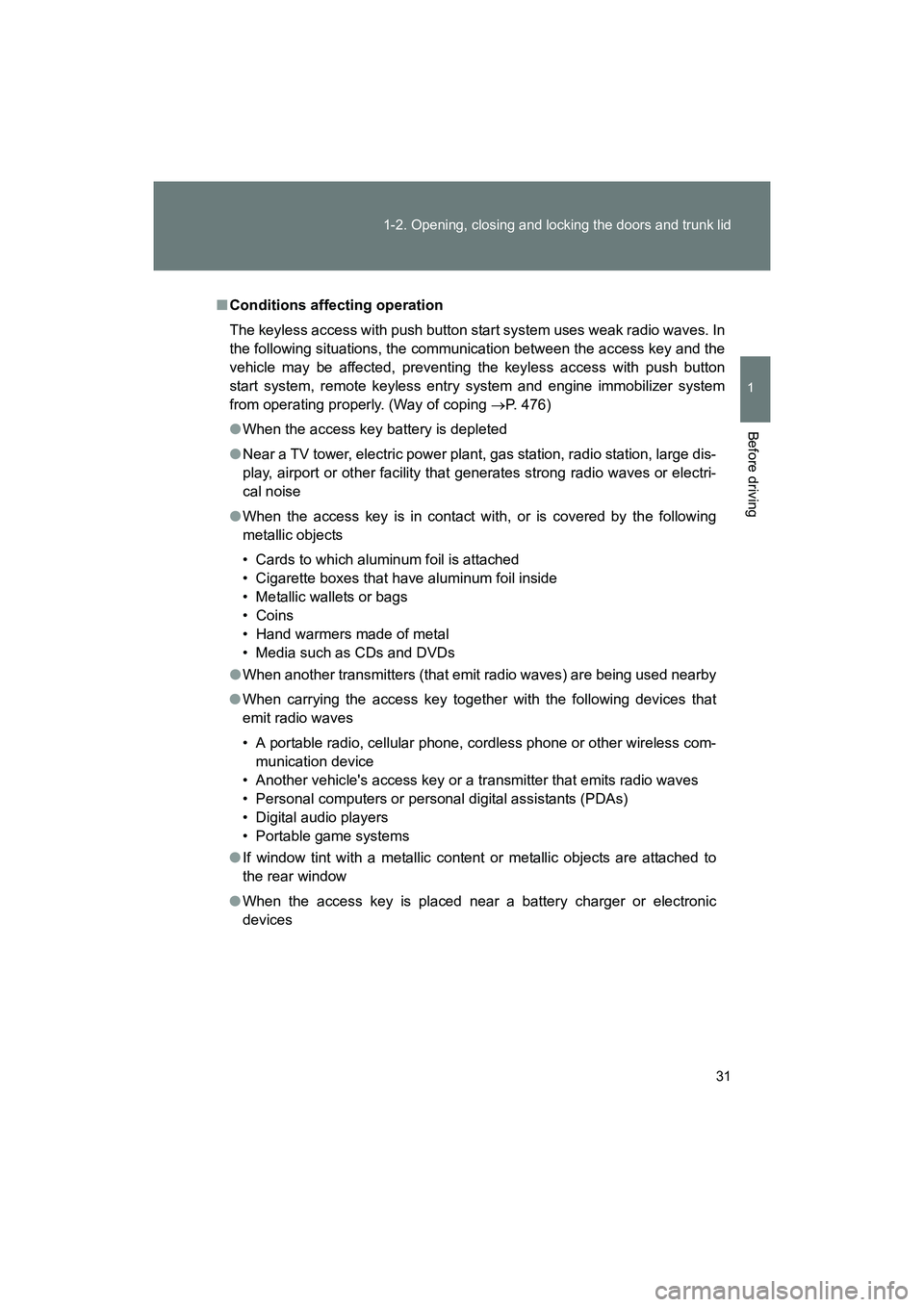

Conditions affecting operation
The keyless access with push button start system uses weak radio waves. In
the following situations, the communication between the access key and the
vehicle may be affected, preventing the keyless access with push button
start system, remote keyless entry system and engine immobilizer system
from operating properly. (Way of coping →P. 476)
● When the access key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When the access key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When another transmitters (that emit radio waves) are being used nearby
● When carrying the access key together with the following devices that
emit radio waves
• A portable radio, cellular phone, cordless phone or other wireless com-
munication device
• Another vehicle's access key or a transmitter that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to
the rear window
● When the access key is placed near a battery charger or electronic
devices

32 1-2. Opening, closing and locking the doors and trunk lid
BRZ_U (A4450BE-A)
■Notes for the “keyless access” entry function
●Even when the access key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The access key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
• The access key is near the ground or in a high place, or too close to the rear bumper center when the trunk lid is unlocked.
• The access key is on the instrument panel, rear shelf or floor, in the door pockets or glove box or auxiliary box when the engine is started or
push-button ignition switch modes are changed.
● Do not leave the access key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave
reception conditions, it may be detected by the antenna outside the cabin
and the door will become lockable from the outside, possibly trapping the
access key inside the vehicle.
● As long as the access key is within the effective range, the doors may be
locked or unlocked by anyone.
● Even if the access key is not inside the vehicle, it may be possible to start
the engine if the access key is near the window.
● The doors may unlock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash when the access key is within
the effective range. (The door will automatically be locked after approxi-
mately 60 seconds if the doors are not opened and closed.)
● Gripping the door handle when wearing a glove may not unlock the door.
● If the remote keyless entry system is used to lock the doors when the
access key is near the vehicle, there is a possibility that the door may not
be unlocked by the “keyless access” entry function. (Use the remote key-
less entry system to unlock the doors.)
● A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door
handle again.
