2018 SUBARU BRZ Owners Manual

137
1-7. Safety information
1
Before driving
BRZ_U (A4450BE-A)
Turn the engine switch to the “ON” position (vehicles without a
keyless access with push button start system), or the push-
button ignition switch to “ON” mode (vehicles with a keyless
access with push button start system). The ON and OFF indi-
cators illuminate for 6 seconds during the system check and
after the system check is performed, the ON and OFF indica-
tors turn off for 2 seconds. Then, the OFF indicator remains
off while the ON indicator is illuminated. If the ON indicator
remains off and the OFF indicator is illuminated, move the
occupant to the rear seat backwards and immediately contact
your SUBARU dealer and have the vehicle inspected.
If the front passenger’s frontal airbag ON indicator illuminates and the OFF indicator turns off
even when an infant or a small child is in a child restraint system (including booster seat)
This can be caused by the child restraint system being installed incor-
rectly. Perform the following.
Vehicles without a keyless access with push button start sys-
tem:
The engine switch is turned to the “LOCK” position.
Vehicles with a keyless access with push button start system:
Turn the push-button ignition switch off.
Remove the child restraint system from the seat. By referring
to the child restraint manufacturer’s recommendations as well
as the child restraint system installation procedure in “child
restraint system”, correctly reinstall the child restraint system.
STEP 5
STEP 1
STEP 2

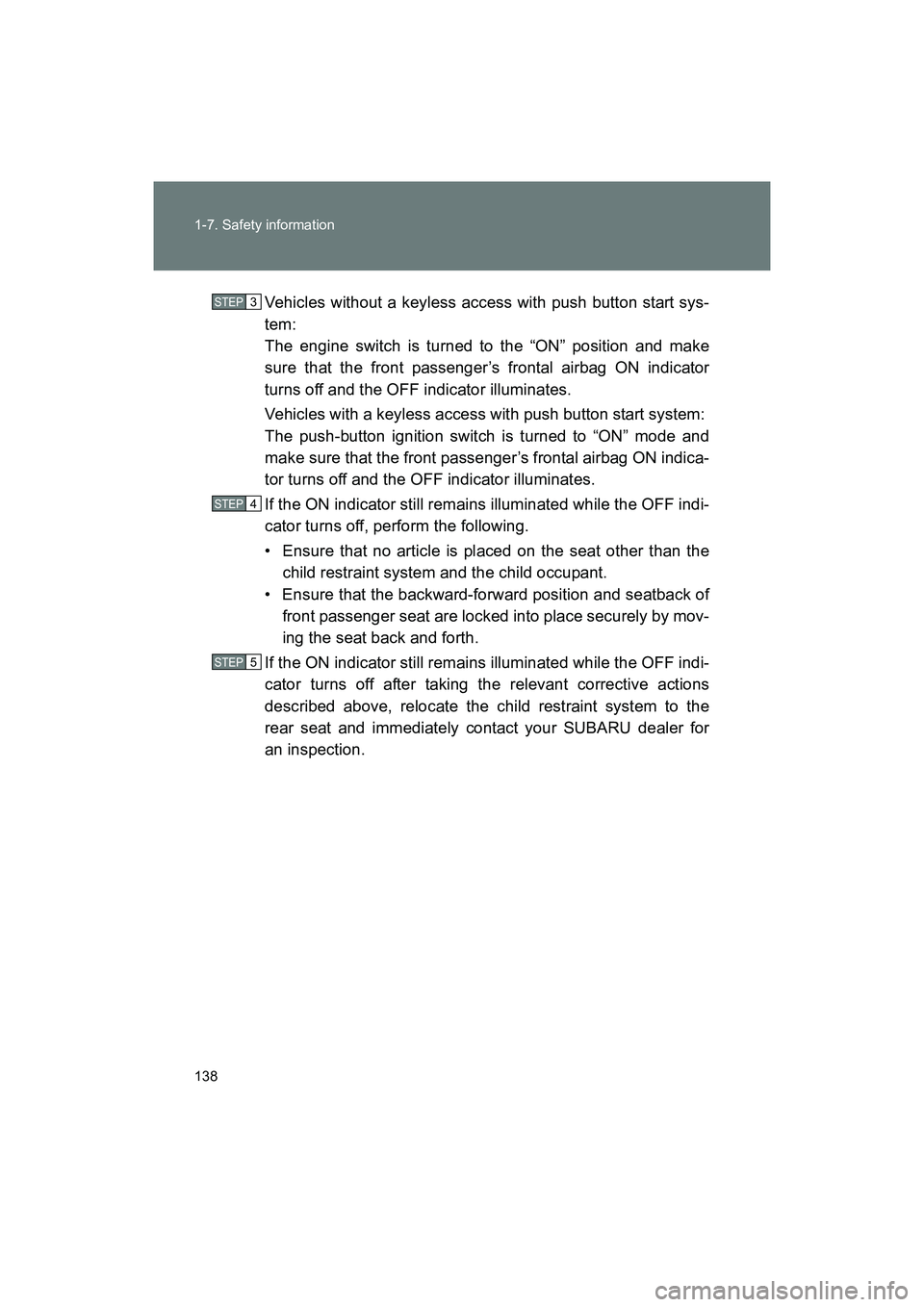

138 1-7. Safety information
BRZ_U (A4450BE-A)Vehicles without a keyless access with push button start sys-
tem:
The engine switch is turned to the “ON” position and make
sure that the front passenger’s frontal airbag ON indicator
turns off and the OFF indicator illuminates.
Vehicles with a keyless access with push button start system:
The push-button ignition switch is turned to “ON” mode and
make sure that the front passenger’s frontal airbag ON indica-
tor turns off and the OFF indicator illuminates.
If the ON indicator still remains illuminated while the OFF indi-
cator turns off, perform the following.
• Ensure that no article is placed on the seat other than the
child restraint system and the child occupant.
• Ensure that the backward-forward position and seatback of front passenger seat are locked into place securely by mov-
ing the seat back and forth.
If the ON indicator still remains illuminated while the OFF indi-
cator turns off after taking the relevant corrective actions
described above, relocate the child restraint system to the
rear seat and immediately contact your SUBARU dealer for
an inspection.
STEP 3
STEP 4
STEP 5

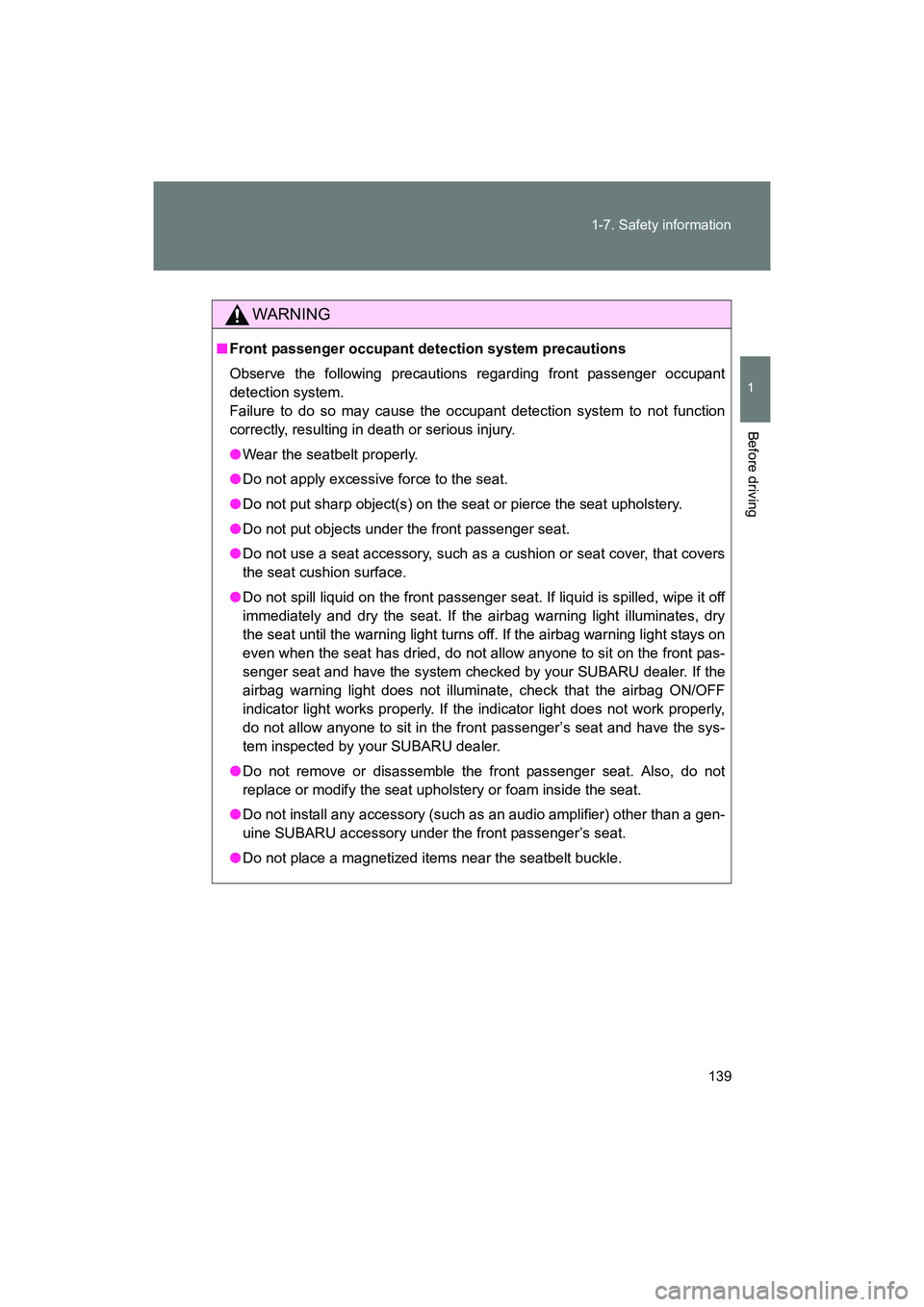

139
1-7. Safety information
1
Before driving
BRZ_U (A4450BE-A)
WARNING
■
Front passenger occupant detection system precautions
Observe the following precautions regarding front passenger occupant
detection system.
Failure to do so may cause the occupant detection system to not function
correctly, resulting in death or serious injury.
● Wear the seatbelt properly.
● Do not apply excessive force to the seat.
● Do not put sharp object(s) on the seat or pierce the seat upholstery.
● Do not put objects under the front passenger seat.
● Do not use a seat accessory, such as a cushion or seat cover, that covers
the seat cushion surface.
● Do not spill liquid on the front passenger seat. If liquid is spilled, wipe it off
immediately and dry the seat. If the airbag warning light illuminates, dry
the seat until the warning light turns off. If the airbag warning light stays on
even when the seat has dried, do not allow anyone to sit on the front pas-
senger seat and have the system checked by your SUBARU dealer. If the
airbag warning light does not illuminate, check that the airbag ON/OFF
indicator light works properly. If the indicator light does not work properly,
do not allow anyone to sit in the front passenger’s seat and have the sys-
tem inspected by your SUBARU dealer.
● Do not remove or disassemble the front passenger seat. Also, do not
replace or modify the seat upholstery or foam inside the seat.
● Do not install any accessory (such as an audio amplifier) other than a gen-
uine SUBARU accessory under the front passenger’s seat.
● Do not place a magnetized items near the seatbelt buckle.

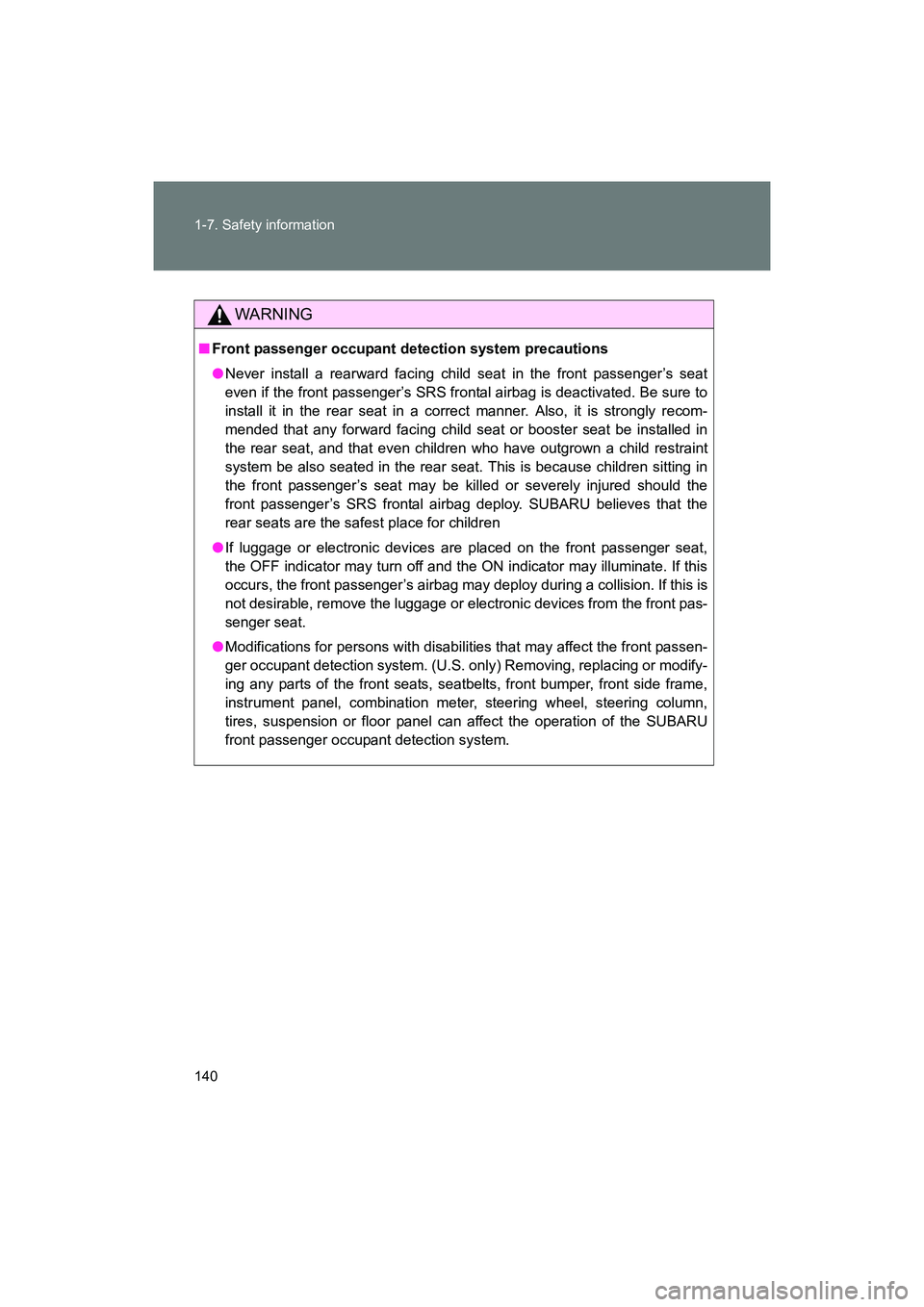

140 1-7. Safety information
BRZ_U (A4450BE-A)
WARNING
■Front passenger occupant detection system precautions
●Never install a rearward facing child seat in the front passenger’s seat
even if the front passenger’s SRS frontal airbag is deactivated. Be sure to
install it in the rear seat in a correct manner. Also, it is strongly recom-
mended that any forward facing child seat or booster seat be installed in
the rear seat, and that even children who have outgrown a child restraint
system be also seated in the rear seat. This is because children sitting in
the front passenger’s seat may be killed or severely injured should the
front passenger’s SRS frontal airbag deploy. SUBARU believes that the
rear seats are the safest place for children
● If luggage or electronic devices are placed on the front passenger seat,
the OFF indicator may turn off and the ON indicator may illuminate. If this
occurs, the front passenger’s airbag may deploy during a collision. If this is
not desirable, remove the luggage or el ectronic devices from the front pas-
senger seat.
● Modifications for persons wi th disabilities that may affect the front passen-
ger occupant detection system. (U.S. onl y) Removing, replacing or modify-
ing any parts of the front seats, seatbelts, front bumper, front side frame,
instrument panel, combination meter, steering wheel, steering column,
tires, suspension or floor panel can affect the operation of the SUBARU
front passenger occupant detection system.

141
1
1-7. Safety information
Before driving
BRZ_U (A4450BE-A)

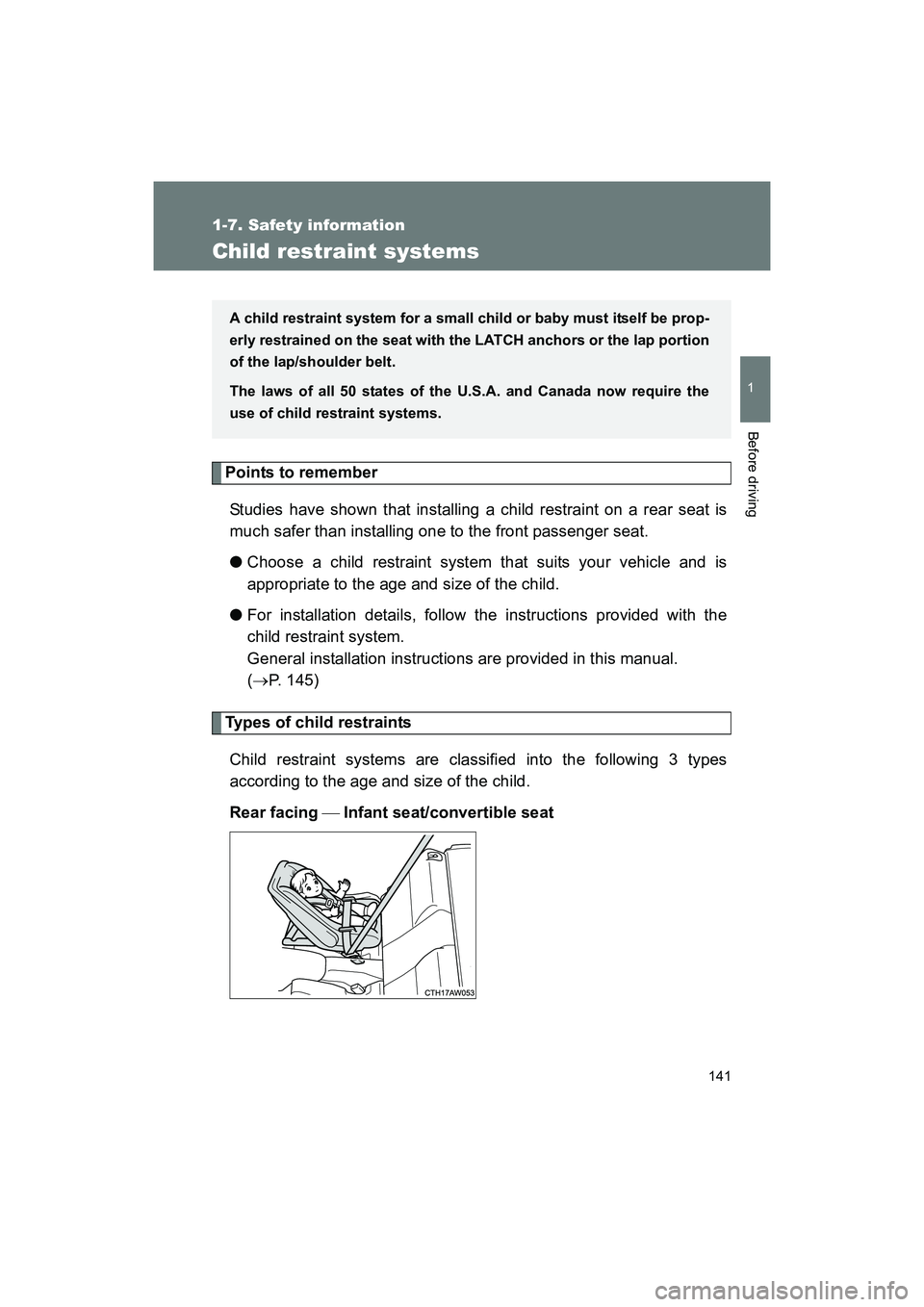

Child restraint systems
Points to rememberStudies have shown that installing a child restraint on a rear seat is
much safer than installing one to the front passenger seat.
● Choose a child restraint system that suits your vehicle and is
appropriate to the age and size of the child.
● For installation details, follow the instructions provided with the
child restraint system.
General installation instructions are provided in this manual.
(→ P. 145)
Types of child restraints
Child restraint systems are classified into the following 3 types
according to the age and size of the child.
Rear facing  Infant seat/convertible seat
A child restraint system fo r a small child or baby must itself be prop-
erly restrained on the seat with the LATCH anchors or the lap portion
of the lap/shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require the
use of child restraint systems.

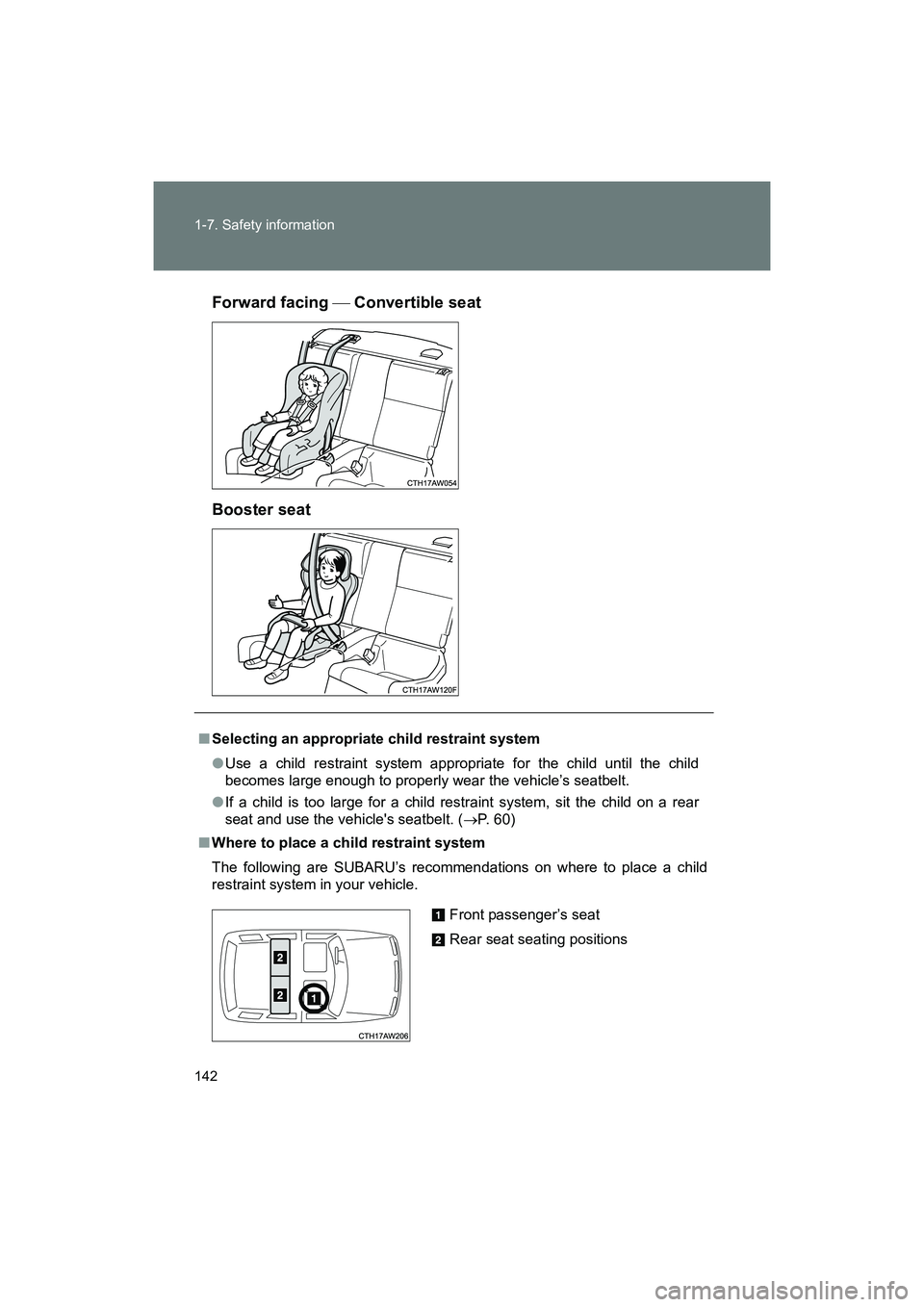

142 1-7. Safety information
BRZ_U (A4450BE-A)Forward facing
 Convertible seat
Booster seat
■ Selecting an appropriate child restraint system
●Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seatbelt.
● If a child is too large for a child restraint system, sit the child on a rear
seat and use the vehicle's seatbelt. ( →P. 60)
■ Where to place a child restraint system
The following are SUBARU’s recommendations on where to place a child
restraint system in your vehicle.
Front passenger’s seat
Rear seat seating positions

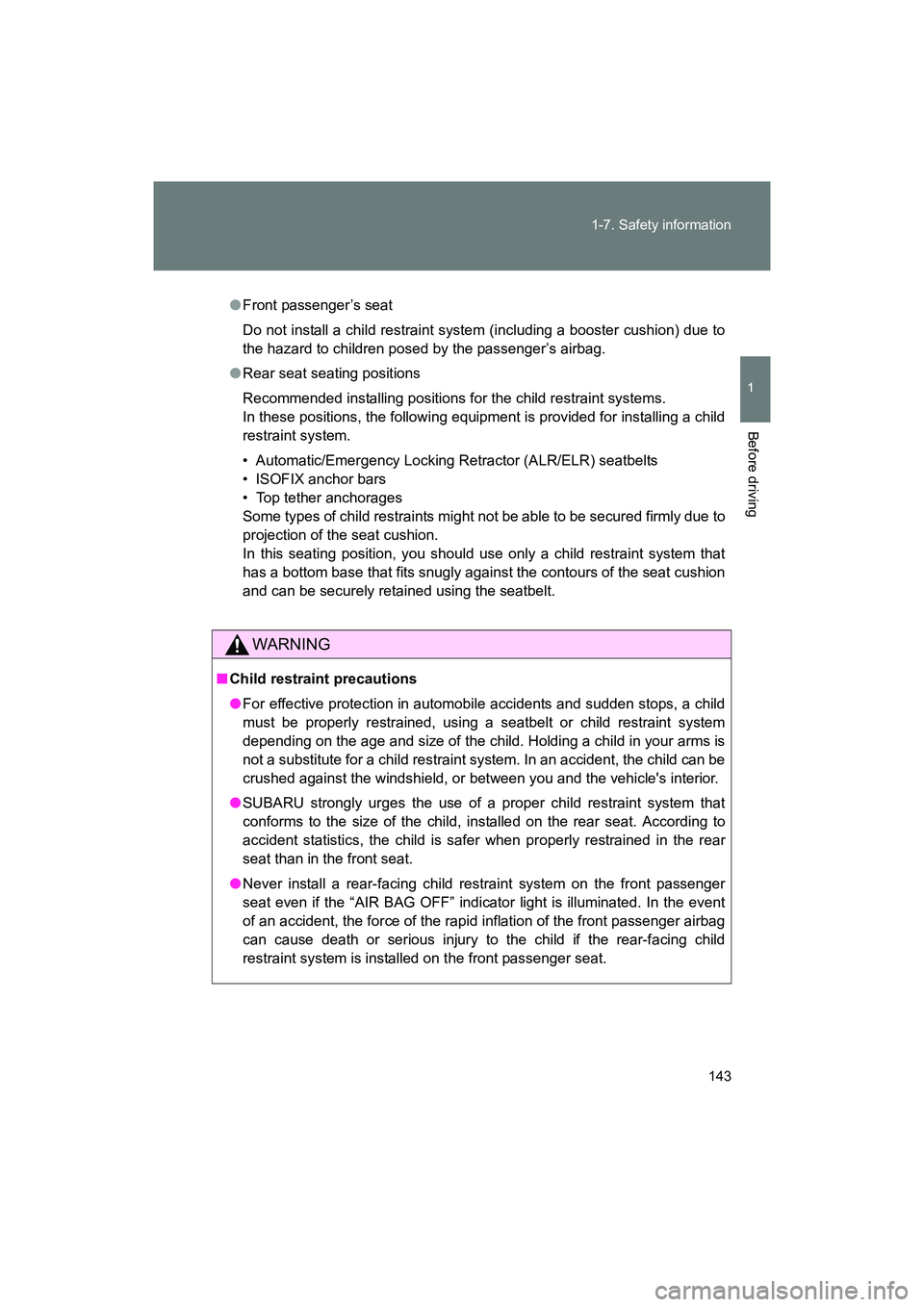

143
1-7. Safety information
1
Before driving
BRZ_U (A4450BE-A)
●
Front passenger’s seat
Do not install a child restraint system (including a booster cushion) due to
the hazard to children posed by the passenger’s airbag.
● Rear seat seating positions
Recommended installing positions for the child restraint systems.
In these positions, the following equipment is provided for installing a child
restraint system.
• Automatic/Emergency Locking Retractor (ALR/ELR) seatbelts
• ISOFIX anchor bars
• Top tether anchorages
Some types of child restraints might not be able to be secured firmly due to
projection of the seat cushion.
In this seating position, you should use only a child restraint system that
has a bottom base that fits snugly against the contours of the seat cushion
and can be securely retained using the seatbelt.
WARNING
■Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seatbelt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle's interior.
● SUBARU strongly urges the use of a proper child restraint system that
conforms to the size of the child, installed on the rear seat. According to
accident statistics, the child is safer when properly restrained in the rear
seat than in the front seat.
● Never install a rear-facing child restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated. In the event
of an accident, the force of the rapid inflation of the front passenger airbag
can cause death or serious injury to the child if the rear-facing child
restraint system is installed on the front passenger seat.

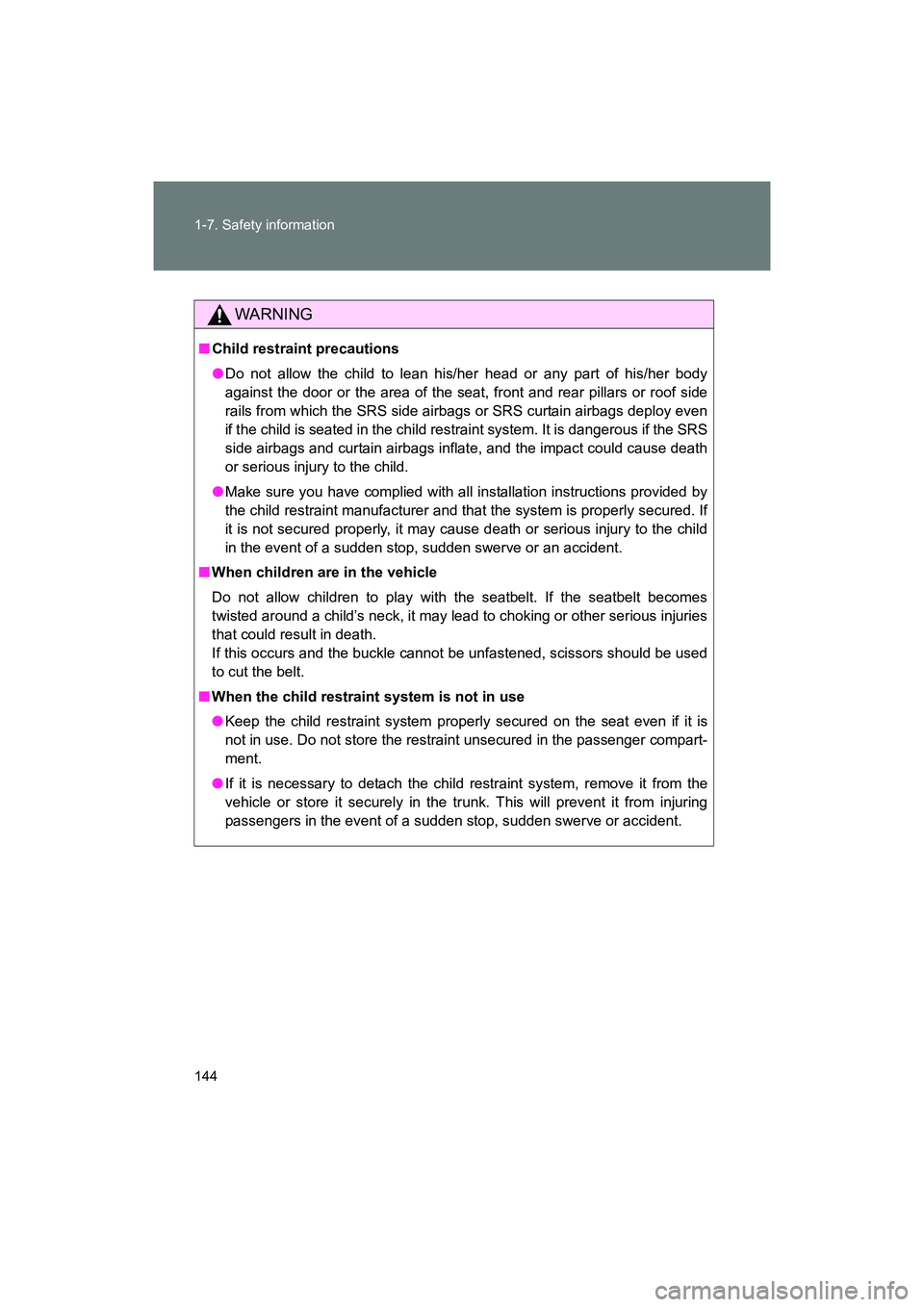

144 1-7. Safety information
BRZ_U (A4450BE-A)
WARNING
■Child restraint precautions
●Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain airbags deploy even
if the child is seated in the child restraint system. It is dangerous if the SRS
side airbags and curtain airbags inflate, and the impact could cause death
or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.
■ When children are in the vehicle
Do not allow children to play with the seatbelt. If the seatbelt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restrain t system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the restraint unsecured in the passenger compart-
ment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the trunk. This will prevent it from injuring
passengers in the event of a sudden stop, sudden swerve or accident.
