BRZ_U (A4450BE-A)

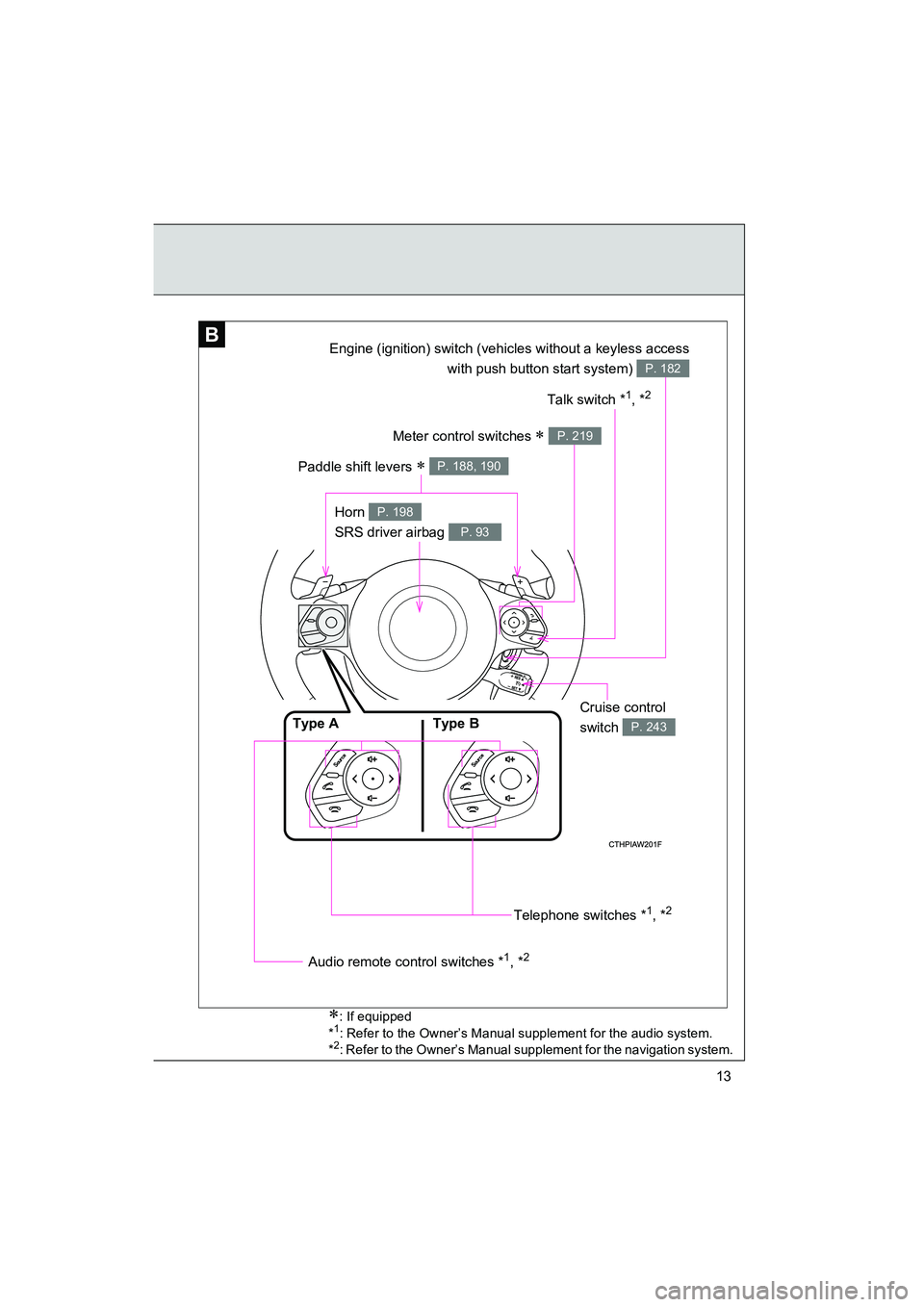

13
B
Paddle shift levers ∗ P. 188, 190
Cruise control
switch
P. 243
Horn
SRS driver airbag P. 198
P. 93
∗: If equipped
*1: Refer to the Owner’s Manual supplement for the audio system.
*2: Refer to the Owner’s Manual supplement for the navigation system.
Talk switch *1, *2
Type A Type B
Audio remote control switches *
1, *2
Telephone switches *1, *2
Meter control switches ∗ P. 219
Engine (ignition) switch (vehicles without a keyless access with push button start system)
P. 182

322
3-5. Other interior features
BRZ_U (A4450BE-A)
HomeLink®∗
Programming HomeLink
The HomeLink compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device. Indicator light
Status indicators
HomeLink buttons
∗: If equipped
The HomeLink® Wireless Control System provides a convenient way
to replace up to three hand-held radio-frequency remotes used to
activate devices such as gate operators, garage door openers, entry
door locks, security systems, even home lighting. The below steps
are generic programming instructions; for Genie and Sommer
garage door openers please go dir ectly to the HomeLink website.
Additional information and programming videos can be found at
www.HomeLink.com and www.youtube.com/HomeLinkGentex.

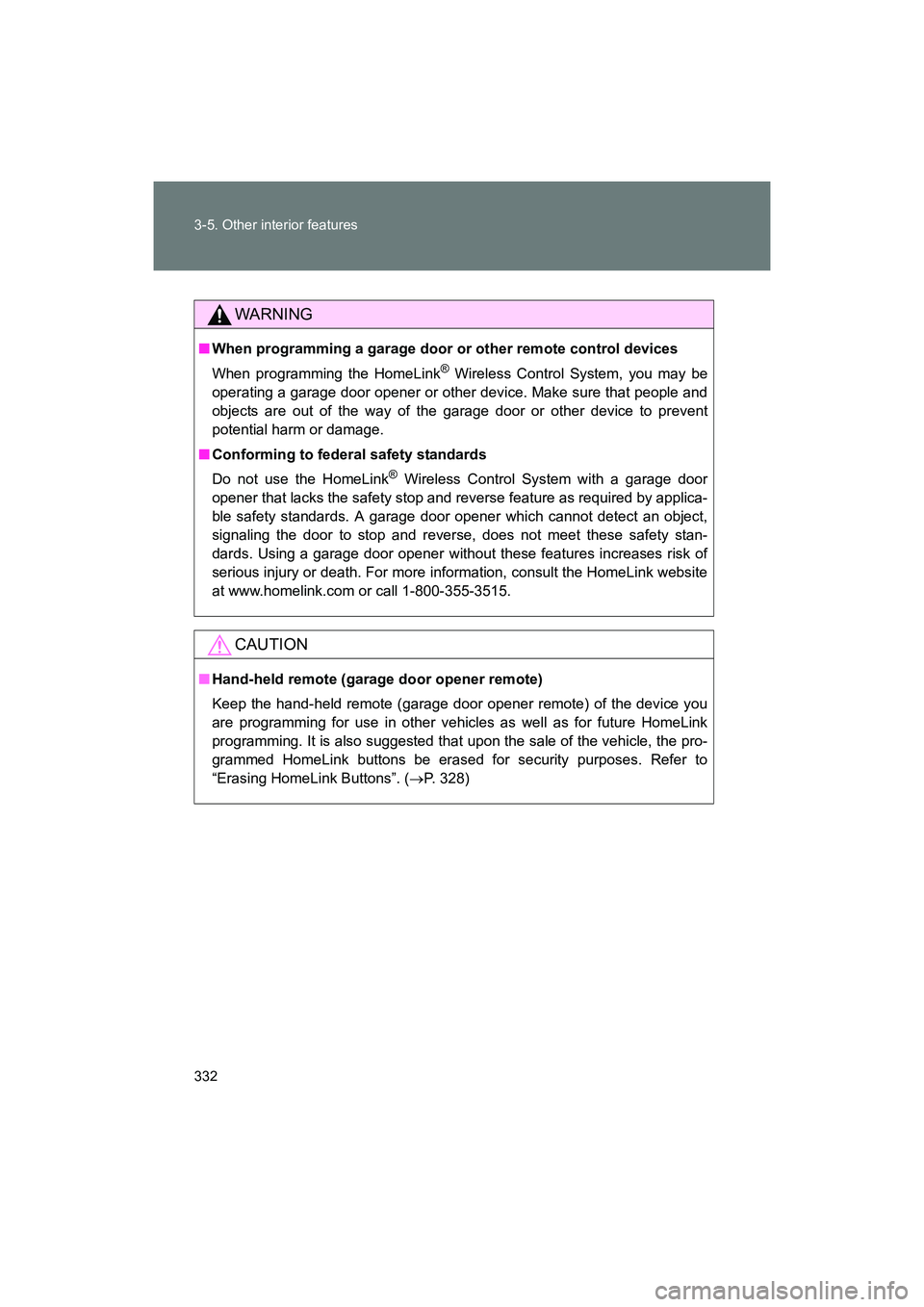

332 3-5. Other interior features
BRZ_U (A4450BE-A)
WARNING
■When programming a garage door or other remote control devices
When programming the HomeLink
® Wireless Control System, you may be
operating a garage door opener or other device. Make sure that people and
objects are out of the way of the garage door or other device to prevent
potential harm or damage.
■ Conforming to federal safety standards
Do not use the HomeLink
® Wireless Control System with a garage door
opener that lacks the safety stop and reverse feature as required by applica-
ble safety standards. A garage door opener which cannot detect an object,
signaling the door to stop and reverse, does not meet these safety stan-
dards. Using a garage door opener without these features increases risk of
serious injury or death. For more information, consult the HomeLink website
at www.homelink.co m or call 1-800-355-3515.
CAUTION
■Hand-held remote (garage door opener remote)
Keep the hand-held remote (garage door opener remote) of the device you
are programming for use in other vehicles as well as for future HomeLink
programming. It is also suggested that upon the sale of the vehicle, the pro-
grammed HomeLink buttons be erased for security purposes. Refer to
“Erasing HomeLink Buttons”. ( →P. 328)

396 4-3. Do-it-yourself maintenance
BRZ_U (A4450BE-A)
CAUTION
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.
■ Precaution before replacing the battery
Before replacing the battery, touch a metallic object to remove any static
electricity from your body.

401
4-3. Do-it-yourself maintenance
4
Maintenance and care
BRZ_U (A4450BE-A)
16SPARE See note. Spare fuse
17SPARE See note. Spare fuse
18SPARE See note. Spare fuse
19SPARE See note. Spare fuse
20SPARE See note. Spare fuse
21ST 7.5 A Starting system
22ALT-S 7.5 A

23(STR LOCK) 7.5 A Steering lock system
24D/L 20 A Power door lock
25ETCS 15 A Engine control unit
26(AT+B) 7.5 A Transmission
27(AM2 NO. 2) 7.5 AKeyless access with push button
start system
28EFI (CTRL) 15 A Engine control unit
29EFI (HTR) 15 AMultiport fuel injection system/
sequential multiport fuel injection
system
30EFI (IGN) 15 A Starting system
31EFI (+B) 7.5 A Engine control unit
32HAZ 15 A
Turn signal lights, hazard warning
flashers
33MPX-B 7.5 AAutomatic air condi
tioning system,
gauge and meters
34F/PMP 20 A Multiport fuel injection system/
sequential multiport fuel injection
system
35IG2 MAIN 30 A
SRS airbag system, engine control
unit
36DCC 30 AInterior light, remote keyless entry
system, main body ECU
FuseAmpereCircuit

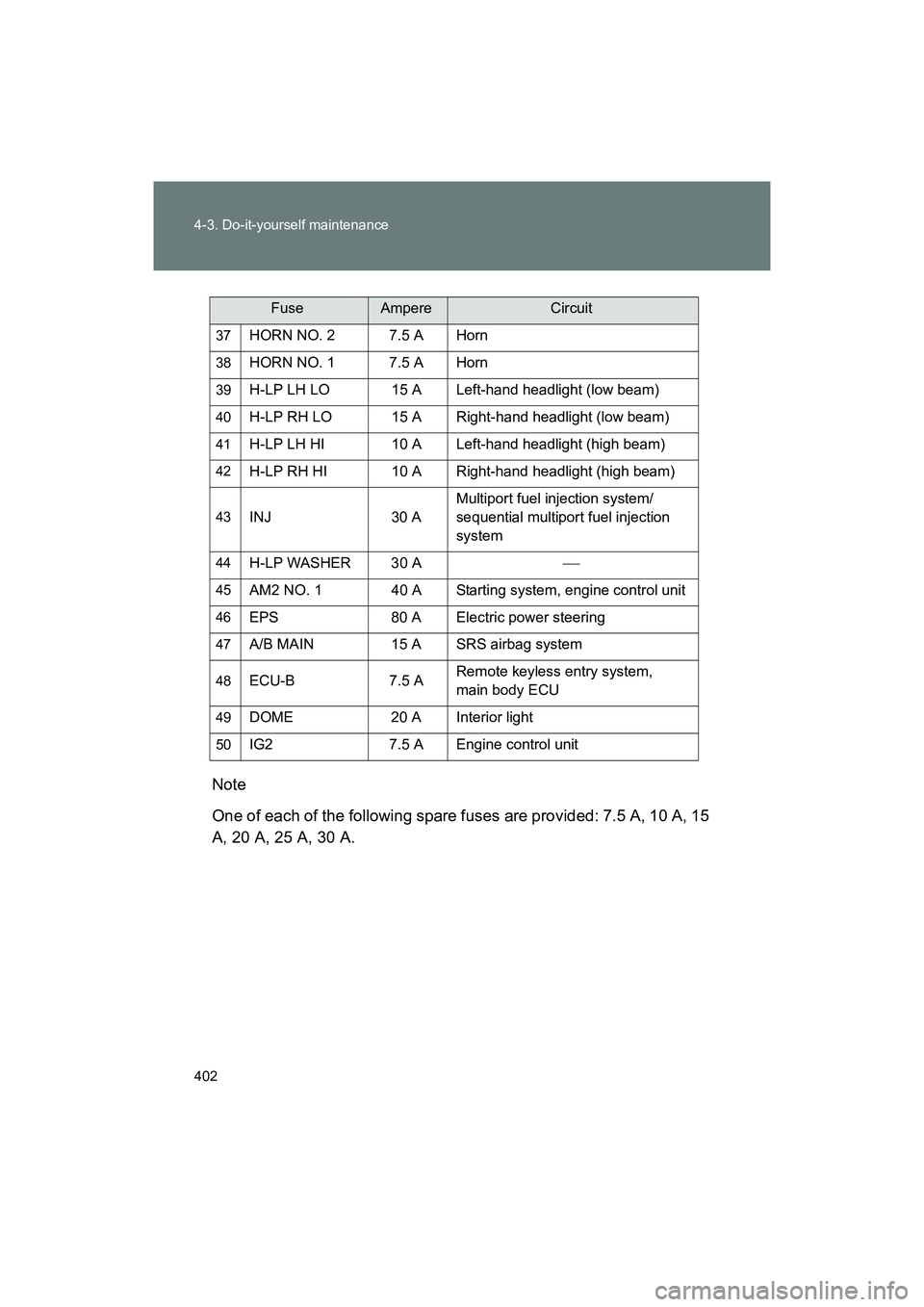

402 4-3. Do-it-yourself maintenance
BRZ_U (A4450BE-A)Note
One of each of the following spare fuses are provided: 7.5 A, 10 A, 15
A, 20 A, 25 A, 30 A.
37HORN NO. 2 7.5 A Horn
38HORN NO. 1 7.5 A Horn
39H-LP LH LO 15 A Left-hand headlight (low beam)
40H-LP RH LO 15 A Right-
hand headlight (low beam)
41H-LP LH HI 10 A Left-hand headlight (high beam)
42H-LP RH HI 10 A Right-hand headlight (high beam)
43INJ 30 AMultiport fuel injection system/
sequential multiport fuel injection
system
44H-LP WASHER 30 A
45AM2 NO. 1 40 A Starting system, engine control unit
46EPS 80 A Electric power steering
47A/B MAIN 15 A SRS airbag system
48ECU-B 7.5 A
Remote keyless entry system,
main body ECU
49DOME 20 A Interior light
50IG2 7.5 A Engine control unit
FuseAmpereCircuit
