1-7. Safety information
1
Before driving
BRZ_U (A4450BE-A)

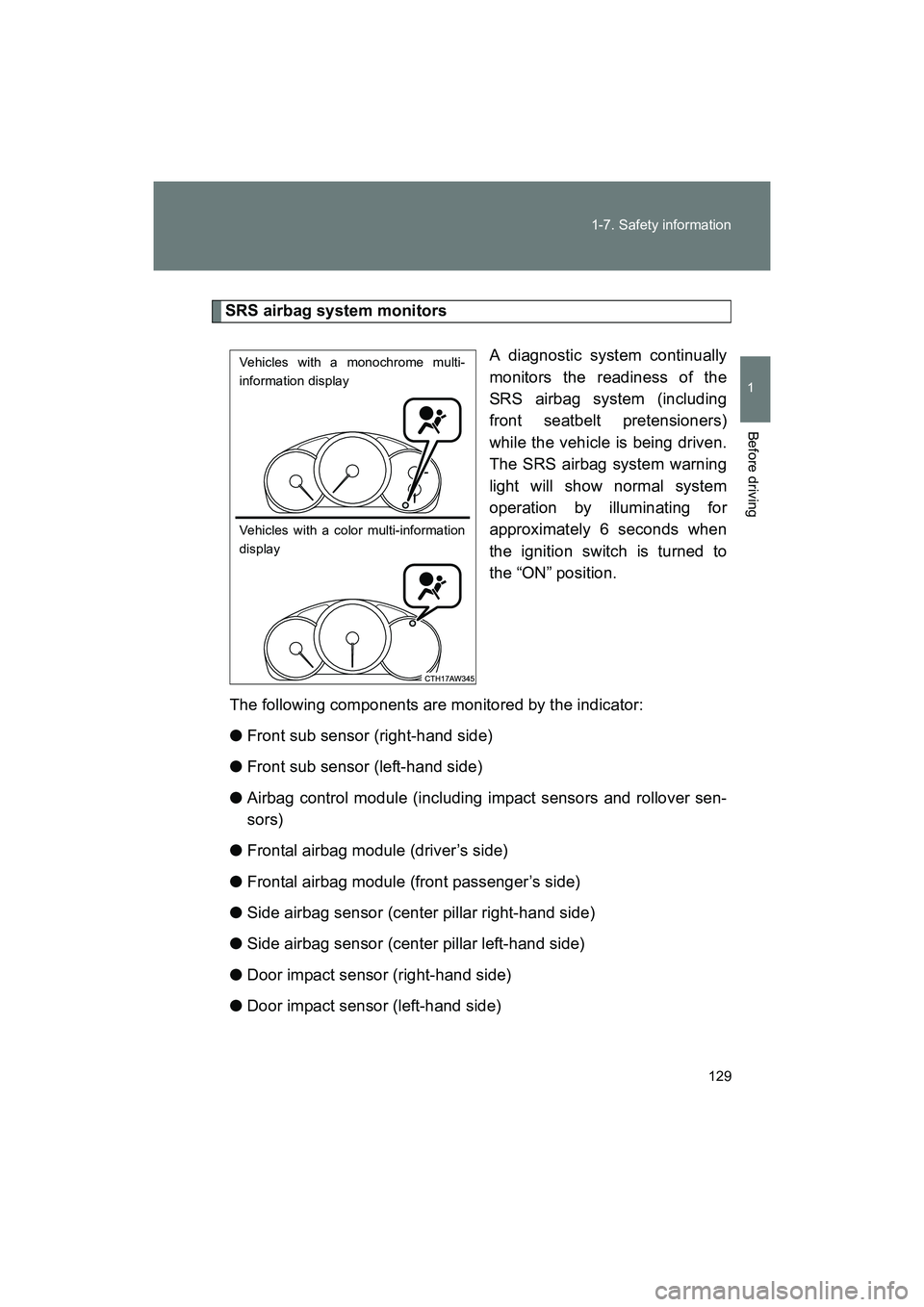

SRS airbag system monitors
A diagnostic system continually
monitors the readiness of the
SRS airbag system (including
front seatbelt pretensioners)
while the vehicle is being driven.
The SRS airbag system warning
light will show normal system
operation by illuminating for
approximately 6 seconds when
the ignition switch is turned to
the “ON” position.
The following components are monitored by the indicator:
● Front sub sensor (right-hand side)
● Front sub sensor (left-hand side)
● Airbag control module (including impact sensors and rollover sen-
sors)
● Frontal airbag module (driver’s side)
● Frontal airbag module (front passenger’s side)
● Side airbag sensor (center pillar right-hand side)
● Side airbag sensor (center pillar left-hand side)
● Door impact sensor (right-hand side)
● Door impact sensor (left-hand side)
Vehicles with a monochrome multi-
information display
Vehicles with a color multi-information
display

130 1-7. Safety information
BRZ_U (A4450BE-A)●

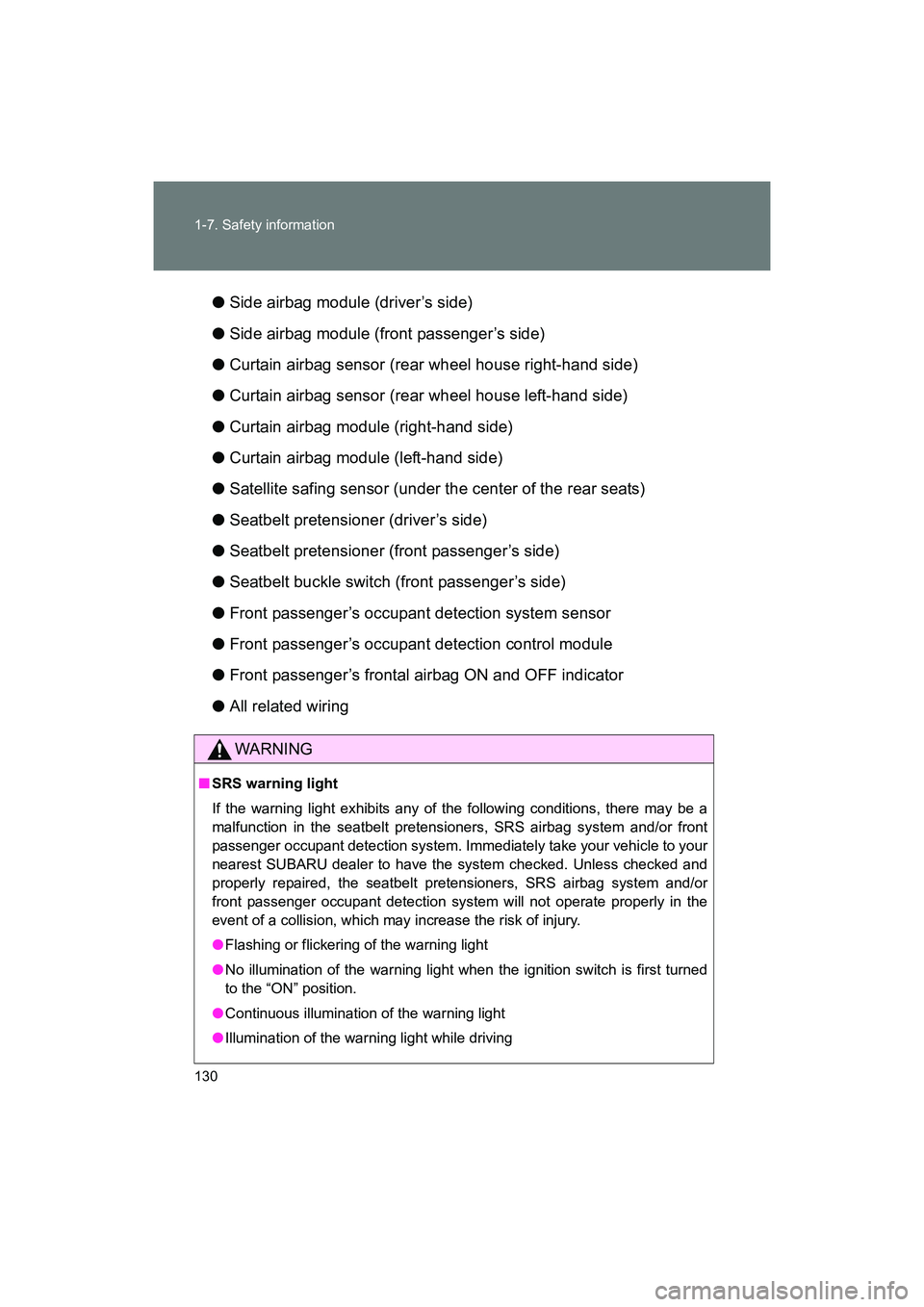

Side airbag module (driver’s side)
● Side airbag module (front passenger’s side)
● Curtain airbag sensor (rear wheel house right-hand side)
● Curtain airbag sensor (rear wheel house left-hand side)
● Curtain airbag module (right-hand side)
● Curtain airbag module (left-hand side)
● Satellite safing sensor (under the center of the rear seats)
● Seatbelt pretensioner (driver’s side)
● Seatbelt pretensioner (front passenger’s side)
● Seatbelt buckle switch (front passenger’s side)
● Front passenger’s occupant detection system sensor
● Front passenger’s occupant detection control module
● Front passenger’s frontal airbag ON and OFF indicator
● All related wiring
WARNING
■SRS warning light
If the warning light exhibits any of the following conditions, there may be a
malfunction in the seatbelt pretensioners, SRS airbag system and/or front
passenger occupant detection system. Immediately take your vehicle to your
nearest SUBARU dealer to have the system checked. Unless checked and
properly repaired, the seatbelt pret ensioners, SRS airbag system and/or
front passenger occupant detection system will not operate properly in the
event of a collision, which may increase the risk of injury.
● Flashing or flickering of the warning light
● No illumination of the warning light when the ignition switch is first turned
to the “ON” position.
● Continuous illumination of the warning light
● Illumination of the warning light while driving

131
1
1-7. Safety information
Before driving
BRZ_U (A4450BE-A)

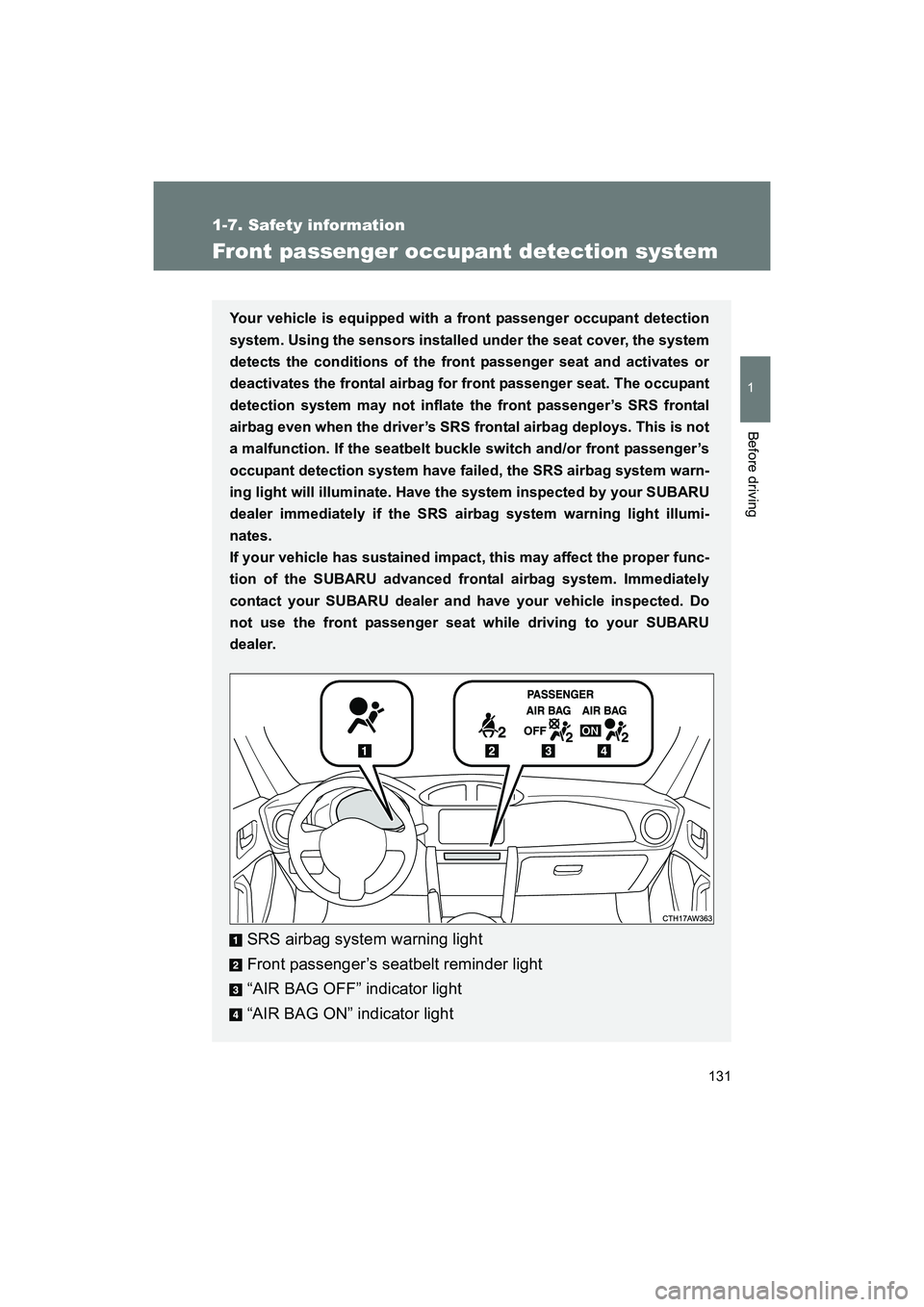

Front passenger occupant detection system
Your vehicle is equipped with a front passenger occupant detection
system. Using the sensors installed under the seat cover, the system
detects the conditions of the front passenger seat and activates or
deactivates the frontal airbag for front passenger seat. The occupant
detection system may not inflate the front passenger’s SRS frontal
airbag even when the driver’s SRS frontal airbag deploys. This is not
a malfunction. If the seatbelt buckle switch and/or front passenger’s
occupant detection system have fa iled, the SRS airbag system warn-
ing light will illuminate. Have the system inspected by your SUBARU
dealer immediately if the SRS ai rbag system warning light illumi-
nates.
If your vehicle has sustained impact , this may affect the proper func-
tion of the SUBARU advanced front al airbag system. Immediately
contact your SUBARU dealer a nd have your vehicle inspected. Do
not use the front passenger seat while driving to your SUBARU
dealer.
SRS airbag system warning light
Front passenger’s seatbelt reminder light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light

132 1-7. Safety information
BRZ_U (A4450BE-A)
The front passenger’s frontal airbag ON and OFF indicators show
you the status of the front passenger’s SRS frontal airbag. When
the engine switch is turned to the “ON” position, (vehicles without a
keyless access with push button start system), or the push-button
ignition switch is turned to “ON” mode (vehicles with a keyless
access with push button start system), both the ON and OFF indi-
cators illuminate for 6 seconds during the system check. After the
system check, both the ON and OFF indicators turn off for 2 sec-
onds. Then, either the ON or OFF indicator illuminates depending
on the condition of the front passenger’s frontal airbag.
When the OFF indicator remains off and ON indicator illuminates,
the front passenger’s frontal airbag may deploy during a collision.
When the OFF indicator illuminates and ON indicator remains off,
the front passenger’s frontal airbag does not deploy during a colli-
sion.
If the front passenger’s frontal airbag ON and OFF indicators
remain on when the engine switch is turned to the “ON” position
(vehicles without a keyless access with push button start system)
or the push-button ignition switch is turned to “ON” mode (vehicles
with a keyless access with push button start system), or the indica-
tors remain off after the system check, the system may be malfunc-
tioning. Have the vehicle inspected by your SUBARU dealer
immediately.
After that, one of the indicators illuminates depending on the status
of the front passenger’s SRS frontal airbag determined by the
SUBARU advanced frontal airbag monitoring system.

133
1-7. Safety information
1
Before driving
BRZ_U (A4450BE-A)

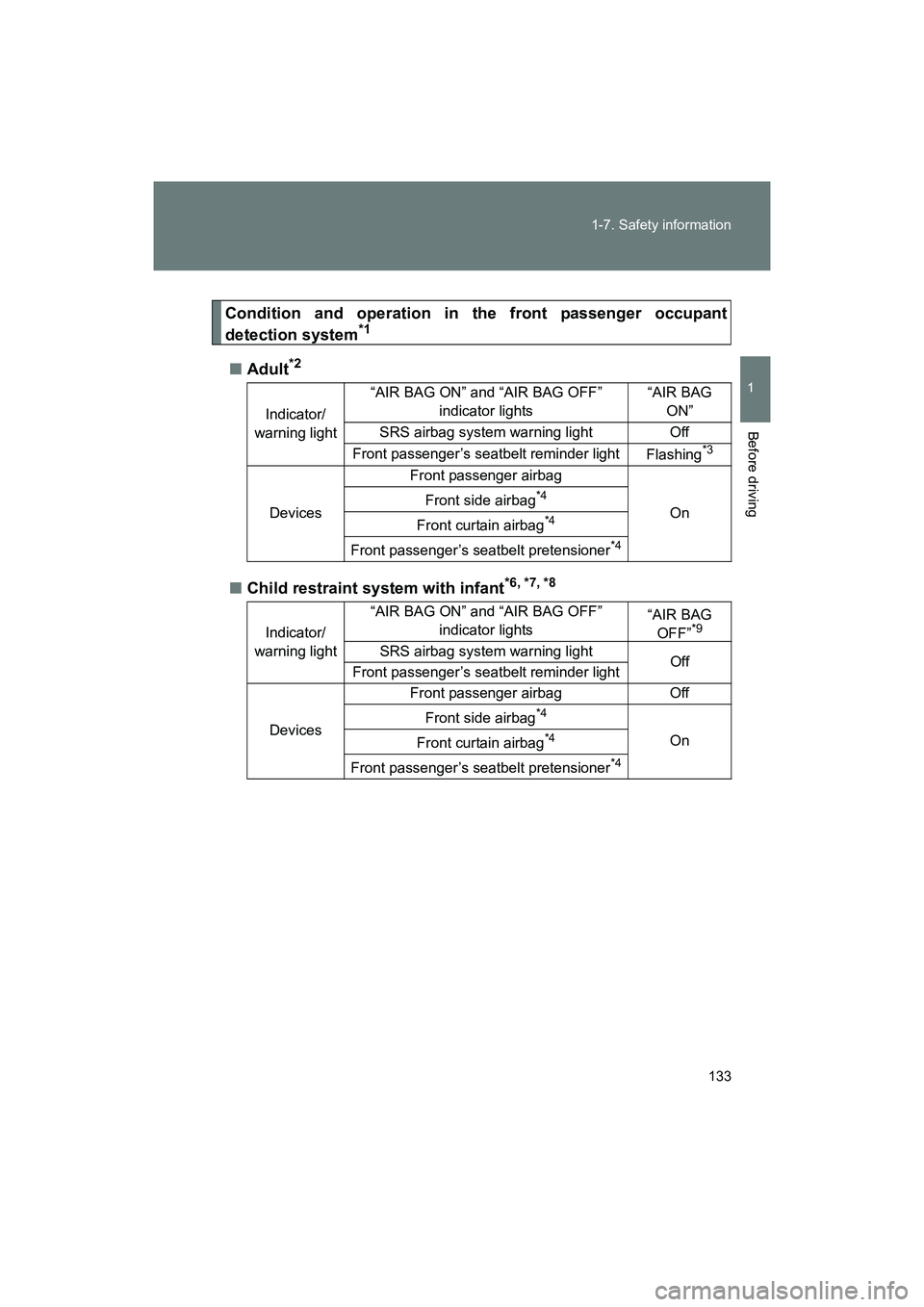

Condition and operation in the front passenger occupant
detection system*1
■
Adult*2
■Child restraint system with infant*6, *7, *8
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
ON”
SRS airbag system warning light Off
Front passenger’s seatbelt reminder light Flashing
*3
DevicesFront passenger airbag
On
Front side airbag
*4
Front curtain airbag*4
Front passenger’s seatbelt pretensioner*4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF”*9
SRS airbag system warning light Off
Front passenger’s seatbelt reminder light
Devices Front passenger airbag Off
Front side airbag
*4
On
Front curtain airbag*4
Front passenger’s seatbelt pretensioner*4

134 1-7. Safety information
BRZ_U (A4450BE-A)■
Child
*5, *7
■Unoccupied
■ There is a malfunction in the system
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF” or “AIR BAG ON”*5
SRS airbag system warning light Off
Front passenger’s seatbelt reminder light Off or
flashing
*3, *5
Devices Front passenger airbag Off or on
*5
Front side airbag*4
On
Front curtain airbag*4
Front passenger’s seatbelt pretensioner*4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF”
SRS airbag system warning light Off
Front passenger’s seatbelt reminder light
Devices Front passenger airbag Off
Front side airbag
*4
On
Front curtain airbag*4
Front passenger’s seatbelt pretensioner*4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF”
SRS airbag system warning light On
Front passenger’s seatbelt reminder light Off
Devices Front passenger airbag Off
Front side airbag
*4
On
Front curtain airbag*4
Front passenger’s seatbelt pretensioner*4

135
1-7. Safety information
1
Before driving
BRZ_U (A4450BE-A)
*

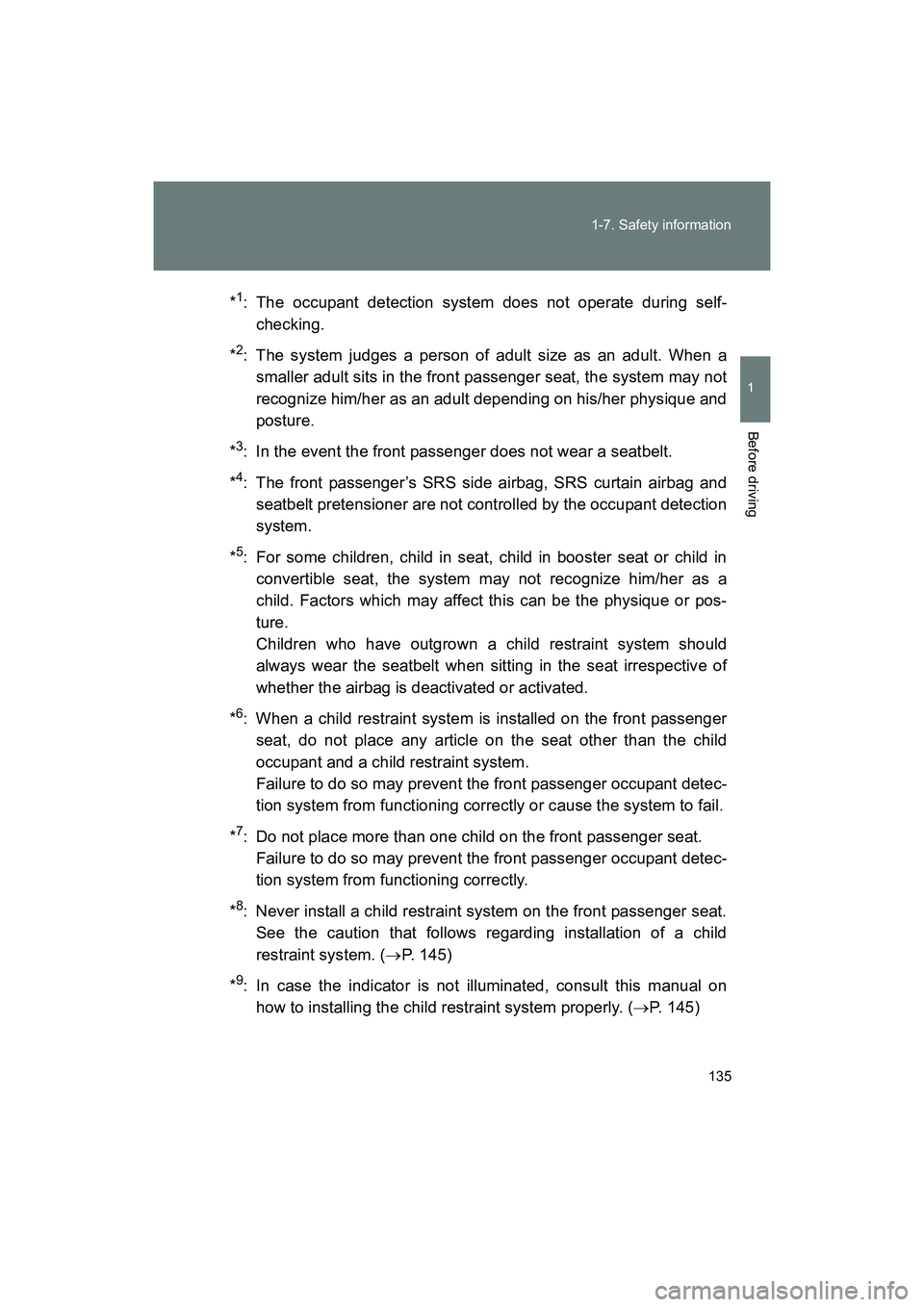

1: The occupant detection system does not operate during self-
checking.
*
2: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may not
recognize him/her as an adult depending on his/her physique and
posture.
*
3: In the event the front passenger does not wear a seatbelt.
*
4: The front passenger’s SRS side airbag, SRS curtain airbag and seatbelt pretensioner are not controlled by the occupant detection
system.
*
5: For some children, child in seat, child in booster seat or child in convertible seat, the system may not recognize him/her as a
child. Factors which may affect this can be the physique or pos-
ture.
Children who have outgrown a child restraint system should
always wear the seatbelt when sitting in the seat irrespective of
whether the airbag is deactivated or activated.
*
6: When a child restraint system is installed on the front passenger seat, do not place any article on the seat other than the child
occupant and a child restraint system.
Failure to do so may prevent the front passenger occupant detec-
tion system from functioning correctly or cause the system to fail.
*
7: Do not place more than one child on the front passenger seat. Failure to do so may prevent the front passenger occupant detec-
tion system from functioning correctly.
*
8: Never install a child restraint system on the front passenger seat. See the caution that follows regarding installation of a child
restraint system. ( →P. 145)
*
9: In case the indicator is not illuminated, consult this manual on how to installing the child restraint system properly. ( →P. 145)

136 1-7. Safety information
BRZ_U (A4450BE-A)

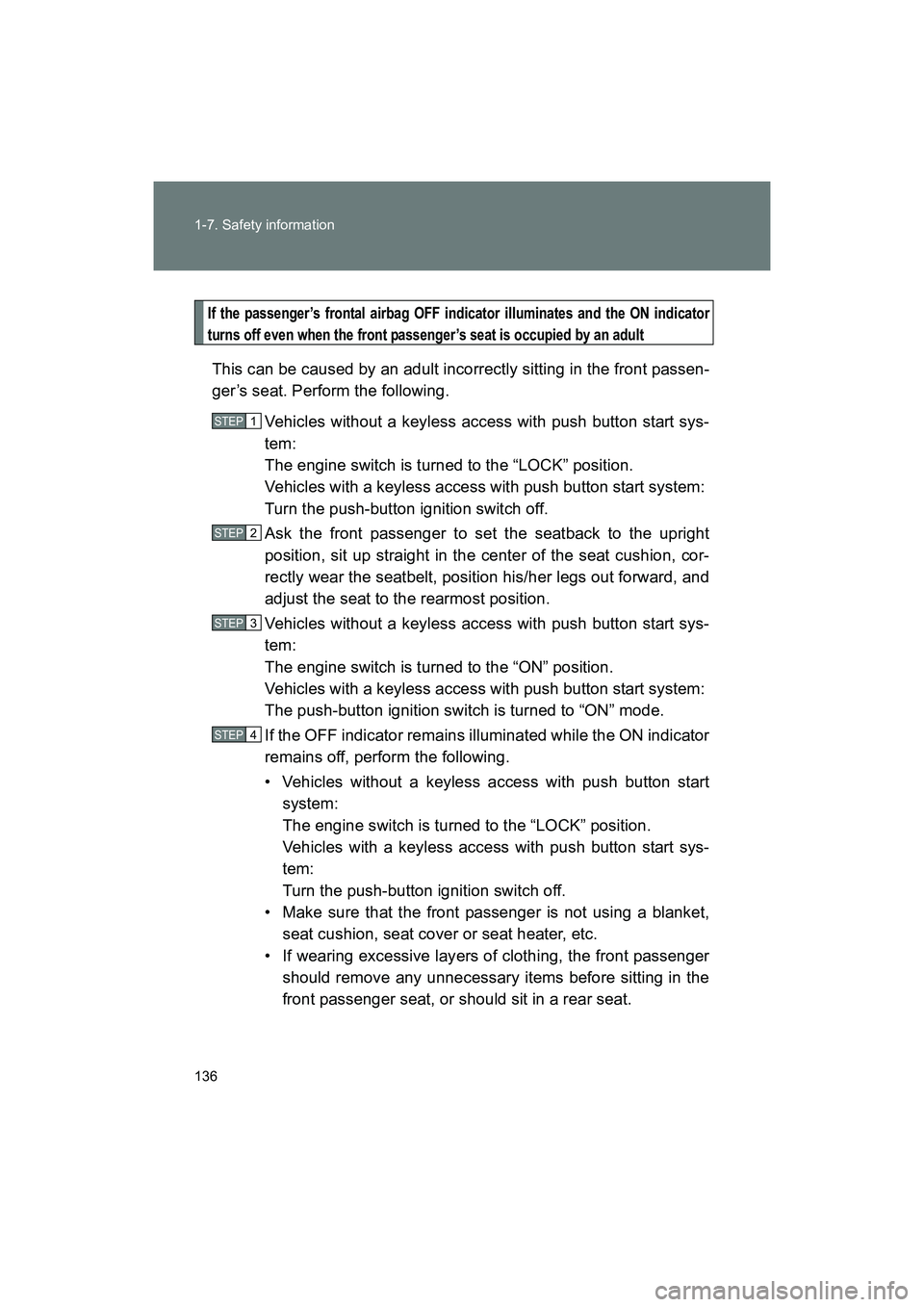

If the passenger’s frontal airbag OFF indicator illuminates and the ON indicator
turns off even when the front passenger’s seat is occupied by an adult
This can be caused by an adult incorrectly sitting in the front passen-
ger’s seat. Perform the following.Vehicles without a keyless access with push button start sys-
tem:
The engine switch is turned to the “LOCK” position.
Vehicles with a keyless access with push button start system:
Turn the push-button ignition switch off.
Ask the front passenger to set the seatback to the upright
position, sit up straight in the center of the seat cushion, cor-
rectly wear the seatbelt, position his/her legs out forward, and
adjust the seat to the rearmost position.
Vehicles without a keyless access with push button start sys-
tem:
The engine switch is turned to the “ON” position.
Vehicles with a keyless access with push button start system:
The push-button ignition switch is turned to “ON” mode.
If the OFF indicator remains illuminated while the ON indicator
remains off, perform the following.
• Vehicles without a keyless access with push button startsystem:
The engine switch is turned to the “LOCK” position.
Vehicles with a keyless access with push button start sys-
tem:
Turn the push-button ignition switch off.
• Make sure that the front passenger is not using a blanket, seat cushion, seat cover or seat heater, etc.
• If wearing excessive layers of clothing, the front passenger should remove any unnecessary items before sitting in the
front passenger seat, or should sit in a rear seat.
STEP 1
STEP 2
STEP 3
STEP 4
