1773-5. Opening and closing the windows
3
Operation of each component
HIGHLANDER_U (OM0E017U)
■The moon roof can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
■ Operating the moon roof af ter turning the engine off
Vehicles without a smart key system
The moon roof can be operated for approximately 45 seconds after the
engine switch is turned to the “ACC” or “LOCK” position. It cannot, howe\
ver,
be operated once either front door is opened.
Vehicles with a smart key system
The moon roof can be operated for approximately 45 seconds after the
engine switch is turned to ACCESSORY mode or turned off. It cannot, how-
ever, be operated once either front door is opened.
■ Jam protection function
If an object is detected between the moon roof and the frame while the moon
roof is closing or tilting down, travel is stopped and the moon roof opens
slightly.
■ Sunshade
The sunshade can be opened and closed manually. However, the sunshade
will open automatically when the moon roof is opened.
■ Door lock linked mo on roof operation
● The moon roof can be opened and closed using the key or mechanical key.
*
(→P. 117, 635)
● The moon roof can be opened using the wireless remote control.
*
( →P. 116)
*: These settings must be customized at your Toyota dealer.

1783-5. Opening and closing the windows
HIGHLANDER_U (OM0E017U)■
When the moon roof do es not close normally
Perform the following procedure:
● If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.
*1
The moon roof will close, reopen and pause for approximately 10 sec-
onds.
*2 Then it will close again, tilt up and pause for approximately 1 sec-
ond. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
● If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “UP” switch
*1 until the moon roof moves into the tilt
up position and stops.
Release the “UP” switch once and then press and hold the “UP” switch
again.
*1
The moon roof will pause for approximately 10 seconds in the tilt up posi-
tion.
*2 Then it will adjust slightly and pause for approximately 1 second.
Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
*1: If the switch is released at the incorrect time, the procedure will have to
be performed again from the beginning.
*2: If the switch is released after the above mentioned 10 second pause,automatic operation will be disabled. In that case, press and hold the
open/close switch in the close position or press and hold the “UP” switch.
The moon roof will tilt up and pause for approximately 1 second. Then it
will tilt down, open and close. Check to make sure that the moon roof is
completely closed and then release the switch.
If the moon roof does not fully close even after performing the above proce-
dure correctly, have the vehicle inspected by your Toyota dealer.
1
2
3
1
2
3
4

1793-5. Opening and closing the windows
3
Operation of each component
HIGHLANDER_U (OM0E017U)■
Moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display
in the instrument cluster when the engine switch is turned off and the driver’s
door is opened with the moon roof open.
■ Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: →P. 680)
WARNING
Observe the following precautions.
Failure to do so may cause death or serious injury.
■Opening the moon roof
● Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
● Do not sit on top of the moon roof.
■ Closing the moon roof
● The driver is responsible for moon roof opening and closing operations.
In order to prevent accidental operation, especially by a child, do not let a
child operate the moon roof. It is possible for children and other passen-
gers to have body parts caught in the moon roof.
● Check to make sure that all passengers do not have any part of their bod-
ies in a position where they could be caught when the moon roof is being
operated.
● When using the wireless remote control, key or mechanical key and oper-
ating the moon roof, operate the moon roof after checking to make sure
that there is no possibility of any passenger having any of their body parts
caught in the moon roof. Also, do not let a child operate moon roof by the
wireless remote control, key or mechanical key. It is possible for children
and other passengers to get caught in the moon roof.
● When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■ Jam protection function
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the moon roof fully closes.

1803-5. Opening and closing the windows
HIGHLANDER_U (OM0E017U)■
Opening and closing the shade
Open
*
Close*
*
: To stop operation partway, quickly slide and release the
switch again.
■

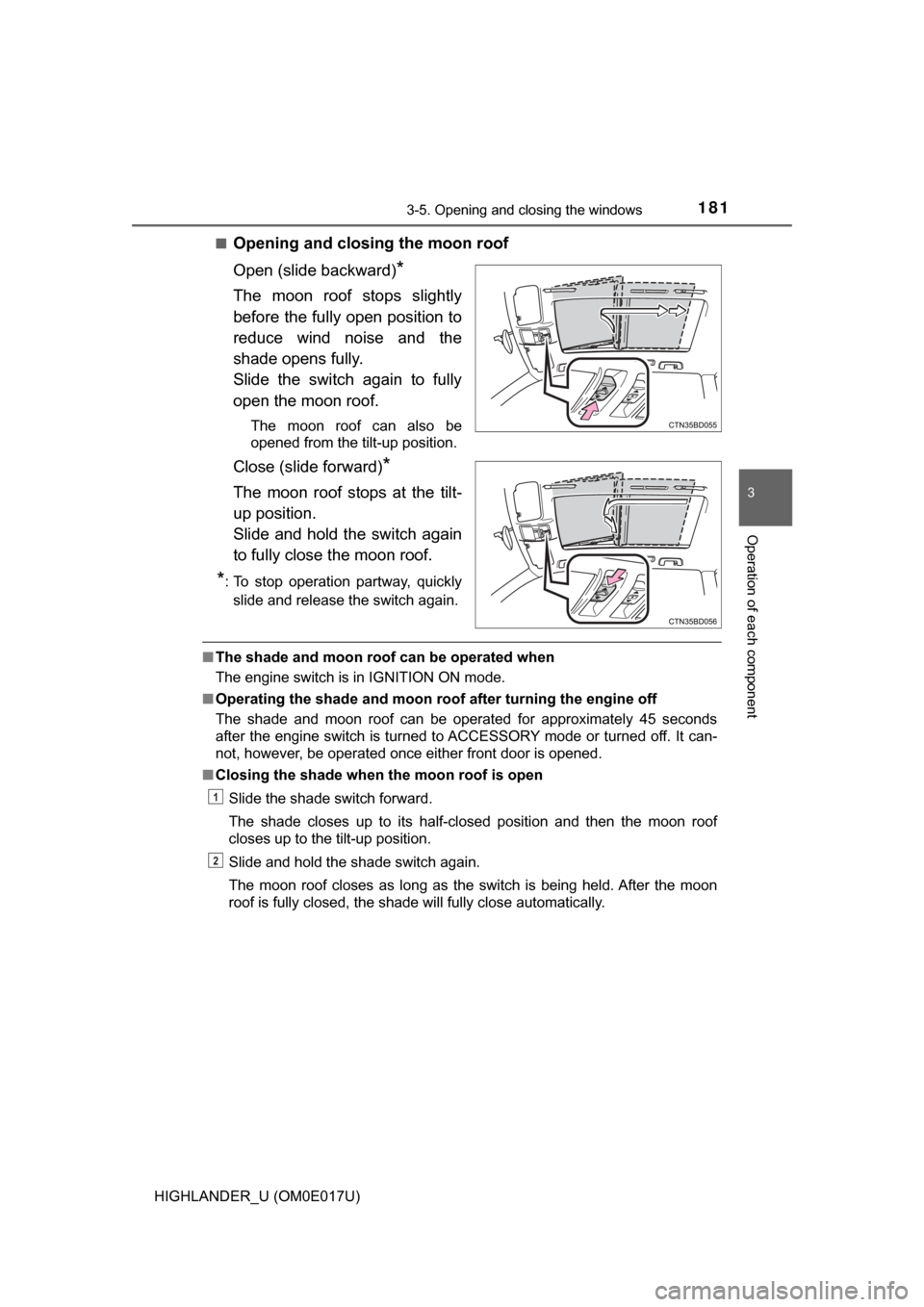

Tilting up and down the moon roof
Tilt up (press)
*
If the moon roof is open, press-
ing the switch closes it up to the
tilt-up position.
If the shade is closed past the
half-open position when the
switch is pressed, it will open up
to the half-open position.
Tilt down (press and hold)
The moon roof can be tilted down only when it is in the tilt-up posi-
tion.
*: To stop operation partway, lightly press the switch again.
Panoramic moon roof∗
∗: If equipped

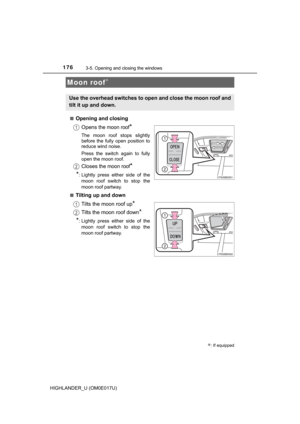

Use the overhead swit ches to operate the panoramic moon roof.
1
2

1813-5. Opening and closing the windows
3
Operation of each component
HIGHLANDER_U (OM0E017U)■
Opening and closing the moon roof
Open (slide backward)
*
The moon roof stops slightly
before the fully open position to
reduce wind noise and the
shade opens fully.
Slide the switch again to fully
open the moon roof.
The moon roof can also be
opened from the tilt-up position.
Close (slide forward)*
The moon roof stops at the tilt-
up position.
Slide and hold the switch again
to fully close the moon roof.
*: To stop operation partway, quickly
slide and release the switch again.
■ The shade and moon roof can be operated when
The engine switch is in IGNITION ON mode.
■ Operating the shade and moon roof after turning the engine off
The shade and moon roof can be operated for approximately 45 seconds
after the engine switch is turned to ACCESSORY mode or turned off. It can-
not, however, be operated once either front door is opened.
■ Closing the shade when the moon roof is open
Slide the shade switch forward.
The shade closes up to its half-closed position and then the moon roof
closes up to the tilt-up position.
Slide and hold the shade switch again.
The moon roof closes as long as the switch is being held. After the moon
roof is fully closed, the shade will fully close automatically.
1
2

1823-5. Opening and closing the windows
HIGHLANDER_U (OM0E017U)■
Jam protection function
Shade
If an object is detected between the shade and the roof frame while the shade
is closing, the shade stops and then opens slightly.
Moon roof
If an object is detected between the moon roof and the roof frame while the
moon roof is closing or tilting down, the moon roof stops and then opens
slightly. At this time, if the shade is closed past the half-open position, it may
also open slightly.
■ When the moon roof do es not close normally
Perform the following procedure:
● If the moon roof closes but then re-opens slightly
Stop the vehicle.
Slide the moon roof switch forward and hold it.
*
The moon roof will close then reopen and pause for approximately 10
seconds. Then it will close up to the tilt-up position.
Release the switch and then slide it forward and hold it again.
The moon roof will close as long as the switch is being held.
Check to make sure that the moon roof is completely closed and then
release the switch.
● If the moon roof tilts down but then tilts back up
Stop the vehicle.
Slide the moon roof switch forward and hold it.
*
The moon roof will tilt down then tilt up and pause for approximately 10
seconds. Then it will close.
Check to make sure that the moon roof is completely closed and then
release the switch.
*: If the switch is released at the incorrect time, the procedure will have tobe performed again from the beginning.
If the moon roof does not fully close even after performing the above proce-
dure correctly, have the vehicle inspected by your Toyota dealer.
1
2
3
4
1
2
3

1833-5. Opening and closing the windows
3
Operation of each component
HIGHLANDER_U (OM0E017U)■
When the shade does not close normally
Perform the following procedure:
Stop the vehicle.
Close the moon roof.
Slide the shade switch forward and hold it.
*
The shade will close then reopen and pause for approximately10 seconds.
Then it will close.
Check to make sure that the shade is completely closed and then release
the switch.
*: If the switch is released at the incorrect time, the procedure will have to beperformed again from the beginning.
If the shade continues to close but then reopens slightly even after perform-
ing the above procedure correctly, have the vehicle inspected by your Toyota
dealer.
■ Moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display
in the instrument cluster when the engine switch is turned off and the driver’s
door is opened with the moon roof open.
1
2
3
4

1843-5. Opening and closing the windows
HIGHLANDER_U (OM0E017U)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the shade
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the shade is being operated.\
● Do not allow children to operate the shade.
Closing a shade on someone can cause death or serious injury. The driver
is responsible for instructing children not to operate the shade.
■ Opening the moon roof
● Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
● Do not sit on top of the moon roof.
■ Closing the moon roof
● The driver is responsible for moon roof opening and closing operations.
In order to prevent accidental operation, especially by a child, do not let a
child operate the moon roof. It is possible for children and other passen-
gers to have body parts caught in the moon roof.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the moon roof is being oper-
ated.
● When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■ Jam protection function
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the shade or moon roof is fully closed.
NOTICE
■To prevent damage to the moon roof
● Before opening, make sure that there are no foreign objects such as
stones or ice around the opening.
● Do not hit the face or edge of the moon roof with hard objects.
