Maintenance data (fuel, oil level, etc.)
Dimensions
Overall length 192.5 in. (4890 mm)
Overall width 75.8 in. (1925 mm)
Overall height*1
Without roof antenna
68.1 in. (1730 mm)
With roof antenna
70.1 in. (1780 mm)
Wheelbase 109.8 in. (2790 mm)
Front tread64.4 in. (1635 mm)
Rear tread 64.2 in. (1630 mm)
Weights
Model code *2
Vehicle capacity
weight
(Occupant + lug-
gage)Trailer Weight Rating
(Trailer weight + cargo
weight)
ASU50L-ARTNKA 1460 lb. (660 kg) 1500 lb. (680 kg)
GSU50L-ARZNHA 1370 lb. (620 kg)
5000 lb. (2200 kg)
GSU50L-ARZMHA
1300 lb. (590 kg)
*3
1370 lb. (620 kg)*4
GSU50L-ARZGHA
1300 lb. (590 kg)*3
1370 lb. (620 kg)*4
GSU55L-ARZNHA 1370 lb. (620 kg)
GSU55L-ARZMHA1300 lb. (590 kg)
*3
1340 lb. (610 kg)*4
GSU55L-ARZGHA 1280 lb. (580 kg)

6519-1. Specifications
9
Vehicle specifications
HIGHLANDER_U (OM0E017U)■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registeri
ng the ownership of your vehicle.

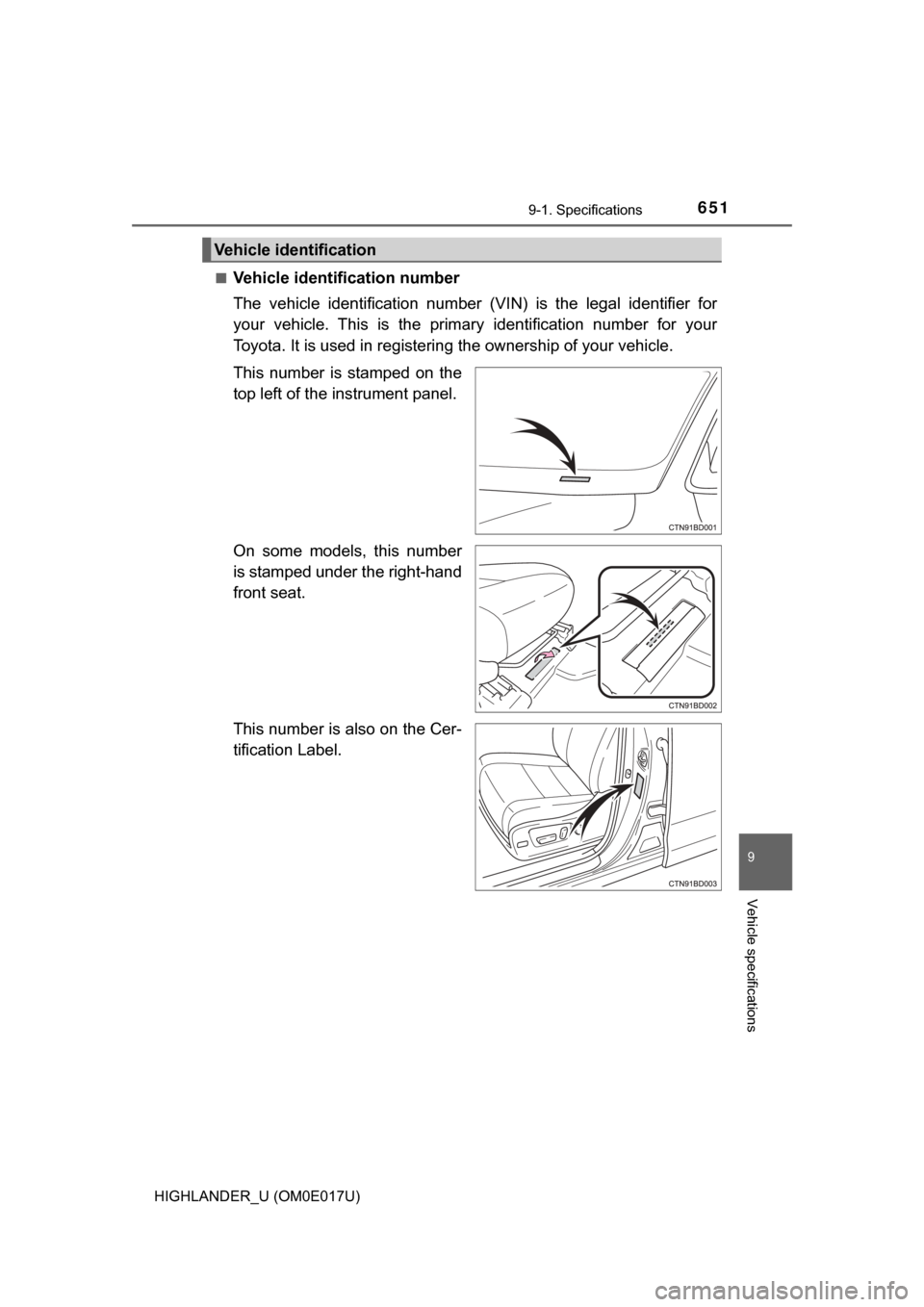

This number is stamped on the
top left of the instrument panel.
On some models, this number
is stamped under the right-hand
front seat.
This number is also on the Cer-
tification Label.
Vehicle identification

6529-1. Specifications
HIGHLANDER_U (OM0E017U)■
Engine number

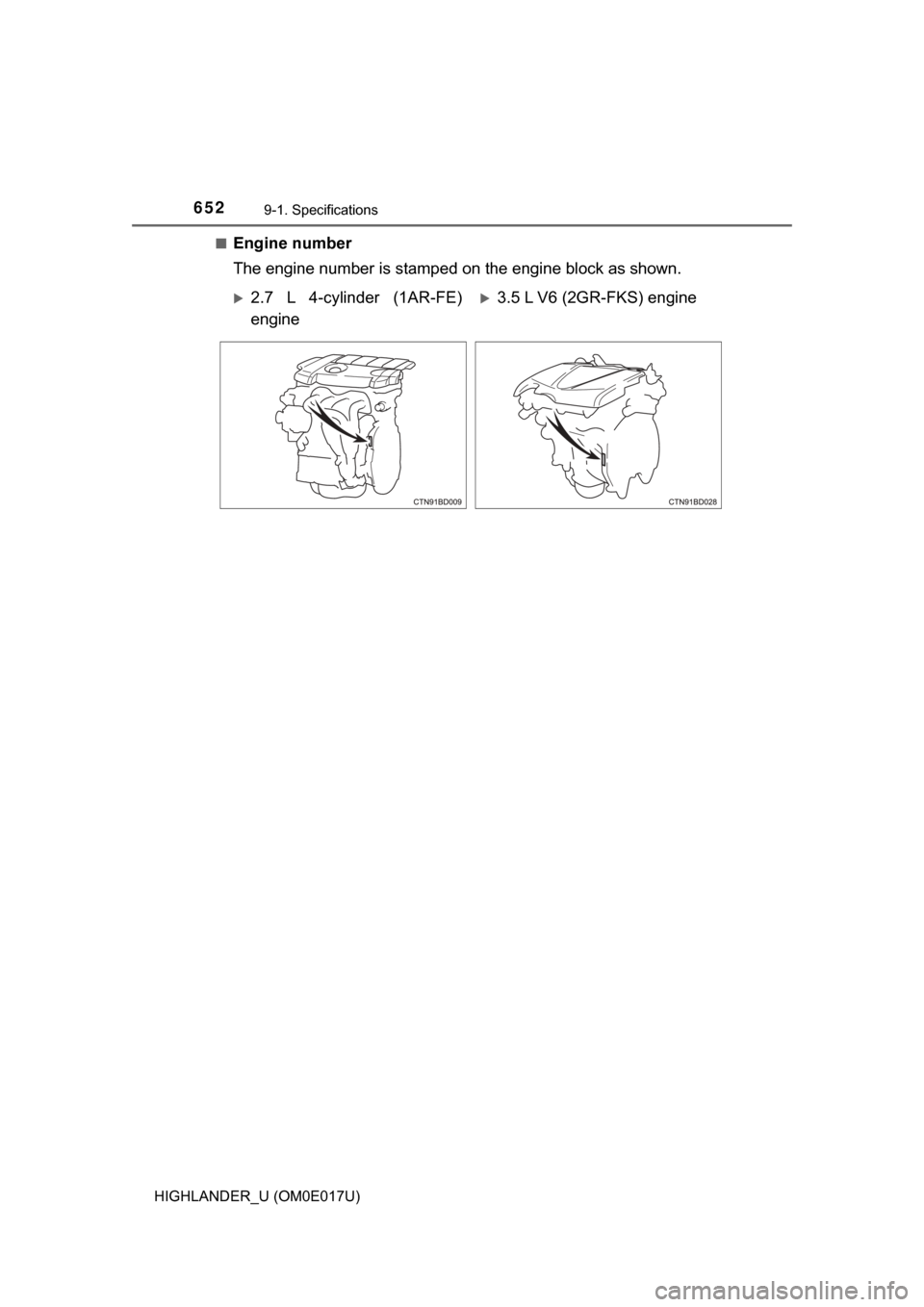

The engine number is stampe
d on the engine block as shown.
2.7 L 4-cylinder (1AR-FE)
engine3.5 L V6 (2GR-FKS) engine

6539-1. Specifications
9
Vehicle specifications
HIGHLANDER_U (OM0E017U)
Engine
Model1AR-FE2GR-FKS
Ty p e 4-cylinder in line,
4-cycle, gasoline6-cylinder V type,
4-cycle, gasoline
Bore and stroke
3.54 ×
4.13 in.
(90.0 × 105.0 mm) 3.70 ×
3.27 in.
(94.0 × 83.0 mm)
Displacement 163.1 cu. in.
(2672 cm3)210.9 cu. in.

(3456 cm3)
Valve clearance
Automatic adjustment
Drive belt tension
Fuel
Fuel typeUnleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)19.2 gal. (72.5 L, 15.9 Imp. gal.)

6549-1. Specifications
HIGHLANDER_U (OM0E017U)
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is us ed in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Lubrication system
Oil capacity
(Drain and refill ⎯ reference
*)
With filter
2.7 L 4-cylinder (1AR-FE) engine
4.6 qt. (4.4 L, 3.9 Imp. qt.)
3.5 L V6 (2GR-FKS) engine
5.8 qt. (5.5 L, 4.8 Imp. qt.)
Without filter2.7 L 4-cylinder (1AR-FE) engine
4.2 qt. (4.0 L, 3.5 Imp. qt.)
3.5 L V6 (2GR-FKS) engine
5.6 qt. (5.3 L, 4.7 Imp. qt.)
Outside temperature

6559-1. Specifications
9
Vehicle specifications
HIGHLANDER_U (OM0E017U)
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant Sp ecification Advisory Committee
(ILSAC) Certification Mark is ad ded to some oil containers to help
you select the oi l you should use.

6569-1. Specifications
HIGHLANDER_U (OM0E017U)
Cooling system
Capacity
(Reference)
2.7 L 4-cylinder
(1AR-FE)
engine10.7 qt. (10.1 L, 8.9 Imp. qt.)
3.5 L V6 (2GR-
FE) engine
Without towing package
12.3 qt. (11.6 L, 10.2 Imp. qt.)
With towing package
12.6 qt. (11.9 L, 10.5 Imp. qt.)
Coolant type Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Ignition system
Spark plug
Make2.7 L 4-cylinder (1AR-FE) engine
DENSO SK16HR11
3.5 L V6 (2GR-FKS) engine
DENSO FK20HBR8
Gap
2.7 L 4-cylinder (1AR-FE) engine
0.043 in.(1.1 mm)
3.5 L V6 (2GR-FKS) engine
0.031 in. (0.8 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
