Entune Audio
Press the “CAR” button.
If the “Trip Information” screen is displayed, select “Past Record”.
Entune Audio Plus or Entune Premium Audio
Press the “APPS” button.
Touch “ECO” on the “Apps” screen.
If the “Trip Information” screen is displayed, select “Past Record”.
Resetting the past record
data
Best recorded fuel consump-
tion
Average fuel consumption
Previous fuel consumption
record
Updating the average fuel
consumption data
The average fuel consumption histor y is divided by color into past
averages and the average fuel cons umption since the last updated.
Use the displayed average fuel consumption as a reference.
This image is an example only.
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.

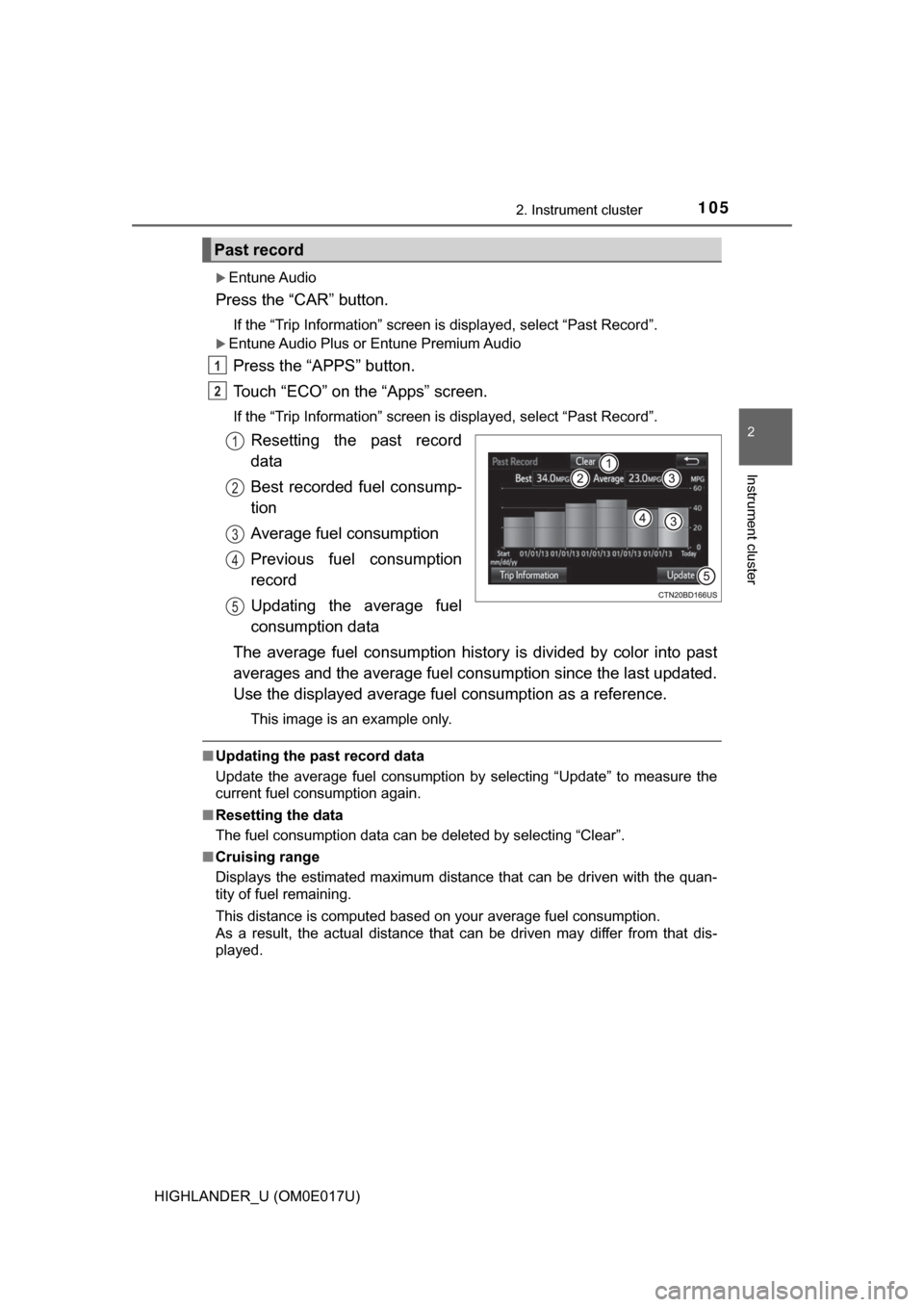

Past record
1
2
1
2
3
4
5

1062. Instrument cluster
HIGHLANDER_U (OM0E017U)

107
3
Operation of
each component
HIGHLANDER_U (OM0E017U) 3-1. Key information
Keys .................................. 108
3-2. Opening, closing and locking the doors
Side doors ......................... 115
Back door .......................... 123
Glass hatch ....................... 136
Smart key system ............. 141
3-3. Adjusting the seats Front seats ........................ 149
Rear seats......................... 151
Driving position memory ... 158
Head restraints.................. 162
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 166
Inside rear view mirror .............................. 168
Outside rear view mirrors ............................. 170
3-5. Opening and closing the windows
Power windows ................. 172
Moon roof .......................... 176
Panoramic moon roof .................................. 180

108
HIGHLANDER_U (OM0E017U)
3-1. Key information
The following keys are provided with the vehicle.
Vehicles without a smart key system
Master keys
Operating the wireless remote con-
trol function (→P. 109)
Va l e t k e y
Key number plate
Vehicles with a smart key system
Electronic keys
• Operating the smart key system
(→P. 141)
• Operating the wireless remote control function ( →P. 109)
Mechanical keys
Key number plate
Keys
The keys
1
2
3
1
2
3

1093-1. Key information
3
Operation of each component
HIGHLANDER_U (OM0E017U)
Vehicles without a smart key system
Locks the doors (→P. 116)
Unlocks the doors ( →P. 116)
Opens the windows and moon
roof
* ( → P. 11 6 )
Sounds the alarm ( →P. 110)
Opens and closes the power
back door (if equipped)
( → P. 124)
*: This setting must be customized at your Toyota dealer.
Vehicles with a smart key system
Locks the doors (→ P. 116)
Unlocks the doors ( →P. 116)
Opens the windows and moon
roof
* ( → P. 11 6 )
Opens and closes the power
back door (→ P. 124)
Sounds the alarm ( →P. 110)
*: This setting must be customized at your Toyota dealer.
Wireless remote control
1
2
3
4
5
1
2
3
4
5

1103-1. Key information
HIGHLANDER_U (OM0E017U)
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. (→P. 635)
■Panic mode
Vehicles without a smart key system
Vehicles with a smart key system

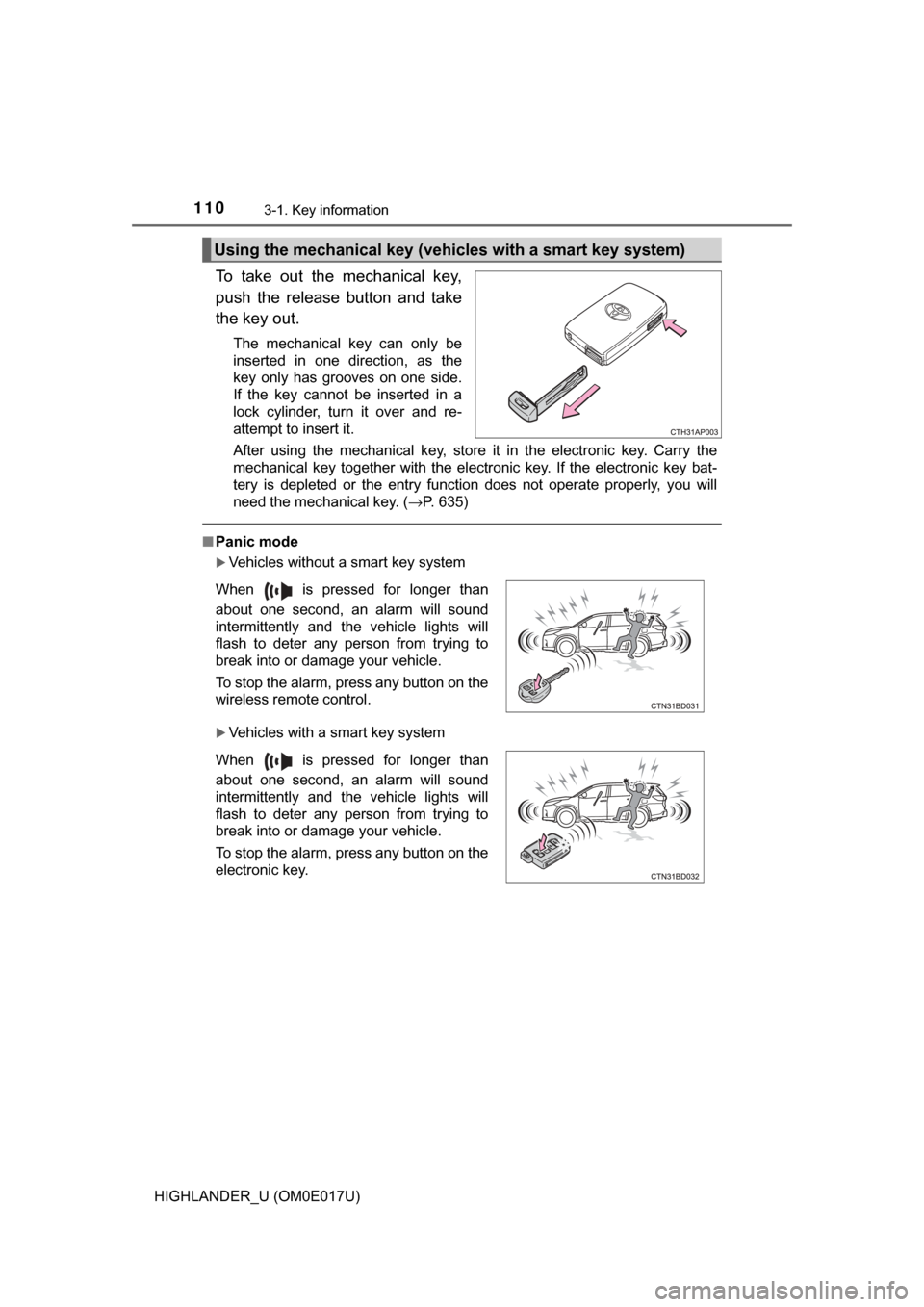

Using the mechanical key (vehic les with a smart key system)
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

1113-1. Key information
3
Operation of each component
HIGHLANDER_U (OM0E017U)■
When required to leave the vehicle’s key with a parking attendant
Lock the glove box as circumstances demand. ( →P. 461)
Vehicles without a smart key system: Carry the master key for your own use
and provide the attendant with the valet key.
Vehicles with a smart key system: Remove the mechanical key for your own
use and provide the attendant with the electronic key only.
■ If you lose your keys
New genuine keys can be made by your Toyota dealer using a master key
(vehicles without a smart key system) or the other key (vehicles with a smart
key system) and the key number stamped on your key number plate. Keep
the plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■ Conditions affecting operation
Vehicles without a smart key system
The wireless remote control function may not operate normally in the follow-
ing situations:
● When the wireless key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When carrying a portable radio, cellul ar phone or other wireless communi-
cation device
● When multiple wireless keys are in the vicinity
● When the wireless key is in contact with, or is covered by a metallic object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as a
personal computer
● If window tint with a metallic content or metallic objects are attached to the
rear window
Vehicles with a smart key system
→P. 144

1123-1. Key information
HIGHLANDER_U (OM0E017U)■
Key battery depletion
Vehicles without a smart key system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (→ P. 549)
Vehicles with a smart key system
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the engine
stops. ( →P. 605)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( →P. 549)
• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 3 ft. (1
m) of the following electrical appl iances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■ When the key battery is fully depleted
→P. 549
■ Confirmation of the registered key number (vehicles with a smart key
system)
The number of electronic keys already registered to the vehicle can be con-
firmed. Ask your Toyota dealer for details.
■ If a wrong key is used (vehicles with a smart key system)
The key cylinder rotates freely to isolate inside mechanism.
■ Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: →P. 680)
