2017 TOYOTA HIGHLANDER Owners Manual

6899-2. Customization
9
Vehicle specifications
HIGHLANDER_U (OM0E017U)■
Automatic light control system (
→P. 235)
■Lights (→ P. 235)
*: U.S.A. only
■
Intuitive parking assist*1 (Refer to “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MANUAL”)
*1: If equipped
*2: When intuitive parking assist is operating.
■
Automatic air conditioning system* ( → P. 442)
*: If equipped
FunctionDefault settingCustomized set-
ting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
O—O60 seconds
90 seconds
123
FunctionDefault settingCustomized set-ting
Daytime running light
system
*OnOffO—O
123
FunctionDefault settingCustomized set-
ting
Detection distance of the
rear center sensorFarNearO—O
Buzzer volumeLevel 3Level 1 to 5O—O
Display setting*2All sensors dis-playedDisplay offO—O
123
FunctionDefault settingCustomized set- ting
A/C auto switch opera-
tionOnOffO—O
123

6909-2. Customization
HIGHLANDER_U (OM0E017U)■
Illumination (
→P. 458)
*1: Vehicles with a smart key system
*2: Vehicles with driving position memory
■
Seat belt reminder ( →P. 582)
FunctionDefault settingCustomized set-
ting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the
engine switch is turned
off
OnOff——O
Operation when the
doors are unlockedOnOff——O
Operation when you
approach the vehicle
with the electronic key
on your person
*1
OnOff——O
Ambient lights*2OnOff——O
Time elapsed before the
outer foot lights turn
off
*215 seconds
Off
O—O7.5 seconds
30 seconds
Operation of the outer
foot lights when you
approach the vehicle
with the electronic key
on your person
*2
OnOff——O
Operation of the outer
foot lights when the
doors are unlocked
*2OnOff——O
123
FunctionDefault settingCustomized set-ting
Vehicle speed linked
seat belt reminder
buzzer
OnOff——O
123

6919-2. Customization
9
Vehicle specifications
HIGHLANDER_U (OM0E017U)
■Vehicle customization
●When the smart key system is off, the entry unlock function cannot be cus-
tomized.
● When the doors remain closed after unlocking the doors and the timer act\
i-
vated automatic door lock function activates, signals will be generated in
accordance with the operation buzzer volume and operational signal (Emer-
gency flashers) function settings.
■ Changing of the power back door opening angle (if equipped)
The opening angle setting can be changed through operation of either the
power back door switch or the audio system screen.
However, if the engine switch is on and the power back door switch is used to
change the opening angle setting, the changed opening angle will not be
reflected on the audio system screen until the engine switch is turned off and
then on again.
■ When customizing on the audio system screen
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P. Also, to prevent battery discharge, leave the engine running while
customizing the features.
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

692
HIGHLANDER_U (OM0E017U)
9-3. Initialization
*: If equipped
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Power back door*
• After reconnecting or chang- ing the battery
• After changing a fuse
P. 123
Message indicating mainte-
nance is required
(U.S.A. only)After the maintenance is per-
formedP. 508
Tire pressure warning sys-
temWhen changing the tire infla-
tion pressure by changing trav-
eling speed or load weight, etc.
P. 534

693
For owners
HIGHLANDER_U (OM0E017U)
10
Reporting safety defects for U.S. owners ............................. 694
Seat belt instructions for Canadian owners
(in French) ............................... 695
SRS airbag instructions for Canadian owners
(in French) ............................... 698

694
HIGHLANDER_U (OM0E017U)

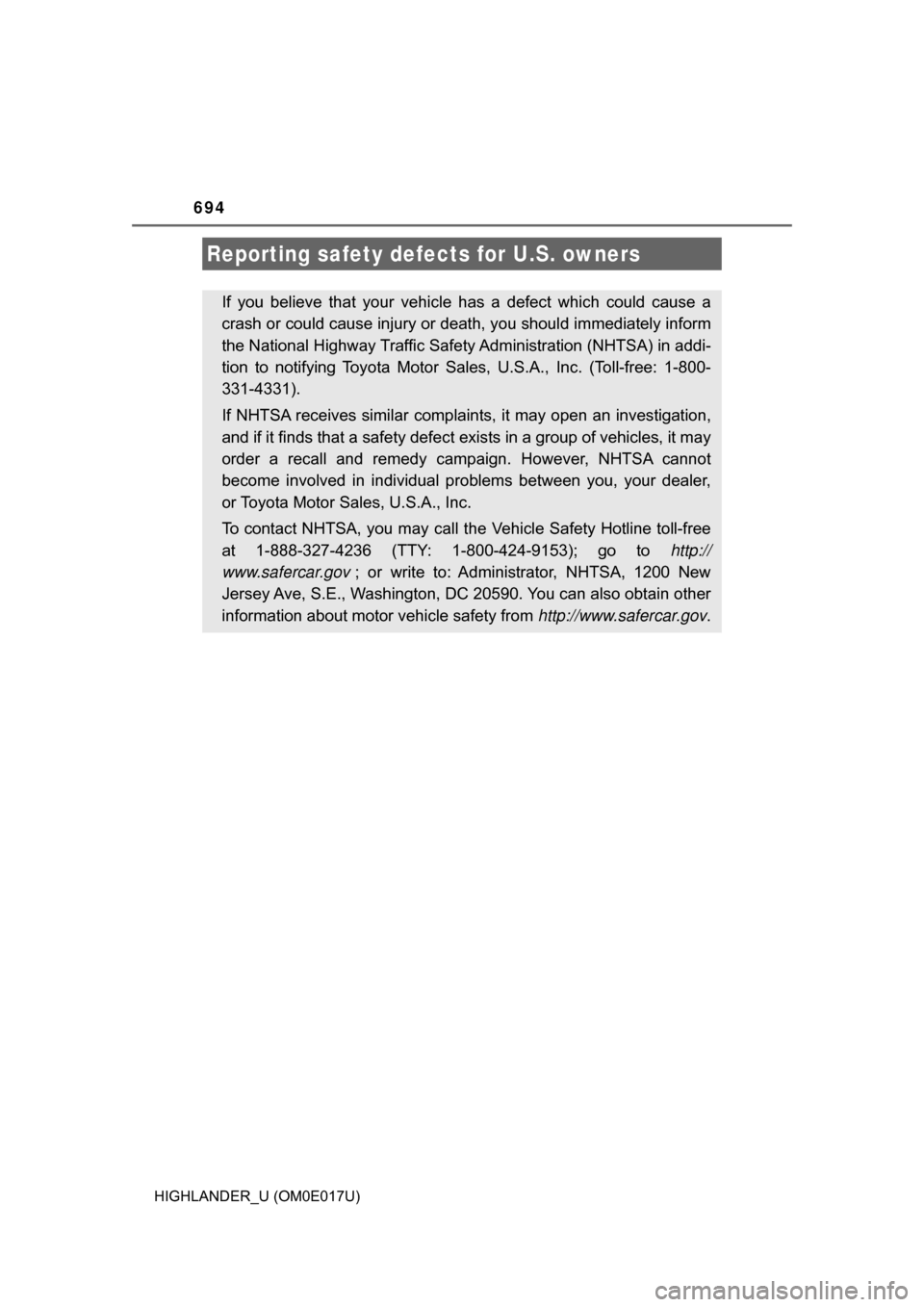

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar complain ts, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual prob lems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call t he Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.

695
HIGHLANDER_U (OM0E017U)
10
For owners
●Déroulez la sangle diagonale
de telle sorte qu’elle passe bien
sur l’épaule, sans pour autant
être en contact avec le cou ou
glisser de l’épaule.
● Placez la sangle abdominale le
plus bas possible sur les
hanches.
● Réglez la position du dossier de sièg e. Asseyez-vous le dos droit et
calez-vous bien dans le siège.
● Ne vrillez pas la ceinture de sécurité.
Seat belt instructions for Canadian owners
(in French)
The following is a French explan ation of seat belt instructions
extracted from the seat be lt section in this manual.
See the seat belt secti on for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité

696
HIGHLANDER_U (OM0E017U)
Si la sangle diagonale est proche du cou d’une personne, utilisez le
guide de confort de la ceinture de sécurité.
Sortez le guide de confort de sa
poche.
Glissez la ceinture dans la fente
du guide.
Le cordon élastique doit être der-
rière la ceinture de sécurité.
Attachez la ceinture de sécurité
et placez-la confortablement.
Guide de confort de ceinture de s écurité (siège central de la troi-
sième rangée)
1
2
3
