If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning
(Amber)
Electric Vacuum
Pump Warning
Light The light turns on if the electric vacuum pump system has a problem. Have your vehicle
inspected at an expert repairer, we recommend an Authorised Mazda Repairer.
ABS Warning Light If the ABS warning light stays on while you're driving, the ABS control unit has detected a
system malfunction. If this occurs, your brakes will function normally as if the vehicle had
no ABS.
Should this happen, consult an expert repairer, we recommend an Authorised Mazda
Repairer as soon as possible.
NOTE
When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and
does not indicate an ABS malfunction.
Recharge the battery.
The brake assist system does not operate while the ABS warning light is illuminated.
Check Engine Light If this light illuminates while driving, the vehicle may have a problem. It is important to
note the driving conditions when the light illuminated and consult an expert repairer, we
recommend an Authorised Mazda Repairer.
The check engine light may illuminate in the following cases:
The engine's electrical system has a problem. The emission control system has a problem. The fuel tank level being very low or approaching empty. The fuel-¿ ller cap is missing or not tightened securely.
If the check engine light remains on, or it À ashes continuously , do not drive at high speeds
and consult an expert repairer, we recommend an Authorised Mazda Repairer as soon as
possible.
(Amber)
i-stop Warning
Light
*
When the light is turned on
A problem in the system may be indicated under the following conditions. Have your
vehicle inspected at an expert repairer, we recommend an Authorised Mazda Repairer.
The light does not turn on when the ignition is switched ON. The light continues to remain on even though the i-stop OFF switch has been pressed
while the engine is running.
When the light is À ashing
The light continues to À ash if the system has a malfunction. Have your vehicle inspected at
an expert repairer, we recommend an Authorised Mazda Repairer.
(Amber)
i-ELOOP
Indication/Warning
Light
*
The Warning indication/Warning light turns on if there is any malfunction in the i-ELOOP
system. Consult an expert repairer, we recommend an Authorised Mazda Repairer.
/:A(.'',A'FKVKQPKPFD

7–36
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning
Automatic
Transmission
Indication/Warning
Light
*
The indication/light illuminates when the transmission has a problem.
CAUTION
If the automatic transmission warning indication/light illuminates, the transmission has
an electrical problem. Continuing to drive your Mazda in this condition could cause
damage to your transmission. Consult an expert repairer, we recommend an Authorised
Mazda Repairer as soon as possible.
(Illuminate)

TCS/DSC Indicator
Light If the light stays on, the TCS, DSC or the brake assist system may have a malfunction and
they may not operate correctly. Take your vehicle to an expert repairer, we recommend an
Authorised Mazda Repairer.
Air Bag/Seat Belt
Pretensioner System
Warning Light A system malfunction is indicated if the warning light constantly À ashes, constantly
illuminates or does not illuminate at all when the ignition is switched ON. If any of these
occur, consult an expert repairer, we recommend an Authorised Mazda Repairer as soon as
possible. The system may not operate in an accident. WARNING
Never tamper with the air bag/pretensioner systems and always have an expert
repairer, we recommend an Authorised Mazda Repairer perform all servicing and
repairs:
Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner
could accidentally activate or become disabled causing serious injury or death.
Active Bonnet
Warning Light *
The light turns on when the ignition is switched on for an operation check, and turns off a
few seconds later.
A problem in the system may be indicated under the following conditions. Have your
vehicle inspected at an expert repairer, we recommend an Authorised Mazda Repairer.
The light does not turn on when the ignition is switched ON. Remains turned on/À ashing.
WARNING
Do not drive the vehicle with the active bonnet warning light turned on or À ashing:
Driving the vehicle with the active bonnet warning light turned on or À ashing is
dangerous as the active bonnet mechanism may not activate normally and function
as intended in the event the vehicle were to contact a pedestrian.
/:A(.'',A'FKVKQPKPFD

7–37
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning
(Flashing)

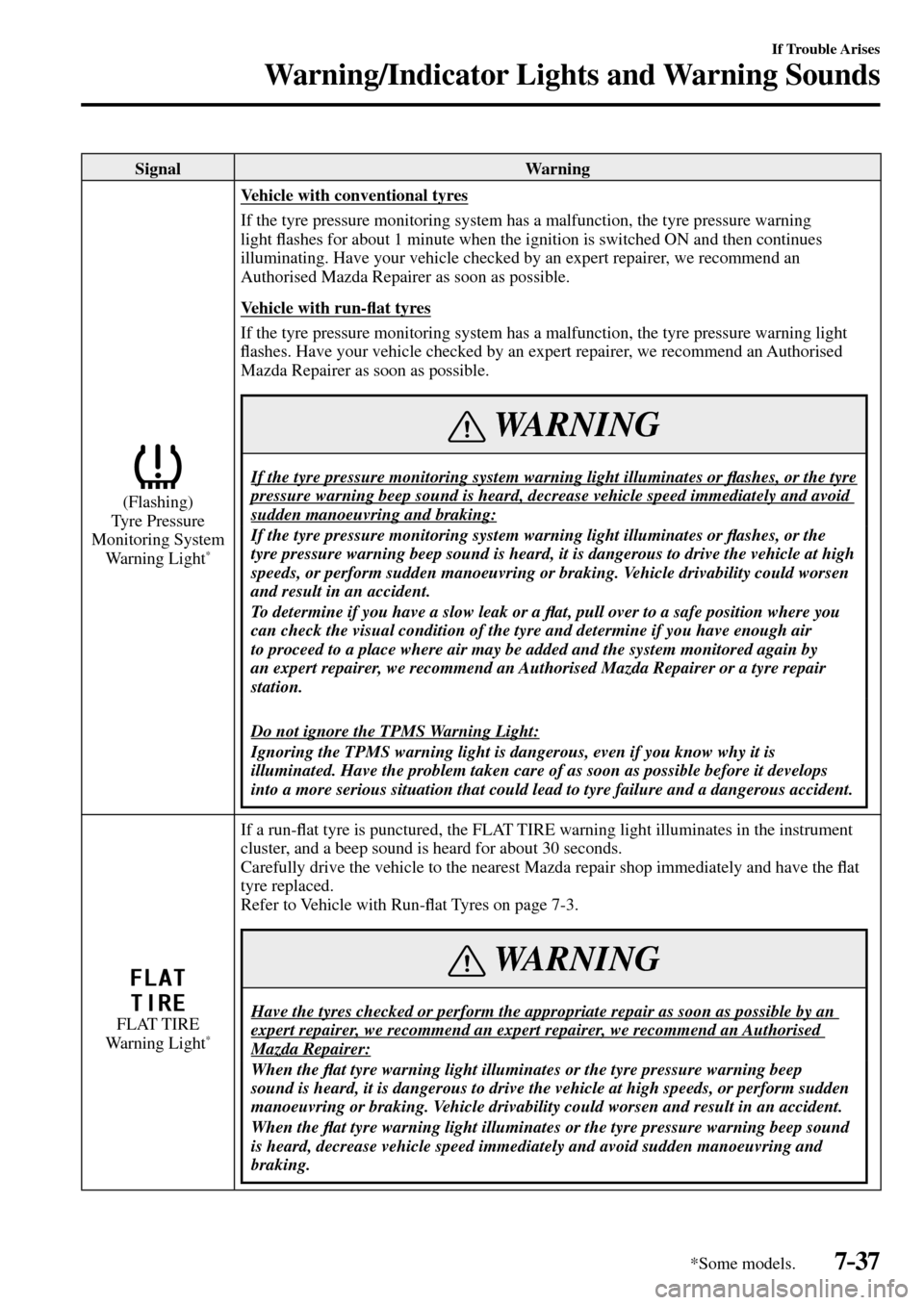

Tyre Pressure
Monitoring System
Warning Light
*
Vehicle with conventional tyres
If the tyre pressure monitoring system has a malfunction, the tyre pressure warning
lightÀ ashes for about 1 minute when the ignition is switched ON and then continues
illuminating. Have your vehicle checked by an expert repairer, we recommend an
Authorised Mazda Repairer as soon as possible.
Vehicle with run-À at tyres
If the tyre pressure monitoring system has a malfunction, the tyre pressure warning light
À ashes. Have your vehicle checked by an expert repairer, we recommend an Authorised
Mazda Repairer as soon as possible.
WARNING
If the tyre pressure monitoring system warning light illuminates or À ashes, or the tyre
pressure warning beep sound is heard, decrease vehicle speed immediately and avoid
sudden manoeuvring and braking:
If the tyre pressure monitoring system warning light illuminates or À ashes, or the
tyre pressure warning beep sound is heard, it is dangerous to drive the vehicle at high
speeds, or perform sudden manoeuvring or braking. Vehicle drivability could worsen
and result in an accident.
To determine if you have a slow leak or a À at, pull over to a safe position where you
can check the visual condition of the tyre and determine if you have enough air
to proceed to a place where air may be added and the system monitored again by
an expert repairer, we recommend an Authorised Mazda Repairer or a tyre repair
station.
Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is dangerous, even if you know why it is
illuminated. Have the problem taken care of as soon as possible before it develops
into a more serious situation that could lead to tyre failure and a dangerous accident.
FLAT TIRE
Warning Light *
If a run-À at tyre is punctured, the FLAT TIRE warning light illuminates in the instrument
cluster, and a beep sound is heard for about 30 seconds.
Carefully drive the vehicle to the nearest Mazda repair shop immediately and have the À at
tyre replaced.
Refer to Vehicle with Run-À at Tyres on page 7-3 .
WARNING
Have the tyres checked or perform the appropriate repair as soon as possible by an
expert repairer, we recommend an expert repairer, we recommend an Authorised
Mazda Repairer:
When the À at tyre warning light illuminates or the tyre pressure warning beep
sound is heard, it is dangerous to drive the vehicle at high speeds, or perform sudden
manoeuvring or braking. Vehicle drivability could worsen and result in an accident.
When the À at tyre warning light illuminates or the tyre pressure warning beep sound
is heard, decrease vehicle speed immediately and avoid sudden manoeuvring and
braking.
/:A(.'',A'FKVKQPKPFD

7–38
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning
(Red)
KEY Warning
Indication
*
“Keyless System malfunction” is displayed
This message is displayed if the advanced keyless entry & push button start system has a
problem.
Contact an expert repairer, we recommend an Authorised Mazda Repairer.
CAUTION
If the message is indicated, or the push button start indicator light (amber) À ashes, the
engine may not start. If the engine cannot be started, try starting it using the emergency
operation for starting the engine, and have the vehicle inspected at an expert repairer,
we recommend an Authorised Mazda Repairer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-11 .
(Amber)
KEY Warning
Indication
*
“Set Power to OFF” is displayed
This message is displayed when the driver's door is opened without switching the ignition
off.
“Key not found” is displayed
This message is displayed when any of the following operations is performed with the key
out of the operational range or placed in areas inside the cabin where it is dif¿ cult for the
key to be detected.
The push button start is pressed with the ignition switched off The ignition is switched on All doors are closed without switching the ignition off
(Red)
(Illuminate)
KEY Warning
Light
*
If any malfunction occurs in the keyless entry system, it illuminates continuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light
(amber)À ashes, the engine may not start. If the engine cannot be started, try starting it
using the emergency operation for starting the engine, and have the vehicle inspected at
an expert repairer, we recommend an Authorised Mazda Repairer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-11 .
/:A(.'',A'FKVKQPKPFD

7–39
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning
(Illuminate)
Lane Departure
Warning System
(LDWS) Warning
Indication/Warning
Light
*
The warning indication/warning light illuminates if there is a problem with the system.
Have your vehicle inspected at an expert repairer, we recommend an Authorised Mazda
Repairer.
The LDWS does not operate when the warning indication/warning light illuminates.
CAUTION
A problem in the system may be indicated under the following conditions. Have your
vehicle inspected at an expert repairer, we recommend an Authorised Mazda Repairer.
When the warning indication/warning light illuminates while driving the vehicle.
When the system is cancelled automatically, the warning indication/warning light
illuminates. Normally, the system restores automatically and the warning indication/
warning light turns off, however, if the warning indication/warning light illuminates,
there may be a problem with the system.
The warning indication/warning light does not illuminate when the ignition is
switched ON.
Always use tyres for all wheels that are of the speci¿ ed size, and the same
manufacture, brand, and tread pattern. In addition, do not use tyres with signi¿ cantly
different wear patterns on the same vehicle. If such improper tyres are used, the
LDWS may not operate normally.
When an emergency spare tyre is used, the system may not operate normally.
NOTE
If the windscreen area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
(Amber)
High Beam Control
System (HBC)
Warning Indication/
Warning Light
*
The warning indication/warning light illuminates if there is a problem with the system.
Have your vehicle inspected at an expert repairer, we recommend an Authorised Mazda
Repairer.
NOTE
If the windscreen area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the warning indication/warning light illuminates temporarily. If the warning
indication/warning light illuminates, there may be a problem with the system.
Blind Spot
Monitoring (BSM)
Warning Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspected
by an expert repairer, we recommend an Authorised Mazda Repairer.
NOTE
If the vehicle is driven on a road with less traf¿ c and few vehicles that the radar sensors
can detect, the system may pause. However, it does not indicate a malfunction.
/:A(.'',A'FKVKQPKPFD

7–40
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning
Blind Spot
Monitoring (BSM)
OFF Indicator
Light
*
A problem in the system may be indicated under the following conditions.
Have your vehicle inspected at an expert repairer, we recommend an Authorised Mazda
Repairer.
The light does not turn on when the ignition is switched ON. The light remains on even when the Blind Spot Monitoring (BSM) system can be operated. The light turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traf¿ c and few vehicles that the radar sensors
can detect, the system may pause (The Blind Spot Monitoring (BSM) OFF indicator
light in the instrument cluster illuminates). However, it does not indicate a malfunction.
Retractable
Fastback Warning
Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspected
by an expert repairer, we recommend an Authorised Mazda Repairer.
LED Headlight
Warning Light This light illuminates if there is a malfunction in the LED headlight. Have your vehicle
inspected by an expert repairer, we recommend an Authorised Mazda Repairer.
/:A(.'',A'FKVKQPKPFD

7–41
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Taking Action
Take the appropriate action and verify that the warning light turns off.
Signal Warning Action to be taken
Seat Belt Warning Light The seat belt warning light turns on if the driver
or passenger's seat is occupied and the seat belt
is not fastened with the ignition switched ON.
If the driver or passenger's seat belt is unfastened
(only when the passenger seat is occupied) and
the vehicle is driven at a speed faster than about
20 km/h (12 mph), the warning light À ashes.
After a short time, the warning light stops
À ashing, but remains illuminated. If a seat belt
remains unfastened, the warning light À ashes
again for a given period of time.
NOTE
If the driver or passenger's seat belt is
unfastened after the warning light turns on,
and the vehicle speed exceeds 20 km/h (12
mph), the warning light À ashes again.
(With passenger occupant classi¿ cation
system)
To allow the passenger occupant
classi¿ cation sensor to function properly,
do not place and sit on an additional seat
cushion on the passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause sensor
interference.
(Without passenger occupant
classi¿ cation system)
Placing heavy items on the passenger's
seat may cause the passenger's seat belt
warning function to operate depending on
the weight of the item.
To allow the passenger's seat weight
sensor to function properly, do not place
and sit on an additional seat cushion
on the passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause sensor
interference.
If a small child is seated on the passenger's
seat, the warning light may not operate. Fasten the seat belts.
Door-Ajar/Boot lid-Ajar
Warning Indication/
Warning Light The light turns on if any door/boot lid is not
closed securely. Close the door/boot lid securely.
/:A(.'',A'FKVKQPKPFD

7–42
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning Action to be taken
Low Fuel Warning Light The light turns on when the remaining fuel is
about 9.0 L (2.3 US gal, 1.9 Imp gal).
NOTE
The light illumination timing may vary
because fuel inside the fuel tank moves
around according to the driving conditions
and the vehicle posture. Add fuel.
120km/h Warning Light *
The 120 km/h warning light illuminates when
the vehicle speed exceeds 120 km/h. Lower the vehicle speed.
Low Washer Fluid Level
Warning Indication/
Warning Light
*
This warning light indicates that little washer
À uid remains. Add washer À uid (page 6-23 ).
/:A(.'',A'FKVKQPKPFD
