2017 MAZDA MODEL MX-5 RF Owners Manual (in English)

4–147
When Driving
Tyre Pressure Monitoring System
1. After tyres have been changed, switch
the ignition ON, then back to ACC or
OFF.
2. Wait for about 15 minutes.
3. After about 15 minutes, drive the
vehicle at a speed of at least 25 km/h
(16 mph) for 10 minutes and the tyre
pressure sensor ID signal code will be
registered automatically.
NOTE
If the vehicle is driven within about
15 minutes of changing tyres, the tyre
pressure monitoring system warning
light will À ash because the sensor
ID signal code would not have been
registered. If this happens, park the
vehicle for about 15 minutes, after
which the sensor ID signal code will
register upon driving the vehicle for 10
minutes.
Replacing tyres and wheels
CAUTION
  When replacing/repairing the tyres or
wheels or both, have the work done
by an Authorised Mazda Dealer, or
the tyre pressure sensors may be
damaged.
  The wheels equipped on your Mazda
are specially designed for installation
of the tyre pressure sensors. Do not
use non-genuine wheels, otherwise it
may not be possible to install the tyre
pressure sensors. Be sure to have the tyre pressure sensors
installed whenever tyres or wheels are
replaced.
When having a tyre or wheel or both
replaced, the following types of tyre
pressure sensor installations are possible.



 The tyre pressure sensor is removed
from the old wheel and installed to the
new one.



 The same tyre pressure sensor is used
with the same wheel. Only the tyre is
replaced.



 A new tyre pressure sensor is installed to
a new wheel.
NOTE
  The tyre pressure sensor ID signal
code must be registered when a new
tyre pressure sensor is purchased. For
purchase of a tyre pressure sensor
and registration of the tyre pressure
sensor ID signal code, consult an
Authorised Mazda Dealer.
  When reinstalling a previously
removed tyre pressure sensor to a
wheel, replace the grommet (seal
between valve body/sensor and
wheel) for the tyre pressure sensor.
/:A(.'',A'FKVKQPKPFD

4–14 8
When Driving
Parking Sensor System
*Some models.
Parking Sensor System *
The parking sensor system uses ultrasonic sensors to detect obstructions around the vehicle
while parking the vehicle in a garage or during parallel parking when the shift lever (manual
transmission)/selector lever (automatic transmission) is in reverse (R). The system is
equipped with an assist device to notify the driver of the approximate distance from the
vehicle to the surrounding obstruction using a beep sound.
Rear corner sensorRear sensor
WARNING
Do not rely completely on the parking sensor system and be sure to con¿ rm the safety
around your vehicle visually when driving.
This system can assist the driver in operating the vehicle in the backward directions
while parking. The detection ranges of the sensors are limited, therefore, driving the
vehicle while relying only on the system may cause an accident. Always con¿ rm the
safety around your vehicle visually when driving.
/:A(.'',A'FKVKQPKPFD

4–149
When Driving
Parking Sensor System
NOTE
  Do not install any accessories within the detection ranges of the sensors. It may affect
the system operation.
  Depending on the type of obstruction and the surrounding conditions, the detection
range of a sensor may narrow, or the sensors may not be able to detect obstructions.
  The system may not operate normally under the following conditions:




 Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when
removed).



 The sensor area is frozen (Returns to normal operation when the ice is thawed).



 The sensor is covered by a hand.



 The sensor is excessively shocked.



 The vehicle is excessively tilted.



 Under extremely hot or cold weather conditions.



 The vehicle is driven on bumps, inclines, gravel, or grass covered roads.



 Anything which generates ultrasound is near the vehicle, such as another vehicle's
horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle,
or another vehicle's sensors.



 The vehicle is driven in heavy rain or in road conditions causing water-splash.



 A commercially-available wing pole or an aerial for a radio transmitter is installed to
the vehicle.



 The vehicle is moving towards a tall or square curbstone.



 An obstruction is too close to the sensor.

 Obstructions under the bumper may not be detected. Obstructions that are lower than
the bumper or thin which may have been initially detected but are no longer detected
as the vehicle approaches more closely.
  The following types of obstructions may not be detected:




 Thin objects such as wire or rope



 Things which absorb sonic waves easily such as cotton or snow



 Angular shaped objects



 Very tall objects, and those which are wide at the top



 Small, short objects

 Always have the system inspected at an expert repairer, we recommend an Authorised
Mazda Repairer if any shock is applied to the bumpers, even in a minor accident. If the
sensors are deviated, they cannot detect obstructions.
  The system may have a malfunction if the beep does not operate. Consult an expert
repairer, we recommend an Authorised Mazda Repairer.
  The beeper which indicates a system malfunction may not be heard if the ambient
temperature is extremely cold, or mud, ice, or snow adheres to the sensor area.
Remove any foreign material from the sensor area.
  When installing a trailer hitch, consult an expert repairer, we recommend an
Authorised Mazda Repairer.
/:A(.'',A'FKVKQPKPFD

4–150
When Driving
Parking Sensor System
Sensor Detection Range
The sensors detect obstructions within the following range.
Rear sensor detection range Rear corner sensor detection rangeB AA: About 50 cm (About 19 in)
B: About 150 cm (About 59.0 in)
Park Assist Sensor System Operation
When the ignition is switched ON and the shift lever (manual transmission)/selector lever
(automatic transmission) is shifted to the reverse (R), the beep sound activates and the
system is enabled for use.
Parking Sensor Warning Beep
The beeper sounds as follows while the system is operating.
Rear Sensor
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Farthest distance Approx. 150 cm—60 cm (59.0—23.0 in) Slow intermittent sound
Far distance Approx. 60—45 cm (23—17 in)
Medium intermittent sound
Middle distance Approx. 45—35 cm (17—13 in)
Fast intermittent sound
/:A(.'',A'FKVKQPKPFD

4–151
When Driving
Parking Sensor System
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Close distance Within approx. 35 cm (13 in) Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
Rear Corner Sensor
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Far distance Approx. 50—38 cm (19—14 in) Medium intermittent sound
Middle distance Approx. 38—25 cm (14.0—9.8 in)
Fast intermittent sound
Close distance Within approx. 25 cm (9.8 in)
Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
NOTE
If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone,
the corresponding beep sound is heard.
/:A(.'',A'FKVKQPKPFD

4–152
When Driving
Parking Sensor System
When Warning Beep is Activated
The system noti¿ es the driver of an abnormality by activating the beep sound.
Beep How to check
The beep sound is not heard. The system may have a malfunction. Have the vehicle inspected at an expert
repairer, we recommend an Authorised Mazda Repairer as soon as possible.
When the engine switch is
turned ON or if the parking
sensor detects a problem while
driving, the intermittent sound
of the buzzer is heard 1—4
times.
*1
Remove any foreign material from the sensor area. If the system does not
recover, have the vehicle inspected at an expert repairer, we recommend an
Authorised Mazda Repairer.
*1 The number of times the buzzer activates changes depending on the malfunction location.
/:A(.'',A'FKVKQPKPFD

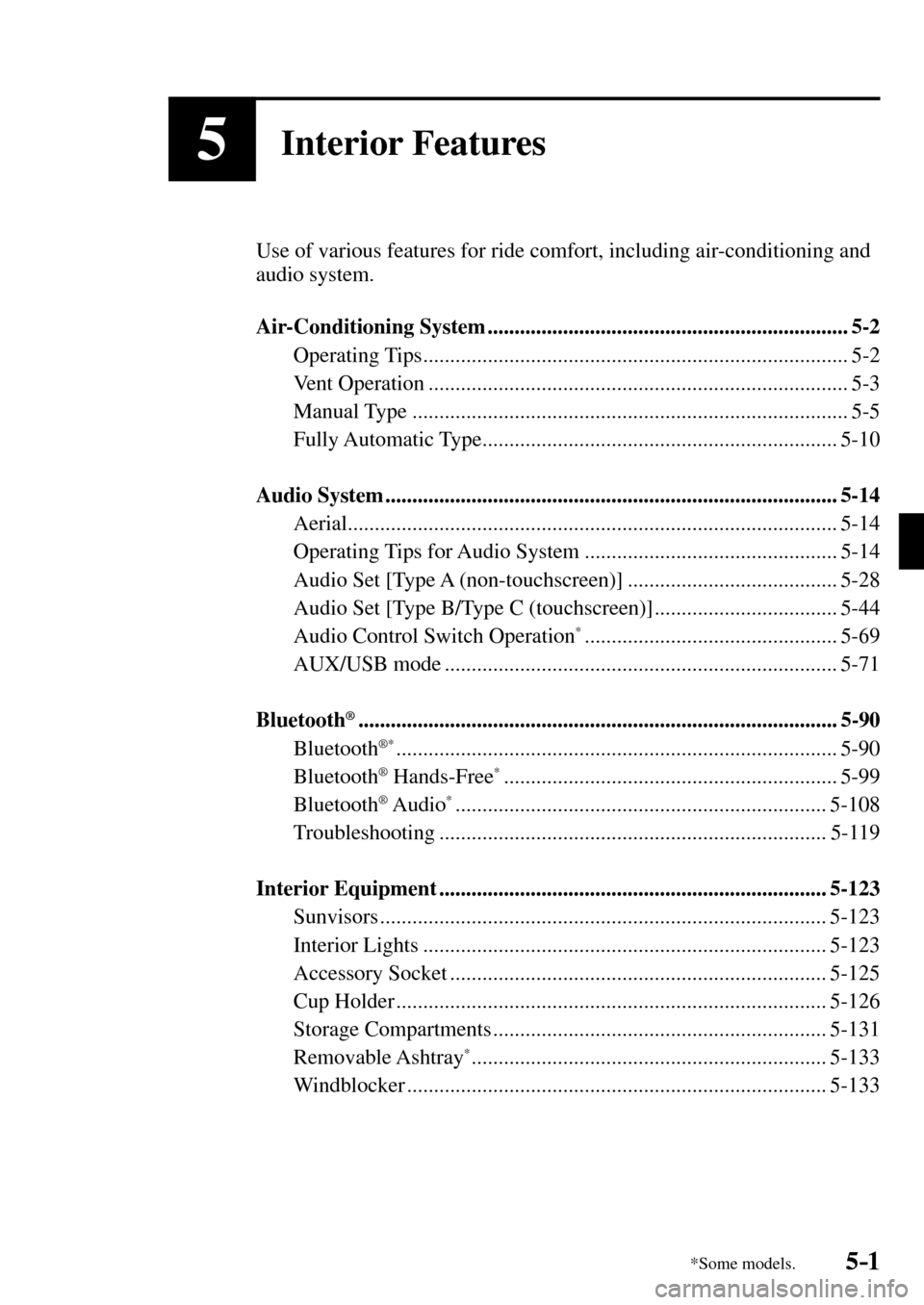

5–1*Some models.5–1
5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.
Air-Conditioning System ................................................................... 5-2
Operating Tips ............................................................................... 5-2
Vent Operation .............................................................................. 5-3
Manual Type ................................................................................. 5-5
Fully Automatic Type .................................................................. 5-10
Audio System .................................................................................... 5-14
Aerial ........................................................................................... 5-14
Operating Tips for Audio System ............................................... 5-14
Audio Set [Type A (non-touchscreen)] ....................................... 5-28
Audio Set [Type B/Type C (touchscreen)] .................................. 5-44
Audio Control Switch Operation
* ............................................... 5-69
AUX/USB mode ......................................................................... 5-71
Bluetooth
® ......................................................................................... 5-90
Bluetooth®* .................................................................................. 5-90
Bluetooth® Hands-Free * .............................................................. 5-99
Bluetooth® Audio * ..................................................................... 5-108
Troubleshooting ........................................................................ 5-119
Interior Equipment ........................................................................ 5-123
Sunvisors ................................................................................... 5-123
Interior Lights ........................................................................... 5-123
Accessory Socket ...................................................................... 5-125
Cup Holder ................................................................................ 5-126
Storage Compartments .............................................................. 5-131
Removable Ashtray
* .................................................................. 5-133
Windblocker .............................................................................. 5-133
/:A(.'',A'FKVKQPKPFD

5–2
Interior Features
Air-Conditioning System
O p e r a t i n g T i p s













 Operate the air-conditioning system with
the engine running.



 To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with the
ignition switched ON when the engine is
not running.



(With i-stop)
 The airÀ ow amount may decrease
slightly while the i-stop function is
operating.



 Clear all obstructions such as leaves,
snow and ice from the bonnet and the
air inlet in the cowl grille to improve the
system ef¿ ciency.




 Use the air-conditioning system to defog
the windows and dehumidify the air.



 The recirculate mode should be used
when driving through tunnels or while in
a traf¿ c jam, or when you would like to
shut off outside air for quick cooling of
the interior.



 Use the outside air position for
ventilation or windscreen defrosting.



 If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the air-conditioning system.



 Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.



 Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
ef¿ cient.

 The refrigerant speci¿ cations are
indicated on a label attached to the
inside of the engine compartment. Check
the label before re¿ lling the refrigerant.
If the wrong type of refrigerant is used,
it could result in a serious malfunction
of the air conditioner.
  For details, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
Label
