Interior Features
Audio System



 The CD player ejects the CD if the CD
is inserted upside down. Also dirty and/
or defective CDs may be ejected.



 Do not insert cleaning discs in the CD
player.



 Do not insert any disc with a peel-off
seal af¿ xed to it.




 This unit may not be able to play certain
CD-R/CD-RWs made using a computer
or music CD recorder due to disc
characteristics, scratches, smudges, dirt,
etc., or due to dust or condensation on
the lens inside the unit.



 Storing CDs in the vehicle exposed to
direct sunlight or high temperature may
damage the CD-R/CD-RWs, and make
them unplayable.



 CD-R/CD-RW exceeding 700 MB
cannot be played.



 This unit may not be able to play certain
discs made using a computer due to the
application (writing software) setting
used. (For details, consult the store
where the application was purchased.)



 It is possible that certain text data, such
as titles, recorded on a CD-R/CD-RW
may not be displayed when musical data
(CD-DA) is playing.



 The period from when a CD-RW is
inserted to when it begins playing is
longer than a normal CD or CD-R.



 Completely read the instruction manual
and cautions for CD-R/CD-RWs.



 Do not use discs with cellophane tape
adhering, partially peeled off labels,
or adhesive material exuding from the
edges of the CD label. Also, do not use
discs with a commercially-available
CD-R label af¿ xed. The disc may not
eject resulting in a malfunction.
Operating Tips for MP3
MP3 stands for MPEG Audio Layer 3,
which is standardised voice compression
established by the ISO
*1 working group
(MPEG).
Use of MP3 allows for audio data to be
compressed to approximately a tenth of
the source data size.
This unit plays ¿ les with the extension
(.mp3) as MP3 ¿ les.
*1 International Organisation for
Standardisation
CAUTION
Do not use an audio ¿ le extension on
¿ les other than audio ¿ les. In addition,
do not change the audio ¿ le extension.
Otherwise, the unit will not recognise
the¿ le correctly resulting in noise or a
malfunction.
NOTE
Supply of this product only conveys a
license for private, non-commercial use
and does not convey a license nor imply
any right to use this product in any
commercial (i.e. revenue-generating)
real time broadcasting (terrestrial,
satellite, lead and/or any other media),
broadcasting/streaming via the Internet,
intranets and/or other networks or in
other electronic content distribution
systems, such as pay-audio or audio-on-
demand applications. An independent
license for such use is required.
For details, please visit http://www.
mp3licensing.com.
/:A(.'',A'FKVKQPKPFD

5–20
Interior Features
Audio System



 This audio system handles MP3 ¿ les
that have been recorded on CD-R/CD-
RW/CD-ROMs.



 When naming an MP3 ¿ le, be sure to
add an MP3 ¿ le extension (.mp3) after
the¿ le name.




 The number of characters which can be
displayed is restricted.
Operating Tips for WMA
WMA is short for Windows Media *1 Audio
and is the audio compression format used
by Microsoft
*1 .
Audio data can be created and stored at a
higher compression ratio than MP3.
This unit plays ¿ les with the extension
(.wma) as WMA ¿ les.
*1 Windows Media and Microsoft are
registered trademarks of Microsoft
Corporation U.S. in the United States
and other countries.
CAUTION
Do not use an audio ¿ le extension on ¿ les
other than audio ¿ les. In addition, do not
change the audio ¿ le extension. Otherwise,
the unit will not recognise the ¿ le correctly
resulting in noise or a malfunction.



 WMA ¿ les written under speci¿ cations
other than the indicated speci¿ cation
may not play normally or ¿ les or folder
names may not display correctly.



 The ¿ le extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the ¿ le extension “.wma”
to the end of the ¿ le name, and then
write it to the disc/memory.
Operating Tips for AAC
AAC stands for Advanced Audio Coding,
which is standardised voice compression
established by the ISO
*1 working group
(MPEG). Audio data can be created and
stored at a higher compression ratio than
MP3.
This unit plays ¿ les with the extensions
(.aac
*2 /.m4a/.wav *2 ) as the AAC ¿ les.
CAUTION
Do not use an audio ¿ le extension on
¿ les other than audio ¿ les. In addition,
do not change the audio ¿ le extension.
Otherwise, the unit will not recognise
the¿ le correctly resulting in noise or a
malfunction.



 AAC ¿ les written under speci¿ cations
other than the indicated speci¿ cation
may not play normally or ¿ les or folder
names may not display correctly.
  The ¿ le extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the ¿ le extension “.aac
*2 ”,
“.m4a”, or “.wav *2 ” to the end of the ¿ le
name, and then write it to the memory.
*1 International Organisation for
Standardisation
*2 Type B/Type C
/:A(.'',A'FKVKQPKPFD

5–21
Interior Features
Audio System

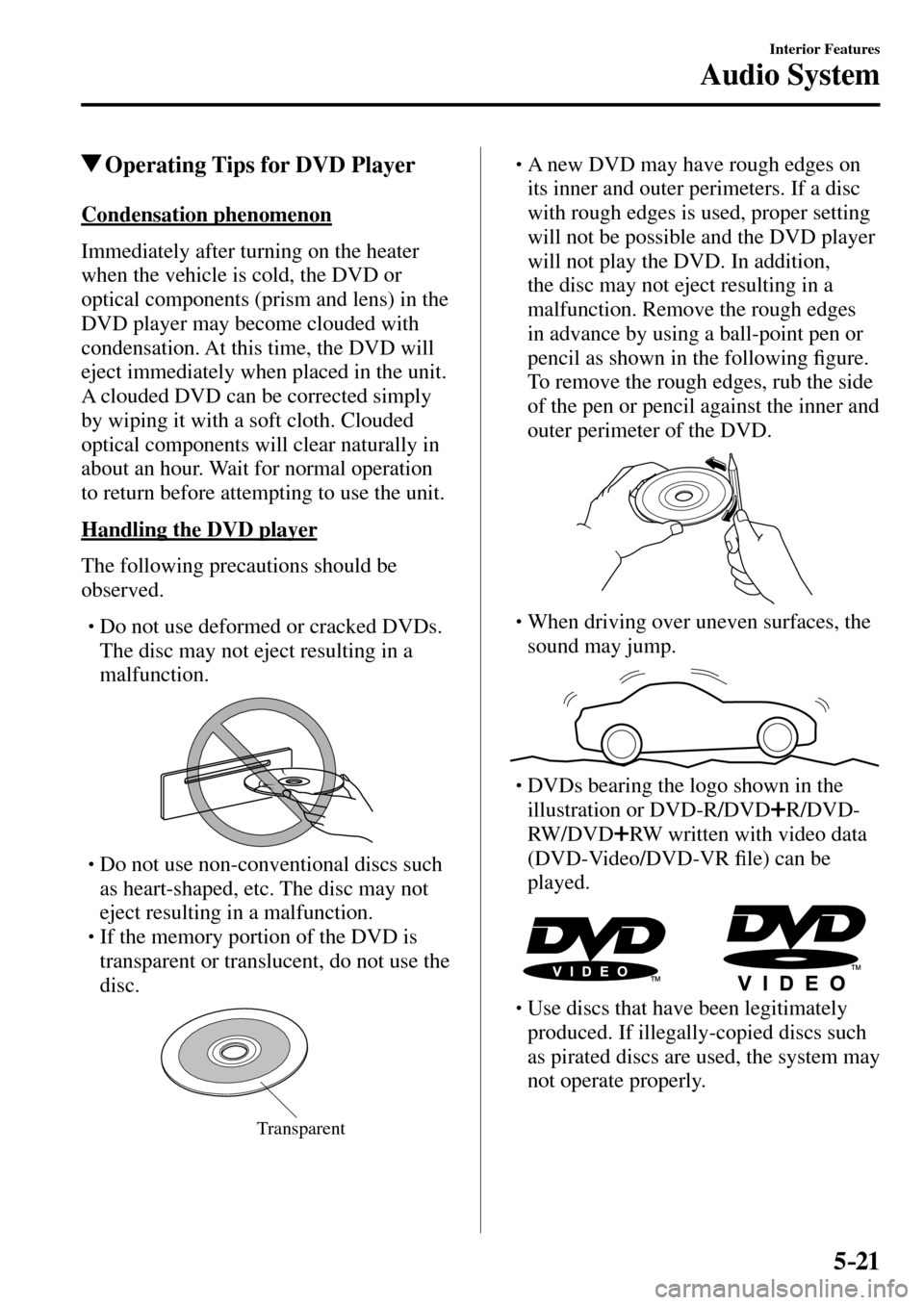

Operating Tips for DVD Player
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the DVD or
optical components (prism and lens) in the
DVD player may become clouded with
condensation. At this time, the DVD will
eject immediately when placed in the unit.
A clouded DVD can be corrected simply
by wiping it with a soft cloth. Clouded
optical components will clear naturally in
about an hour. Wait for normal operation
to return before attempting to use the unit.
Handling the DVD player
The following precautions should be
observed.



 Do not use deformed or cracked DVDs.
The disc may not eject resulting in a
malfunction.



 Do not use non-conventional discs such
as heart-shaped, etc. The disc may not
eject resulting in a malfunction.



 If the memory portion of the DVD is
transparent or translucent, do not use the
disc.
Transparent



 A new DVD may have rough edges on
its inner and outer perimeters. If a disc
with rough edges is used, proper setting
will not be possible and the DVD player
will not play the DVD. In addition,
the disc may not eject resulting in a
malfunction. Remove the rough edges
in advance by using a ball-point pen or
pencil as shown in the following ¿ gure.
To remove the rough edges, rub the side
of the pen or pencil against the inner and
outer perimeter of the DVD.



 When driving over uneven surfaces, the
sound may jump.



 DVDs bearing the logo shown in the
illustration or DVD-R/DVD
R/DVD-
RW/DVD
RW written with video data
(DVD-Video/DVD-VR ¿ le) can be
played.



 Use discs that have been legitimately
produced. If illegally-copied discs such
as pirated discs are used, the system may
not operate properly.
/:A(.'',A'FKVKQPKPFD

5–22
Interior Features
Audio System

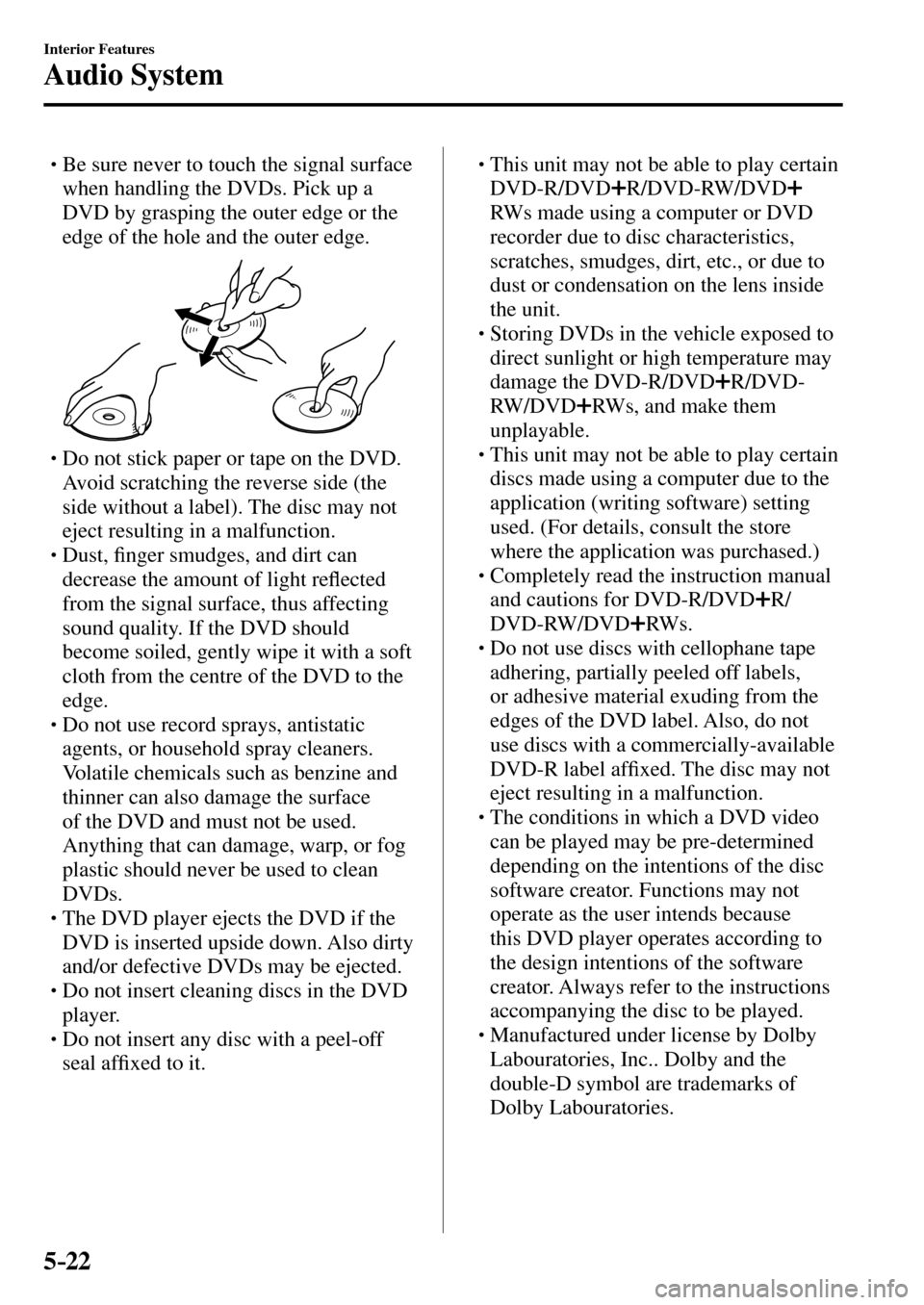

 Be sure never to touch the signal surface
when handling the DVDs. Pick up a
DVD by grasping the outer edge or the
edge of the hole and the outer edge.



 Do not stick paper or tape on the DVD.
Avoid scratching the reverse side (the
side without a label). The disc may not
eject resulting in a malfunction.



 Dust, ¿ nger smudges, and dirt can
decrease the amount of light reÀ ected
from the signal surface, thus affecting
sound quality. If the DVD should
become soiled, gently wipe it with a soft
cloth from the centre of the DVD to the
edge.



 Do not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface
of the DVD and must not be used.
Anything that can damage, warp, or fog
plastic should never be used to clean
DVDs.



 The DVD player ejects the DVD if the
DVD is inserted upside down. Also dirty
and/or defective DVDs may be ejected.



 Do not insert cleaning discs in the DVD
player.



 Do not insert any disc with a peel-off
seal af¿ xed to it.




 This unit may not be able to play certain
DVD-R/DVD
R/DVD-RW/DVD
RWs made using a computer or DVD
recorder due to disc characteristics,
scratches, smudges, dirt, etc., or due to
dust or condensation on the lens inside
the unit.



 Storing DVDs in the vehicle exposed to
direct sunlight or high temperature may
damage the DVD-R/DVD
R/DVD-
RW/DVD
RWs, and make them
unplayable.



 This unit may not be able to play certain
discs made using a computer due to the
application (writing software) setting
used. (For details, consult the store
where the application was purchased.)



 Completely read the instruction manual
and cautions for DVD-R/DVD
R/
DVD-RW/DVD
RW s .


 Do not use discs with cellophane tape
adhering, partially peeled off labels,
or adhesive material exuding from the
edges of the DVD label. Also, do not
use discs with a commercially-available
DVD-R label af¿ xed. The disc may not
eject resulting in a malfunction.



 The conditions in which a DVD video
can be played may be pre-determined
depending on the intentions of the disc
software creator. Functions may not
operate as the user intends because
this DVD player operates according to
the design intentions of the software
creator. Always refer to the instructions
accompanying the disc to be played.



 Manufactured under license by Dolby
Labouratories, Inc.. Dolby and the
double-D symbol are trademarks of
Dolby Labouratories.
/:A(.'',A'FKVKQPKPFD

5–23
Interior Features
Audio System
NOTE
  Video data (DVD-Video/DVD-VR
¿ les) written to DVD/DVD-R/DVD
R/DVD-RW/DVD RW can be played.
 This unit is compatible for playback
of dual-layer DVD/DVD-R.
  Regional number for this unit is [2]
or [3] (regional number depends on
market).
  DVD-Video/DVD-VR ¿ les written
under speci¿ cations other than the
indicated speci¿ cation may not play
normally or ¿ les or folder names
may not display correctly.
Mark indicating on disc
Marks indicated on discs or packages are
as follows:
Mark Meaning
NTSC PAL Indicates a colour TV
system (broadcast system
depends on market).
Indicates the number of
audio tracks.
The number indicates
the number of audio
recordings.
Indicates the number of
subtitled languages.
The number indicates
the number of recorded
languages.
Number of angles.
The number indicates
the number of recorded
angles.
Indicates the screen modes
which can be selected.
“16:9” indicates a wide
screen and “4:3” indicates
a standard screen.
Indicates the region code
for which a disc can be
played.
ALL indicates global
applicability, and a number
indicates applicability
based on region.
/:A(.'',A'FKVKQPKPFD

5–24
Interior Features
Audio System
Glossary
DVD-Video
DVD-Video is a video image storing
standard determined by the DVD forum.
“MPEG2”, a global standard in digital
compression technologies, has been
adopted which compresses on average
about 1/40th of the image data and stores
it. In addition, a variable-rate coding
technology, which changes the assigned
information amount according to the shape
of the screen image, has been adopted.
Audio information can be stored using
Dolby digital instead of PCM (Pulse Code
Modulation) and more realistic sounding
audio can be enjoyed.
In addition, various, supplementary
functions such as multi-language
availability are provided for enhanced
enjoyment.
DVD-VR
DVD-VR is short for DVD Video
Recording Format; video image storing
standard determined by the DVD forum.
Multi-angle
One of the DVD player's functions.
Because scenes can be recorded in
multiple angles (camera position), users
can choose a desired angle.
Multi-language
As a function of the DVD player, audio
or subtitles for the same video images can
be stored in multiple languages and the
language can be selected freely. Region code
DVD players and discs are assigned codes
for each market region and only discs
manufactured for that speci¿ c region can
be played.
A disc cannot be played if the region code
assigned to the player is not indicated on
the disc.
In addition, even if a region code is not
indicated on the disc, disc playback may
be prohibited depending on the region. In
this case, a disc may not be playable in
this DVD player.
Operating Tips for OGG
OGG is the audio compression format for
Xiph. Org Foundation.
Audio data can be created and stored at a
higher compression ratio than MP3.
This unit plays ¿ les with the extension
(.ogg) as OGG ¿ les.
CAUTION
Do not use an audio ¿ le extension on
¿ les other than audio ¿ les. In addition,
do not change the audio ¿ le extension.
Otherwise, the unit will not recognise
the¿ le correctly resulting in noise or a
malfunction.



 OGG ¿ les written under speci¿ cations
other than the indicated speci¿ cation
may not play normally or ¿ les or folder
names may not display correctly.



 The ¿ le extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the ¿ le extension “.ogg” to
the end of the ¿ le name, and then write
it to the disc/memory.
/:A(.'',A'FKVKQPKPFD

5–25
Interior Features
Audio System
Operating Tips for USB device
This unit plays audio ¿ les as follows:
Extension Playback with this unit
.mp3 MP3
.wma WMA
.aac
*1 AAC
.m4a
.wav
*1 WAV
.ogg *1 OGG
CAUTION
Do not use an audio ¿ le extension on
¿ les other than audio ¿ les. In addition,
do not change the audio ¿ le extension.
Otherwise, the unit will not recognise
the¿ le correctly resulting in noise or a
malfunction.
NOTE
  Playback may not be possible
depending on the type and condition
of the USB À ash memory even if the
audio¿ le complies with the standard.

 A copyright protected WMA/AAC
¿ le cannot be played in this unit.

 (Type B/Type C) If a ¿ le name in the USB memory
is too long, it could cause operation
problems such as not being able to
playback the song.
 (Recommended: Within
80 characters)
  The order of the music data stored
in the device may differ from the
playback order.
  To prevent loss or damage of stored
data, we recommend that you always
back up your data.
  If a device exceeds the maximum
electric current value of 1,000 mA,
it may not operate or recharge when
connected.
  Do not pull out the USB device while
in the USB mode (only pull it out
while in FM/AM radio or CD mode).
  The device will not operate if the
data is password protected.
MP3/WMA/AAC/OGG
*1¿ les written
under speci¿ cations other than the
indicated speci¿ cation may not play
normally or ¿ les/folder names may not
display correctly.
*1 Type B/Type C
/:A(.'',A'FKVKQPKPFD

5–26
Interior Features
Audio System
Operating Tips for iPod
This unit supports playback of music ¿ les
recorded to an iPod.
* iPod is a trademark of Apple Inc.,
registered in the U.S. and other
countries.
The iPod may not be compatible
depending on the model or OS version. In
this case, an error message is displayed.
CAUTION
  Remove the iPod when it is not in
use. Because the iPod is not designed
to withstand excessive changes
in temperature inside the cabin, it
could be damaged or the battery
may deteriorate due to the excessive
temperature or humidity inside the
cabin if it is left in the vehicle.
  If data in the iPod is lost while it is
connected to the unit, Mazda cannot
guarantee recovery of any lost data.
  If the iPod battery is deteriorated, the
iPod may not recharge and playback
may not be possible when it is
connected to the unit.
  For details on using the iPod, refer to
the iPod instruction manual.
  When connecting the iPod to a USB
port, all commands are made from
the audio unit. iPod control is not
possible.
NOTE
The audio unit cannot display images or
videos stored in an iPod.
/:A(.'',A'FKVKQPKPFD
