2017 MAZDA MODEL MX-5 RF Owners Manual (in English)

4–43
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Lights Page
(Amber) Electric Vacuum Pump Warning Light
*1 7-34
ABS Warning Light *1
Electronic Brake Force
Distribution System
Warning
7-31
ABS warning
7-34
Check Engine Light *1 7-34
(Amber)
* i-stop Warning Light *1 7-34
(Amber) * i-ELOOP Warning Indication/Warning Light *1 7-34
* Automatic Transmission Warning Indication/Warning Light *1 7-34
Air Bag/Seat Belt Pretensioner System Warning Light *1 7-34
* Active Bonnet Warning Light *1 7-34
* Tyre Pressure Monitoring System Warning Light *1
Flashing
7-34
Illuminate
7-41
* Flat Tyre Warning Light *1 7-34
(Red)
* KEY Warning Indication/Warning Light *1
Malfunction

7-34
Except malfunction

7-41
(Amber)
* KEY Warning Indication
7-34
* Lane Departure Warning System (LDWS) Warning Indication/
Warning Light *1
Illuminated

7-34
Flashing
4-111
/:A(.'',A'FKVKQPKPFD

4–44
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Lights Page
(Amber)
* High Beam Control System (HBC) Warning Indication/
Warning Light *1 7-34
* Blind Spot Monitoring (BSM) Warning Indication 7-34
* Retractable Fastback Warning Indication 7-34
LED Headlight Warning Light *1 7-34
Seat Belt Warning Light 7-41
* Door-Ajar Warning Light 7-41
* Door-Ajar Warning Indication 7-41
* Boot lid-Ajar Warning Indication 7-41
* Low Fuel Warning Indication/Warning Light 7-41
* 120 km/h Warning Light *1 7-41
* Low Washer Fluid Level Warning Indication/Warning Light 7-41
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
expert repairer, we recommend an Authorised Mazda Repairer.
*2 The light turns on continuously when the parking brake is applied.
/:A(.'',A'FKVKQPKPFD

4–45
When Driving
Instrument Cluster and Display
*Some models.

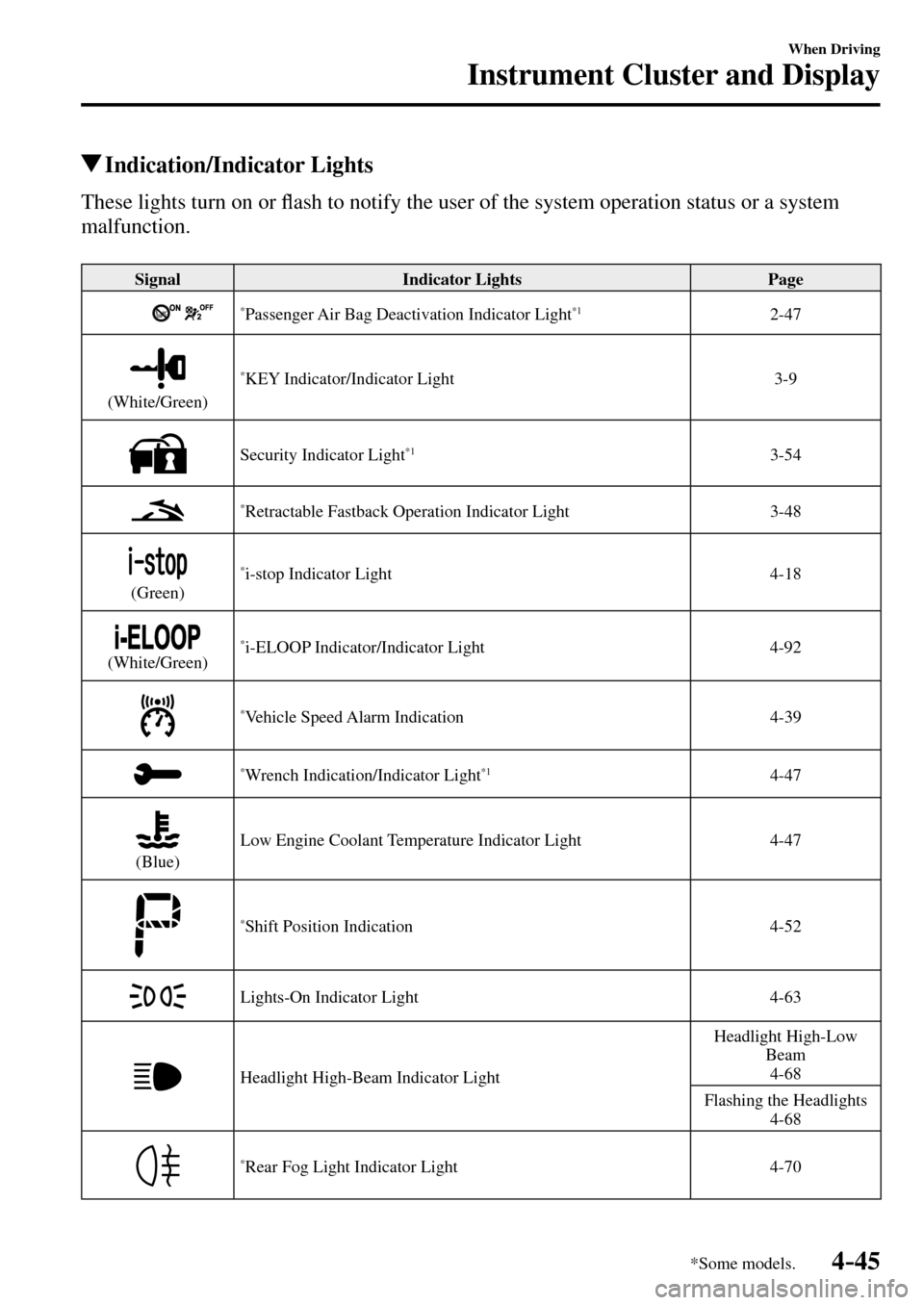

Indication/Indicator Lights
These lights turn on or À ash to notify the user of the system operation status or a system
malfunction.
Signal Indicator Lights Page
* Passenger Air Bag Deactivation Indicator Light *1 2-47
(White/Green)
* KEY Indicator/Indicator Light 3-9
Security Indicator Light *1 3-54
* Retractable Fastback Operation Indicator Light 3-48
(Green)
* i-stop Indicator Light 4-18
(White/Green) * i-ELOOP Indicator/Indicator Light 4-92
* Vehicle Speed Alarm Indication 4-39
* Wrench Indication/Indicator Light *1 4-47
(Blue) Low Engine Coolant Temperature Indicator Light 4-47
* Shift Position Indication 4-52
Lights-On Indicator Light 4-63
Headlight High-Beam Indicator Light Headlight High-Low
Beam
4-68
Flashing the Headlights
4-68
* Rear Fog Light Indicator Light 4-70
/:A(.'',A'FKVKQPKPFD

4–46
When Driving
Instrument Cluster and Display
*Some models.
Signal Indicator Lights Page
Direction Indicator/Hazard Warning Indicator Lights Turn and Lane-Change
Signals
4-71
Hazard Warning Flasher
4-79
TCS/DSC Indicator Light *1
Traction Control System
(TCS)
4-87
Dynamic Stability
Control (DSC)
4-88
(Turns on)
7-34
DSC OFF Indicator Light *1 4-89
* Select Mode Indication 4-98
(White)
* Tyre Pressure Monitoring System Indication 4-143
(Green)
* High Beam Control System (HBC) Indicator Light 4-105
* Blind Spot Monitoring (BSM) OFF Indicator Light *1 4-117
* Lane Departure Warning System (LDWS) OFF Indicator
Light*1 4-109
(White/Amber)
* Adjustable Speed Limiter Main Indication/Indicator Light 4-124
(Green)
* Adjustable Speed Limiter Set Indication/Indicator Light 4-124
(White/Amber)
* Cruise Main Indication/Indicator Light 4-135
/:A(.'',A'FKVKQPKPFD

4–47
When Driving
Instrument Cluster and Display
*Some models.
Signal Indicator Lights Page
(Green)
* Cruise Set Indication/Indicator Light 4-135
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
expert repairer, we recommend an Authorised Mazda Repairer.
Wrench Indication/Indicator
Lights*
Type A instrument cluster
Perform maintenance in accordance with
the message.
Type B instrument cluster
When the ignition is switched ON, the
wrench indicator light is illuminated and
then turns off after a few seconds.
The wrench indicator light is illuminated
when the preset maintenance period
arrives. Verify the content and perform
maintenance.
Refer to Maintenance Monitor on page
6-10 .
Low Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been suf¿ ciently warmed
up, the temperature sensor could have a
malfunction. Consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
/:A(.'',A'FKVKQPKPFD

4–48
When Driving
Transmission
Manual Transmission
Operation
Manual Transmission Shift Pattern
Neutral position
The shift pattern of the transmission is
conventional, as shown.
Depress the clutch pedal all the way down
while shifting; then release it slowly.
Your vehicle is equipped with a device to
prevent shifting to R (reverse) by mistake.
Push the shift lever downward and shift
to R.
WARNING
Do not use sudden engine braking
on slippery road surfaces or at high
speeds:
Shifting down while driving on wet,
snowy, or frozen roads, or while driving
at high speeds causes sudden engine
braking, which is dangerous. The
sudden change in tyre speed could
cause the tyres to skid. This could
lead to loss of vehicle control and an
accident.
Always leave the shift lever in 1 or
R position and set the parking brake
when leaving the vehicle unattended:
Otherwise the vehicle could move and
cause an accident.
CAUTION
  Keep your foot off the clutch pedal
except when shifting gears. Also, do
not use the clutch to hold the vehicle
on an upgrade. Riding the clutch
will cause needless clutch wear and
damage.
  Do not apply any excessive lateral
force to the shift lever when
changing from 5th to 4th gear. This
could lead to the accidental selection
of 2nd gear, which could result in
damage to the transmission.
  Make sure the vehicle comes to a
complete stop before shifting to
R. Shifting to R while the vehicle
is still moving may damage the
transmission.
/:A(.'',A'FKVKQPKPFD

4–49
When Driving
Transmission
NOTE
  A natural driving posture can be
realized by lightly gripping the shift
lever from the side without having to
rest your elbow on the centre console
box.

  If shifting to R is dif¿ cult, shift back
into neutral, release the clutch pedal,
and try again.
 (With i-stop function) If the engine has stopped due to
stalling, it can be restarted by
depressing the clutch pedal within 3
seconds of the engine stopping.
 The engine cannot be restarted even
if the clutch pedal is depressed under
the following conditions:



 The driver's door is open.



 The driver's seat belt is unfastened.



 The clutch pedal is not released
completely after the engine stalled.



 The clutch pedal is depressed with
the engine not stopped completely.
NOTE
 (With parking sensor system) When the shift lever is shifted to the
R position with the ignition switched
ON, the parking sensor system is
activated and a beep sound is heard.
 Refer to Parking Sensor System on
page 4-148 .
Gear Shift Indicator
The gear shift indicator supports you to
obtain optimum fuel economy and smooth
driving. It displays the selected gear
position in the instrument cluster as well
as noti¿ es the driver to change to the most
suitable gear position corresponding to the
actual driving condition.
Selected gear position Suitable gear position
Indication Condition
Numeral The selected gear position is
displayed.
and numeral Shift up or down to the indicated
gear position is recommended.
/:A(.'',A'FKVKQPKPFD

4–50
When Driving
Transmission
CAUTION
Do not rely solely on the shift-up/
shift-down recommendations by
indications. The actual driving situation
might require shift operations different
from indication. To avoid the risk of
accidents, the road and traf¿ c conditions
have to be judged correctly by the driver
before shifting.
NOTE
The gear shift indicator turns off when
the following operations are performed.

 The vehicle is stopped.
 The vehicle is put in neutral.
 The vehicle is driven in reverse.
 The clutch is not fully engaged when
accelerating from a stop.
  The clutch pedal remains depressed
for 2 seconds or longer while driving.
