2017 MAZDA MODEL MX-5 RF Owners Manual (in English)

4–67
When Driving
Switches and Controls
NOTE
  The headlights, other exterior lights and instrument panel illumination may not turn
off immediately even if the surrounding area becomes well-lit because the light sensor
determines that it is night time if the surrounding area is continuously dark for several
minutes such as inside long tunnels, traf¿ c jams inside tunnels, or in indoor parking
lots.
 In this case, the lights turn off if the light switch is turned to the position.
  When the headlight switch is in the position and the ignition is switched to ACC
or the ignition is switched off, the headlights, other exterior lights and instrument panel
illumination will turn off.
  The instrument panel illumination can be adjusted by rotating the knob in the
instrument cluster. Also, the antidazzle mode can be changed by rotating the knob until
a beep sound is heard. To adjust the brightness of the instrument panel illumination:
Refer to Instrument Panel Illumination on page 4-28 .
  The sensitivity of the AUTO lights may be changed by an Authorised Mazda Repairer.
Refer to Personalisation Features on page 9-10 .
/:A(.'',A'FKVKQPKPFD

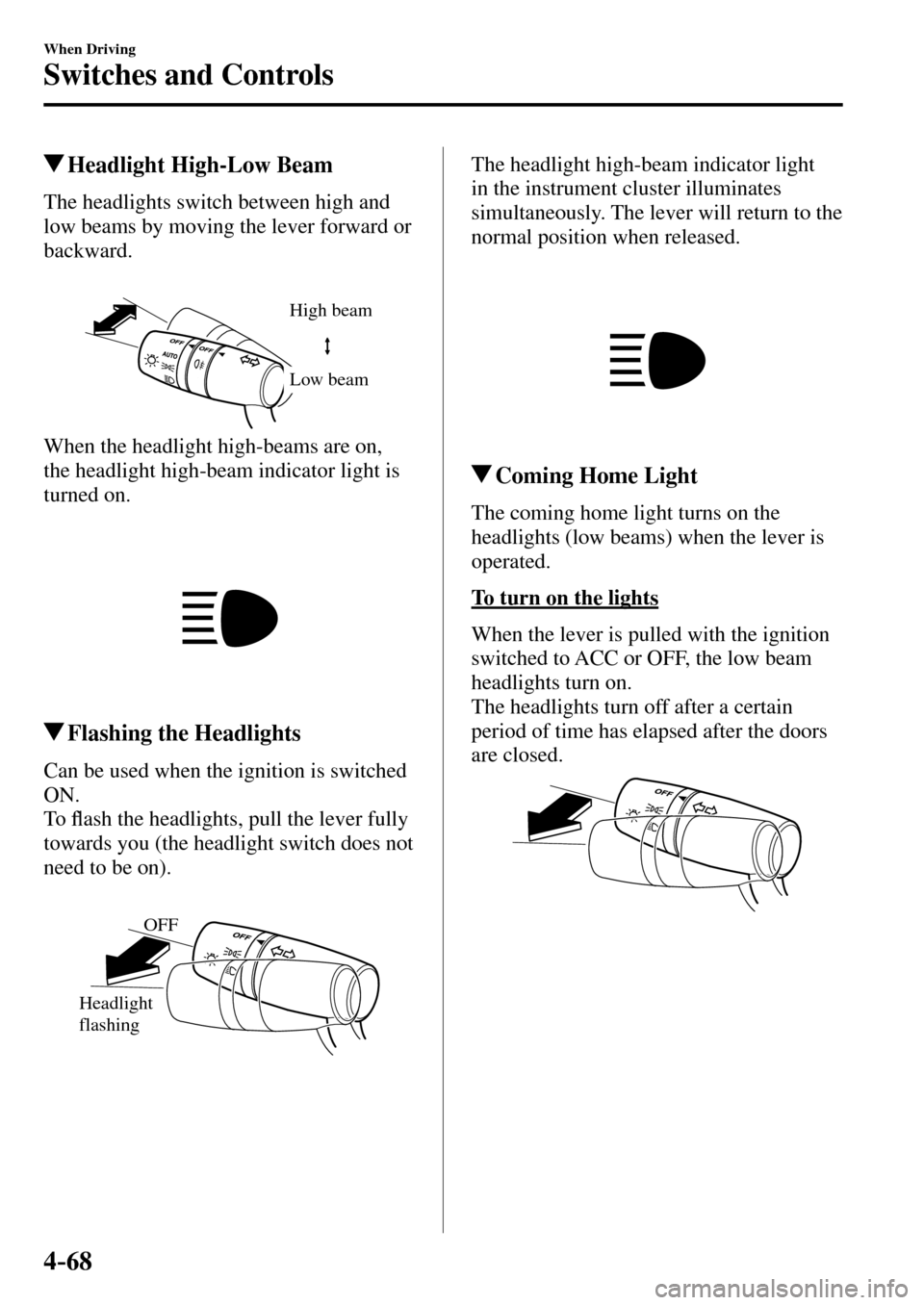

4–68
When Driving
Switches and Controls
Headlight High-Low Beam
The headlights switch between high and
low beams by moving the lever forward or
backward.
High beam
Low beam
When the headlight high-beams are on,
the headlight high-beam indicator light is
turned on.
Flashing the Headlights
Can be used when the ignition is switched
ON.
T o À ash the headlights, pull the lever fully
towards you (the headlight switch does not
need to be on).
OFF
Headlight
flashing
The headlight high-beam indicator light
in the instrument cluster illuminates
simultaneously. The lever will return to the
normal position when released.
Coming Home Light
The coming home light turns on the
headlights (low beams) when the lever is
operated.
To turn on the lights
When the lever is pulled with the ignition
switched to ACC or OFF, the low beam
headlights turn on.
The headlights turn off after a certain
period of time has elapsed after the doors
are closed.
/:A(.'',A'FKVKQPKPFD

4–69
When Driving
Switches and Controls
NOTE
  The time until the headlights turn off
after all of the doors are closed can
be changed.
 Refer to Personalisation Features on
page 9-10 .
  If no operations are done for 3
minutes after the lever is pulled, the
headlights turn off.
  The headlights turn off if the lever is
pulled again while the headlights are
illuminated.
Leaving Home Light
The leaving home light turns on the lights
when the transmitter unlock button is
pressed while away from the vehicle.
The following lights turn on when the
leaving home light is operated.
Low beams, Position lights, Tail lights,
Number plate lights.
To turn on the lights
When the ignition switch and the headlight
switch are in the following conditions,
the headlights will illuminate when the
transmitter unlock button is pressed and
the vehicle receives the transmitter signal.
The headlights turn off after a certain
period of time has elapsed (30 seconds).



 Ignition switch: off



 Headlight switch: or
Lock button
Unlock
button
NOTE
  Operation of the leaving home light
can be turned on or off.
 Refer to Personalisation Features on
page 9-10 .
  When the transmitter lock button is
pressed and the vehicle receives the
transmitter signal, the headlights turn
off.
  When the headlight switch is in a
position other than
or , the
headlights turn off.
/:A(.'',A'FKVKQPKPFD

4–70
When Driving
Switches and Controls
*Some models.
Headlight Levelling
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.
The angle of the headlights will be
automatically adjusted when turning on
the headlights.
Running Lights
Some countries require moving vehicles to
have their lights on (running lights) during
the daytime.
The running lights turn on automatically
when the vehicle starts moving.
They turn off when the parking brake is
operated or the selector lever is shifted
to the P position (automatic transmission
vehicle).
NOTE
(Except countries prohibited by law)
The running lights can be deactivated.
Refer to Personalisation Features on
page 9-10 .
Rear Fog Light *
The rear fog light can be used when the
ignition is switched ON.
The rear fog light helps your vehicle to be
seen.
The headlights must be turned on to turn
on the rear fog light.
To turn the rear fog light on, rotate the fog
light switch to the
position (the fog
light switch returns to its original position
automatically).
Fog light switch
The rear fog light indicator light in the
instrument cluster illuminates while the
rear fog light is on.
To turn the rear fog light off, do any of the
following:



 Rotate the fog light switch to the
position again (the fog light switch
returns to its original position
automatically).



 Turn the headlight switch to the
position.
The rear fog light indicator light in the
instrument cluster goes off when the rear
fog light is turned off.
/:A(.'',A'FKVKQPKPFD

4–71
When Driving
Switches and Controls
NOTE
(With auto-light control)
When the headlight switch is in the
position and the headlights, exterior
lights and instrument panel illuminated,
the rear fog light turns on when the rear
fog light switch is turned on.
Turn and Lane-change
Signals
The ignition must be switched ON to use
the turn and lane-change signals.
Direction Indicators
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to À ash
after a turn, manually return the lever to its
original position.
Right turn
Left turn Right lane change
Left lane changeOFF
The direction indicators in the instrument
clusterÀ ash according to the operation of
the direction indicator lever to show which
signal is working.
/:A(.'',A'FKVKQPKPFD

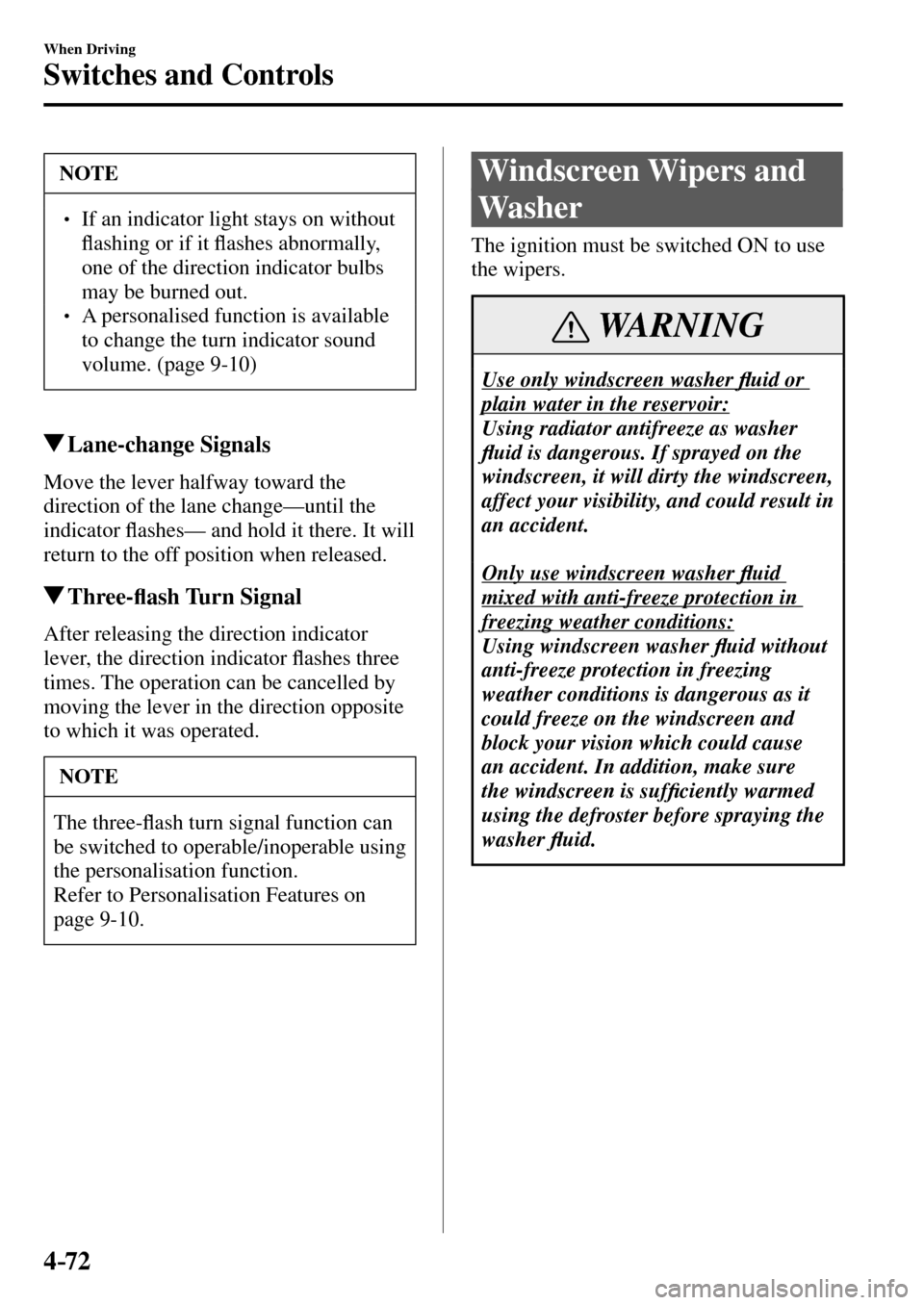

4–72
When Driving
Switches and Controls
NOTE
  If an indicator light stays on without
À ashing or if it À ashes abnormally,
one of the direction indicator bulbs
may be burned out.
  A personalised function is available
to change the turn indicator sound
volume. (page 9-10 )
Lane-change Signals
Move the lever halfway toward the
direction of the lane change—until the
indicatorÀ ashes— and hold it there. It will
return to the off position when released.
Three-À ash Turn Signal
After releasing the direction indicator
lever, the direction indicator À ashes three
times. The operation can be cancelled by
moving the lever in the direction opposite
to which it was operated.
NOTE
The three-À ash turn signal function can
be switched to operable/inoperable using
the personalisation function.
Refer to Personalisation Features on
page 9-10 .
Windscreen Wipers and
Washer
The ignition must be switched ON to use
the wipers.
WARNING
Use only windscreen washer À uid or
plain water in the reservoir:
Using radiator antifreeze as washer
À uid is dangerous. If sprayed on the
windscreen, it will dirty the windscreen,
affect your visibility, and could result in
an accident.
Only use windscreen washer À uid
mixed with anti-freeze protection in
freezing weather conditions:
Using windscreen washer À uid without
anti-freeze protection in freezing
weather conditions is dangerous as it
could freeze on the windscreen and
block your vision which could cause
an accident. In addition, make sure
the windscreen is suf¿ ciently warmed
using the defroster before spraying the
washerÀ uid.
/:A(.'',A'FKVKQPKPFD

4–73
When Driving
Switches and Controls
NOTE
If the windscreen wipers are operated
under cold weather conditions or
during snowfall, they could stop due to
accumulated snow on the windscreen.
If the windscreen wipers stop due to
accumulated snow on the windscreen,
park the vehicle in a safe place, turn the
wiper switch off, and then remove the
accumulated snow. If the wiper switch
is turned to another position other than
OFF, the wipers will operate. If the
wipers do not operate even though the
wiper switch is turned to a position other
than OFF, consult an expert repairer,
we recommend an Authorised Mazda
Repairer as soon as possible.
Windscreen Wipers
Turn the wipers on by pressing the lever
up or down.
With intermittent wiper
Switch Position
Wiper operation
N o . Ty p e A Ty p e B
Operation while pulling
up lever
Stop
Intermittent
Low speed
High speed
Variable-speed intermittent wipers
Set the lever to the intermittent position
and choose the interval timing by rotating
the ring.
INT ring
/:A(.'',A'FKVKQPKPFD

4–74
When Driving
Switches and Controls
With auto-wiper control
Switch Position
Wiper operation
No. Type A Type B
Operation while pulling
up lever
Stop
Auto control
Low speed
High speed
Auto-wiper control
When the wiper lever is in the
position, the rain sensor senses the amount
of rainfall on the windscreen and turns the
wipers on or off automatically (off—
intermittent—low speed—high speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the centre position (normal), rotate
the switch upward for higher sensitivity
(faster response) or rotate it downward for
less sensitivity (slower response).
Higher sensitivity
Less sensitivitySwitch
Centre
position
