2017 MAZDA MODEL MX-5 RF Owners Manual (in English)

5–99
Interior Features
Bluetooth®
*Some models.
Bluetooth ® Hands-Free *
Making a Call
Phonebook Usage
Telephone calls can be made by saying
the contact name in the downloaded
phonebook or the name of a person whose
phone number has been registered in the
Bluetooth
® Hands-Free. Refer to Import
contact (Download Phonebook).
1. Press the talk button.
2. Wait for the beep sound.
3. Say: “Call XXXXX... (Ex. “John”)
Mobile”.
4. Follow the voice guidance to place the
call.
Screen operation
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the contact
list.
3. Select the contact you would like
to call to display the details for the
contact.
4. Select the desired phone number to
make the call.
Import contact (Download Phonebook)
Phonebook data from your device (Mobile
phone) can be sent and registered to your
Bluetooth
® Hands-Free phonebook using
Bluetooth® . (Automatic downloading)
The “Auto Download Contacts”
setting must be on. When hands-free is
connected to the device, the phonebook is
downloaded automatically.
Refer to Communication Settings on page
5-107 .
(Manually downloading)
If the “Auto Download Contacts” setting
is off, download the phonebook using the
following procedure.
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the contact
list.
3. Select
.
4. Select
or
to switch to the
device operation.
5. If
is selected, select
.
6. Download will be started from the
mobile phone.
NOTE
  If “Import All Contacts” is performed
after saving the phonebook to the
Bluetooth
® unit, the phonebook will
be overwritten.
  A maximum of 1,000 contacts can be
registered to the phonebook.
  Phonebook, incoming/outgoing call
record, and favourite memories are
exclusive to each mobile phone to
protect privacy.
/:A(.'',A'FKVKQPKPFD

5–10 0
Interior Features
Bluetooth®
Favourites Contacts
A maximum of 50 contacts can be
registered. It will take less time to make a
call after registering the telephone number.
In addition, you do not have to look for the
person you want to call in the phonebook.
Registering your favourites
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the
favourites list.
3. Select
.
4. Select
or
.
5. Select from the displayed list.
NOTE
When “Add New Contact” is selected,
information such as the selected person’s
name is also registered. In addition,
when “Add New Contact Details” is
selected, only the telephone number of
the selected person is registered. Calling a favourite
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the
favourites list.
3. (If only one phone number is
registered to contact)
Select the contact information you
would like to call. Go to Step 5.
(If multiple phone numbers are
registered to contact)
Select the contact you would like to
call to display the screen indicating the
details for the contact. Go to Step 4.
4. Select the phone number you would
like to call.
5. Select
.
Deleting a favourite
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the
favourites list.
3. Select
.
4. Select
.
5. Select the contact information which
you would like to delete.
6. Select
.
Changing the display order of your
favourites list
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the
favourites list.
3. Select
.
4. Select
.
5. The contact can be moved after it is
selected.
6. Slide the contact or move it using the
commander switch, then select
.
/:A(.'',A'FKVKQPKPFD

5–101
Interior Features
Bluetooth®
Changing contact name of your
favourites
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the
favourites list.
3. Select
.
4. Select
.
5. Select the contact to display the
keyboard screen.
6. If a new name is input and
is
selected, the contact name is stored.
NOTE
If the contact is long-pressed when the
favourites list is displayed, the contact
information can be edited (deleted,
moved).
Telephone Number Input
NOTE
Practice this while parked until you are
con¿ dent you can do it while driving in
a non-taxing road situation. If you are
not completely comfortable, make all
calls from a safe parking position, and
only start driving when you can devote
your full attention to driving.
1. Select the
icon on the home screen
to display the Communication screen.
2. When
is pressed, the dial pad
is displayed.
3. Input the telephone number using the
dial pad.
4. Select
to make the call.
Numeral or symbol entry
Use the dial pad.

Long-press the
to input +.
Select
to delete the currently input
value.
Long-press
to delete all input values.
Redial Function
Makes a call to the last person called
(latest person on outgoing call record)
from the mobile phone/vehicle.
1. Press the talk button.
2. Wait for the beep sound.
3. Say: “Redial”
Call back Function
Makes a call to the last person who called
your (latest person on incoming call
record) mobile phone/vehicle.
1. Press the talk button.
2. Wait for the beep sound.
3. Say: “Call back”
/:A(.'',A'FKVKQPKPFD

5–102
Interior Features
Bluetooth®
Receiving an Incoming Call
When an incoming call is received, the incoming call noti¿ cation screen is displayed. The
“Incoming Call Noti¿ cations” setting must be on.
Refer to Communication Settings on page 5-107 .
To accept the call, press the pick-up button on the audio control switch or select
on
the screen.
To reject the call, press the hang-up button on the audio control switch or select
on the
screen.
The following icons are displayed on the screen during a call. Icons which can be used differ
depending on use conditions.
Icon Function
Displays the Communication menu.
Ends the call.
Transferring a call from hands-free to a mobile phone
Communication between the Bluetooth ® unit and a device (mobile phone) is cancelled, and
an incoming call will be received by the device (mobile phone) like a standard call.
Transferring a call from a device (mobile phone) to hands-free
Communication between devices (mobile phone) can be switched to Bluetooth ® Hands-
Free.
Mute
The microphone can be muted during a call.
When selected again, the mute is cancelled.
To make a 3-way call, select the contacts from the following: : Call History is displayed. : The phonebook is displayed. : The dial pad is displayed. Input the phone number.
The device may be unusable depending on the contractual content.
The call on hold is made to make a 3-way call.
The device may be unusable depending on the contractual content.
Switches the call on hold.
DTMF (Dual Tone Multi-Frequency Signal) Transmission
This function is used when transmitting DTMF via the dial pad. The receiver of a DTMF
transmission is generally a home telephone answering machine or a company's automated
guidance call centre.
Input the number using a dial pad.
/:A(.'',A'FKVKQPKPFD

5–103
Interior Features
Bluetooth®
NOTE
  If the ignition is switched off
during a hands-free call, the line is
transferred to the device (Mobile
phone) automatically.
  If the DTMF code has two or more
digits or symbols, each one must be
transmitted individually.
Call Interrupt
A call can be interrupted to receive an
incoming call from a third party.
When
is selected or the pick-
up button on the steering wheel is pressed,
the current call is held and the system
switches to the new incoming call.
When
is selected, the current
call is ended and the system switches to
the new incoming call (GSM network
only).
When
is selected or the hang-up
button on the steering wheel is pressed, an
incoming call is refused.
NOTE
  The function may not be available
depending on the contractual content
of the mobile device.
  The function may not be operable
depending on the type of the
telephone network and the mobile
device.
Receiving and Replying to
Messages (available only with
E-mail/SMS compatible phones)
SMS (Short Message Service) messages,
and E-mail received by connected devices
can be downloaded, displayed, and played
(read by the system).
Additionally, replies can also be made
to calls and messages in the received
messages.
Downloading messages
Up to 20 new messages can be
downloaded and displayed from a
connected device.
NOTE
For E-mail, 20 messages for each
account can be downloaded.
(Automatic downloading)
The “Auto Download Email” (E-mail) or
“Auto Download SMS” (SMS) setting
must be on. A message is downloaded
automatically when the Bluetooth
® unit is
connected to the device.
Refer to Communication Settings on page
5-107 .
(Manually downloading)
When the “Auto Download Email”
(E-mail) or “Auto Download SMS” (SMS)
setting is off, the message is downloaded
using the following procedure.
1. Select the
icon on the home screen
to display the Communication screen.
2 .
Select or to display the Inbox.
3. Select .
4. Download will be started from the
mobile phone.
/:A(.'',A'FKVKQPKPFD

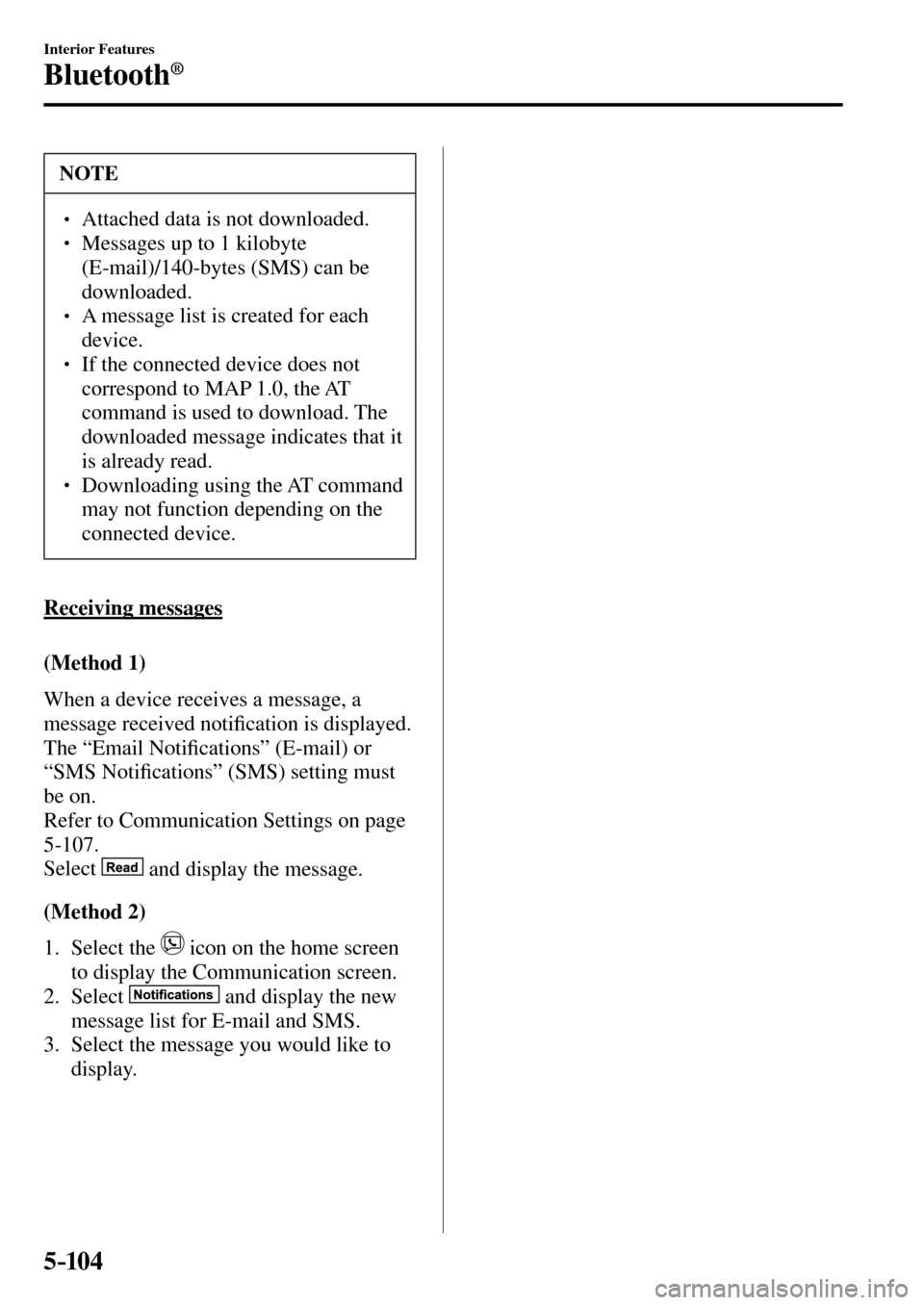

5–104
Interior Features
Bluetooth®
NOTE
  Attached data is not downloaded.
 Messages up to 1 kilobyte
(E-mail)/140-bytes (SMS) can be
downloaded.
  A message list is created for each
device.
  If the connected device does not
correspond to MAP 1.0, the AT
command is used to download. The
downloaded message indicates that it
is already read.
  Downloading using the AT command
may not function depending on the
connected device.
Receiving messages
( M e t h o d 1 )
When a device receives a message, a
message received noti¿ cation is displayed.
The “Email Noti¿ cations” (E-mail) or
“SMS Noti¿ cations” (SMS) setting must
be on.
Refer to Communication Settings on page
5-107 .
Select
and display the message.
(Method 2)
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
and display the new
message list for E-mail and SMS.
3. Select the message you would like to
display.
/:A(.'',A'FKVKQPKPFD

5–105
Interior Features
Bluetooth®
The following icons are displayed in the lower part of the details on the message. Icons
which can be used differ depending on use conditions.
Icon Function
Displays the Communication menu.
Displays the inbox.
Plays back a message.
When selected again, playback is temporarily stopped.
Displays the previous message.
Displays the next message.
Only replies to the sender of the currently displayed message.
Select the sentence on the displayed reply screen and select the sentence for sending from
the preset message.
Select
.
(Only E-mail)
Replies to all members including CC.
Select the sentence on the displayed reply screen and select the sentence for sending from
the preset message.
Select
.
Makes a call to a person who sent a message.
For E-mail, this function may not work depending on the device.
Deletes a message.
The messages stored in a device is also deleted.
NOTE
Up to three preset messages can be selected.
/:A(.'',A'FKVKQPKPFD

5–106
Interior Features
Bluetooth®
Example of use (verify unread E-mail)
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the inbox.
3. Select the unread message displayed in
bold.
4. The details of the message are
displayed and replying to the message,
making a call, or playback can be
performed.
Changing account for displaying
(E-mail only)
1. Select
.
2. Select the account which you would
like to display. Only the messages for
the selected account are displayed in
the inbox.
Editing preset messages
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
.
3. Select
.
4. Select the preset message which you
would like to edit. The keyboard screen
is displayed.
5. When the message is input and
is
selected, the message is stored as a
preset message.
NOTE
  Select the icon to change the
language.
  Select the icon to switch between
capitalized and lower-case
characters.
  Select the icon to return to the
previous screen without storing the
edit.
/:A(.'',A'FKVKQPKPFD
