2017 MAZDA MODEL MX-5 RF Owners Manual (in English)

4–27
When Driving
Instrument Cluster and Display
Engine Coolant Temperature
Gauge (Without Multi-information
Display)
Indicates engine coolant temperature.
CAUTION
If the high engine coolant temperature
warning light (red) turns on, there is
a possibility of overheating. Park the
vehicle in a safe place immediately and
take appropriate measures. If the vehicle
continues to be driven, it could cause
damage to the engine.
Refer to Overheating on page 7-24 .
NOTE
  During normal driving, the engine
coolant temperature stabilizes at 100
°C (210 °F) or less, and the gauge
indicates a range lower than 100 °C
(210 °F).
  If the engine load increases and the
engine coolant temperature exceeds
100 °C (210 °F), the gauge indicates
the engine coolant temperature.
Fuel Gauge (Without Multi-
information Display)
The fuel gauge shows approximately
how much fuel is remaining in the tank
when the ignition is switched ON. We
recommend keeping the tank over 1/4 full.
Full
1/4 Full
Empty
If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
Refer to Warning Indication/Warning
Lights on page 4-42 .
/:A(.'',A'FKVKQPKPFD

4–28
When Driving
Instrument Cluster and Display
NOTE
  After refuelling, it may require some
time for the indicator to stabilize. In
addition, the indicator may deviate
while driving on a slope or curve
since the fuel moves in the tank.
  The display indicating a quarter
or less remaining fuel has more
segments to show the remaining fuel
level in greater detail.
  The direction of the arrow ( )
indicates that the fuel-¿ ller À ap is on
the left side of the vehicle.
Instrument Panel Illumination
When the position lights are turned
on with the ignition switched ON,
the brightness of the instrument panel
illumination is dimmed.
NOTE
When the position lights are turned on,
the position lights indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-63 .
The brightness of the instrument cluster
and instrument panel illuminations can be
adjusted by rotating the knob.



 The brightness decreases by rotating the
knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.



 The brightness increases by rotating the
knob to the right.
Dim
Bright
Function for cancelling illumination
dimmer
The illumination dimmer can be
cancelled by rotating the instrument panel
illumination knob to the right until a beep
sound is heard while the instrument cluster
is dimmed with the ignition switched
ON. If the instrument cluster's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.
/:A(.'',A'FKVKQPKPFD

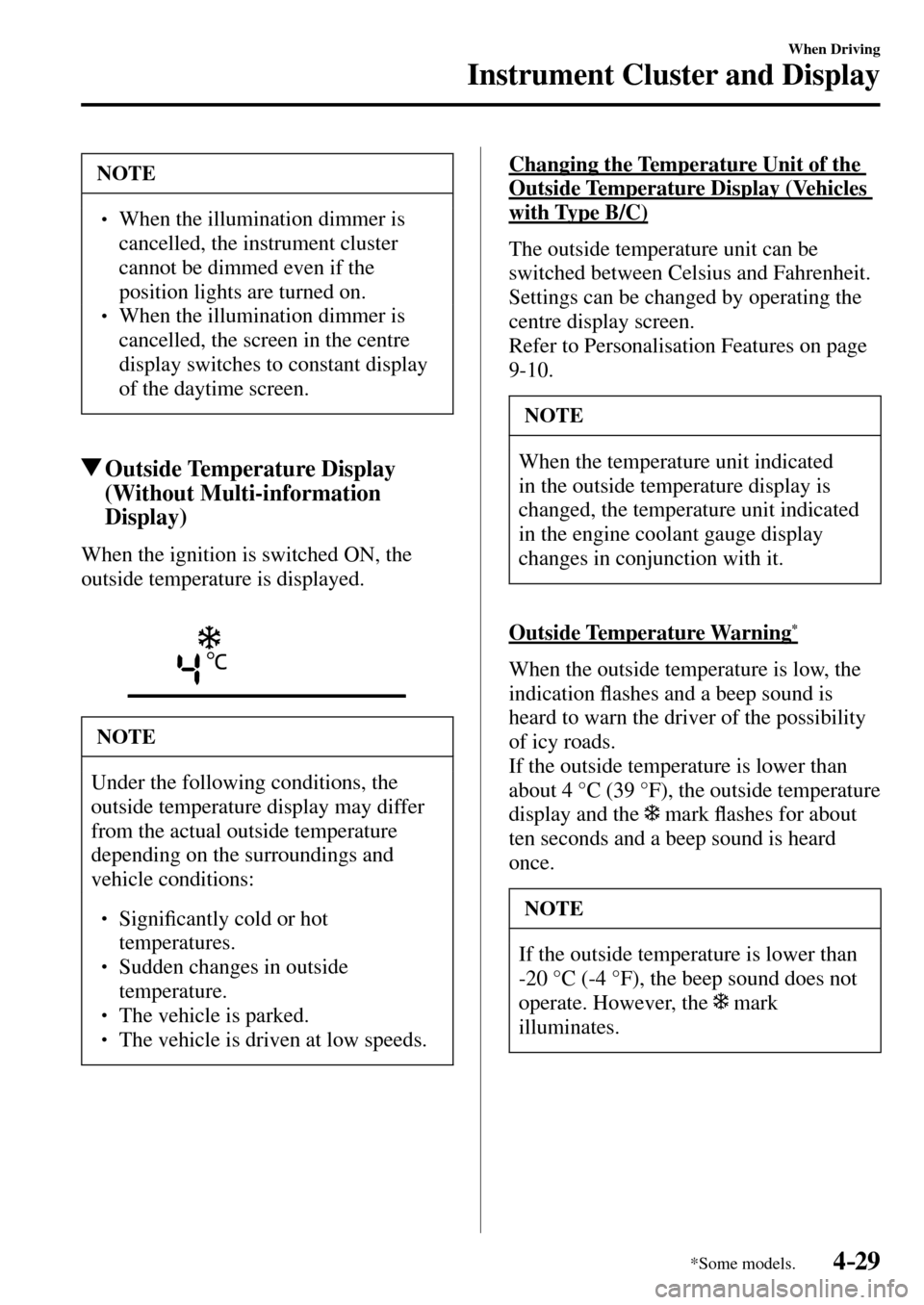

4–29
When Driving
Instrument Cluster and Display
*Some models.
NOTE
  When the illumination dimmer is
cancelled, the instrument cluster
cannot be dimmed even if the
position lights are turned on.
  When the illumination dimmer is
cancelled, the screen in the centre
display switches to constant display
of the daytime screen.
Outside Temperature Display
(Without Multi-information
Display)
When the ignition is switched ON, the
outside temperature is displayed.
NOTE
Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:



 Signi¿ cantly cold or hot
temperatures.



 Sudden changes in outside
temperature.



 The vehicle is parked.



 The vehicle is driven at low speeds.
Changing the Temperature Unit of the
Outside Temperature Display (Vehicles
with Type B/C)
The outside temperature unit can be
switched between Celsius and Fahrenheit.
Settings can be changed by operating the
centre display screen.
Refer to Personalisation Features on page
9-10 .
NOTE
When the temperature unit indicated
in the outside temperature display is
changed, the temperature unit indicated
in the engine coolant gauge display
changes in conjunction with it.
Outside Temperature Warning
*
When the outside temperature is low, the
indicationÀ ashes and a beep sound is
heard to warn the driver of the possibility
of icy roads.
If the outside temperature is lower than
about 4 °C (39 °F), the outside temperature
display and the
mark À ashes for about
ten seconds and a beep sound is heard
once.
NOTE
If the outside temperature is lower than
-20 °C (-4 °F), the beep sound does not
operate. However, the
mark
illuminates.
/:A(.'',A'FKVKQPKPFD

4–30
When Driving
Instrument Cluster and Display
*Some models.
Adjustable Speed Limiter Display
(Without Multi-information
Display)
*
The setting status of the adjustable speed
limiter is displayed.
Cruise Control Set Vehicle Speed
Display (Without Multi-
information Display)
*
The vehicle speed preset using the cruise
control is displayed.
(European model)
(Except European model)
Trip Computer and INFO Switch
(Without Multi-information
Display)
The following information can be selected
by pressing the INFO switch with the
ignition switched ON.



 Approximate distance you can travel on
the available fuel



 Average fuel economy



 Current fuel economy



 Average vehicle speed



 Vehicle speed alarm *
If you have any problems with your trip
computer, consult an expert repairer, we
recommend an Authorised Mazda Repairer.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.
(European model)
(Except European model)
NOTE
  Even though the distance-to-empty
display may indicate a suf¿ cient
amount of remaining driving distance
before refuelling is required, refuel
as soon as possible if the fuel level
is very low or the low fuel warning
light illuminates.
  The display may not change unless
you add more than approximately 9 L
(2.3 US gal, 1.9 Imp gal) of fuel.
  The distance-to-empty is the
approximate remaining distance
the vehicle can be driven until all
the graduation marks in the fuel
gauge (indicating the remaining fuel
supply) disappear.
  If there is no past fuel economy
information such as after ¿ rst
purchasing your vehicle or the
information is deleted when the
battery leads are disconnected, the
actual distance-to empty/range may
differ from the amount indicated.
/:A(.'',A'FKVKQPKPFD

4–31
When Driving
Instrument Cluster and Display
*Some models.
Average fuel economy mode
This mode displays the average fuel
economy by calculating the total fuel
consumption and the total travelled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data. The average fuel
economy is calculated and displayed every
minute.
(European model)
(Except European model)
To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - - L/100
km (- - - mpg) will be displayed for about
1 minute before the fuel economy is
recalculated and displayed.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of fuel
consumption and the distance travelled.
Current fuel economy will be calculated
and displayed every 2 seconds.
(European model)
(Except European model)
When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - - mpg) will be
displayed.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time travelled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.
(European model)
(Except European model)
To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - - km/h
(- - - mph) will be displayed for about
1 minute before the vehicle speed is
recalculated and displayed.
Vehicle speed alarm mode
*
In this mode, the current setting for the
vehicle speed alarm is displayed. You can
change the vehicle speed setting at which
the warning is triggered.
NOTE
The vehicle speed alarm display is
activated at the same time the beep
sound is heard. The set vehicle speed
À ashes several times.
The vehicle speed alarm can be set using
the INFO switch.
/:A(.'',A'FKVKQPKPFD

4–32
When Driving
Instrument Cluster and Display
NOTE
  Always set the vehicle speed
according to the laws and regulations
of the country/city in which the
vehicle is driven. In addition, always
verify the speed of the vehicle using
the speedometer.
  The vehicle speed alarm function can
be set between 30 and 250 km/h (20
and 150 mph).
The vehicle speed alarm can be set using
the following procedure.
1. Press the INFO switch to display the
vehicle speed alarm mode.
2. Press the INFO switch continuously
until a beep sound is heard.
The set vehicle speed display À ashes
the third digit (hundredths place).
3. Press the INFO switch and set the third
digit (hundredths place) to the desired
vehicle speed.
The numerical value changes each time
the INFO switch is pressed.
4. Press the INFO switch continuously
until a beep sound is heard.
The set vehicle speed display À ashes
the lower two digits (tenths and ones
place).
5. Press the INFO switch and set the two
lower digits (tenths and ones place) to
the desired vehicle speed.
The numerical value changes each time
the INFO switch is pressed. 6. Press the INFO switch continuously
until a beep sound is heard.
The set vehicle speed is displayed on
the vehicle speed alarm screen.
/:A(.'',A'FKVKQPKPFD

4–33
When Driving
Instrument Cluster and Display
*Some models.
Multi-information Display and INFO Switch *
INFO switch Multi-information Display
The multi-information display indicates the following information.



 Odometer



 Trip meter



 Engine coolant temperature gauge



 Fuel gauge



 Outside temperature



 Distance-to-empty



 Average fuel economy



 Current fuel economy



 Maintenance Monitor



 Lane Departure Warning System (LDWS) Display



 Cruise Control Display



 Adjustable Speed Limiter Display



 Compass Display



 Vehicle Speed Alarm



 Roof Operation Display



 Warning message
/:A(.'',A'FKVKQPKPFD

4–34
When Driving
Instrument Cluster and Display
The screen content changes each time the INFO switch is pressed.
Press the INFO switchPress the INFO switch Press the INFO switchPress the INFO switch
Press the INFO switch Engine Coolant
Temperature Gauge,
Maintenance Monitor,
Outside Temperature,
Odometer, Fuel GaugeEngine Coolant
Temperature Gauge,
Compass,
Distance-to-empty,
Outside Temperature,
Odometer, Fuel Gauge Warning message,
Outside
Temperature,
Odometer, Fuel
Gauge Engine Coolant
Temperature Gauge,
Trip Meter A, Average
Fuel Economy, Current
Fuel Economy, Outside
Temperature,
Odometer, Fuel Gauge
Engine Coolant
Temperature Gauge,
Trip Meter B, Average
Fuel Economy, Current
Fuel Economy, Outside
Temperature,
Odometer, Fuel Gauge*1
*2
*1: Displayed only when a warning occurs.
*2: Displayed only while vehicle is being driven.
/:A(.'',A'FKVKQPKPFD
