2017 MAZDA MODEL MX-5 RF clock setting

5–30
Interior Features
Audio System
Power/Volume/Sound Controls
Power/Volume/Audio control dialMenu button Audio display
Power ON/OFF
Switch the ignition to ACC or ON. Press
the power/volume dial to turn the audio
system on. Press the power/volume dial
again to turn the audio system off.
Volume adjustment
To adjust the volume, turn the power/
volume dial. Turn the power/volume
dial clockwise to increase volume,
anticlockwise to decrease it.
Audio sound adjustment
1. Press the menu button (
) to select
the function. The selected function will
be indicated. 2. Turn the audio control dial to adjust the
selected functions as follows:
Indication Setting value Tu r n
Anticlockwise Tu r n
Clockwise
AF
(Setting Alternative
Frequency (AF)) Off On
R E G
(Setting Regional
Programme (REG)) Off On
A L C
(Automatic volume
adjustment) Level
decrease Level
increase
BASS
(Low pitch sound) Decrease
bass Increase
bass
TREB

(Treble sound) Decrease
treble Increase
treble
FADE
(Front/back volume
balance) — Reduces
volume
of front
speakers
B A L
(Left/right volume
balance) Shift the
sound to
the left Shift the
sound to
the right
BEEP

(Audio operation sound) Off On
12Hr
24Hr
(12 Hr/24 Hr time
adjustment) 12Hr
(Flashing) 24Hr
(Flashing)
/:A(.'',A'FKVKQPKPFD

5–31
Interior Features
Audio System
NOTE
If not operated for several seconds, the
display returns to the previous display.
To reset bass, treble, fade, and balance,
press the menu button (
) for 2
seconds. The unit will beep and
“ CLEAR ” will be displayed.
AF (Setting Alternative Frequency (AF))
The AF function of the Radio Data System
(RDS) can be set on or off.
Refer to Operating the Radio on page
5-34 .
REG (Setting Regional Programme
(REG))
The REG function of the Radio Data
System (RDS) can be set on or off.
Refer to Operating the Radio on page
5-34 .
ALC (Automatic volume adjustment)
The automatic level control (ALC)
changes the audio volume automatically
according to the vehicle speed. The faster
the vehicle speed, the higher the volume
increases. ALC has ALC OFF and ALC
LEVEL 1 to 7 modes. At ALC LEVEL 7,
the amount that the volume can increase
is at the maximum. Select the mode
according to the driving conditions.
BEEP (Audio operation sound)
The setting for the operation sound when
pressing and holding a button can be
changed. The initial setting is ON. Set to
OFF to mute the operation sound. 1 2 H r
24Hr
(12 Hr/24 Hr time adjustment)
Rotating the audio control dial switches
the display between 12 and 24-hour clock
time (page 5-32 ).
/:A(.'',A'FKVKQPKPFD

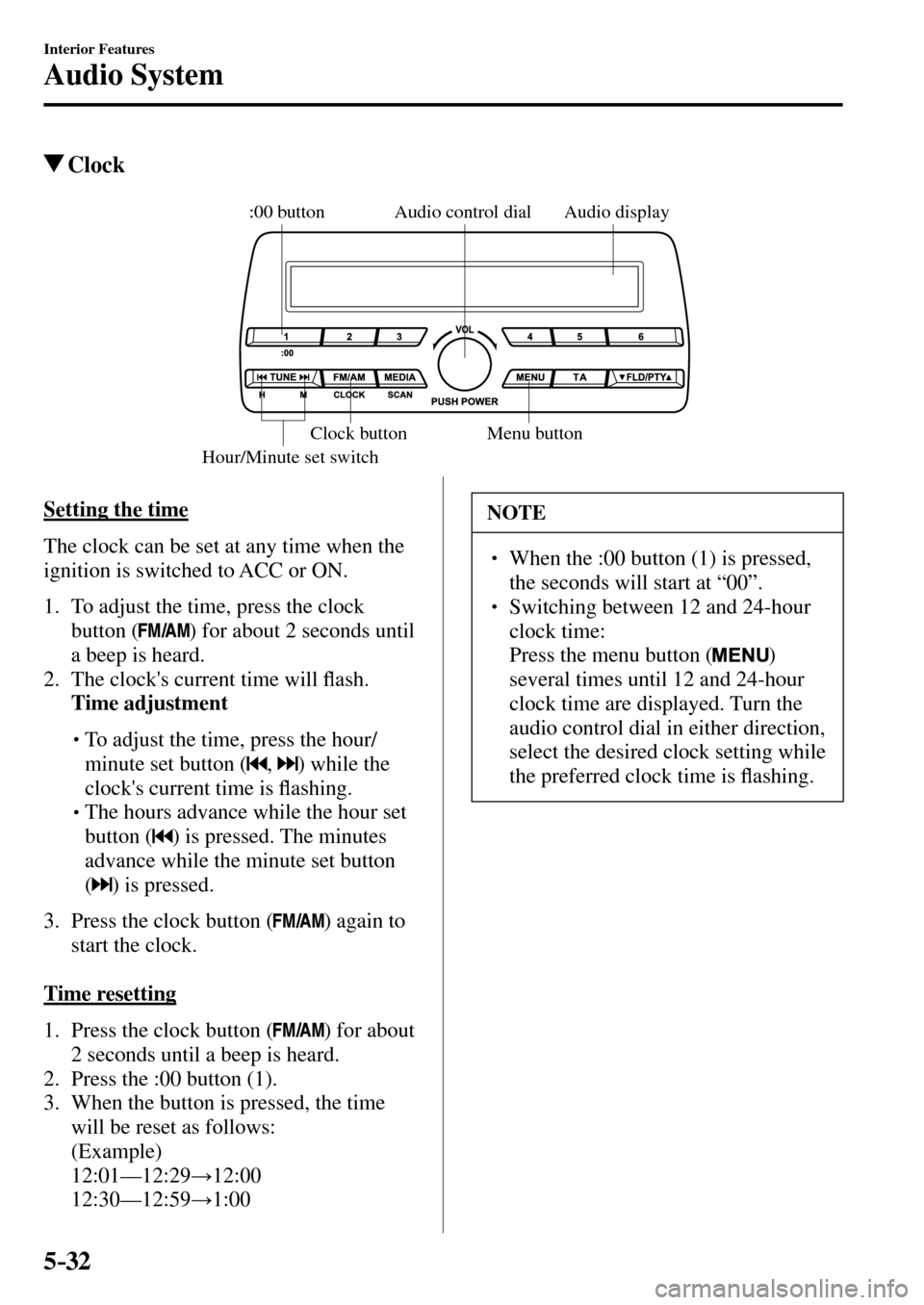

5–32
Interior Features
Audio System
Clock
Audio display Audio control dial
Hour/Minute set switch:00 button
Menu button Clock button
Setting the time
The clock can be set at any time when the
ignition is switched to ACC or ON.
1. To adjust the time, press the clock
button (
) for about 2 seconds until
a beep is heard.
2. The clock's current time will À ash.
Time adjustment




 To adjust the time, press the hour/
minute set button (
, ) while the
clock's current time is À ashing.




 The hours advance while the hour set
button (
) is pressed. The minutes
advance while the minute set button
(
) is pressed.
3. Press the clock button (
) again to
start the clock.
Time resetting
1. Press the clock button (
) for about
2 seconds until a beep is heard.
2. Press the :00 button ( 1 ).
3. When the button is pressed, the time
will be reset as follows:
(Example)

12:01—12:29
:12:00
12:30—12:59
:1:00
NOTE

 When the :00 button ( 1 ) is pressed,
the seconds will start at “ 00 ”.

 Switching between 12 and 24-hour
clock time:
 Press the menu button ( )
several times until 12 and 24-hour
clock time are displayed. Turn the
audio control dial in either direction,
select the desired clock setting while
the preferred clock time is À ashing.
/:A(.'',A'FKVKQPKPFD

5–50
Interior Features
Audio System
Volume/Display/Sound Controls
Volume dial Commander switch Audio control switch
Volume switch
Volume adjustment
Turn the commander switch volume dial.
The volume switch on the steering switch
can also be pressed.
Display setting
Select the
icon on the home screen to
display the Settings screen.
Select the
tab to select the item you
would like to change.
Display OFF/Clock
The centre display can be turned off.
Select
to turn the display off.
When
is
selected the centre display turns off and
the clock is displayed.
The centre display can be turned back on
as follows:



 Touch the centre display.



 Operate the commander switch. Daytime/nighttime (Mode) screen
setting
The daytime or nighttime screen can be
selected.
: Switches screen automatically
according to headlight illumination
condition
*1
: Daytime screen setting
: Nighttime screen setting
*1 The display is constantly on daytime
screen when the illumination dimmer is
cancelled.
Brightness adjustment
Adjust the centre display brightness using
the slider.
Contrast adjustment
Adjust the centre display contrast using
the slider.
Display setting reset
All of the screen setting values can be
reset to their initial settings.
1. Select
.
2. Select
.
/:A(.'',A'FKVKQPKPFD

5–67
Interior Features
Audio System
Settings
NOTE
Depending on the grade and speci¿ cation, the screen display may differ.
Select the
icon on the home screen to display the Settings screen.
Switch the tab and select the setting item you want to change.
You can customize settings in the setup display as follows:
Tab Item Function
Display Refer to Volume/Display/Sound Controls on page 5-50 .
Safety Blind Spot Monitoring Volume
Other Refer to Personalisation Features on page
9-10 .
Sound Refer to Volume/Display/Sound Controls on page 5-50 .
Clock Adjust Time Displays the currently set time is displayed.
Press
to advance the hour/minute, and select to move the hour/minute back.
AM/PM can only be selected with the 12-hour
clock display.
GPS Sync Synchronizes with GPS when turned on.
When turned off, the time can be changed from
“Adjust Time”.
Time Format Changes the display between 12 and 24-hour
clock time.
Time Zone Select When it's not synchronized with GPS, select
the region you want to specify.
Daylight Savings Time Turns the daylight saving time setting on/off.
When ON, the time advances 1 hour. When
OFF, it returns to normal time.
Vehicle Rain Sensing Wiper
Door Lock
Other Refer to Personalisation Features on page
9-10 .
Devices Bluetooth
® Refer to Bluetooth ® Preparation on page
5-93 .
Network Management Wi-Fi
™ is used to obtain Navi POI/Real Time
Traf¿ c function (Such as gas prices, weather,
nearest restaurant)
