2017 MAZDA MODEL CX-3 Owner's Manual - RHD (UK, Australia) (in English)

3–15
Before Driving
Doors and Locks
To unlock
To unlock the doors and the liftgate, press
the request switch on a front door and the
hazard warning lights will À ash twice.
(Except European models)
A beep sound will be heard twice.
NOTE
  Con¿ rm that all doors and the liftgate
are securely locked.
 For the liftgate, move it without
pressing the electric liftgate opener
to verify that the liftgate has not been
left ajar.
  (European models)  All doors and the liftgate cannot be
locked when any door is open.
 (Except European models)  All doors and the liftgate cannot be
locked when any door or the liftgate
is open.
  It may require a few seconds for
the doors to unlock after the request
switch is pressed.
  (European models)  The setting can be changed so that a
beep sound is heard for con¿ rmation
when the doors and the liftgate are
locked/unlocked using a request
switch.
 (Except European models)  A beep sound is heard for
con¿ rmation when the doors and the
liftgate are locked/unlocked using
the request switch. If you prefer, the
beep sound can be turned off.
 The volume of the beep sound
can also be changed. Refer to
Personalisation Features on page
9-13 .
NOTE
 Use the following procedure to
change the setting.

1. Switch the ignition off and close
all of the doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
All of the doors and the liftgate
lock and the beep sound activates
at the currently set volume.
The setting changes each time
the LOCK button on the key
is pressed and the beep sound
activates at the set volume. (If the
beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed
by doing any one of the following:



 Switching the ignition to ACC
or ON.



 Closing the driver's door.



 Opening the liftgate.



 Not operating the key for 10
seconds.



 Pressing any button except the
LOCK button on the key.



 Pressing a request switch.



 (With theft-deterrent system)  The hazard warning lights À ash when
the theft-deterrent system is armed or
turned off.
 Refer to Theft-Deterrent System on
page 3-46 .
  (With double locking system)  The double locking system can
be activated/deactivated using the
request switch.
 Refer to Double Locking System on
page 3-13 .

3–16
Before Driving
Doors and Locks
NOTE
  The setting can be changed so that
the doors and the liftgate are locked
automatically without pressing the
request switch.
 Refer to Personalisation Features on
page 9-13 .
 (Auto-lock function)  A beep sound is heard when all
doors and the liftgate are closed
while the advanced key is being
carried. All doors and the liftgate
are locked automatically after about
three seconds when the advanced
key is out of the operational range.
Also, the hazard warning lights À ash
once. (Even if the driver is in the
operational range, all doors and the
liftgate are locked automatically after
about 30 seconds.) If you are out
of the operational range before the
doors and the liftgate are completely
closed or another key is left in the
vehicle, the auto-lock function will
not work. Always make sure that all
doors and the liftgate are closed and
locked before leaving the vehicle.
The auto-lock function does not close
the power windows.
NOTE
  Auto re-lock function  After unlocking with the request
switch, all doors and the liftgate
will automatically lock if any of
the following operations are not
performed within about 30 seconds.
If your vehicle has a theft-deterrent
system, the hazard warning lights
will À ash for con¿ rmation.
 The time required for the doors to
lock automatically can be changed.
 Refer to Personalisation Features on
page 9-13 .



 Opening a door or the liftgate.



 Switching the ignition to any
position other than off.
Locking, Unlocking with
Transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-3 ).

3–17
Before Driving
Doors and Locks
*Some models.
Locking, Unlocking with Door-
Lock Switch *
All doors and the liftgate lock
automatically when the lock side is
pressed with all doors and the liftgate
closed.
They all unlock when the unlock side is
pressed.

Unlock
Lock

NOTE
The doors and the liftgate cannot be
locked while any other door or the
liftgate is open.
Auto Lock/Unlock Function *
WARNING
Do not pull the inner handle on a front
door:
Pulling the inner handle on a front
door while the vehicle is moving
is dangerous. Passengers can fall
out of the vehicle if the door opens
accidentally , which could result in
death or serious injury.



 When the vehicle speed exceeds
20 km/h (12 mph), all doors and the
liftgate lock automatically.



 When the ignition is switched off,
all doors and the liftgate unlock
automatically.

These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch (With
door-lock switch)
The doors and the liftgate can be set to
lock or unlock automatically by selecting
any one of the functions from the
following table and using the door-lock
switch on the interior door panel.
NOTE
  Function number 3 in the following
table is the factory setting for your
vehicle.
  There are only a total of six auto
lock/unlock settings available. Be
sure to press the unlock side of the
door-lock switch the correct number
of times according to the selected
function number. If the switch is
mistakenly pressed seven times, the
procedure will be cancelled. If this
occurs, start the procedure from the
beginning.

Function
number Function *1
1 The auto door-lock function is
disabled.
2 All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.

3–18
Before Driving
Doors and Locks
Function
number Function *1
3 (Factory
Setting) All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
All the doors and the liftgate unlock
when the ignition is switched from
ON to Off.
4 When the ignition is switched ON
and the selector lever is shifted from
park (P) to any other gear position,
all the doors and the liftgate lock
automatically.
5 When the ignition is switched ON
and the selector lever is shifted from
park (P) to any other gear position,
all the doors and the liftgate lock
automatically.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors and the liftgate
unlock automatically.
6 All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors and the liftgate
unlock automatically.
*1 Other settings for the auto door lock function are
available at an expert repairer, we recommend an
Authorised Mazda Repairer. For details consult
an expert repairer, we recommend an Authorised
Mazda Repairer. Refer to Personalisation Features
on page 9-13 .


Settings can be changed using the
following procedure.

1. Safely park the vehicle. All doors must
remain closed.
2. Switch the ignition ON.
3. Press and hold the lock side of the
door-lock switch within 20 seconds of
switching the ignition ON, and make
sure a beep sound is heard about eight
seconds afterwards. 4. Refer to the auto lock/unlock function
setting table, determine the function
number for the desired setting. Press
the unlock side of the door-lock switch
the same number of times as the
selected function number (Ex. If you
select function 2, press the unlock side
of the switch only 2 times).
5. Three seconds after the function setting
has been changed, a beep sound will
beep in the amount of the selected
function number. (Ex. Function number
3 = 3 beep sounds)


Press unlock side of
lock switch once
Press 2 times
Press 3 times Current Function Number
Function Number 1
Function Number 2
Press 4 times Function Number 3
Press 5 times Function Number 4
Press 7 times Function Number 5
Press 6 times
Function Number 6
Cancel settingCancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number) Press lock side of
lock switch
Wait for 3 second

NOTE
  The doors cannot be locked or
unlocked while the setting function is
being performed.
  The procedure can be cancelled by
pressing the lock side of the door-
lock switch.

3–19
Before Driving
Doors and Locks
Locking, Unlocking with Door-
Lock Knob
Operation from inside
(With door-lock switch)
To lock any door from the inside, press the
door-lock knob.
To unlock, pull it outward.
This does not operate the other door locks.
(Without door-lock switch)
All doors and the liftgate lock
automatically when the driver's door-lock
knob is pressed. They all unlock when the
driver's door-lock knob is pulled out.


Lock
Unlock Unlocked: Red indicator

Operation from outside
To lock the rear and front passenger
doors with the door-lock knob from the
outside, press the door-lock knob to the
lock position and close the door (holding
the door handle in the open position is not
required).
This does not operate the other door locks.


Door-lock knob

NOTE
When locking the door this way:
 Be careful not to leave the key inside
the vehicle.
  The driver's door lock knob cannot
be used while the driver's door is
open.

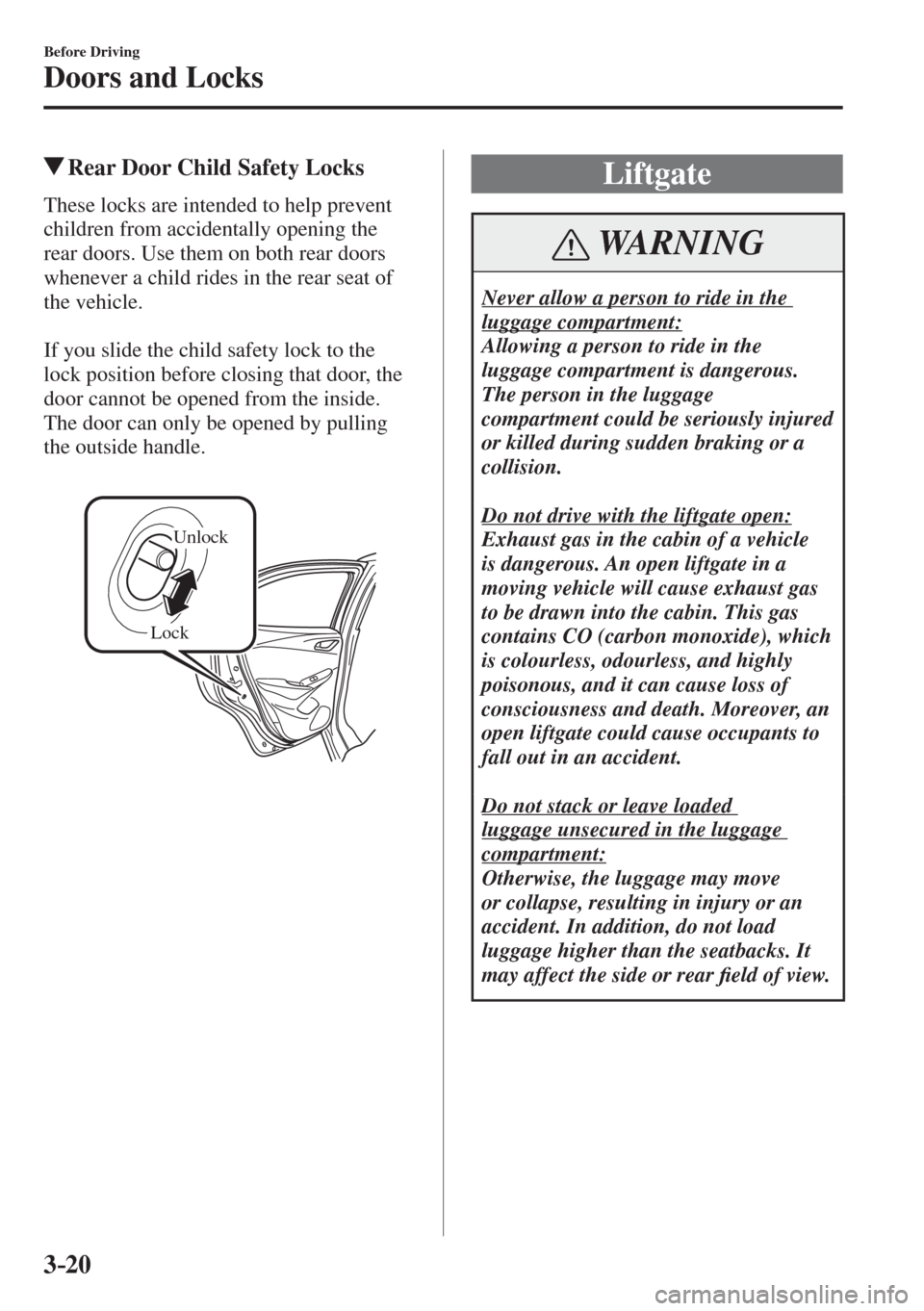

3–20
Before Driving
Doors and Locks
Rear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them on both rear doors
whenever a child rides in the rear seat of
the vehicle.

If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can only be opened by pulling
the outside handle.


LockUnlock

Liftgate
WARNING
Never allow a person to ride in the
luggage compartment:
Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously injured
or killed during sudden braking or a
collision.

Do not drive with the liftgate open:
Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust gas
to be drawn into the cabin. This gas
contains CO (carbon monoxide), which
is colourless, odourless, and highly
poisonous, and it can cause loss of
consciousness and death. Moreover, an
open liftgate could cause occupants to
fall out in an accident.

Do not stack or leave loaded
luggage unsecured in the luggage
compartment:
Otherwise, the luggage may move
or collapse, resulting in injury or an
accident. In addition, do not load
luggage higher than the seatbacks. It
may affect the side or rear ¿ eld of view.

3–21
Before Driving
Doors and Locks
CAUTION
  Before opening the liftgate, remove
any snow and ice accumulation on
it. Otherwise, the liftgate could close
under the weight of the snow and ice
resulting in injury.
  Be careful when opening/closing
the liftgate during strong winds. If a
strong gust blows against the liftgate,
it could close suddenly resulting in
injury.
  Fully open the liftgate and make
sure that it stays open. If the liftgate
is only opened partially, it could
slam shut by vibration or wind gusts
resulting in injury.
  When loading or unloading luggage
in the luggage compartment, turn
off the engine. Otherwise, you could
get burned by the heat of the exhaust
gas.
  Be careful not to apply excessive
force to the damper stay on the
liftgate such as by putting your hand
on the stay. Otherwise, the damper
stay may bend and affect the liftgate
operation.
Damper stay

CAUTION
  Do not modify or replace the
liftgate damper stay. Consult an
expert repairer, we recommend an
Authorised Mazda Repairer if a
liftgate damper stay is deformed
or damaged for reasons such as a
collision or if there is some other
problem.

3–22
Before Driving
Doors and Locks
Opening and Closing the Liftgate
Opening the liftgate with Electric
liftgate opener
Unlock the doors and liftgate, then press
the electric liftgate opener on the liftgate
and raise the liftgate when the latch
releases.

Electric liftgate
opener

NOTE
(With the advanced keyless function)

 A locked liftgate can also be opened
while the key is being carried.
  When opening the liftgate with the
doors and the liftgate locked, it may
require a few seconds for the liftgate
latch to release after the electric
liftgate opener is pressed.
  The liftgate can be closed when the
doors are locked with the key left
in the vehicle. However, to prevent
locking the key in the vehicle, the
liftgate can be opened by pressing
the electric liftgate opener. If the
liftgate cannot be opened despite
doing this procedure, ¿ rst push the
liftgate completely closed, then press
the electric liftgate opener to fully
open the liftgate .
NOTE

 When the liftgate latch is released by
pressing the electric liftgate opener,
the liftgate raises slightly. If the
liftgate is not operated for a certain
period of time, the liftgate cannot be
raised.
 To open  Press the electric liftgate opener
again.
 To close  To close the liftgate from its slightly
raised position, open it ¿ rst by
pressing the electric liftgate opener,
then close it after waiting at least 1
second.

 If the liftgate is not fully closed,
the driver is noti¿ ed by a warning
indicated in the instrument cluster.

 If the vehicle battery is dead or there
is a malfunction in the electrical
system and the liftgate cannot be
unlocked, the liftgate can be opened
by performing the emergency
procedure.
 Refer to When Liftgate Cannot be
Opened on page 7-70 .
