Maintenance and Care
Owner Maintenance
WARNING
Do not perform maintenance work if you lack suf¿ cient knowledge and experience
or the proper tools and equipment to do the work. Have maintenance work done by a
quali¿ ed technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures.

If you must run the engine while working under the bonnet, make certain that you
remove all jewellery (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly:
Working under the bonnet with the engine running is dangerous. It becomes even more
dangerous when you wear jewellery or loose clothing.
Either can become entangled in moving parts and result in injury.

Pull over to a safe location, then switch the ignition off and make sure the fan is
not running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue
running inde¿ nitely even if the engine has stopped and the engine compartment
temperature is high. You could be hit by the fan and seriously injured.

Do not leave items in the engine compartment:
After you have ¿ nished checking or doing servicing in the engine compartment, do not
forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a ¿ re
leading to an unexpected accident.

6–18
Maintenance and Care
Owner Maintenance

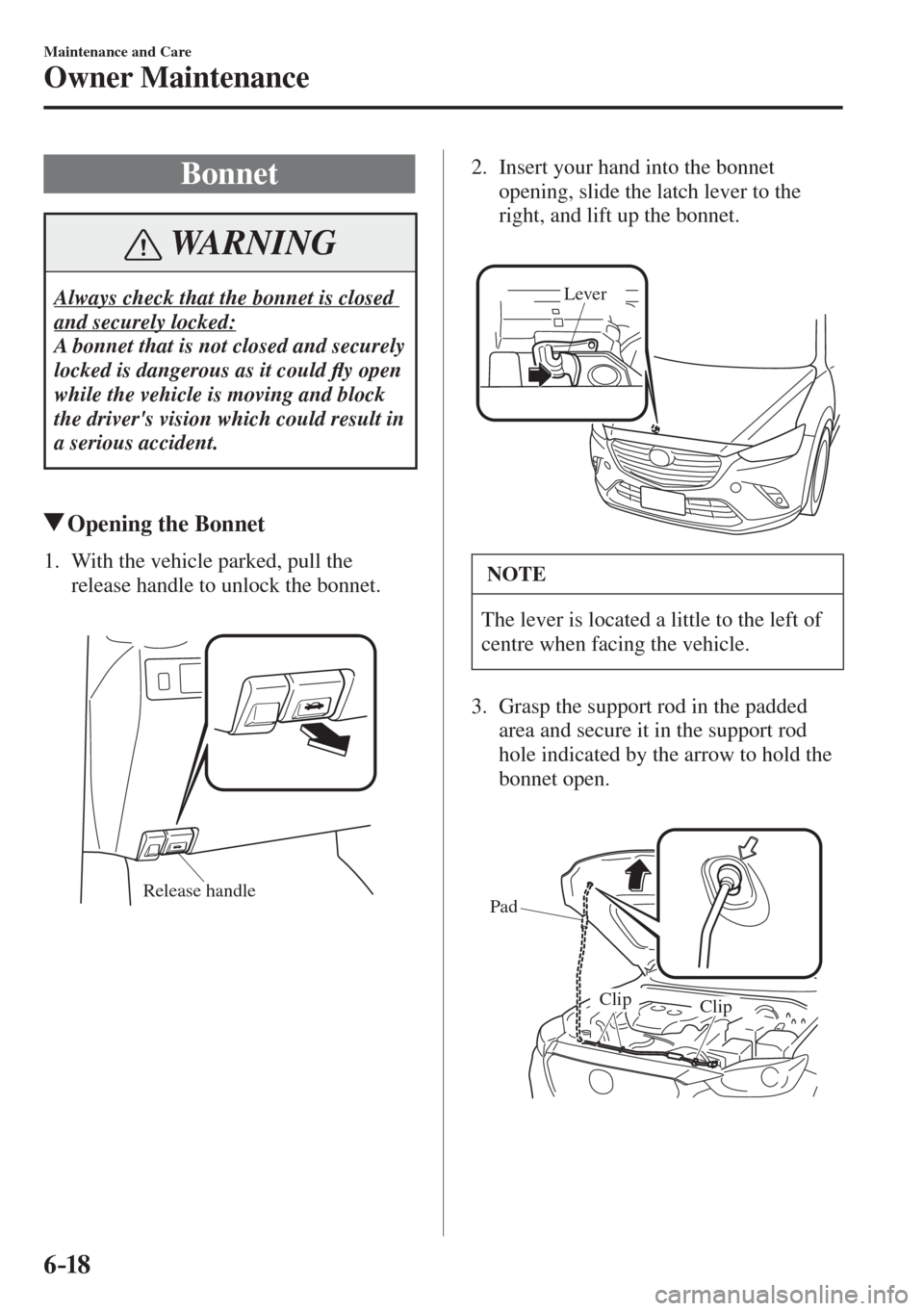

Bonnet
WARNING
Always check that the bonnet is closed
and securely locked:
A bonnet that is not closed and securely
locked is dangerous as it could À y open
while the vehicle is moving and block
the driver's vision which could result in
a serious accident.
Opening the Bonnet
1. With the vehicle parked, pull the
release handle to unlock the bonnet.


Release handle 2. Insert your hand into the bonnet
opening, slide the latch lever to the
right, and lift up the bonnet.


Lever

NOTE
The lever is located a little to the left of
centre when facing the vehicle.
3. Grasp the support rod in the padded
area and secure it in the support rod
hole indicated by the arrow to hold the
bonnet open.


Pad
Clip
Clip

6–19
Maintenance and Care
Owner Maintenance
Closing the Bonnet
1. Check under the bonnet area to make
certain all ¿ ller caps are in place and all
loose items (e.g. tools, oil containers,
etc.) have been removed.
2. Lift the bonnet, grasp the padded area
on the support rod, and secure the
support rod in the clip. Verify that the
support rod is secured in the clip before
closing the bonnet.


Clip
Clip
Clip

3. Lower the bonnet slowly to a height of
about 20 cm (7.9 in) above its closed
position and then let it drop.

CAUTION
When closing the bonnet, do not push
it excessively such as by applying your
weight. Otherwise, the bonnet could be
deformed.

6–20
Maintenance and Care
Owner Maintenance
Engine Compartment Overview

SKYACTIV-G 2.0
Windscreen washer fluid reservoir
Brake/Clutch fluid reservoir
Engine oil dipstickBattery
Fuse block
Cooling system capEngine coolant reservoir
Engine oil-filler cap

6–21
Maintenance and Care
Owner Maintenance

Windscreen washer fluid reservoir Engine oil dipstick
BatteryFuse block
Coolin
g system capEngine coolant reservoirEngine oil-filler cap SKYACTIV-D 1.5
Brake/Clutch fluid reservoir

6–22
Maintenance and Care
Owner Maintenance
Engine Oil
NOTE
Changing the engine oil should be done by an expert repairer, we recommend an
Authorised Mazda Repairer.
Recommended Oil
In order to keep the maintenance interval (page 6-3 ) and to protect the engine from
damage caused by poor lubrication, it is vitally important to make use of engine oil with
the correct speci¿ cation. Do not use oils which do not meet the following speci¿ cations or
requirements. Use of unsuitable oil may lead to engine damage which is not covered by the
Mazda Warranty.


Temperature Range SAE Viscosity Numbers
Mazda Original Oil Ultra 5W-30
API SL/SM/SN or
ACEA A3/B3 or A5/B5 Mazda Original Oil Supra 0W-20
Alternative Oil QualityRecommended oils
–30 –20 –10 0
1020 30
40
–200
2040
60
80100
–40
–40
Grade
5W-30 0W-20
(SKYACTIV-G 2.0) Europe
*1 Use API SM/SN in Kazakhstan.
*1

6–23
Maintenance and Care
Owner Maintenance

Temperature Range SAE Viscosity Numbers
Mazda Original Oil Ultra DPF 5W-30
ACEA C3 Mazda Original Oil Supra DPF 0W-30
Alternative Oil QualityRecommended oils
–30 –20 –10 0
1020 30
40
–200
2040
60
80100
–40
–40
Grade
5W-30 0W-30
(SKYACTIV-D 1.5)


Grade
API SG/SH/SJ/SL/SM/SN or
ILSAC GF-II/GF-III/GF-IV/GF-V
(SKYACTIV-G 2.0)
Temperature Range SAE Viscosity Numbers
–30 –20 –10 0
1020 30
40
–200
2040
60
80100
–40
–40
Except Europe


GradeTemperature Range SAE Viscosity Numbers
ACEA C3
–30 –20 –10 0
1020 30
40
–200
2040
60
80100
–40
–40
(SKYACTIV-D 1.5)

Engine oil viscosity, or thickness, has an effect on fuel economy and cold-weather operation
(starting and oil À ow).
Low-viscosity engine oils can provide improved fuel economy and cold-weather
performance.

6–24
Maintenance and Care
Owner Maintenance
When choosing an oil, consider the temperature range your vehicle will operate in before
the next oil change.
Then select the recommended viscosity from the chart.
CAUTION
  Using oils of viscosity besides those recommended for speci¿ c temperature ranges
could result in engine damage.

 (SKYACTIV-D 1.5)  SKYACTIV-D 1.5 uses speci¿ ed oil. Please con¿ rm the speci¿ cation in owner's
manual. If engine oil other than the speci¿ ed oil is used, the Diesel Particulate
Filter effective period of use will be shortened or the Diesel Particulate Filter may
be damaged.
NOTE

(SKYACTIV-G 2.0)

 It is normal for all engines to consume engine oil under normal driving conditions.  Engine oil consumption may be as high as 0.8 L/1,000 km (1 L/800 miles). This may
be as a result of evaporation, internal ventilation or burning of the lubricating oil in
the working engine. Oil consumption may be higher when the engine is new due to
the running-in process. Oil consumption is also dependant on engine speed and engine
load. Under extreme driving conditions, oil consumption may be higher.

(SKYACTIV-D 1.5)

 Whenever the engine oil is replaced, the vehicles engine control unit needs to be
reset as soon as possible. Otherwise the wrench indicator light or engine oil warning
light may turn on. To reset the engine control unit, consult an expert repairer, we
recommend an Authorised Mazda Repairer or refer to the vehicle engine control unit
reset procedure on page 6-25 .
 Inspect the engine oil level periodically. When inspecting the engine oil, if the engine
oil level is exceeds the “X” mark on the dipstick, replace the engine oil. This should
be done by an expert repairer, we recommend an Authorised Mazda Repairer. When
replacing the engine oil, inspect the oil level using the oil dipstick and re¿ ll so that the
engine oil level is within the range between MIN and MAX as shown in the ¿ gure.

X Mark MAX MIN
