2017 MAZDA MODEL CX-3 Owner's Manual - RHD (UK, Australia) (in English)

7–45
If Trouble Arises
Emergency Towing
CAUTION
  Do not tow the vehicle pointed
backward with driving wheels on
the ground. This may cause internal
damage to the transaxle.
  Do not tow with sling-type
equipment. This could damage your
vehicle. Use wheel-lift or À atbed
equipment.

If towing service is not available in an
emergency, the vehicle may be towed with
all four wheels on the ground using the
towing hook at the front of the vehicle.
Only tow the vehicle on paved surfaces for
short distances at low speeds.
CAUTION
Follow these instructions when towing
the vehicle with all wheels on the
ground.

1. Shift to neutral (Manual
transaxle), or the N position
(Automatic transaxle).
2. Switch the ignition to ACC.
3. Release the parking brake.

Remember that power assist for the
brakes and steering will not be available
when the engine is not running.

7–46
If Trouble Arises
Emergency Towing
Towing/Tiedown Hooks
CAUTION
  The towing eyelet should be used
in an emergency (to get the vehicle
out of a ditch or a snow bank, for
example).
  When using the towing eyelets,
always pull the lead or chain in a
straight direction with respect to the
eyelet. Never apply a sideways force.
NOTE
When towing with chain or lead, wrap
the chain or lead with a soft cloth near
the bumper to prevent damage to the
bumper.
Towing Hook-Front
1. Remove the towing eyelet and
the wheel brace from the luggage
compartment (page 7-16 ).
2. Wrap a jack lever or similar tool with
a soft cloth to prevent damage to a
painted bumper, and open the cap
located on the front bumper.



CAUTION
Do not use excessive force as it may
damage the cap or scratch the painted
bumper surface.
NOTE
Remove the cap completely and store it
so as not to lose it.

7–47
If Trouble Arises
Emergency Towing
3. Securely install the towing eyelet using
the wheel brace.


Wheel brace
Towing eyelet
4. Hook the towing rope to the towing
eyelet.
CAUTION
If the towing eyelet is not securely
tightened, it may loosen or disengage
from the bumper when towing the
vehicle. Make sure that the towing
eyelet is securely tightened to the
bumper.
After using the towing eyelet, store it in
the position shown in the following ¿ gure.

Retainers

NOTE
Secure the towing eyelet in the retainers.

7–48
If Trouble Arises
Emergency Towing

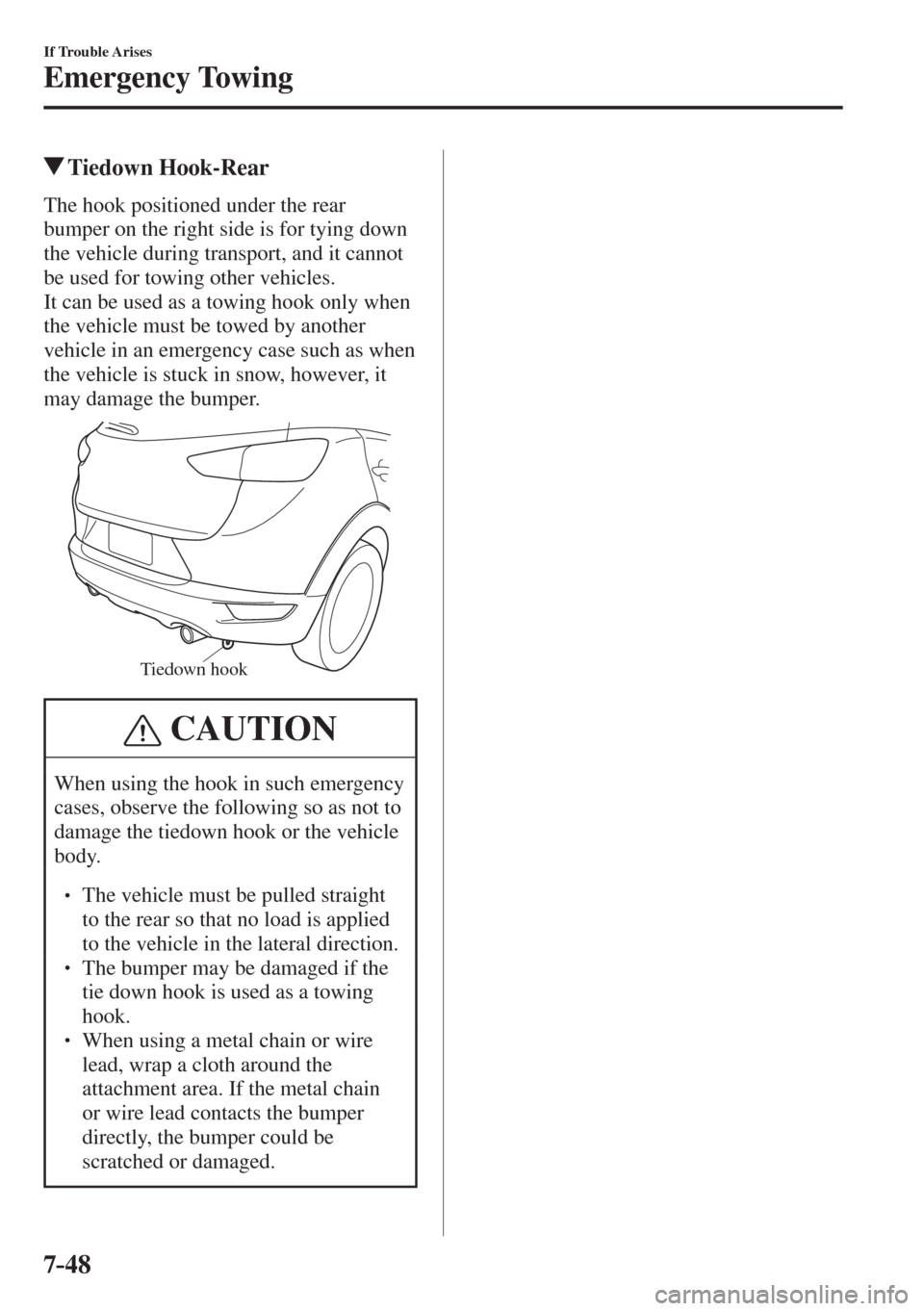

Tiedown Hook-Rear
The hook positioned under the rear
bumper on the right side is for tying down
the vehicle during transport, and it cannot
be used for towing other vehicles.
It can be used as a towing hook only when
the vehicle must be towed by another
vehicle in an emergency case such as when
the vehicle is stuck in snow, however, it
may damage the bumper.

Tiedown hook
CAUTION
When using the hook in such emergency
cases, observe the following so as not to
damage the tiedown hook or the vehicle
body.

 The vehicle must be pulled straight
to the rear so that no load is applied
to the vehicle in the lateral direction.
  The bumper may be damaged if the
tie down hook is used as a towing
hook.
  When using a metal chain or wire
lead, wrap a cloth around the
attachment area. If the metal chain
or wire lead contacts the bumper
directly, the bumper could be
scratched or damaged.

7–49
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
If a Warning Light Turns On or Flashes
If any warning light turns on/À ashes, take appropriate action for each light. There is no
problem if the light turns off, however if the light does not turn off or turns on/À ashes again,
consult an Authorised Mazda Repairer.
(Vehicles with type B audio)
The warning contents can be veri¿ ed on the centre display.

1. If the warning light is turned on, select icon on the home screen to display the
application screen.
2. Select “Vehicle Status Monitor”.
3. Select “Warning Guidance” to display the current warnings.
4. Select the applicable warning to view the warning details.

Stop Vehicle in Safe Place Immediately
If any of the following warning lights turns on, the system may have a malfunction. Stop the
vehicle in a safe place immediately and contact an Authorised Mazda Repairer.
Signal Warning


Brake System Warning
Light
This warning has the following functions:
Parking brake warning/Warning light inspection
The light illuminates when the parking brake is applied with the ignition switched to
START or ON. It turns off when the parking brake is fully released.
Low brake À uid level warning
If the brake warning light remains illuminated even though the parking brake is
released, the brake À uid may be low or there could be a problem with the brake
system. Park the vehicle in a safe place immediately and contact an expert repairer, we
recommend an Authorised Mazda Repairer.
WARNING
Do not drive with the brake system warning light illuminated. Contact an expert
repairer, we recommend an Authorised Mazda Repairer to have the brakes
inspected as soon as possible:
Driving with the brake system warning light illuminated is dangerous. It
indicates that your brakes may not work at all or that they could completely fail
at any time. If this light remains illuminated, after checking that the parking
brake is fully released, have the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the braking may diminish so you may need to
depress the brake pedal more strongly than normal to stop the vehicle.

7–50
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning

Electronic Brake Force
Distribution System
Warning If the electronic brake force distribution control unit determines that some components
are operating incorrectly, the control unit may illuminate the brake system warning
light and the ABS warning light simultaneously. The problem is likely to be the
electronic brake force distribution system.
WARNING
Do not drive with both the ABS warning light and brake warning light
illuminated. Have the vehicle towed to an expert repairer, we recommend an
Authorised Mazda Repairer to have the brakes inspected as soon as possible:
Driving when the brake system warning light and ABS warning light are
illuminated simultaneously is dangerous.
When both lights are illuminated, the rear wheels could lock more quickly in an
emergency stop than under normal circumstances.


Charging System
Warning Light If the warning light turns on while driving, it indicates a problem with the generator or
the charging system.
Drive to the side of the road and park off the right-of-way. Consult an expert repairer,
we recommend an Authorised Mazda Repairer.
CAUTION
Do not continue driving when the charging system warning light is illuminated
because the engine could stop unexpectedly.

7–51
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning


Engine Oil Warning
Light This warning light indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil pressure is low. Otherwise, it could result in
extensive engine damage.
If the light illuminates or the warning indication is displayed while driving:
1. Drive to the side of the road and park off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain back into the sump.
3. Inspect the engine oil level 6-26 . If it's low, add the appropriate amount of engine
oil while being careful not to over¿ ll.
CAUTION
Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.
4. Start the engine and check the warning light.

If the light remains illuminated even though the oil level is normal or after adding oil,
stop the engine immediately and have your vehicle towed to an expert repairer, we
recommend an Authorised Mazda Repairer.


(Red)
High Engine Coolant
Temperature Warning
Light
The light À ashes when the engine coolant temperature is extremely high, and
illuminates when the engine coolant temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until you can ¿ nd a safe place to stop the vehicle
and wait for the engine to cool down.
Illuminated light
This indicates the possibility of overheating. Park the vehicle in a safe place
immediately and stop the engine.
Refer to Overheating 7-42 .
CAUTION
Do not drive the vehicle with the high engine coolant temperature warning light
illuminated. Otherwise, it could result in damage to the engine.

7–52
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning


Power Steering
Malfunction Indicator
Light The light illuminates/À ashes if the electric power steering has a malfunction.
If the light illuminates/À ashes, stop the vehicle in a safe place and do not operate the
steering wheel. There is no problem if the light turns off after a while. Contact an
expert repairer, we recommend an Authorised Mazda Repairer if the light illuminates/
À ashes continuously.
NOTE
If the indicator light illuminates/À ashes, the power steering will not operate
normally. In this happens, the steering wheel can still be operated, however, the
operation may feel heavy compared to normal, or the steering wheel could vibrate
when turning.

Repeatedly jerking the steering wheel left and right while the vehicle is stopped
or moving extremely slowly will cause the power steering system to go into
protective mode which will make the steering feel heavy, but this does not
indicate a problem. If this occurs, park the vehicle safely and wait several minutes
for the system to return to normal.

Contact Authorised Mazda Repairer and Have Vehicle Inspected
If any of the following warning lights turns on/À ashes, the system may have a malfunction.
Contact an expert repairer, we recommend an Authorised Mazda Repairer to have your
vehicle inspected.

Signal Warning


ABS Warning Light If the ABS warning light stays on while you're driving, the ABS control unit has detected a
system malfunction. If this occurs, your brakes will function normally as if the vehicle had
no ABS.
Should this happen, consult an expert repairer, we recommend an Authorised Mazda
Repairer as soon as possible. NOTE
When the engine is jump-started to charge the battery, uneven rpm occurs and the
ABS warning light may illuminate. If this occurs, it is the result of the weak battery
and does not indicate an ABS malfunction.

(With DSC vehicles)
The brake assist system does not operate while the ABS warning light is illuminated.
