2017 MAZDA MODEL CX-3 navigation

4–34
When Driving
Instrument Cluster and Display
NOTE
  Wearing polarized sunglasses will reduce the visibility of the active driving display
due to the characteristics of the display.
  If the battery has been removed and re-installed or the battery voltage is low, the
adjusted position may deviate.
  The display may be dif¿ cult to view or temporarily affected by weather conditions
such as rain, snow, light, and temperature.
  If the audio system is removed, the active driving display cannot be operated.
The active driving display indicates the following information:



 Blind Spot Monitoring (BSM) Operation Conditions and Warnings
 Refer to Blind Spot Monitoring (BSM) on page 4-117 .



 Distance Recognition Support System (DRSS) Warnings
 Refer to Distance Recognition Support System (DRSS) on page 4-131 .



 Traf¿ c Sign Recognition System (TSR) traf¿ c signs and Warnings
 Refer to Traf¿ c Sign Recognition System (TSR) on page 4-124 .



 Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings
 Refer to Mazda Radar Cruise Control (MRCC) on page 4-142 .


 Lane Departure Warning System (LDWS) Operation Conditions and Warnings
 Refer to Lane Departure Warning System (LDWS) on page 4-111 .



 Advanced Smart City Brake Support (Advanced SCBS) Warnings
 Refer to Advanced Smart City Brake Support (Advanced SCBS) on page 4-162 .

 Smart City Brake Support [Forward] (SCBS F) Warnings Refer to Smart City Brake Support [Forward] (SCBS F) on page 4-166 .



 Smart City Brake Support [Reverse] (SCBS R) Operation Conditions
 Refer to Smart City Brake Support [Reverse] (SCBS R) on page 4-170 .



 Smart Brake Support (SBS) Warnings
 Refer to Smart Brake Support (SBS) on page 4-176 .
 Adjustable Speed Limiter (ASL) Operation Conditions and Warnings Refer to Adjustable Speed Limiter (ASL) on page 4-155 .



 Driver Attention Alert (DAA) Warnings
 Refer to Driver Attention Alert (DAA) on page 4-134 .



 Cruise Control Operation Conditions
 Refer to Cruise Control on page 4-192 .



 Navigation Guidance (vehicles with navigation system)

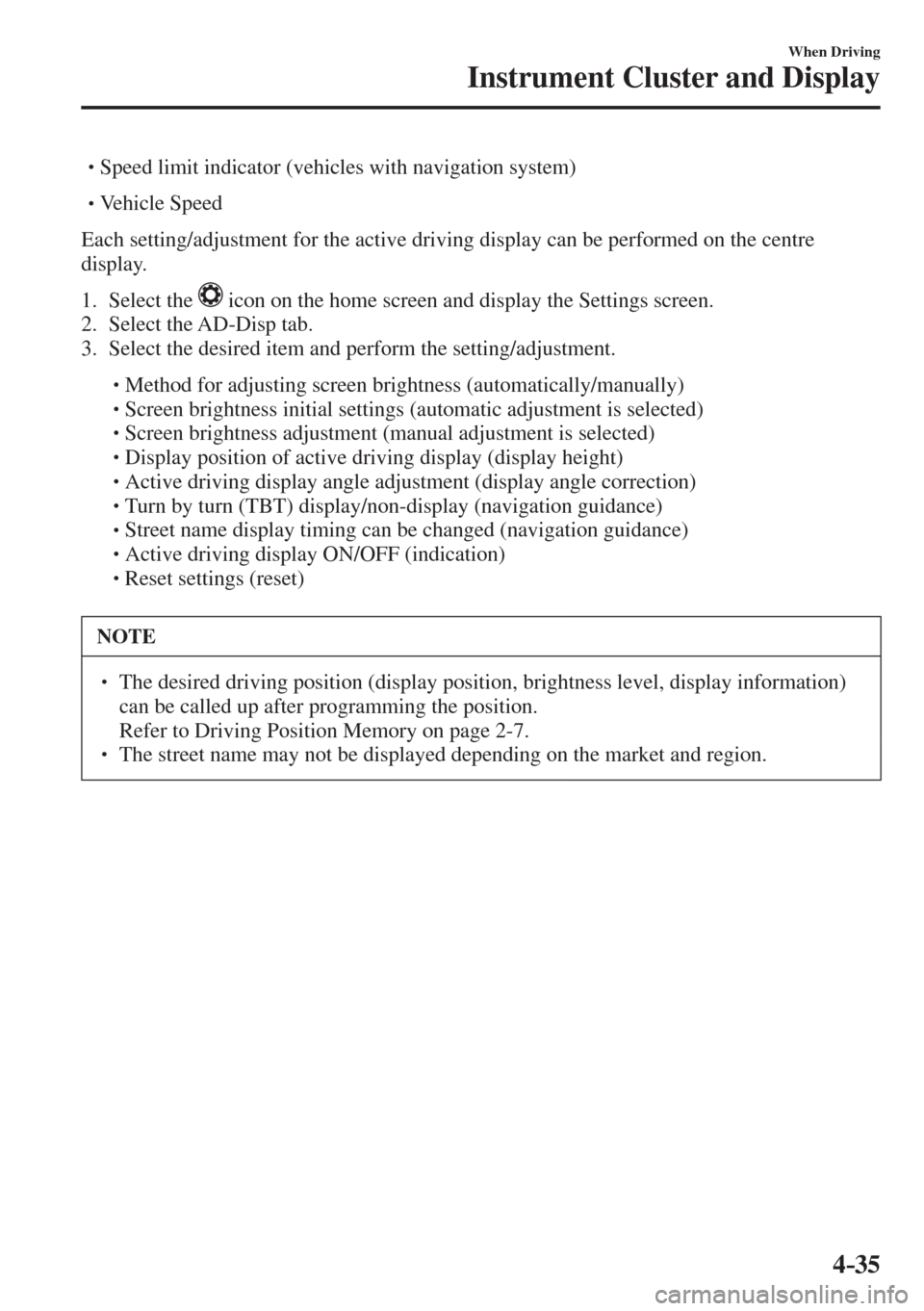

4–35
When Driving
Instrument Cluster and Display



 Speed limit indicator (vehicles with navigation system)



 Vehicle Speed
Each setting/adjustment for the active driving display can be performed on the centre
display.

1. Select the icon on the home screen and display the Settings screen.
2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.



 Method for adjusting screen brightness (automatically/manually)



 Screen brightness initial settings (automatic adjustment is selected)



 Screen brightness adjustment (manual adjustment is selected)



 Display position of active driving display (display height)



 Active driving display angle adjustment (display angle correction)



 Turn by turn (TBT) display/non-display (navigation guidance)



 Street name display timing can be changed (navigation guidance)



 Active driving display ON/OFF (indication)



 Reset settings (reset)
NOTE

 The desired driving position (display position, brightness level, display information)
can be called up after programming the position.
 Refer to Driving Position Memory on page 2-7 .   The street name may not be displayed depending on the market and region.

4–124
When Driving
i-ACTIVSENSE
*Some models.
Tr a f¿ c Sign Recognition System (TSR) *
T h e T r a f¿ c Sign Recognition System (TSR) helps prevent the driver from overlooking
traf¿ c signs, and provides support for safer driving by displaying traf¿ c signs on the active
driving display which are recognised by the Forward Sensing Camera (FSC) or recorded in
the navigation system while the vehicle is driven.
If the vehicle speed exceeds the speed limit sign indicated in the active driving display while
the vehicle is driven, the system noti¿ es the driver using the indication in the active driving
display and a warning sound.
The Traf¿ c Sign Recognition System (TSR) displays the speed limit (including auxiliary
signs) and do not enter signs.
NOTE
  The Traf¿ c Sign Recognition System (TSR) is not supported in some countries or
regions. For information concerning the supported countries or regions, consult an
expert repairer, we recommend an Authorised Mazda Repairer.
  The Traf¿ c Sign Recognition System (TSR) operates only if the navigation system SD
card (Mazda genuine) is inserted in the SD card slot. Consult an expert repairer, we
recommend an Authorised Mazda Repairer for details.

4–126
When Driving
i-ACTIVSENSE
NOTE
  The Traf¿ c Sign Recognition System (TSR) does not operate if there is a malfunction
in the Forward Sensing Camera (FSC).
  Under the following conditions, the Traf¿ c Sign Recognition System (TSR) may not
operate normally.



 An object placed on the instrument panel is reÀ ected in the windscreen and picked
up by the camera.



 Heavy luggage is loaded in the luggage compartment or on the rear seat and the
vehicle is tilted.



 The tyre pressures are not adjusted to the speci¿ ed pressure.



 Tyres other than standard tyres are equipped.



 The vehicle is driven on the ramp and surrounding area to or from a rest area or a
tollgate on a highway.



 When surrounding brightness suddenly changes such as when entering or exiting a
tunnel.



 The illumination of the headlights is weakened because of dirt or the optical axis is
deviated.



 The windscreen is dirty or foggy.



 The windscreen and camera are fogged (water droplets).



 Strong light is directed at the front of the vehicle (such as backlight or high-beam
headlights of on-coming vehicles).



 The vehicle is making a sharp turn.



 Strong light reÀ ects off the road.



 A traf¿ c sign is in a position which makes it dif¿ cult to reÀ ect the light from the
vehicle's headlights, such as when the vehicle is driven at night or in a tunnel.



 The vehicle is driven under weather conditions such as rain, fog, or snow.



 The stored map data for the navigation system is not current.



 The camera cannot capture a traf¿ c sign's image.



 A traf¿ c sign is obscured by mud or snow.



 A traf¿ c sign is concealed by trees or a vehicle.



 A traf¿ c sign is partially shaded.



 A traf¿ c sign is bent or warped.



 A traf¿ c sign is too low or too high.



 A traf¿ c sign is too bright or too dark (including electronic traf¿ c signs).



 A traf¿ c sign is too big or too small.



 There is an object similar to the traf¿ c sign being read (such as another traf¿ c sign or
other signs resembling it).

 The Traf¿ c Sign Recognition System (TSR) does not operate if the active driving
display is set to non-display.
  The Traf¿ c Sign Recognition System (TSR) can be set to inoperable.  Refer to Personalisation Features on page 9-13 .

4–128
When Driving
i-ACTIVSENSE
NOTE
Speed limit signs (including auxiliary signs)

 When the vehicle speed is about 1 km/h (0.6 mph) or faster, the speed limit sign is
displayed when any one of the following conditions are met.



 The Forward Sensing Camera (FSC) recognises a speed limit sign as a sign targeted
for your vehicle and the vehicle passes it.



 The speed limit sign stored in the navigation system is read (if the Forward Sensing
Camera (FSC) does not recognise a speed limit sign).


 Inclement weather speed limit signs are displayed when all of the following conditions
are met.



 The vehicle speed is about 1 km/h (0.6 mph) or more.



 The Forward Sensing Camera (FSC) recognises an inclement weather speed limit
sign as a sign targeted for your vehicle and the vehicle passes it.



 The inclement weather speed limit sign is lower than the currently displayed speed
limit sign.



 The windscreen wipers are operated.

 In the following cases, display of the speed limit sign stops.



 The Forward Sensing Camera (FSC) recognises the speed limit sign and the vehicle
is driven for a certain distance after passing the sign.



 Each sensor determines that the vehicle has changed direction of travel. (The display
of a speed limit sign does not stop even if the vehicle changes lanes while a "ZONE"
auxiliary sign is displayed.)



 The Forward Sensing Camera (FSC) recognises a new speed limit sign which differs
from the previous one (displays the new speed limit sign).



 The speed limit sign stored in the navigation system is not read within a certain
period of time (if the Forward Sensing Camera (FSC) does not recognise a speed
limit sign, the speed limit sign stored in the navigation system is displayed).



 The vehicle speed exceeds the displayed speed limit sign by 30 km/h (19 mph)
or more after a certain period of time has elapsed since the speed limit sign
was displayed. (Except when there is information for the speed limit sign in the
navigation system)

5–19
Interior Features
Before Using the Audio System
AUX/USB mode
Audio can be heard from the vehicle's
speakers by connecting a commercially-
available portable audio unit to the
auxiliary jack.
A commercially-available, non-impedance
(3.5
) stereo mini plug lead is required.
Contact an expert repairer, we recommend
an Authorised Mazda Repairer for details.
In addition, audio can be played from the
vehicle audio device by connecting a USB
device to the USB port.
NOTE
(Type B)
The SD card slot is for the navigation
system. For vehicles with the navigation
system, the SD card (Mazda genuine)
with stored map data is inserted into the
SD card slot and used. Type A (Without CD player)


Auxiliary jack/USB port

Type A (With CD player)


Auxiliary jack/USB port

5–81
Interior Features
Audio Set [Type B (touchscreen)]
Switches around commander knob


The following operations can be done by pressing the switches around the commander knob.

: Displays the home screen.

: Displays the Entertainment screen.

: Displays the Navigation screen (Only navigation-equipped vehicles). For operation
of the Navigation screen, refer to the navigation system manual. If the SD card for
the navigation system is not inserted, the compass indicating the direction in which
the vehicle is moving is displayed.

: Displays the Favourites screen. Long-press to store particular items in Favourites.
(Radio, phonebook and destination of the navigation system can be programmed.)

: Returns to previous screen.
Commander knob operation



(Selection of icons on screen)
1. Tilt or turn the commander knob and move the cursor to the desired icon.
2. Press the commander knob and select the icon.

5–85
Interior Features
Audio Set [Type B (touchscreen)]
Home screen

Icon Function

Applications
Information such as average fuel economy, maintenance, and warnings can be veri¿ ed.
Depending on the grade and speci¿ cation, the screen display may differ.

Entertainment
Operates audio such as the radio and CDs. The audio source most recently used is
displayed. An audio source which cannot be used at that time is skipped and the previous
audio source is displayed.
To change the audio source, select the icon displayed at the bottom of the screen.

Communication
Bluetooth ® related functions are available.

Navigation
Navigation screen is displayed (vehicles with navigation system).
If the SD card for the navigation system is not inserted, the compass indicating the direction
in which the vehicle is moving is displayed.
The compass may not indicate the correct bearing when the vehicle is stopped or travelling
at a slow speed.

Settings
Overall setting menu (Such as display, sound, Bluetooth ® and Language).
Depending on the grade and speci¿ cation, the screen display may differ.
