When Driving
i-ACTIVSENSE
NOTE
  The vehicle posture changes depending on the accelerator pedal, brake pedal and
steering wheel operations, which could make it dif¿ cult for the system to recognise an
obstruction, or it could facilitate unnecessary detection. In such cases, the Smart City
Brake Support [Reverse] (SCBS R) may or may not operate.
  The Smart City Brake Support [Reverse] (SCBS R) system will operate under the
following conditions.



 The engine is running.



 The change lever (manual transaxle vehicle) or the selector lever (automatic
transaxle vehicle) is in the R (reverse) position.



 The vehicle speed is between about 2 to 8 km/h (2 to 4 mph).



 The Smart City Brake Support [Reverse] (SCBS R) is not turned off.



 The DSC is not malfunctioning.

 The Smart City Brake Support [Reverse] (SCBS R) operates using ultrasonic sensors
(rear) which detect obstructions at the rear by emitting ultrasonic waves and then
receiving the returning waves reÀ ected off the obstructions.

 In the following cases, the ultrasonic sensors (rear) cannot detect obstructions and the
Smart City Brake Support [Reverse] (SCBS R) may not operate.



 The height of the obstruction is low such as low walls or trucks with low loading
platforms.



 The height of the obstruction is high such as trucks with high loading platforms.



 The obstruction is small.



 The obstruction is thin such as a signpost.



 The obstruction is positioned away from the centre of the vehicle.



 The surface of the obstruction is not pointed vertically relative to the vehicle.



 The obstruction is soft such as a hanging curtain or snow stuck to a vehicle.



 The obstruction is shaped irregularly.



 The obstruction is extremely close.

4–174
When Driving
i-ACTIVSENSE
NOTE
  In the following cases, the ultrasonic sensors (rear) cannot detect obstructions correctly
and the Smart City Brake Support [Reverse] (SCBS R) may not operate.



 Something is stuck on the bumper near an ultrasonic sensor (rear).



 The steering wheel is turned sharply, or the brake or accelerator pedal is operated.



 There is another obstruction near one obstruction.



 During inclement weather such as rain, fog and snow.



 High or low humidity.



 High or low temperatures



 Strong winds.



 The path of travel is not À at.



 Heavy luggage is loaded in the luggage compartment or on the rear seat.



 Objects such as a wireless aerial, fog light, or illuminated number plate is installed
near an ultrasonic sensor (rear).



 The orientation of an ultrasonic sensor (rear) has deviated for reasons such as a
collision.



 The vehicle is affected by other sound waves such as the horn, engine noise,
ultrasonic sensor of another vehicle.

 In the following cases, an ultrasonic sensor (rear) may detect something as a target
obstruction which could cause the Smart City Brake Support [Reverse] (SCBS R)
system to operate.



 Driving on a steep slope.



 Wheel blocks.



 Hanging curtains, gate poles such as at toll gates and railroad crossing.



 When travelling near objects such as foliage, barriers, vehicles, walls, and fences
along a road.



 When driving off-road in areas where there is grass and forage.



 When passing through low gates, narrow gates, car washing machines, and tunnels.



 A towing bar is installed or a trailer is connected.

 (Manual transaxle)  If the vehicle is stopped by the SCBS operation and the clutch pedal is not depressed,
the engine stops.
  When the system operates, the user is noti¿ ed by the active driving display.
 The Smart City Brake Support (SCBS) warning indication (amber) turns on when the
system has a malfunction.
 Refer to Warning Lights on page 4-36 .

4–175
When Driving
i-ACTIVSENSE
Smart City Brake Support (SCBS)
Indicator Light (Red)
If the Smart City Brake Support (SCBS) is
operating, the indicator light (red) À ashes.


Automatic Brake Operation
Display
“SCBS Automatic Brake” is indicated in
the active driving display after the SCBS
brakes is operated.


NOTE
  The collision warning beep sounds
intermittently while the SCBS brake
is operating.
  If the vehicle is stopped by the SCBS
operation and the brake pedal is not
depressed, the warning beep sounds
one time after about 2 seconds and
the SCBS brake is automatically
released.
Stopping the Smart City Brake
Support [Reverse] (SCBS R)
System Operation
The Smart City Brake Support [Reverse]
(SCBS R) system can be temporarily
deactivated.
Refer to Personalisation Features on page
9-13 .
When the Smart City Brake Support
[Reverse] (SCBS R) system is turned off,
the Smart City Brake Support (SCBS)
OFF indicator light turns on.


When the engine is restarted, the system
becomes operational.
When the TCS OFF switch is pressed to
stop the DSC operation, the Smart City
Brake Support [Reverse] (SCBS R) system
operation also stops and the Smart City
Brake Support (SCBS) OFF indicator light
turns on.

4–176
When Driving
i-ACTIVSENSE
*Some models.
Smart Brake Support (SBS) *
The Smart Brake Support (SBS) system alerts the driver of a possible collision using a
display and warning sound if the radar sensor (front) and the Forward Sensing Camera
(FSC) determine that there is the possibility of a collision with a vehicle ahead while the
vehicle is being driven at about 15 km/h or faster (10 mph or faster). Furthermore, if the
radar sensor (front) and the Forward Sensing Camera (FSC) determines that a collision is
unavoidable, the automatic brake control is performed to reduce damage in the event of a
collision.
In addition, when the driver depresses the brake pedal, the brakes are applied ¿ rmly and
quickly to assist. (Brake Assist (SBS brake assist))
WARNING
Do not rely completely on the Smart Brake Support (SBS) system and always drive
carefully:
The Smart Brake Support (SBS) is designed to reduce damage in the event of
a collision, not avoid an accident. The ability to detect an obstruction is limited
depending on the obstruction, weather conditions, or traf¿ c conditions. Therefore,
if the accelerator pedal or brake pedal is mistakenly operated it could result in an
accident. Always verify the safety of the surrounding area and depress the brake pedal
or accelerator pedal while keeping a safer distance from vehicles ahead or on-coming
vehicles.
CAUTION
In the following cases, turn the system off to prevent a mis-operation:
 The vehicle is being towed or when towing another vehicle.
 The vehicle is on a chassis roller.
 When driving on rough roads such as in areas of dense grass or off-road.

4–17 7
When Driving
i-ACTIVSENSE
NOTE
  The Smart Brake Support (SBS) system operates when all of the following conditions
are met:



 The ignition is switched ON.



 The Smart Brake Support (SBS) system is on.



 The vehicle speed is about 15 km/h or faster (10 mph or faster).



 The relative speed between your vehicle and the vehicle ahead is about 15 km/h or
faster (10 mph or faster).



 The Dynamic Stability Control (DSC) is not operating.

 The Smart Brake Support (SBS) system may not operate under the following
conditions:



 If the vehicle is accelerated rapidly and it comes close to a vehicle ahead.



 The vehicle is driven at the same speed as the vehicle ahead.



 The accelerator pedal is depressed.



 The brake pedal is depressed.



 The steering wheel is being operated.



 The selector lever is being operated.



 The direction indicator is being used.



 When the vehicle ahead is not equipped with tail lights or the tail lights are turned
off.



 When warnings and messages, such as a dirty windscreen, related to the Forward
Sensing Camera (FSC) are being displayed in the centre display.

 Although the objects which activate the system are four-wheeled vehicles, the radar
sensor (front) could detect the following objects, determine them to be an obstruction,
and operate the Smart Brake Support (SBS) system.



 Objects on the road at the entrance to a curve (including guardrails and snow banks).



 A vehicle appears in the opposite lane while cornering or rounding a curve.



 When crossing a narrow bridge.



 When passing under a low gate or through a tunnel or narrow gate.



 When entering an underground parking area.



 Metal objects, bumps, or protruding objects on the road.



 If you suddenly come close to a vehicle ahead.



 When driving in areas where there is high grass or forage.



 Two-wheeled vehicles such as motorbikes or bicycles.



 Pedestrians or non-metallic objects such as standing trees.

 When the system operates, the user is noti¿ ed by the active driving display.
 The Smart Brake Support (SBS) warning indication (amber) turns on when the system
has a malfunction.
 Refer to Warning Lights on page 4-36 .

4–17 8
When Driving
i-ACTIVSENSE
Smart Brake Support (SBS)
Indicator Light (Red)
If the Smart Brake Support (SBS) is
operating, the indicator light (red) À ashes.



Collision Warning
If there is the possibility of a collision
with a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the active driving display.


Stopping The Smart Brake
Support (SBS) System Operation
The Smart Brake Support (SBS) system
can be temporarily deactivated.
Refer to Personalisation Features on page
9-13 .
When the Smart Brake Support (SBS)
system is turned off, the Smart Brake
Support (SBS) OFF indicator light turns
on.


When the engine is restarted, the system
becomes operational.
NOTE
If the Smart Brake Support (SBS)
system operation is turned off, the Smart
City Brake Support (SCBS) system
operation is turned off simultaneously.

4–17 9
When Driving
i-ACTIVSENSE
*Some models.

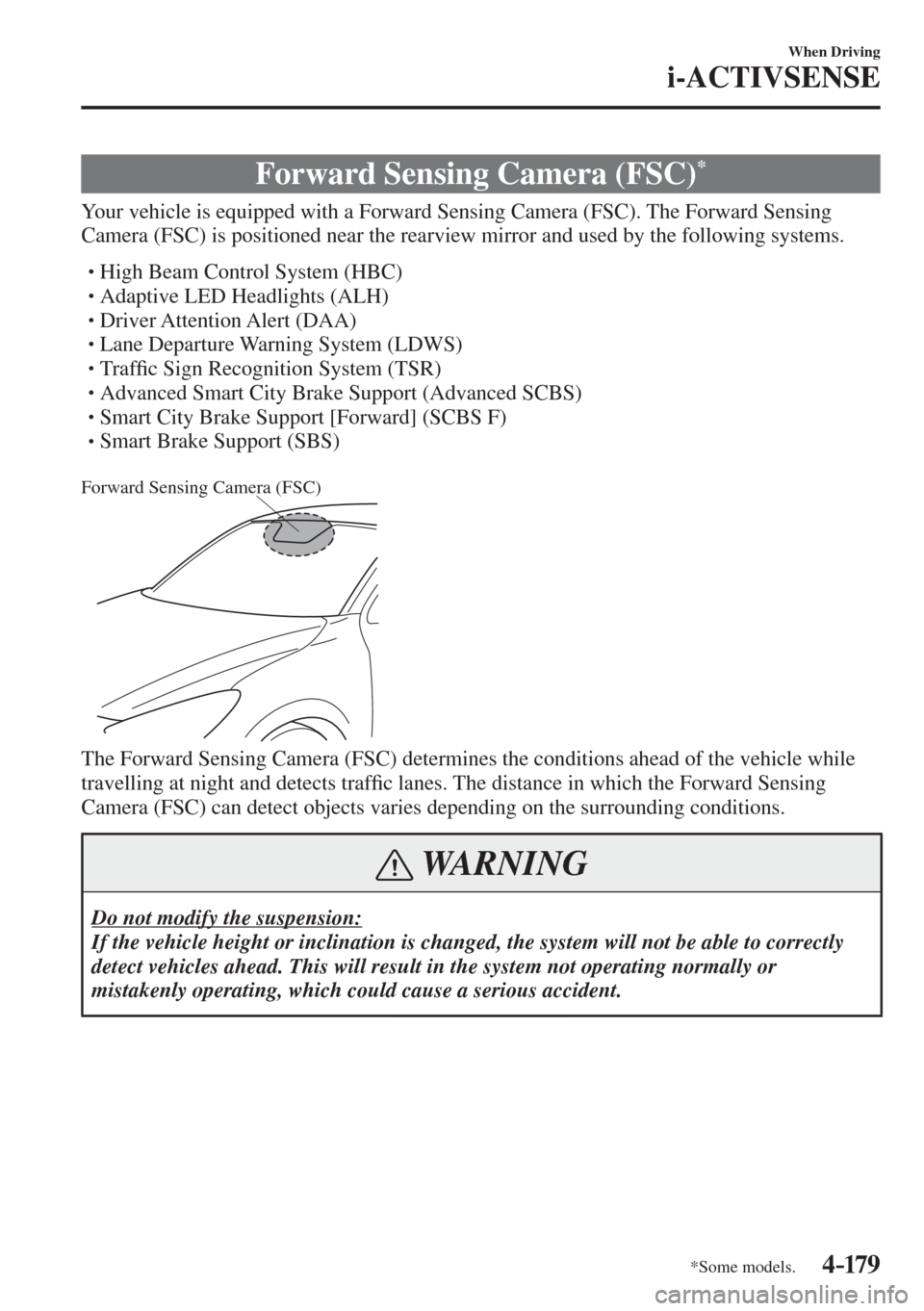

Forward Sensing Camera (FSC) *
Your vehicle is equipped with a Forward Sensing Camera (FSC). The Forward Sensing
Camera (FSC) is positioned near the rearview mirror and used by the following systems.



 High Beam Control System (HBC)



 Adaptive LED Headlights (ALH)



 Driver Attention Alert (DAA)



 Lane Departure Warning System (LDWS)



 Traf¿ c Sign Recognition System (TSR)



 Advanced Smart City Brake Support (Advanced SCBS)



 Smart City Brake Support [Forward] (SCBS F)



 Smart Brake Support (SBS)

Forward Sensing Camera (FSC)

The Forward Sensing Camera (FSC) determines the conditions ahead of the vehicle while
travelling at night and detects traf¿ c lanes. The distance in which the Forward Sensing
Camera (FSC) can detect objects varies depending on the surrounding conditions.
WARNING
Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly
detect vehicles ahead. This will result in the system not operating normally or
mistakenly operating, which could cause a serious accident.

4–18 0
When Driving
i-ACTIVSENSE
CAUTION
  Do not apply accessories, stickers or ¿ lm to the windscreen near the Forward Sensing
Camera (FSC).
 If the area in front of the Forward Sensing Camera (FSC) lens is obstructed, it will
cause the system to not operate correctly. Consequently, each system may not operate
normally which could lead to an unexpected accident.
  Do not disassemble or modify the Forward Sensing Camera (FSC).  Disassembly or modi¿ cation of the Forward Sensing Camera (FSC) will cause a
malfunction or mistaken operation. Consequently, each system may not operate
normally which could lead to an unexpected accident.
