2017 MAZDA MODEL CX-3 Owner's Manual - RHD (UK, Australia) (in English)

5–161
Interior Features
Interior Equipment
CAUTION
  To prevent accessory socket damage
or electrical failure, pay attention to
the following:



 Do not use accessories that require
more than 120 W (DC 12 V, 10 A).



 Do not use accessories that are not
genuine Mazda accessories or the
equivalent.



 Close the cover when the accessory
socket is not in use to prevent
foreign objects and liquids from
getting into the accessory socket.



 Correctly insert the plug into the
accessory socket.



 Do not insert the cigarette lighter
into the accessory socket.

 Noise may occur on the audio
playback depending on the device
connected to the accessory socket.
  Depending on the device connected
to the accessory socket, the vehicle's
electrical system may be affected,
which could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem
is resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition off. If the
problem is not resolved, consult an
expert repairer, we recommend an
Authorised Mazda Repairer.

NOTE
To prevent discharging of the battery, do
not use the socket for long periods with
the engine off or idling.
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.

Do not put anything other than cups or
drink cans in cup holders:
Putting objects other than cups
or drink cans in a cup holder is
dangerous.
During sudden braking or
manoeuvring, occupants could be
hit and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.

5–162
Interior Features
Interior Equipment
Bottle Holder
Bottle holders are on the inside of the
doors.
Front

Bottle holder
Rear

Bottle holder

CAUTION
Do not use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.

Do not put articles in storage spaces
with no lid:
Putting articles in storage spaces with
no lid is dangerous as they could be
thrown around the cabin if the vehicle
is suddenly accelerated and cause
injury depending on how the article is
stored.
CAUTION
Do not leave lighters or eyeglasses
in the storage boxes while parked
under the sun. A lighter could explode
or the plastic material in eyeglasses
could deform and crack from high
temperature.

5–163
Interior Features
Interior Equipment
*Some models.
Overhead Console *
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.


Glove Compartment
To open the glove compartment, pull the
latch toward you.


To close the glove compartment,
¿ rmly press in the centre of the glove
compartment lid.
Centre Console Tray
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
A cup or small items can be placed on
the centre console tray using the centre
console divider.
The centre console tray is large enough to
place a small item when the centre console
divider is not in use.

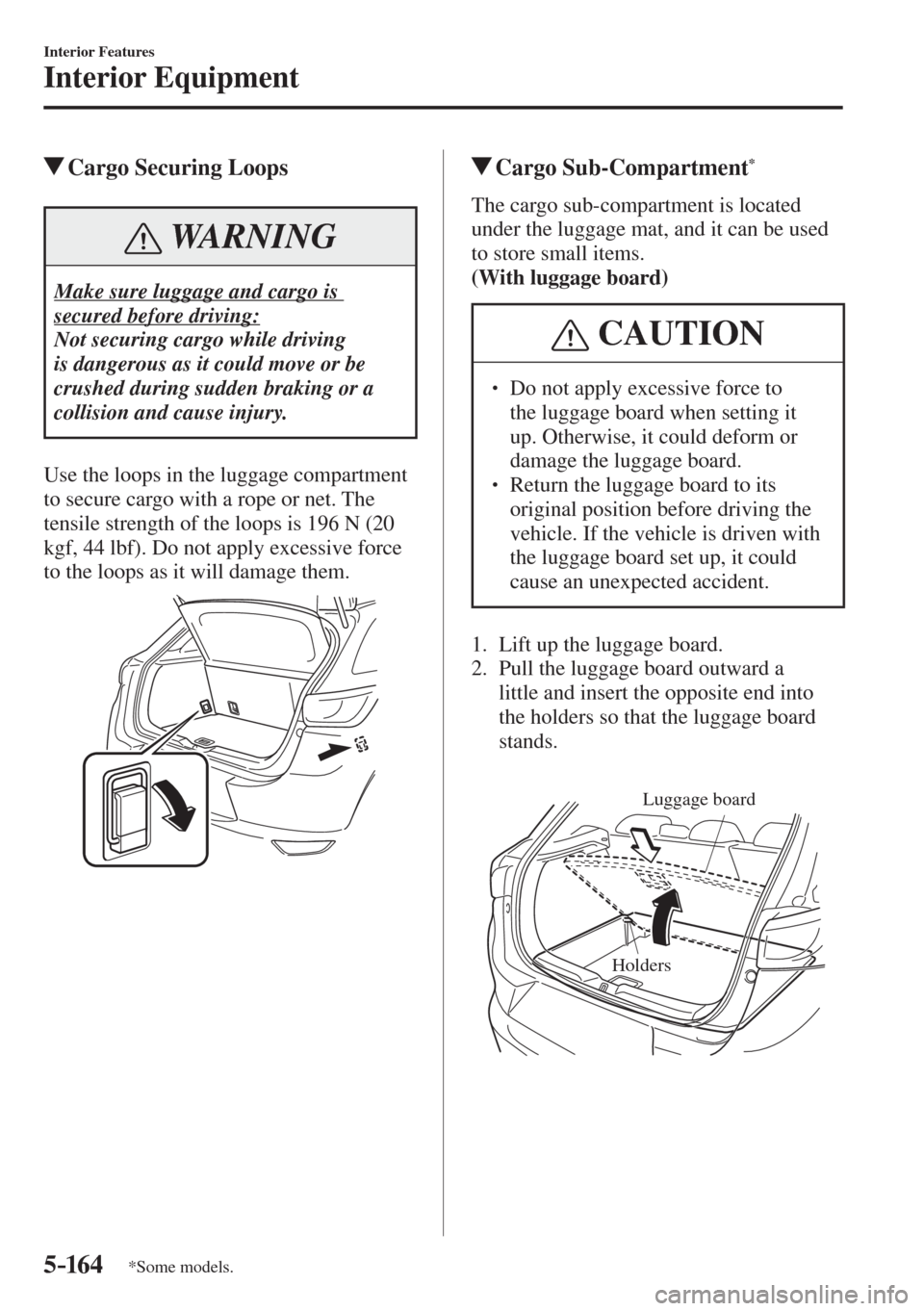

5–16 4
Interior Features
Interior Equipment
*Some models.
Cargo Securing Loops
WARNING
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving
is dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.


Cargo Sub-Compartment *
The cargo sub-compartment is located
under the luggage mat, and it can be used
to store small items.
(With luggage board)
CAUTION

 Do not apply excessive force to
the luggage board when setting it
up. Otherwise, it could deform or
damage the luggage board.
  Return the luggage board to its
original position before driving the
vehicle. If the vehicle is driven with
the luggage board set up, it could
cause an unexpected accident.
1. Lift up the luggage board.
2. Pull the luggage board outward a
little and insert the opposite end into
the holders so that the luggage board
stands.


Luggage board
Holders

5–165
Interior Features
Interior Equipment
*Some models.
3. Lift the luggage mat.


Luggage mat
Cargo sub-compartment
(Without luggage board)
Lift the luggage mat.

Cargo sub-compartment Luggage mat
Luggage Board *
When using the luggage board in the
upper level
CAUTION
Make sure the luggage board is securely
inserted into the grooves. Otherwise,
the luggage board may detach while the
vehicle is being driven or during sudden
braking resulting in injury or damage to
the luggage board.
Insert the luggage board into the left and
right grooves.

GrooveLuggage board
Luggage board

5–16 6
Interior Features
Interior Equipment
*Some models.
When using the luggage board in the
lower level *
CAUTION
The luggage board can only be used
on the lower level on the following
vehicles.

 Vehicles equipped with a À at tyre
repair kit.
  Vehicles equipped with temporary
spare tyre T125/90D 16 98M .

If the luggage board is used improperly,
it cannot be secured properly which
could result in damage to the luggage
board or an accident.
By placing the luggage board on top of the
luggage mat, more space is available for
placing taller items.

1. Lift up the luggage board and pull it
outward.


2. Place the luggage board on top of the
luggage mat.


Luggage mat
Luggage board
NOTE
When using the luggage board on the
lower level, make sure that it is placed
horizontally.
(European models)
The front part of the luggage board folds
up on vehicles equipped with the sub-
woofer.
The luggage board can be placed
horizontally by sliding it towards the
vehicle front until the front part of the
luggage board folds up.

5–167
Interior Features
Interior Equipment
Rear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended objects
such as a coat hanger from the assist
grips or coat hooks is dangerous as
they can À y off and hit an occupant in
the cabin if a curtain air bag was to
deploy, which could result in serious
injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.

Coat hook

MEMO
5–16 8
