2017 Lexus IS200t Owner's Manuals

641
IS200t_EE(OM53D77E)
9
Vehicle specifications
9-2. Customization
When customizing vehicle features, ensure that the vehicle is parked in a safe
place with the shift lever in P and the parking brake set.
■Changing by using the Remote Touch or Lexus Display Audio controller
(if equipped)
Vehicles with a Remote Touch
Press the “MENU” button on the Remote Touch.
Select on the “Menu” screen and select .
Various setting can be changed. Refer to the list of settings that can be
changed for details.
Vehicles with a Lexus Display Audio controller
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter control switches
 P. 107
Customizable features
Your vehicle includes a variety of electr onic features that can be personalized
to suit your preferences. The settings of these features can be changed by
using the meter control switches, the Remote Touch or Lexus Display Audio
controller or at any authorized Lexus re tailer or Lexus authorized repairer, or
any reliable repairer.
Customizing vehicle features
1
2
1
2

6429-2. Customization
IS200t_EE(OM53D77E)
Some function settings are changed simultaneously with other functions being
customized. Contact any authorized Lexus retailer or Lexus authorized repairer,
or any reliable repairer.
Vehicles with a Remote Touch or Lexus Display Audio controller: Settings that
can be changed using the Remote Touc h or Lexus Display Audio controller
Settings that can be changed by any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Gauges, meters and multi-information display ( P. 93, 97)
*1: The default setting varies according to countries.
*2: Except F SPORT models
Customizable features
1
2
FunctionDefault settingCustomized setting
Units*1km (L/100km)km (km/L)
O—
miles (MPG)
Color*2Color 1Color 2O—
12

643
9
9-2. Customization
Vehicle specifications
IS200t_EE(OM53D77E)
■Door lock (
P. 128, 135, 615)
■Smart entry & start system and wireless remote control ( P. 128, 135)
FunctionDefault settingCustomized setting
Unlocking using a mechanical
keyAll doors unlocked
in one step
Driver’s door
unlocked in one step, all doors
unlocked in two steps
—O
Speed-detecting automatic door
lock functionOnOffOO
Shifting gears to position other
than P locks all doorsOffOnOO
Shifting gears to P unlocks all
doorsOffOnOO
Opening driver’s door unlocks all
doorsOnOffOO
Locking/unlocking of the trunk
when all doors are locked/
unlocked
OnOff—O
12
FunctionDefault settingCustomized setting
Operation signal
(Emergency flashers)OnOffOO
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
30 seconds
60 seconds
—O120 seconds
Open door warning buzzerOnOff—O
Welcome light illumination con-
trolOnOff—O
12

6449-2. Customization
IS200t_EE(OM53D77E)
■Smart entry & start system (P. 128, 135, 141)
*: If equipped
■Wireless remote control ( P. 128, 135)
■Driving position memory* ( P. 161)
*: If equipped
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffOO
Smart door unlocking*All the doorsDriver’s doorOO
Number of consecutive door
lock operations*As many as desired2 times—O
12
FunctionDefault settingCustomized setting
Wireless remote controlOnOff—O
Unlocking operationAll doors unlocked
in one step
Driver’s door
unlocked in one
step, all doors
unlocked in two steps
OO
Trunk unlocking operationPress and hold
(short)
One short press
—O
Push twice
Press and hold (long)
Off
12
FunctionDefault settingCustomized setting
Driver’s seat movement when
exiting the vehicleStandardOffOOPartial
Doors linked to the driving posi-
tion memory recall functionDriver's doorAll doors—O
12

645
9
9-2. Customization
Vehicle specifications
IS200t_EE(OM53D77E)
■Outside rear view mirrors (
P. 173)
*: If equipped
■Power windows ( P. 177)
■Moon roof* ( P. 181)
*: If equipped
FunctionDefault settingCustomized setting
Automatic mirror folding and
extending operation*
Linked to the lock-
ing/unlocking of the
doorsOff
—OLinked to operation
of the engine switch
12
FunctionDefault settingCustomized setting
Mechanical key linked operationOffOn—O
Wireless remote control linked
operationOffOn—O
Wireless remote control linked
operation signal (buzzer)OnOff—O
12
FunctionDefault settingCustomized setting
Mechanical key linked operationOffOn—O
Linked operation of components
when mechanical key is used
(open only)Slide onlyTilt only—O
Wireless remote control linked
operationOffOn—O
Linked operation of components
when wireless remote control is
used (open only)Slide onlyTilt only—O
Wireless remote control linked
operation signal (buzzer)OnOff—O
12

6469-2. Customization
IS200t_EE(OM53D77E)
■Turn signal lever (P. 216)
*1: After flashing the turn signal lights when turning left or right while this function is off
and the turn signal lever is moved to the fi rst position in the direction of the flashing
light, the turn signal lights can be selected to be flashing or off.
*2: The turn signal lights keep flashing if the turn signal lever is moved to the first position in the direction of flashing light.
*3: The turn signal lights will be off if the turn signal lever is moved to the first position inthe direction of flashing light.
■Automatic light control system ( P. 218)
■Lexus parking assist-sensor*1 ( P. 299)
*1: If equipped
*2: When Lexus parking assist-sensor is operating.
FunctionDefault settingCustomized setting
The number of times the turn sig-
nal lights flash automatically
when the turn signal lever is
moved to the first position during
a lane change
*1
3
5
—O7
Off*2
Off*3
12
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2OO
Time elapsed before headlights
automatically turn off30 seconds
60 seconds
—O90 seconds
120 seconds
12
FunctionDefault settingCustomized setting
Detection distance of the front
center sensorFarNearOO
Detection distance of the rear
center sensorFarNearOO
Buzzer volume31 to 5OO
Display setting*2All sensors
displayedDisplay offOO
12

647
9
9-2. Customization
Vehicle specifications
IS200t_EE(OM53D77E)

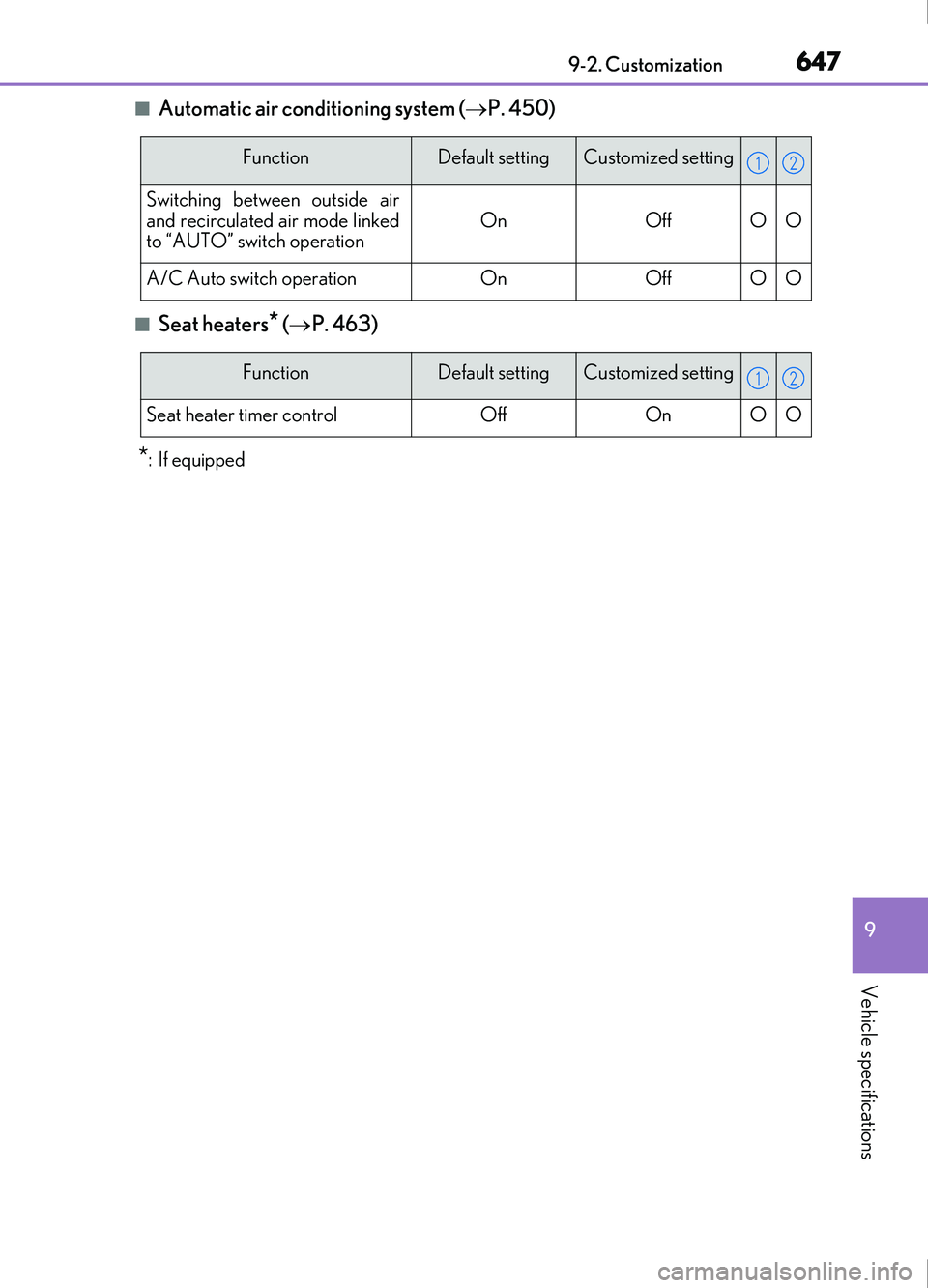

■Automatic air conditioning system (
P. 450)
■Seat heaters* ( P. 463)
*:If equipped
FunctionDefault settingCustomized setting
Switching between outside air
and recirculated air mode linked
to “AUTO” switch operationOnOffOO
A/C Auto switch operationOnOffOO
12
FunctionDefault settingCustomized setting
Seat heater timer controlOffOnOO
12

6489-2. Customization
IS200t_EE(OM53D77E)
■Illumination (P. 465)
FunctionDefault settingCustomized setting
Time elapsed before the interior
lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff—O
Operation when the doors are
unlockedOnOff—O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff—O
Inside door handle lightsOnOff—O
Time elapsed before the outer
foot lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Operation of the outer foot lights
when you approach the vehicle
with the electronic key on your
person
OnOff—O
Operation of the outer foot lights
when the doors are unlocked
with the power door lock switchOnOff—O
12
