5858-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
*: The engine may not be restarted depending on the vehicle condition.
■Warning messages
P. 579
■Warning buzzer
P. 559
Once
Indicates that the engine switch has
been pressed while driving
 Except when emergency stop-
ping of the vehicle is needed,
immediately release the engine
switch.
Interior
buzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)

5868-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
If you have a flat tire (vehicles with emergency tire
puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is equipped with an
emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can be
repaired temporarily with the emergency tire puncture repair kit.
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel beyond
repair, which could result in an accident.

5878-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine.
●Turn on the emergency flashers. (P. 544)
●Check the degree of the tire damage.
A tire should only be repaired with
the emergency tire puncture repair
kit if the damage is caused by a nail
or screw passing through the tire
tread.
• Do not remove the nail or screw from the tire. Removing the
object may widen the opening
and disenable emergency repair
with the kit.
• To avoid sealant leakage, move the vehicle until the area of the puncture, if
known, is positioned at the top of the tire.
■A flat tire that cannot be repaired with the emergency tire puncture repair kit
In the following cases, the tire cannot be repaired with the emergency tire puncture
repair kit. Contact any authorized Lexus retaile r or Lexus authorized repairer, or any reli-
able repairer.
●When the tire is damaged due to driving without sufficient air pressure
●When the tire lost air pressure due to a crack or damage in the tire sidewall
●When the tire is visibly separated from the wheel
●When the cut or damage to the tread is 4 mm (0.16 in.) long or more
●When the wheel is damaged
●When two or more tires have been punctured
●When there is more than one hole or cut in the damaged tire
Before repairing the vehicle

5888-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
*: Use of the jack (P. 606)
Location of the emergency tire puncture repair kit, jack and tools
Jack handle
Emergency tire puncture repair
kit
Screwdriver Wheel nut wrench
Towing eyelet
Jack
*
1
2
3
4
5
6

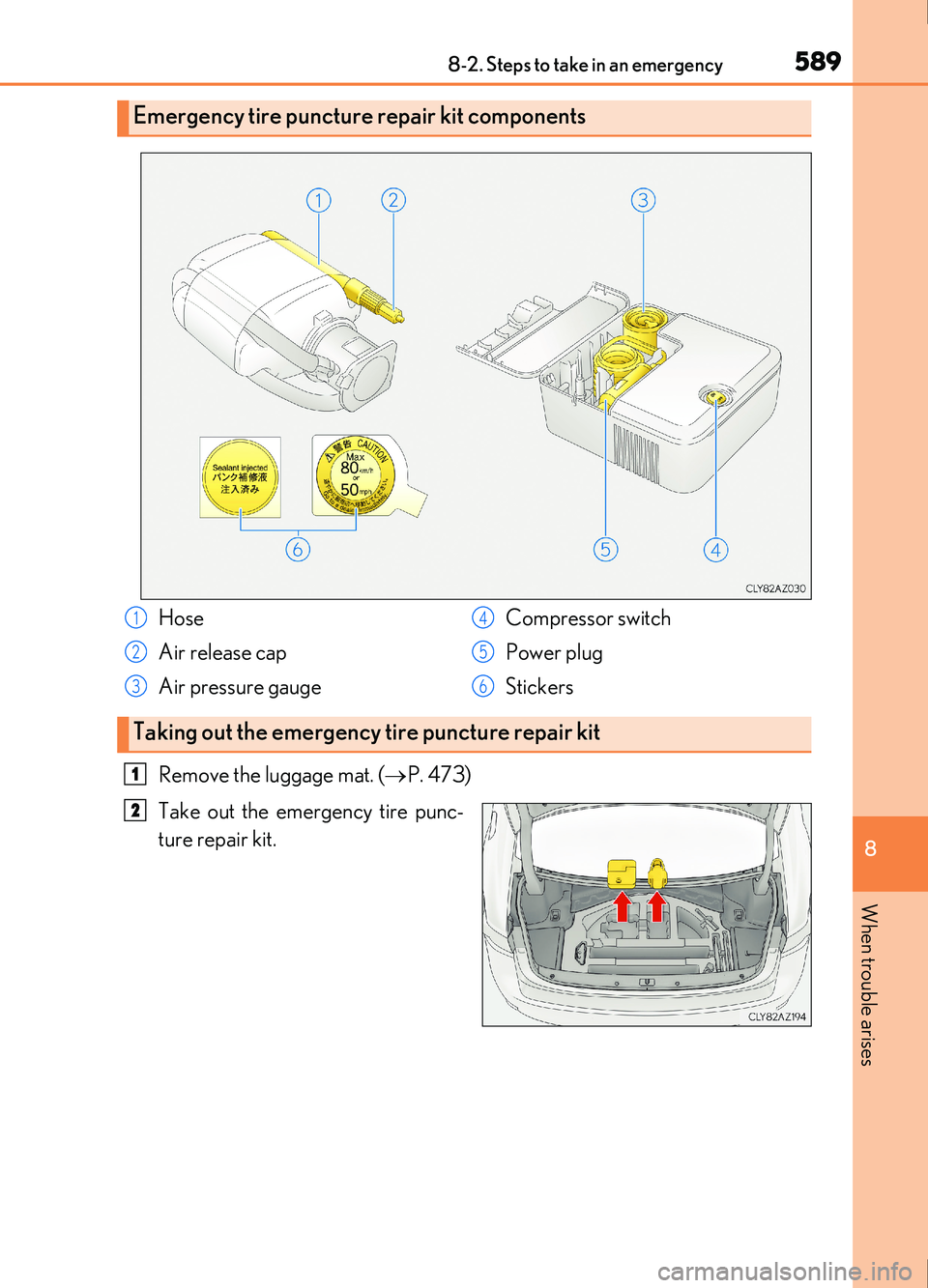

5898-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
Remove the luggage mat. (P. 473)
Take out the emergency tire punc-
ture repair kit.
Emergency tire puncture repair kit components
Hose
Air release cap
Air pressure gauge Compressor switch
Power plug
Stickers
Taking out the emergency tire puncture repair kit
1
2
3
4
5
6
1
2

5908-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
Take out the repair kit from the tool box.
Remove the valve cap from the valve
of the punctured tire.
Remove the protective film from the
bottle and extend the hose. Remove
the air release cap from the hose.
Attach the sticker enclosed with the bot-
tle on the specified locations. (See step
9.)
You will use the air release cap again.
Therefore keep it in a safe place.
Connect the hose to the valve.
Screw the end of the hose clockwise as
far as possible.
Emergency repair method
1
2
3
4

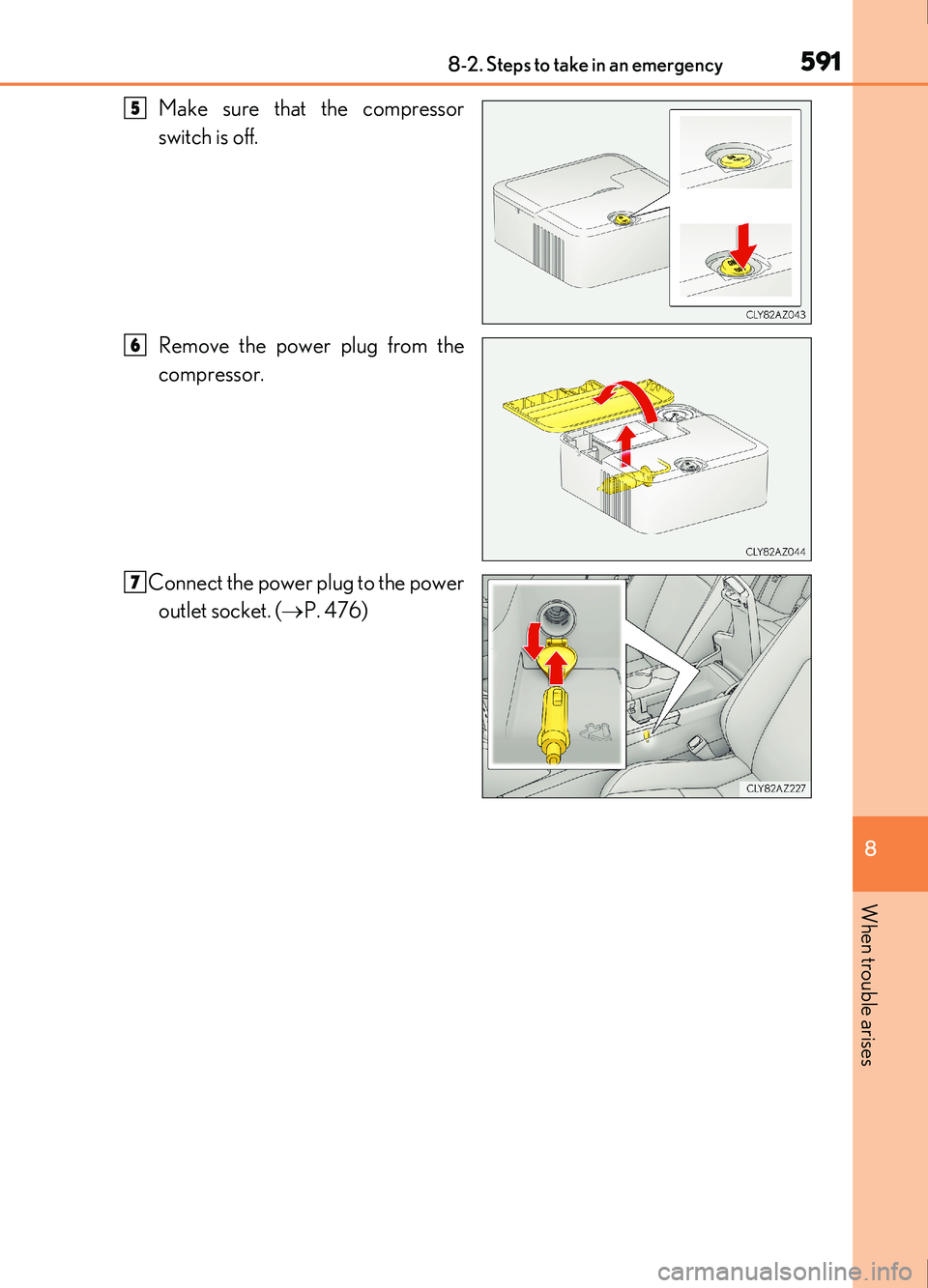

5918-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
Make sure that the compressor
switch is off.
Remove the power plug from the
compressor.
Connect the power plug to the power outlet socket. ( P. 476)5
6
7

5928-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
Remove the sticker.
Attach the 2 stickers as shown.
Remove any dirt and moisture from the
wheel before attaching the label. If it is
impossible to attach the label, make sure
to tell any authorized Lexus retailer or
Lexus authorized repairer, or any reli-
able repairer when you have them
repair and replace the tire that sealant is
injected.
8
9
