2017 Lexus IS200t Owner's Manuals

5618-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
Warning message and warning buzzer list
Warning messageDetails/Actions
(If equipped)
Indicates that there is a high possibility of a frontal colli-
sion, or that the pre-collision braking function is operat-
ing A buzzer also sounds.
 Avoid the collision by decelerating using the brakes
or taking other evasive actions.
Indicates that the engine was stopped with the shift lever
not in P
A buzzer also sounds.
 Shift the shift lever to P.
Indicates that the engine was stopped while driving
A buzzer also sounds.
 Stop the vehicle in a safe place such as the shoulder
of a road.
(If equipped)
Indicates that your vehicle is nearing the vehicle ahead
(in vehicle-to-vehicle distance control mode)
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(Flashes)
(Flashes)

5628-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
(If equipped)
Indicates that the vehicle has deviated from the lane
(while the LDA [Lane Departure Alert with steering con-
trol] system are operating)The lane line on the side the vehicle has deviated from
flashes in amber.
A buzzer also sounds.
 Check around the vehicle and back to inside of the
lane lines.
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer. Con-
tinuing to drive the vehicle may be dangerous.
Indicates that one or more of the doors is not fully closed
The system also indicates which doors are not fully
closed.
If the vehicle reaches a speed of 5 km/h (3 mph),
flashes and a buzzer sounds to indicate that
the door(s) are not yet fully closed.
 Make sure that all the doors are closed.
Indicates that the hood is not fully closed
If the vehicle reaches a speed of 5 km/h (3 mph),
flashes and a buzzer sounds to indicate that
the hood is not yet fully closed.
 Close the hood.
Warning messageDetails/Actions
(Flashes)
(Flashes)

5638-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
Indicates that the trunk is not fully closedIf the vehicle reaches a speed of 5 km/h (3 mph),
flashes and a buzzer sounds to indicate that
the trunk is not yet fully closed.
 Close the trunk.
(If equipped)
Indicates a malfunction in th e Lexus parking assist-sen-
sor The assist-sensors flash.
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
(If equipped)
Indicates that a Lexus parking assist-sensor is dirty or
covered with ice
A buzzer also sounds.
 Clean the sensor.
Warning messageDetails/Actions

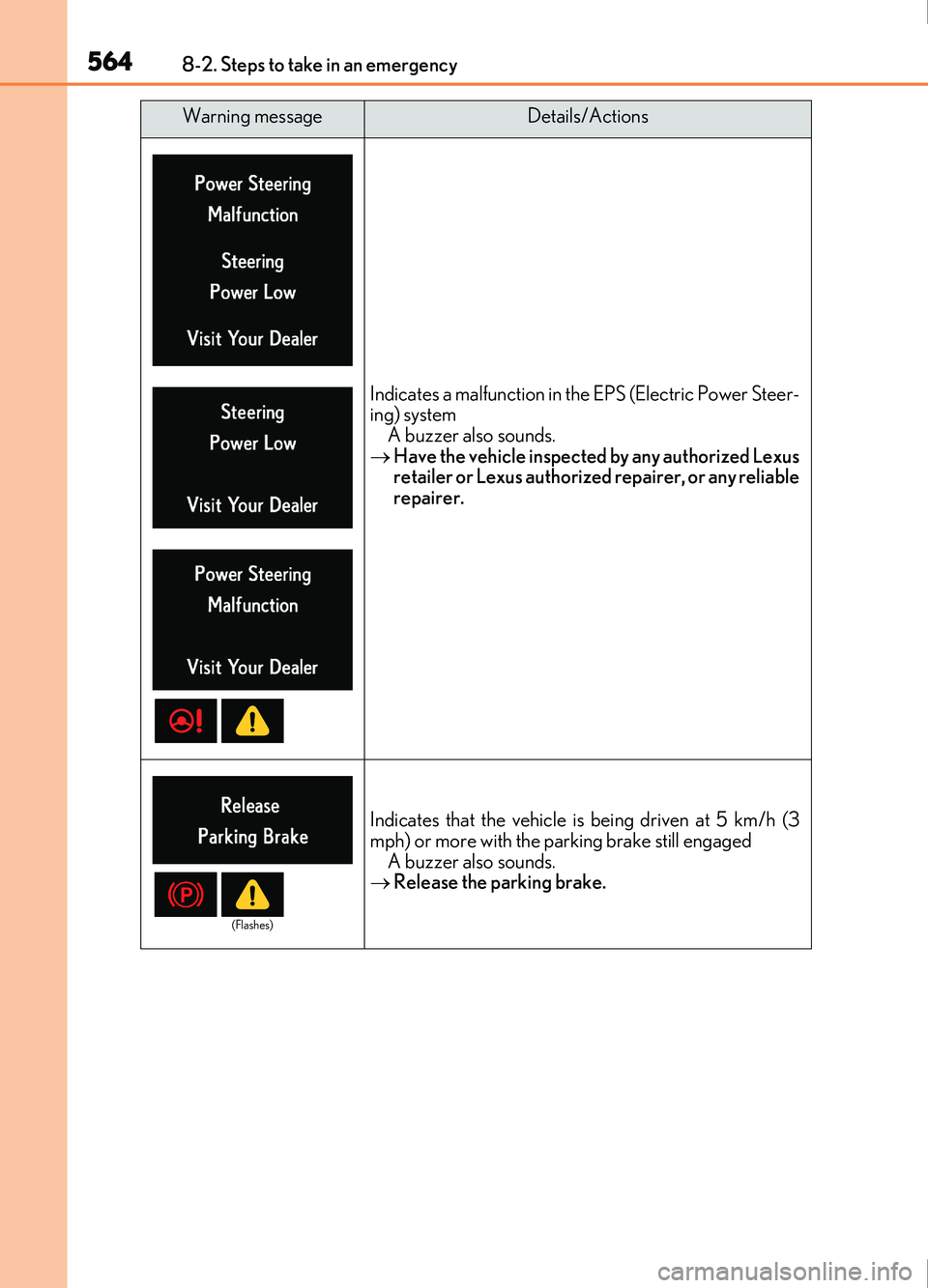

5648-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) systemA buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Indicates that the vehicle is being driven at 5 km/h (3
mph) or more with the parking brake still engaged
A buzzer also sounds.
 Release the parking brake.
Warning messageDetails/Actions
(Flashes)

5658-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
Indicates that the shift position was changed and drive
start control was operated while depressing the acceler-
ator pedalA buzzer also sounds.
 Momentarily release the accelerator pedal.
Indicates that the shift lever was used to attempt to shift
to the first gear position in M mode on a slippery road
surface
The gear position will not shift from the second gear.
A buzzer also sounds.
 Drive the vehicle in the second or a higher gear
position.
(If equipped)
Indicates that the LDA (Lane Departure Alert with steer-
ing control) system has dete rmined that the driver does
not have their hands on the steering wheel while the
steering control function is on
A buzzer also sounds. (For Israel)
 Firmly hold the steering wheel.
Warning messageDetails/Actions
(Flashes)

5668-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
(If equipped)
Indicates that steering control function is temporarily
canceled due to the LDA (Lane Departure Alert with
steering control) system determining that the driver
does not have their hands on the steering wheel while
the steering control function is on
 Firmly hold the steering wheel.
Indicates an engine malfunction
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Indicates an engine malfunction
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Indicates an engine malfunction
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Warning messageDetails/Actions

5678-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner systemA buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Indicates a malfunction in:
•The ABS; or
• The brake assist system
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Indicates that the engine coolant temperature is too high
A buzzer also sounds.
 P. 622
Warning messageDetails/Actions

5688-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
Indicates a malfunction in the vehicle’s charging system.
Immediately stop the vehicle in a safe place and
contact any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer. Con-
tinuing to drive the vehicle may be dangerous.
(If equipped)
Indicates that the radar sensor is dirty or covered with
ice
A buzzer also sounds.
 Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control system
cannot be used temporarily due to bad weather
A buzzer also sounds.
 Use the dynamic radar cruise control system when
it becomes available again.
Warning messageDetails/Actions
(F SPORT
models)
