4977-3. Do-it-yourself maintenance
7
Maintenance and care
IS200t_EE(OM53D77E)
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever and
lift the hood.
Hood
Release the lock from the inside of the vehicle to open the hood.
1
2
WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and cause
an accident, which may result in death or serious injury.

4987-3. Do-it-yourself maintenance
IS200t_EE(OM53D77E)
◆Front
◆Rear

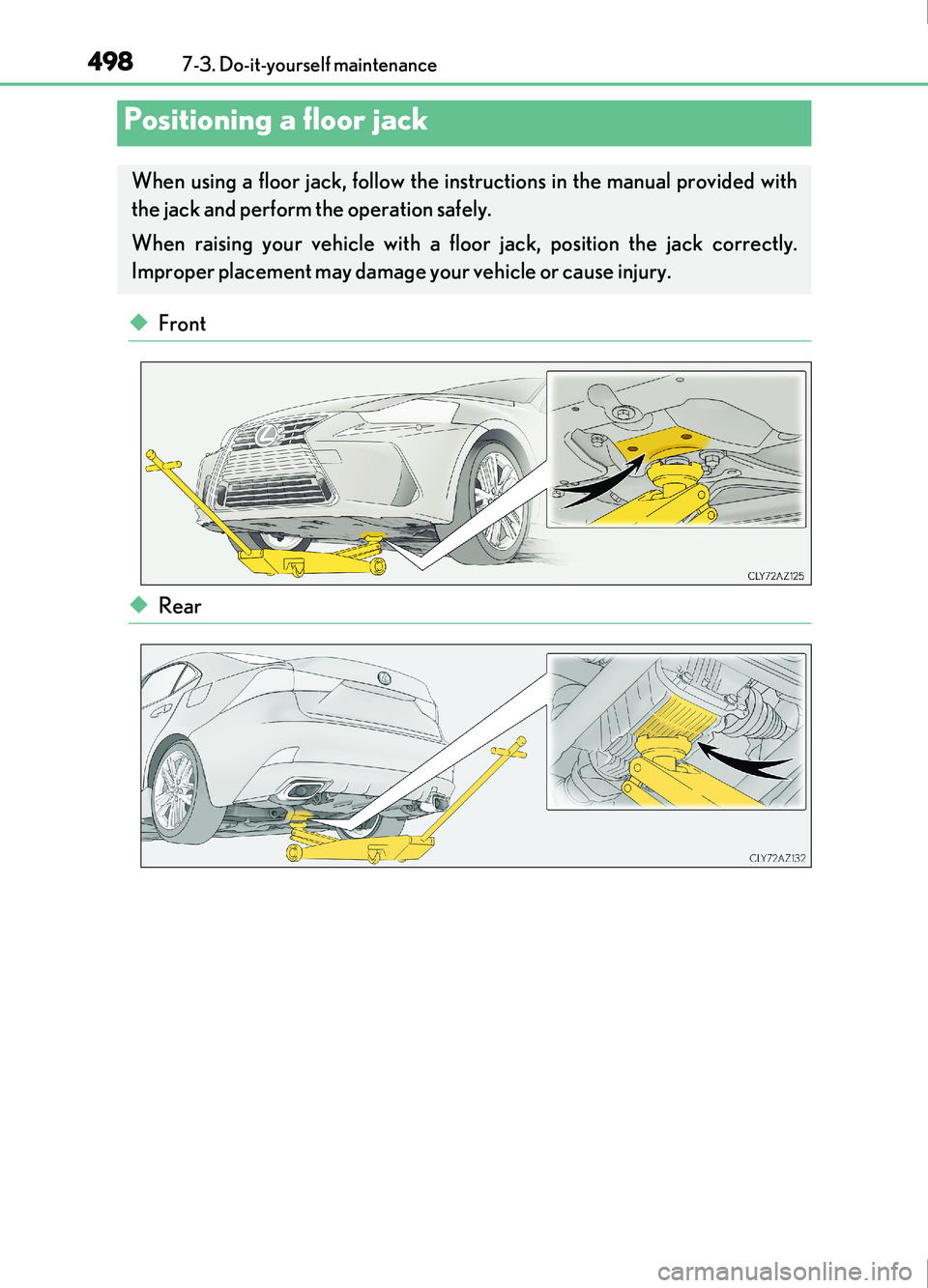

Positioning a floor jack
When using a floor jack, follow the instructions in the manual provided with
the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.

4997-3. Do-it-yourself maintenance
7
Maintenance and care
IS200t_EE(OM53D77E)For right-hand drive vehicles:
The battery and the fuse box in front of the battery are located on the opposite side of the
engine compartment.
Engine compartment
Fuse boxes (
P. 530)
Battery ( P. 505)
Intercooler
Engine oil level dipstick ( P. 500)
Engine oil filler cap ( P. 501)
Engine coolant reservoir ( P. 503) Washer fluid tank (
P. 508)
Electric cooling fans
Condenser ( P. 504)
Intercooler radiator ( P. 504)
Radiator ( P. 504)
Intercooler coolant reservoir ( P. 503)1
2
3
4
5
6
7
8
9
10
11
12

5007-3. Do-it-yourself maintenance
IS200t_EE(OM53D77E)
With the engine at operating temperature and turned off, check the oil level on
the dipstick.
■Checking the engine oilPark the vehicle on level ground. After warming up the engine and turning
off the engine, wait more than 5 minutes for the oil to drain back into the
bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull
the dipstick out and check the oil
level.Low
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
1
2
3
6

5017-3. Do-it-yourself maintenance
7
Maintenance and care
IS200t_EE(OM53D77E)
■Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as that already in the
engine.
Make sure to check the oil type and prepare the items needed before adding
oil.Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consum ed while driving. In the following situations,
oil consumption may increase, and engine o il may need to be refilled in between oil
maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing, or when driving
while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
Engine oil selection P. 633
Oil quantity (Low  Full) 1.5 L (1.6 qt., 1.3 Imp. qt.)
Items Clean funnel
1
2
3

5027-3. Do-it-yourself maintenance
IS200t_EE(OM53D77E)
■After changing the engine oil
The engine oil maintenance data should be reset. Perform the following procedures:Select on the multi-information display. ( P. 107)
Press the or meter control switch on the steering wheel to select “Vehicle
Settings” then “Oil Maintenance”. (To confirm setting, press .)
Select “Yes” and then press .
A message is displayed on th e multi-information display.
WARNING
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin dis-
orders such as inflammation and skin cancer, so care should be taken to avoid pro-
longed and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of
used oil and filters in household trash, in sewers or onto the ground.
Call any authorized Lexus retailer or Le xus authorized repairer, or any reliable
repairer, service station or auto parts store for information concerning recycling or
disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
1
2
3
4

5037-3. Do-it-yourself maintenance
7
Maintenance and care
IS200t_EE(OM53D77E)
■Engine coolant reservoir
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir when the engine is cold.Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL”
line. ( P. 622)
■Intercooler coolant reservoir
The coolant level is satisfactory if it is between the “F” and “L” lines on the res-
ervoir when the engine is cold.
Reservoir cap
“F” line
“L” line
If the level is on or below the “L” line,
add coolant up to the “F” line.
( P. 622)
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology.
“Toyota Super Long Life Coolant” is a mixt ure of 50% coolant and 50% deionized water.
(Minimum temperature: -35 C [-31 F])
For more details about coolant, contact any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.
■If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir cap, drain cock and water
pump.
If you cannot find a leak, have any authorized Lexus retailer or Lexus authorized repairer,
or any reliable repairer, test the cap an d check for leaks in the cooling system.
Coolant
1
2
3
1
2
3

5047-3. Do-it-yourself maintenance
IS200t_EE(OM53D77E)
Check the radiator, condenser and intercooler radiator and clear away any for-
eign objects.
If any of the above parts are extremely dirty or you are not sure of their condition,
have your vehicle inspected by any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.
WARNING
■When the engine is hot
Do not remove the engine coolant reservoir cap or intercooler coolant reservoir cap.
(  P. 622)
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water and
antifreeze must be used to provide proper lubrication, corrosion protection and cool-
ing. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
Radiator, condenser and intercooler radiator
WARNING
■When the engine is hot
Do not touch the radiator, condenser or intercooler radiator as they may be hot and
cause serious injuries, such as burns.
