6258-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cool ed down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.
●Do not loosen the coolant reservoir cap or
intercooler cap while the engine and radiator
are hot.
High temperature steam or coolant could
spray out.

6268-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Vehicles without Stop & Start system
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRC.
1
2
3
4
5

6278-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
Vehicles with Stop & Start system
Press to turn off TRC.
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehi cles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after these procedures are performed, the vehicle
may require towing to be freed.

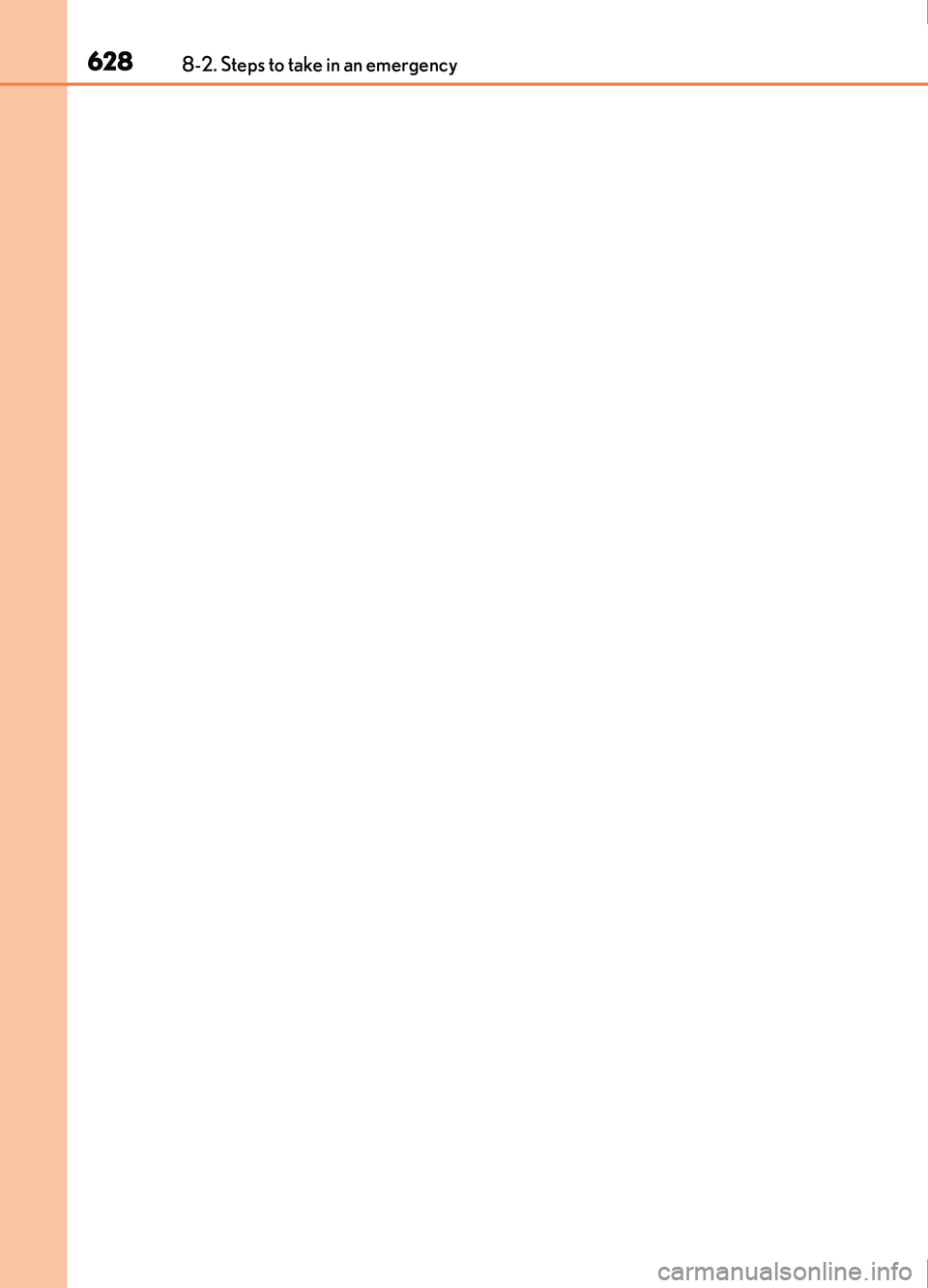

6288-2. Steps to take in an emergency
IS200t_EE(OM53D77E)

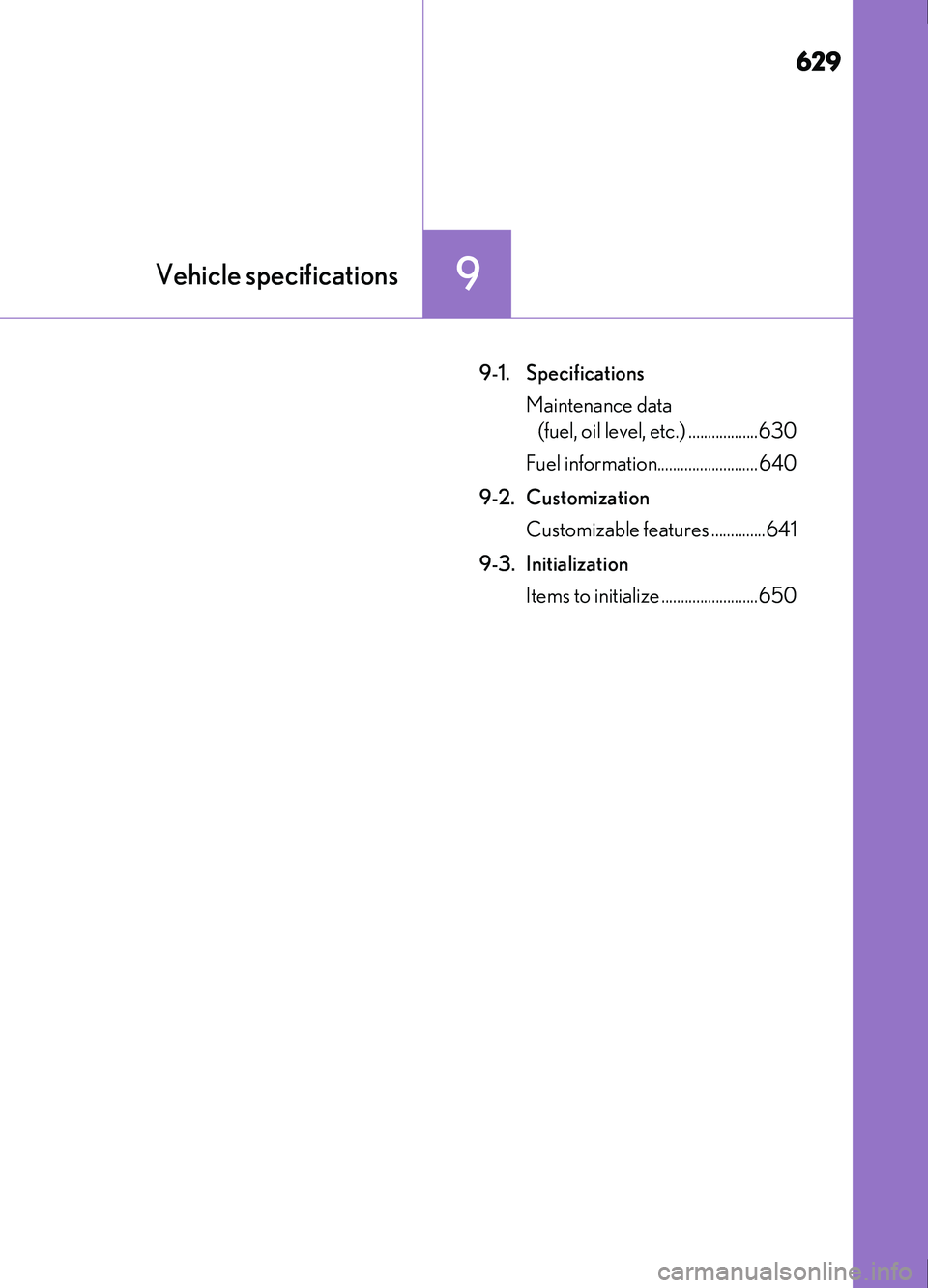

629
9Vehicle specifications
IS200t_EE(OM53D77E)
9-1. SpecificationsMaintenance data (fuel, oil level, etc.) ..................630
Fuel information.......................... 640
9-2. Customization Customizable features ..............641
9-3. Initialization Items to initialize .........................650

630
IS200t_EE(OM53D77E)9-1. Specifications
*1: Unladen vehicle
*2: Vehicles with 255/35R18 tires
*3: Vehicles with a towing package
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length
4680 mm (184.3 in.)
Overall width1810 mm (71.3 in.)
Overall height*11430 mm (56.3 in.)
Wheelbase 2800 mm (110.2 in.)
Tread*1Front1535 mm (60.4 in.)
Rear1550 mm (61.0 in.)
1540 mm (60.6 in.)*2
Gross vehicle mass*32125 kg (4685 lb.)
Maximum permissi-
ble axle capacity
*3
Front
1090 kg (2403 lb.)
Rear1200 kg (2646 lb.)
Drawbar load*375 kg (165 lb.)
Towing capacity*3With brake 1500 kg (3307 lb.)
Without brake 750 kg (1653 lb.)

631
9
9-1. Specifications
Vehicle specifications
IS200t_EE(OM53D77E)
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the manufac-
turer’s label.
■Engine number
The engine number is stamped on
the engine block as shown.
Vehicle identification

6329-1. Specifications
IS200t_EE(OM53D77E)
Engine
Model 8AR-FTS
Type4-cylinder in line, 4-cycle, gasoline (with turbocharger)
Bore and stroke 86.0  86.0 mm (3.39  3.39 in.)
Displacement 1998 cm3 (121.9 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European standard
EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)66 L (17.4 gal., 14.5 Imp. gal.)
