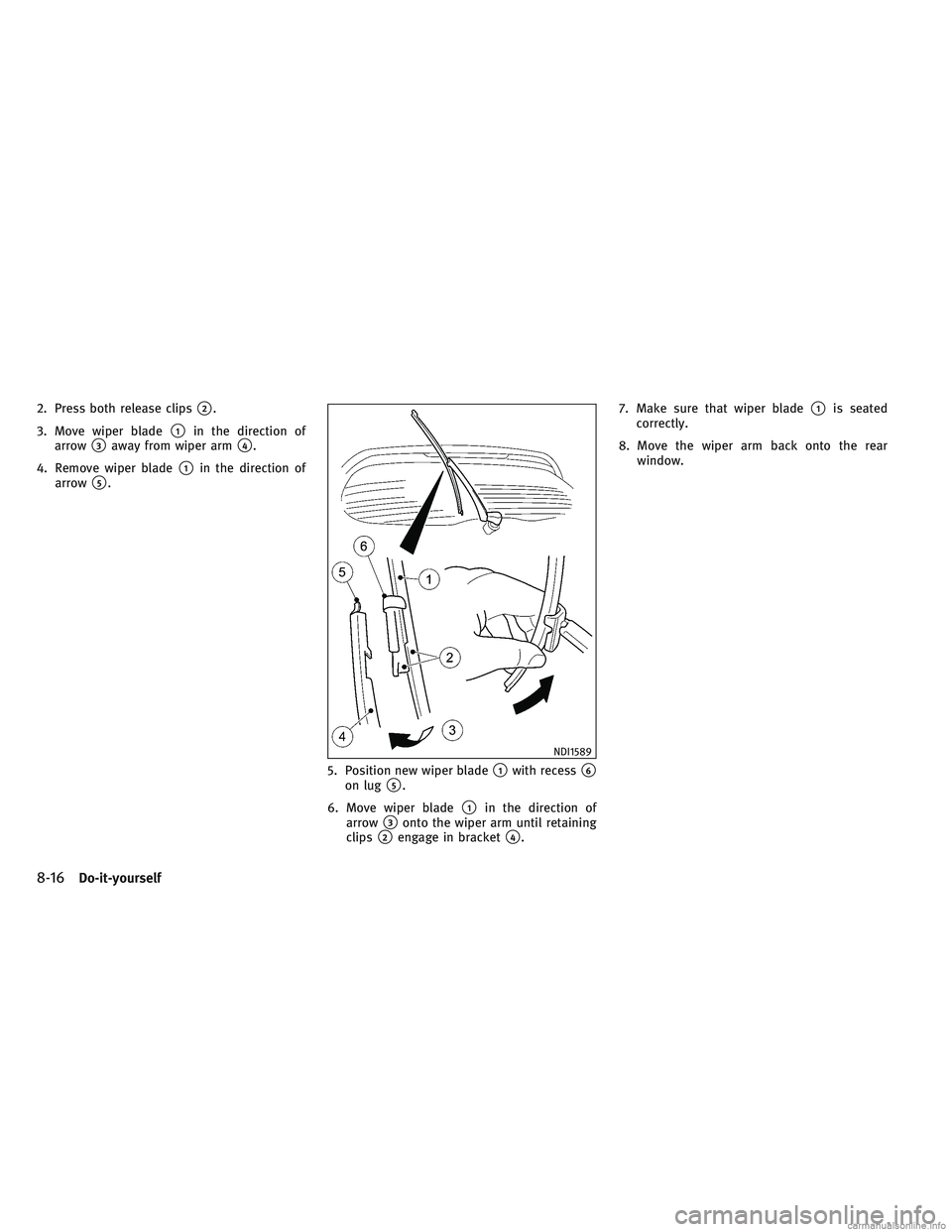

2. Press both release clips2.
3. Move wiper blade
1in the direction of
arrow
3away from wiper arm4.
4. Remove wiper blade
1in the direction of
arrow
5.
5. Position new wiper blade
1with recess6on lug5.
6. Move wiper blade
1in the direction of
arrow
3onto the wiper arm until retaining
clips
2engage in bracket4. 7. Make sure that wiper blade
1is seated
correctly.
8. Move the wiper arm back onto the rear window.
NDI1589
8-16Do-it-yourself

If the brakes do not operate properly, it is
recommended that you have the brakes
checked. It is recommended that you visit an
INFINITI retailer for this service.
SELF-ADJUSTING BRAKES
Your vehicle is equipped with self-adjusting
brakes. The disc-type brakes self-adjust every
time the brake pedal is applied.Blown fuses must be replaced with fuses of the
same rating, which you can recognise by the
color and fuse rating. The fuse ratings are listed
in the fuse allocation chart.
If the newly inserted fuse also blows, have the
cause traced and rectified. It is recommended
you visit an INFINITI retailer for this service.
The fuses in your vehicle disconnect faulty
circuits. if a fuse blows, all the components on
the circuit and their functions will fail.
BEFORE REPLACING A FUSE
•Secure the vehicle against rolling away.
•Switch off all electrical consumers.
•Remove the key from the ignition lock.
The fuses are located in various fuse boxes:
•Fusebox in the engine compartment on the
left-hand side of the vehicle, when viewed in
the direction of travel.
•Fuse box in the front-passenger footwell.
The fuse allocation chart is on the fuse box in
the front-passenger footwell.
ENGINE COMPARTMENT
WARNING
Never use a fuse of higher or lower amperage
rating than that specified on the fuse box
cover. This could damage the electrical system
or electronic control units or cause a fire.
BRAKES FUSES
Do-it-yourself8-17

1. Open the hood
2. Remove any existing moisture from the fusebox using a dry cloth
3. To open: open clamps
2.
4. Fold cover
1up in the direction of the arrow
and remove it. To close:
1. Check whether the seal is lying correctly in
cover
1.
2. Insert cover
1at the back into openings3on the fuse box. 3. Fold down cover
1.
4. Hook clamps into the fuse box and close
5. Close the hood.
PASSENGER COMPARTMENT
WARNING
Never use a fuse of higher or lower amperage
rating than that specified on the fuse box
cover. This could damage the electrical system
or electronic control units or cause a fire.
NDI1591NDI1592
8-18Do-it-yourself

To open:
1. Open the front-passenger door.
2. Remove the floor mats.
3. Fold out perforated floor covering
1in the
direction of the arrow. 4. To release cover
3press retaining clamp
2.
5. Fold out cover
3in the direction of the arrow
to the catch.
6. Remove cover
3forwards.
NOTE
Fuse allocation chart
4is located on the lower
right-hand side of cover
3. To close:
1. Insert cover
3on the left-hand side of the
fuse box into the retainer. Cover
3engages
in the retainers.
2. Fold down cover
3until clamps2lock
audibly.
3. Fold back perforated floor covering
1.
4. Fit the floor mats.
NDI1593NDI1594
Do-it-yourself8-19

CAUTION
Be careful not to allow children to swallow the
battery or removed parts.
CHECKING THE BATTERY
Press the(LOCK) or(UNLOCK)
button.
The battery is working properly if the battery
check lamp
1lights up briefly.
The battery is discharged if the battery check
lamp
1does not light up briefly. Replace the
battery.
NOTE
•If the key battery is checked within the signal
reception range of the vehicle, pressing the
(LOCK) or(UNLOCK) button locks
or unlocks the vehicle.
•You can obtain a battery from an INFINITI
retailer.
REPLACING THE BATTERY
You require a CR 2025 3 V cell battery.
Replace the battery in the Intelligent Key as
follows:
1. Take the emergency key element out of the key (see Mechanical key in the
3. Pre-driving checks and adjustments sec-
tion)
2. Press emergency key element
2into the
opening into the key in the direction of the
arrow until the battery cover
1opens.
When doing so, do not hold cover
1shut.
3. Remove battery tray cover
1.
NPA1474NPA1472
INTELLIGENT KEY BATTERY REPLACEMENT
8-20Do-it-yourself

4. Repeatedly tap the key against your palmuntil battery
1falls out. 5. Insert the new battery with the positive
terminal facing upwards. Use a lint-free cloth
to do so.
6. Make sure that the surface of the battery is free of lint, grease and other contamination.
7. Insert the front tabs of battery cover
1and
then press to close it.
8. Insert emergency key element into the key (see Mechanical key in the3. Pre-driving
checks and adjustments section).
9. Check the function of all key buttons on the vehicle.
If you need assistance with replacement, it is
recommended that you visit an INFINITI retailer
for this service. FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
NOTE
Changes or modifications not expressly ap-
proved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.
NPA1473SPA0784Z
Do-it-yourself8-21

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)
Front combination light Headlight (Low or high beam: H9 type) 14 / 28
Headlight (Low or high beam: LED type, if so equipped) *1 LED
Front turn signal light (with halogen headlights) 24
Front turn signal light (LED type, if so equipped)*1 LED
Front side light *1 LED
Daytime driving light *1 LED
Front fog light *1 LED
Side turn signal light *1 LED
Puddle light *1 LED
Rear combination light Turn signal light*1 LED
Stop/Tail light *1 LED
Reversing light *1 LED
Brake light *1 LED
High-mounted brake light *1 LED
License plate light*1 LED
Room light/Map lights (if so equipped)
Foot well light (if so equipped) 5
3
Reading light (rear)
Room light — rear (if so equipped) 5
5
Reading lights — rear (if so equipped) 8
Luggage compartment light 5
*1: It is recommended you visit an INFINITI retailer for replacement.
It is recommended you check with the Parts Department at an INFINITI retailer for the latest parts
information.1Side turn signal light
2Room light / Map lights (if so equipped)
3Daytime driving light and sidelights and
turn signal (if so equipped)
4Low/High beam headlight
5High beam headlight or turn signal
NDI1625
LIGHTS
8-22Do-it-yourself

6Cornering light (if so equipped)
7Front fog light (if so equipped)
8Daytime driving light and sidelights
9Footwell light (if so equipped)
10Room light (if so equipped)
11High mounted stop light
12License plate light
13Rear Fog and Reversing light
14Brake light
15Turn signal light
16Tail light
Front light unit
Halogen type:
1Turn signal light
2Daytime driving light and sidelight
3High/Low beam halogen projector head-
lights
4Side marker light (if so equipped)
5Reflector (if so equipped)
6Daytime driving light and sidelightsLED type
:
1Cornering light
2Additional high-beam headlight
3Daytime driving light and sidelight and turn
signal light
4High/Low beam LED projector headlights
and Adaptive Front Lighting system (if so
equipped)
5Side marker light (if so equipped)
6Reflector (if so equipped)
7Daytime driving light and sidelights
NDI1613NDI1614
