Lower
To lower, push and hold the lock knob1and
push the head restraint/headrest down.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating posi-
tion.
Fore-aft
This function allows you to adjust the distance
between the head restraint/headrest and the
back of the head.
•To move forwards: pull the head restraint/
headrest forwards in the direction of the
arrow until it engages. There are a number of
detents.
•To move backwards: press and hold button
1and push the head restraint/headrest
backwards.
•When the head restraint/headrest is in the
desired position, release the button and
make sure that the head restraint/headrest
is engaged in position.
REAR SEAT HEAD RESTRAINTS/
HEADRESTS
Adjusting the rear seat head
restraint/headrest height
Use the head restraint/headrest in the notched
stem positions after pulling it up from the
stowed position to a position in which it locks
securely in place.
•To raise: pull the head restraint/headrest up
to the desired height.
•To lower: press release catch1and push
the head restraint/headrest down until it is
in the desired position.
SSS1036ZNIC2610NIC2609
1-10Safety — seats, seat belts and supplemental restraint system

Removing and fitting the rear seat
head restraints/headrests
The rear head restraints/headrests on the outer
seats can be removed and refitted. For vehicles
with sports seats the rear head restraints/
headrests cannot be removed and refitted.
Fold the seatback slightly forward in order to
remove the head restraint/headrest.
•To remove: pull the head restraint/headrest
up to the stop.
Press release catch
1and pull the head
restraint/headrest out of the guides.
•To refit: insert the head restraint/headrest so
that the notches on the bar are on the left
when viewed in the direction of travel.
Push the head restraint/headrest down until
you hear it engage in position.
PRECAUTIONS ON SEAT BELT USAGE
If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat, your chances of being injured
or killed in an accident and/or the severity of
injury may be greatly reduced. INFINITI strongly
encourages you and all of your passengers to
buckle up every time you drive, even if your
seating position includes a supplemental air
bag.
Most U.S. states and Canadian provinces or ter-
ritories specify that seat belts be worn at all
times when a vehicle is being driven.
SEAT BELTS
Safety — seats, seat belts and supplemental restraint system1-11

WARNING
•Every person who drives or rides in this ve-
hicle should use a seat belt at all times.
Children should be in the rear seats and in
an appropriate restraint.
SSS0134AZSit upright and well back
SSS0136AZSit upright and well back
SSS0016Z
SSS0014Z
1-12Safety — seats, seat belts and supplemental restraint system

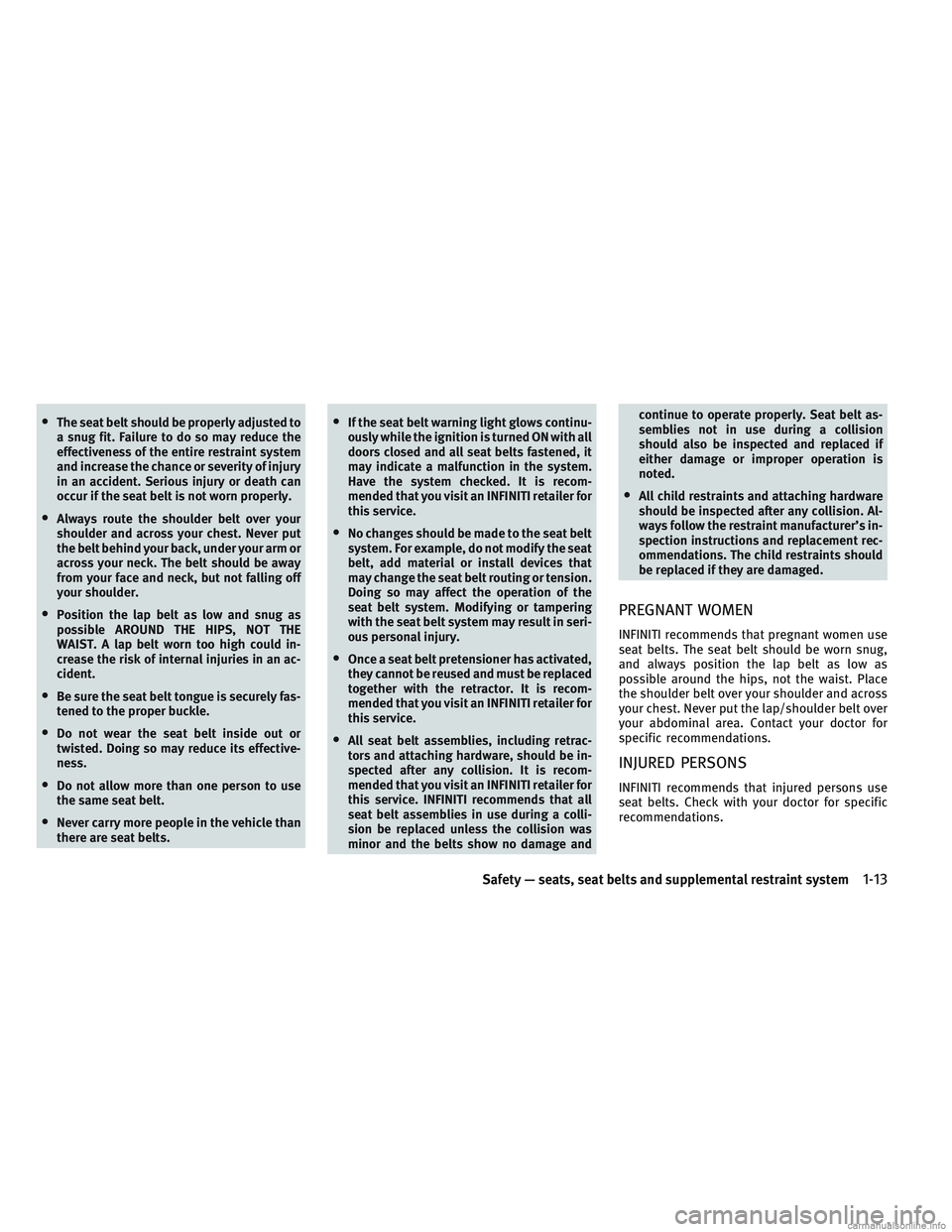

•The seat belt should be properly adjusted to
a snug fit. Failure to do so may reduce the
effectiveness of the entire restraint system
and increase the chance or severity of injury
in an accident. Serious injury or death can
occur if the seat belt is not worn properly.
•Always route the shoulder belt over your
shoulder and across your chest. Never put
the belt behind your back, under your arm or
across your neck. The belt should be away
from your face and neck, but not falling off
your shoulder.
•Position the lap belt as low and snug as
possible AROUND THE HIPS, NOT THE
WAIST. A lap belt worn too high could in-
crease the risk of internal injuries in an ac-
cident.
•Be sure the seat belt tongue is securely fas-
tened to the proper buckle.
•Do not wear the seat belt inside out or
twisted. Doing so may reduce its effective-
ness.
•Do not allow more than one person to use
the same seat belt.
•Never carry more people in the vehicle than
there are seat belts.
•If the seat belt warning light glows continu-
ously while the ignition is turned ON with all
doors closed and all seat belts fastened, it
may indicate a malfunction in the system.
Have the system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
•No changes should be made to the seat belt
system. For example, do not modify the seat
belt, add material or install devices that
may change the seat belt routing or tension.
Doing so may affect the operation of the
seat belt system. Modifying or tampering
with the seat belt system may result in seri-
ous personal injury.
•Once a seat belt pretensioner has activated,
they cannot be reused and must be replaced
together with the retractor. It is recom-
mended that you visit an INFINITI retailer for
this service.
•All seat belt assemblies, including retrac-
tors and attaching hardware, should be in-
spected after any collision. It is recom-
mended that you visit an INFINITI retailer for
this service. INFINITI recommends that all
seat belt assemblies in use during a colli-
sion be replaced unless the collision was
minor and the belts show no damage andcontinue to operate properly. Seat belt as-
semblies not in use during a collision
should also be inspected and replaced if
either damage or improper operation is
noted.
•All child restraints and attaching hardware
should be inspected after any collision. Al-
ways follow the restraint manufacturer’s in-
spection instructions and replacement rec-
ommendations. The child restraints should
be replaced if they are damaged.
PREGNANT WOMEN
INFINITI recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist. Place
the shoulder belt over your shoulder and across
your chest. Never put the lap/shoulder belt over
your abdominal area. Contact your doctor for
specific recommendations.
INJURED PERSONS
INFINITI recommends that injured persons use
seat belts. Check with your doctor for specific
recommendations.
Safety — seats, seat belts and supplemental restraint system1-13

SEAT BELT WARNING LIGHT
The seat belt warning light reminds you to
fasten your seat belts. The light illuminates if
the engine is started, all doors are closed and
the driver’s and/or front passenger’s seat belt
is unfastened. It will remain illuminated until
the driver and/or front passenger fastens their
seat belt. A chime will sound once the vehicle is
in motion.
If the seat belt warning light flashes, together
with an intermittent warning tone, this means
that the driver or passenger has not fastened
their seat belt, and the speed of the vehicle is
exceeding 15 MPH (25 km/h).
For additional information, refer toWarning
lights, indicator lights and audible reminders
in the 2. Instruments and controls section.
THREE-POINT TYPE SEAT BELT WITH
RETRACTOR
WARNING
•Every person who drives or rides in this ve-
hicle should use a seat belt at all times.
Children should be in the rear seats and in
an appropriate restraint.
•Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious in-
juries. You could also slide under the lap
belt and receive serious internal injuries.
•For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back and upright in the
seat with both feet on the floor and adjust
the seat belt properly.
•Do not allow children to play with the seat
belts. Most seating positions are equipped
with Automatic Locking Retractor (ALR)
mode seat belts. If the seat belt becomes
wrapped around a child’s neck with the ALR
mode activated, the child can be seriously
injured or killed if the seat belt retracts and
becomes tight. This can occur even if the vehicle is parked. Unbuckle the seat belt to
release the child. If the seat belt cannot be
unbuckled or is already unbuckled, release
the child by cutting the seat belt with a
suitable tool (such as a knife or scissors) to
release the seat belt.
Fastening the seat belts
1. Adjust the seat. (See
Seatsearlier in this
section.)
2. Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until
you hear and feel the latch engage.NIC2743
1-14Safety — seats, seat belts and supplemental restraint system

•The retractor is designed to lock during a
sudden stop or on impact. A slow pulling
motion permits the belt to move and al-
lows you some freedom of movement in
the seat.
•If the seat belt cannot be pulled from its
fully retracted position, firmly pull the belt
and release it. Then smoothly pull the belt
out of the retractor.
3. Position the lap belt portion low and snug on
the hips as shown 4. Pull the shoulder belt portion toward the
retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.
The front passenger seat and the rear seating
positions three-point seat belts have two
modes of operation:
•Emergency Locking Retractor (ELR)
•Automatic Locking Retractor (ALR)
The ELR mode allows the seat belt to extend and
retract to allow the driver and passengers some
freedom of movement in the seat. The ELR locks
the seat belt when the vehicle slows down
rapidly or during certain impacts.
The ALR mode (child restraint mode) locks the
seat belt for child restraint installation. When
the ALR mode is activated, the seat belt cannot be extended again until the seat belt tongue is
detached from the buckle and fully retracted.
The seat belt returns to the ELR mode after the
seat belt fully retracts. For additional informa-
tion, refer to
Child restraints later in this
section. The ALR mode should be used only for
child restraint installation. During normal seat
belt use by an occupant, the ALR mode should
not be activated. If it is activated, it may cause
uncomfortable seat belt tension. It can also
change the operation of the front passenger air
bag. For additional information, refer to Front
passenger air bag and status light in the
1. Safety — seats, seat belts and supplemental
restraint system section.
WARNING
When fastening the seat belts, be certain that
the seatbacks are completely secured in the
latched position. If they are not completely
secured, passengers may be injured in an acci-
dent or sudden stop.
SSS0292ZSSS0290Z
Safety — seats, seat belts and supplemental restraint system1-15

Unfastening the seat belts
To unfasten the seat belt, push the button on
the buckle and guide the seat belt as it auto-
matically retracts.
Checking seat belt operation
Seat belt retractors are designed to lock seat
belt movement by two separate methods:
•When the belt is pulled quickly from the
retractor.
•When the vehicle slows down rapidly.
To increase your confidence in the seat belts,
check the operation as follows:
•Grasp the shoulder belt and pull forward
quickly. The retractor should lock and restrict
further belt movement.
If the retractor does not lock during this check,
get the system checked. It is recommended that
you visit an INFINITI retailer for this service, or
to learn more about seat belt operation.Shoulder belt height adjustment (if
equipped)
The shoulder belt anchor height should be
adjusted to the position that is best for you.
(See Fastening the seat belts earlier in this
section).
•To adjust, push the button and then move
the shoulder belt anchor to the desired po-
sition so that the belt passes over the center
of the shoulder. The belt should be away
from your face and neck, but not falling off of
your shoulder. Release the adjustment but-
ton to lock the shoulder belt anchor into
position.
SSS0326ZSSS0896Z
1-16Safety — seats, seat belts and supplemental restraint system

WARNING
•After adjustment, release the adjustment
button and then try to move the shoulder
belt down to make sure that it is securely
fixed in position.
•The shoulder belt anchor height should be
adjusted to the position that is best for you.
Failure to do so may reduce the effective-
ness of the entire restraint system and in-
crease the chance or severity of injury in an
accident.
SEAT BELT EXTENDERS
If, because of body size or driving position, it is
not possible to properly fit the lap/shoulder
belt and fasten it, an extender that is compat-
ible with the installed seat belts is available
that can be purchased. The extender adds
approximately 8 in (200 mm) of length and may
be used for either the driver or front passenger
seating position. It is recommended you visit an
INFINITI retailer for assistance with purchasing
an extender if an extender is required.
WARNING
•Only INFINITI seat belt extenders, made by
the same company which made the original
equipment seat belts, should be used with
the INFINITI seat belts.
•Adults and children who can use the stan-
dard seat belt should not use an extender.
Such unnecessary use could result in seri-
ous personal injury in the event of an acci-
dent.
•Never use seat belt extenders to install
child restraints. If the child restraint is not
secured properly, the child could be seri-
ously injured in a collision or a sudden stop.
SEAT BELT MAINTENANCE
•To clean the seat belt webbing,apply a mild
soap solution or any solution recommended
for cleaning upholstery or carpets. Then wipe
with a cloth and allow the seat belts to dry in
the shade. Do not allow the seat belts to
retract until they are completely dry.
•If dirt builds up in the shoulder belt guide of
the seat belt anchors, the seat belts may
retract slowly. Wipe the shoulder belt guide
with a clean, dry cloth.
•Periodically check to see that the seat belt
and the metal components, such as buckles,
tongues, retractors, flexible wires and an-
chors, work properly. If loose parts, deterio-
ration, cuts or other damage on the webbing
is found, the entire seat belt assembly
should be replaced.
Safety — seats, seat belts and supplemental restraint system1-17
