Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 80
Driver Information Interface Warning and Information Messages ....................... 98
Gauges and Driver Information Interface ....................................... 114
Gauges ............................................ 114
Driver Information Interface ............. 118
17 CLARITY BEV CSS-31TRV6000.book 79 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

80
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off if the parking brake
has been released.
●Comes on when the parking brake
is applied, and goes off when it is
released.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 503
●Comes on along with the parking
brake and brake system indicator
(amber) - Immediately stop in a safe
place. Contact an authorized Honda
Clarity Electric dealer for repair. The brake
pedal becomes harder to operate.
Depress the pedal further than you
normally do.
●Comes on along with the ABS
indicator - Have your vehicle checked by
an authorized Honda Clarity Electric
dealer.
2 If the Brake System Indicator (Red)
Comes On or Blinks P. 503
17 CLARITY BEV CSS-31TRV6000.book 80 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

81
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for about 15 seconds
when you push the electric parking
brake switch while the power
mode is in VEHICLE OFF.
●Stays on for about 15 seconds
when you set the power mode to
VEHICLE OFF while the electric
parking brake is set.
●Blinks and the parking brake and
brake system indicator (amber) comes
on at the same time - There is a
problem with the electric parking brake
system. The parking brake may not be
set.
Avoid using the parking brake and have
your vehicle checked by an authorized
Honda Clarity Electric dealer immediately.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same
Time When the Brake System
Indicator (Amber) Comes On P. 505
—
Automatic Brake
Hold System
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the automatic
brake hold system is on.
2Automatic Brake Hold P. 407
Automatic Brake
Hold Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the automatic
brake hold is activated.
2Automatic Brake Hold P. 407—
17 CLARITY BEV CSS-31TRV6000.book 81 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Amber)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with a system related to braking
other than the conventional brake
system.
●Comes on if there is a problem
with the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.
●Comes on if there is a problem
with the electric parking brake
system or the automatic brake
hold system.
●Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by an author ized Honda Clarity
Electric dealer immediately.
●Stays on constantly - Avoid high speeds
and sudden braking. Take the vehicle to
an authorized Honda Clarity Electric
dealer immediately.
●With this indicator on, your vehicle still
has normal braking ability.
17 CLARITY BEV CSS-31TRV6000.book 82 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
POWER
SYSTEM
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with the electric vehicle system or
plug-in charging system.
●Comes on while driving - Have your
vehicle checked by an authorized Honda
Clarity Electric dealer.
●Comes on when you set the power
mode to ON afte r having charged
your vehicle - Have your vehicle checked
by an authorized Honda Clarity Electric
dealer.
17 CLARITY BEV CSS-31TRV6000.book 83 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

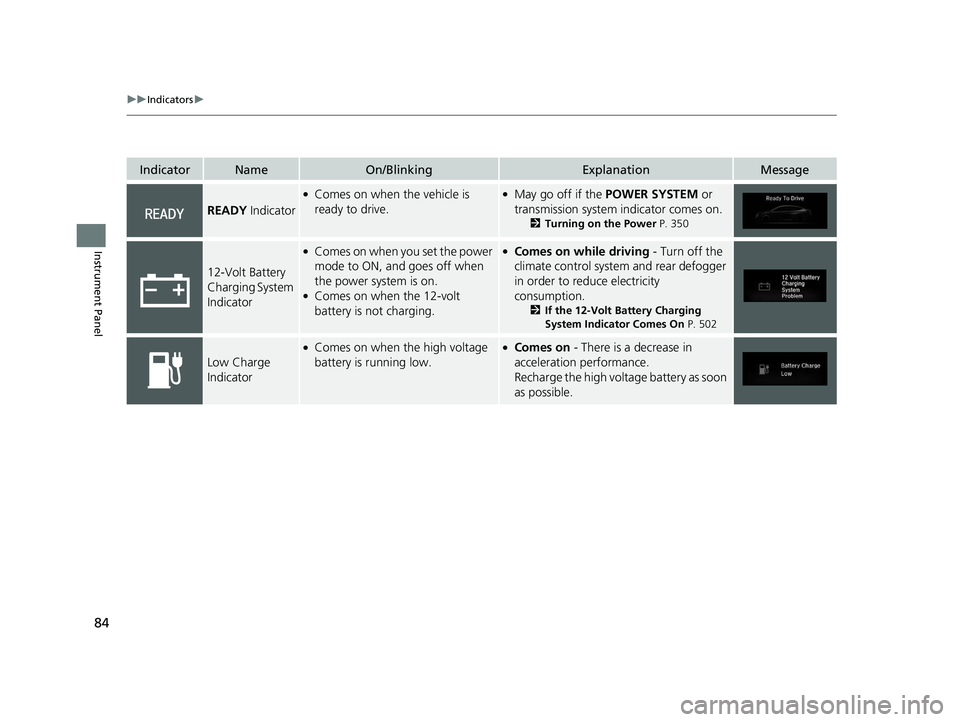

READY Indicator
●Comes on when the vehicle is
ready to drive.●May go off if the POWER SYSTEM or
transmission system indicator comes on.
2 Turning on the Power P. 350
12-Volt Battery
Charging System
Indicator
●Comes on when you set the power
mode to ON, and goes off when
the power system is on.
●Comes on when the 12-volt
battery is not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity
consumption.
2 If the 12-Volt Battery Charging
System Indicator Comes On P. 502
Low Charge
Indicator
●Comes on when the high voltage
battery is running low.●Comes on - There is a decrease in
acceleration performance.
Recharge the high voltage battery as soon
as possible.
17 CLARITY BEV CSS-31TRV6000.book 84 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Gear Position
Indicator●Indicates the current gear
selection.
2Shifting P. 355—
Transmission
System Indicator
●All the gear positions comes on for
a few seconds when you set the
power mode to ON, then goes off.
——
●The indicated current gear
selection blinks if there is a
problem with the transmission
system.●Avoid sudden start an d acceleration, and
stop in a safe place immediately.
●Have your vehicle checked by an
authorized Honda Clarity Electric dealer.
●The indicated current gear
selection or all the gear positions
blink if you cannot select
(P due
to a transmission system failure.
●The power system can be activated as a
temporary measure.
2 If the Transmission System Indicator
Blinks along with the Warning
Message P. 507
●Set the parking brake when parking.●Have your vehicle checked by an
authorized Honda Clarity Electric dealer
immediately.
17 CLARITY BEV CSS-31TRV6000.book 85 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

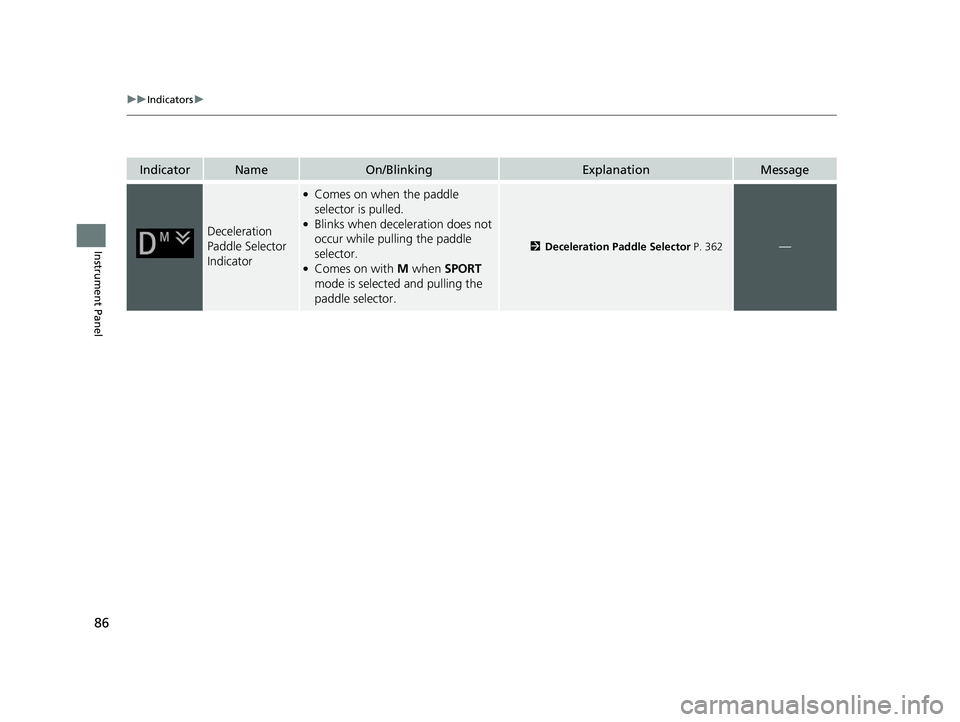

Deceleration
