2017 HONDA CLARITY ELECTRIC Owner's Manual (in English)

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
with Low Speed
Follow (LSF)
Indicator
(Amber)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with ACC with LSF.
●Comes on while driving - Have your
vehicle checked by an authorized Honda
Clarity Electric dealer.
●Comes on if anything covers the
radar sensor cover and prevents
the sensor from detecting a vehicle
in front.
●May come on when driving in bad
weather (rain, snow, fog, etc.)
●ACC with LSF has been
automatically canceled.
●When the radar sensor gets dirty, stop
your vehicle in a safe place, and then
clean the sensor using a soft cloth.
●Have your vehicle checked by an
authorized Honda Clarity Electric dealer if
the indicator does not disappear, even
after you clean the sensor cover.
Adaptive Cruise
Control ( ACC)
with Low Speed
Follow (LSF)
Indicator (Green)●Comes on when you press the
MAIN button.
2Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) P. 373—
17 CLARITY BEV CSS-31TRV6000.book 95 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Lane Keeping
Assist System
(LKAS ) Indicator
(Amber)●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with the LKAS.
●Stays on constantly - Have your vehicle
checked by an author ized Honda Clarity
Electric dealer.
Lane Keeping
Assist System
( LKAS ) Indicator
(Green)●Comes on when you press the
MAIN button.
2Lane Keeping Assist System (LKAS)
P. 388—
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when you deactivate
the CMBSTM.●Comes on if there is a problem
with the CMBSTM.
●Stays on constantly without the
CMBSTM off - Have your vehicle checked
by an authorized Ho nda Clarity Electric
dealer.
2 Collision Mitigation Braking
SystemTM (CMBSTM) P. 411
●Comes on if the CMBSTM is
deactivated temporarily after the
battery has been disconnected,
then re-connected.●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by an author ized Honda Clarity
Electric dealer.
17 CLARITY BEV CSS-31TRV6000.book 96 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

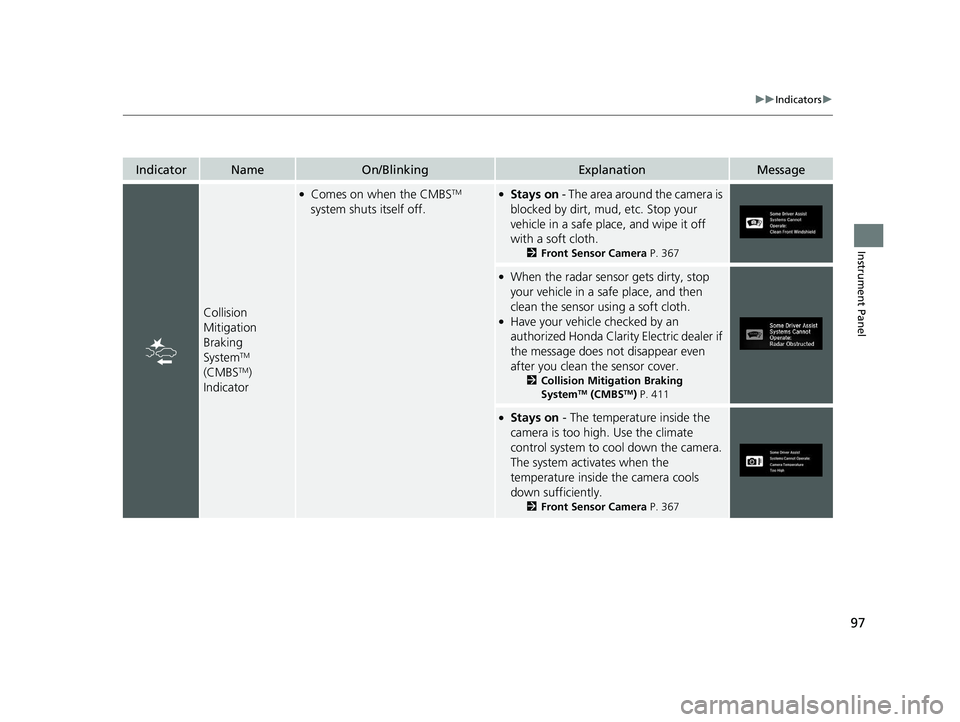

97
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
●Comes on when the CMBSTM
system shuts itself off.●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.
2 Front Sensor Camera P. 367
●When the radar sensor gets dirty, stop
your vehicle in a safe place, and then
clean the sensor using a soft cloth.
●Have your vehicle checked by an
authorized Honda Clarity Electric dealer if
the message does not disappear even
after you clean the sensor cover.
2Collision Mitigation Braking
SystemTM (CMBSTM) P. 411
●Stays on - The temperature inside the
camera is too high. Use the climate
control system to co ol down the camera.
The system activates when the
temperature inside the camera cools
down sufficiently.
2 Front Sensor Camera P. 367
17 CLARITY BEV CSS-31TRV6000.book 97 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

98
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press th e (display/information) button to see the mess age
again with the system message indicator on.
MessageConditionExplanation
●Appears when the schedul ed maintenance is due
soon.
●Consequently, Service Due Now and Service Past
Due follow.
2Warning Message and Maintenance Minder
Information on the Driver Information Interface
P. 446
●Appears as soon as a problem is detected in the
smart entry system or push button starting system.●Appears constantly - Have your vehicle checked by an
authorized Honda Clar ity Electric dealer.
●Appears when there is a pr oblem with the sensor on
the 12-volt battery.●Have your vehicle checked by an authorized Honda
Clarity Electric dealer.
2 Checking the 12-Volt Battery P. 468
●Appears along with the battery charging system
indicator when the batte ry is not charging.●Turn off the climate control system and rear defogger to
reduce electricity consumption.
2If the 12-Volt Battery Charging System Indicator
Comes On P. 502
17 CLARITY BEV CSS-31TRV6000.book 98 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

99
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Press the POWER button twice with your foot off the
brake pedal to change the power mode to VEHICLE
OFF.
●Appears when the power mode is in ACCESSORY.
—
●Appears when you close th e door with the power
mode in ON without the smart entry remote inside
the vehicle.●Disappears when you bring the smart entry remote back
inside the vehicle and close the door.
2 Smart Entry Remote Reminder P. 151
●Appears when the smart entry remote battery
becomes weak.●Replace the battery as soon as possible.
2 Replacing the Button Battery P. 470
●Appears if the smart entry remote’s battery is too
weak to turn on the power system or the smart entry
remote is not within operating range to turn on the
power system.
A beeper sounds six times.●Bring the back of the smart entry remote into contact
with the POWER button.
2If the Smart Entry Remote Battery is Weak P. 496
●Appears when you set the power mode to
ACCESSORY or ON.
2Turning on the Power P. 350
17 CLARITY BEV CSS-31TRV6000.book 99 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

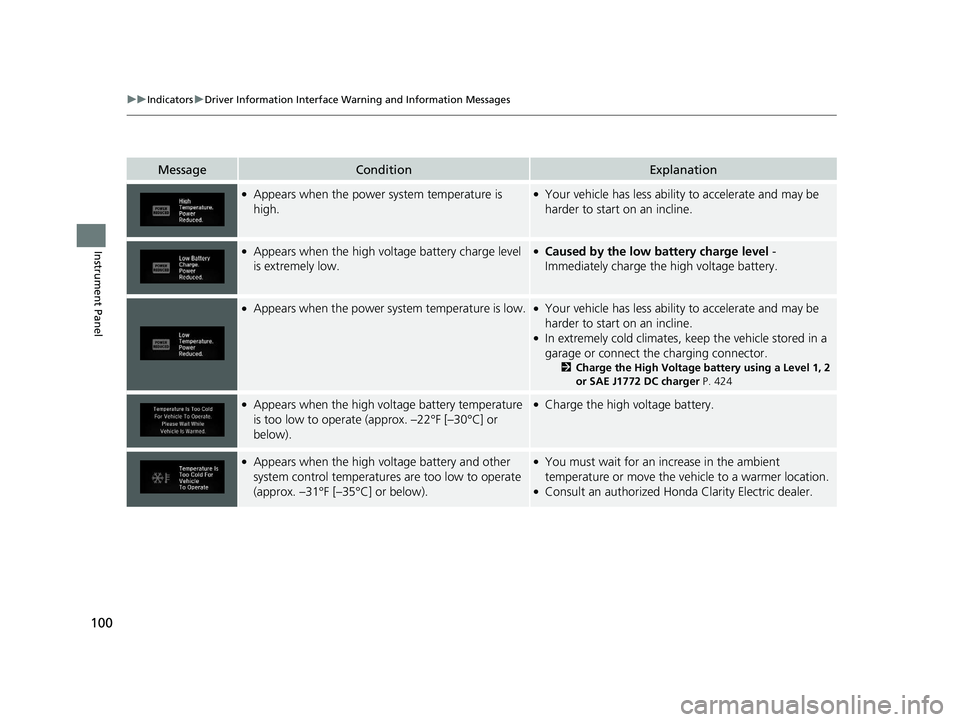

100
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the power system temperature is
high.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Appears when the high voltage battery charge level
is extremely low.●Caused by the low battery charge level -
Immediately charge the high voltage battery.
●Appears when the power system temperature is low.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●In extremely cold climates, keep the vehicle stored in a
garage or connect the charging connector.
2 Charge the High Voltage battery using a Level 1, 2
or SAE J1772 DC charger P. 424
●Appears when the high voltage battery temperature
is too low to operate (approx. –22°F [–30°C] or
below).●Charge the high voltage battery.
●Appears when the high voltage battery and other
system control temperatures are too low to operate
(approx. –31°F [–35°C] or below).●You must wait for an increase in the ambient
temperature or move the vehicle to a warmer location.
●Consult an authorized Honda Clarity Electric dealer.
17 CLARITY BEV CSS-31TRV6000.book 100 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

101
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the power system is in diagnostic mode.●You may notice a decrease in available power. Have
your vehicle checked by an authorized Honda Clarity
Electric dealer immediately.
●As a result of diagnostics, the POWER SYSTEM
indicator may come on.
2 POWER SYSTEM Indicator P. 83
●Appears after the 12-volt battery charging system
indicator comes on.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Contact an authorized Hond a Clarity Electric dealer
immediately.
●Appears if there is a pr oblem with the acoustic
vehicle alerting system.●Have your vehicle checked by an authorized Honda
Clarity Electric dealer immediately.
●Appears when the high vo ltage battery is running
extremely low.●Charge the high voltage battery.
2 Charge the High Voltage battery using a Level 1, 2
or SAE J1772 DC charger P. 424
●Appears when there is a pr oblem with the standard
and quick plug-in charging system or the charging
station outlet.●This message only - There may be a problem with the
charging station outlet. Refer to the instructions
provided at the station or co nsult a qualified technician.
If the outlet works properly, have the vehicle checked by
an authorized Honda Clarity Electric dealer.
●Comes on with the PO WER SYSTEM indicator -
Have your vehicle checked by an authorized Honda
Clarity Electric dealer.
17 CLARITY BEV CSS-31TRV6000.book 101 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

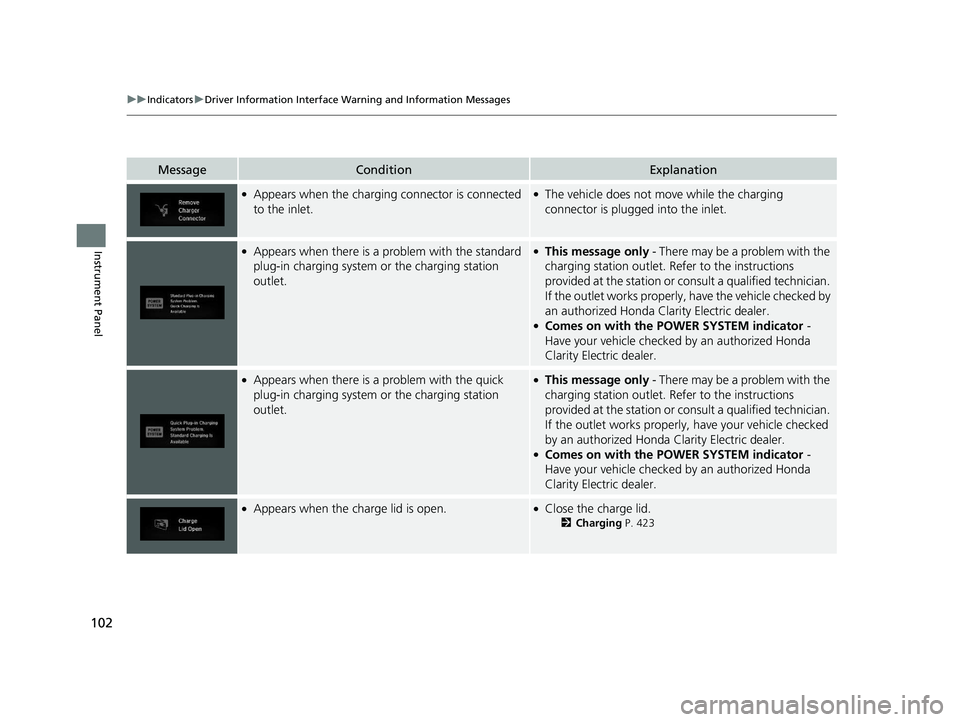

102
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the charging connector is connected
to the inlet.●The vehicle does not move while the charging
connector is plugged into the inlet.
●Appears when there is a pr oblem with the standard
plug-in charging system or the charging station
outlet.●This message only - There may be a problem with the
charging station outlet. Refer to the instructions
provided at the station or consult a qualified technician.
If the outlet works properly, have the vehicle checked by
an authorized Honda Cl arity Electric dealer.
●Comes on with the PO WER SYSTEM indicator -
Have your vehicle checked by an authorized Honda
Clarity Electric dealer.
●Appears when there is a problem with the quick
plug-in charging system or the charging station
outlet.●This message only - There may be a problem with the
charging station outlet. Refer to the instructions
provided at the station or consult a qualified technician.
If the outlet works properly, have your vehicle checked
by an authorized Honda Clarity Electric dealer.
●Comes on with the PO WER SYSTEM indicator -
Have your vehicle checked by an authorized Honda
Clarity Electric dealer.
●Appears when the charge lid is open.●Close the charge lid.
2 Charging P. 423
