2017 HONDA CLARITY ELECTRIC Owner's Manual (in English)

519

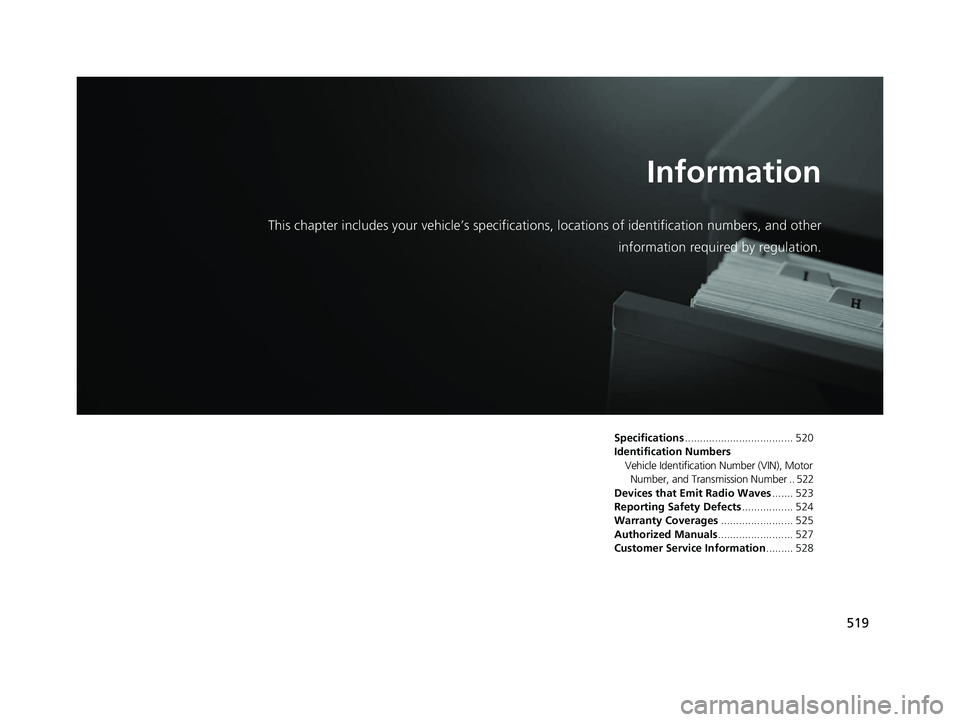

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 520
Identification Numbers Vehicle Identification Number (VIN), Motor
Number, and Transmission Number .. 522
Devices that Emit Radio Waves ....... 523
Reporting Safety Defects ................. 524
Warranty Coverages ........................ 525
Authorized Manuals ......................... 527
Customer Service Information ......... 528
17 CLARITY BEV CSS-31TRV6000.book 519 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

520
Information

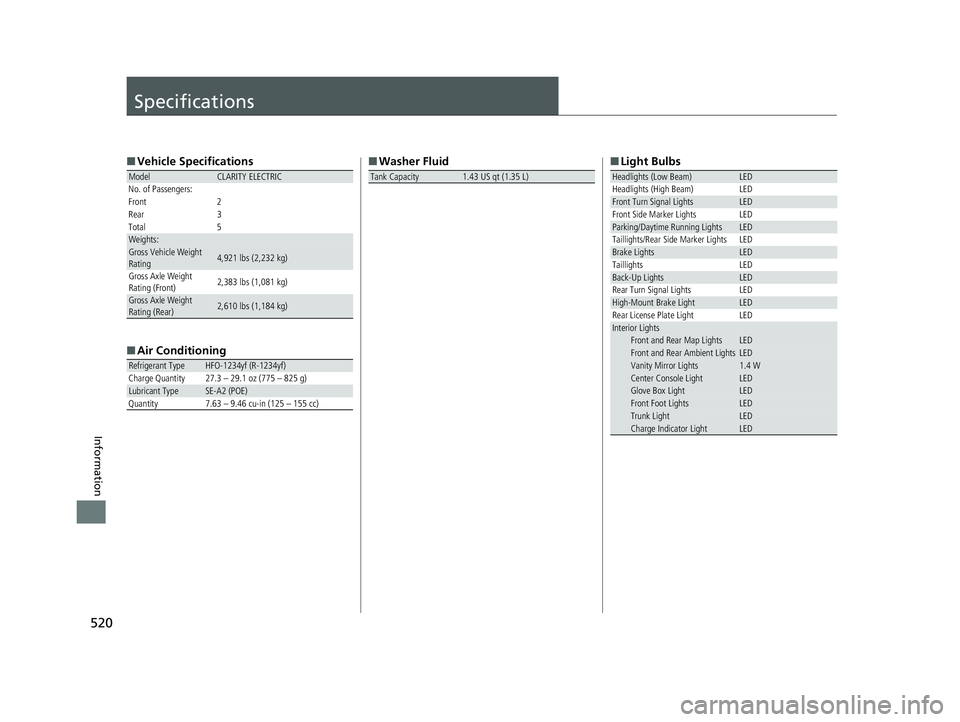

Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCLARITY ELECTRIC
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating 4,921 lbs (2,232 kg)
Gross Axle Weight
Rating (Front)2,383 lbs (1,081 kg)
Gross Axle Weight
Rating (Rear)2,610 lbs (1,184 kg)
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 27.3 – 29.1 oz (775 – 825 g)
Lubricant TypeSE-A2 (POE)
Quantity 7.63 – 9.46 cu-in (125 – 155 cc)
■ Washer Fluid
Tank Capacity1.43 US qt (1.35 L)
■Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Taillights/Rear Side Marker Lights LED
Brake LightsLED
Taillights LED
Back-Up LightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Console LightLEDGlove Box LightLEDFront Foot LightsLEDTrunk LightLEDCharge Indicator LightLED
17 CLARITY BEV CSS-31TRV6000.book 520 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

521
uuSpecifications u
Information
■Brake Fluid
■ Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid
ATF DW-1
Capacity Change 1.85 US qt (1.75 L)
■ Coolant
SpecifiedHonda Long Life Antifreeze/Coolant Type2
■Tire
RegularSize235/45R18 94VPressure
psi (kPa [kgf/cm2])Front36 (250 [2.5])Rear38 (260 [2.7])
Wheel Size Regular 18 x 8J
17 CLARITY BEV CSS-31TRV6000.book 521 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

522
Information

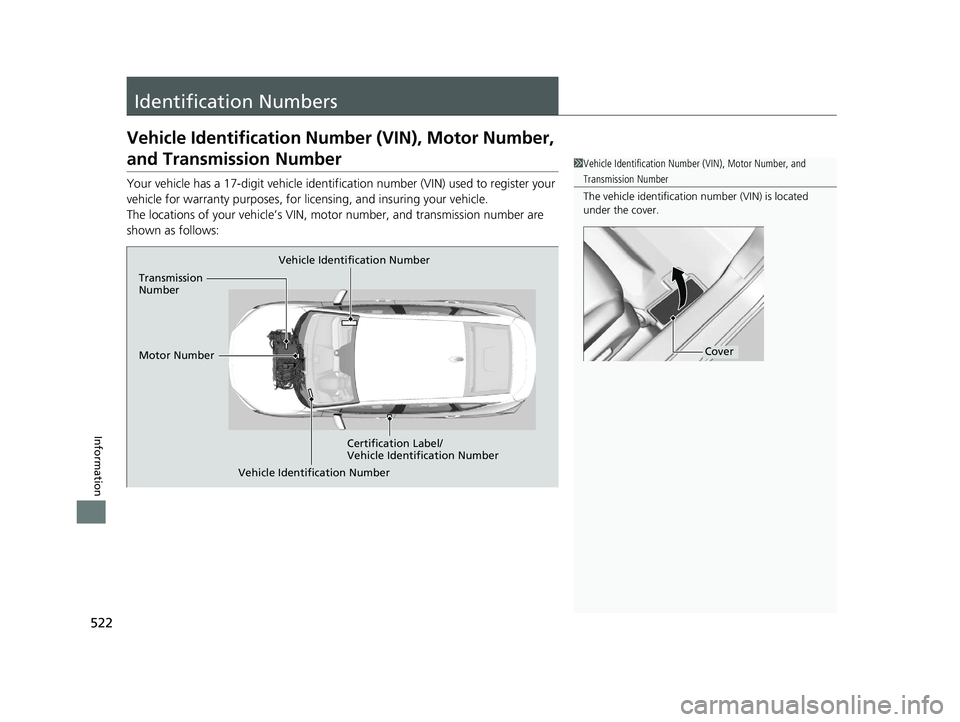

Identification Numbers
Vehicle Identification Number (VIN), Motor Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, for licensing, and insuring your vehicle.
The locations of your vehicle’s VIN, motor number, and transmission number are
shown as follows:
1 Vehicle Identification Number (VIN), Motor Number, and
Transmission Number
The vehicle identification number (VIN) is located
under the cover.
Cover
Vehicle Identification Number
Transmission
Number
Certification Label/
Vehicle Identification Number
Vehicle Identification Number
Motor Number
17 CLARITY BEV CSS-31TRV6000.book 522 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

523
Information

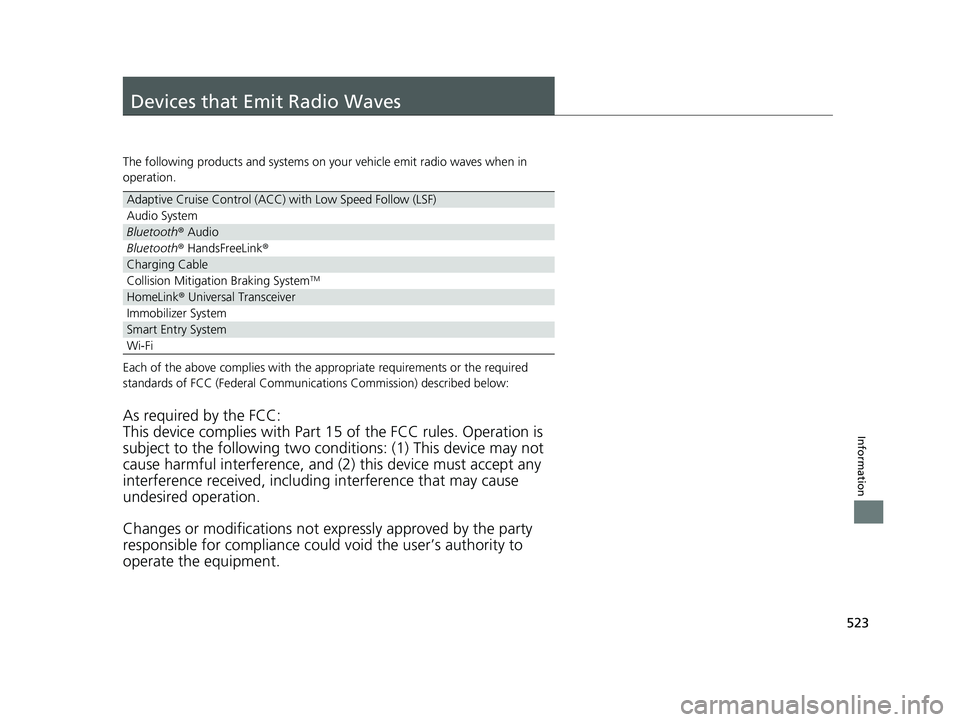

Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
Audio System
Bluetooth® Audio
Bluetooth® HandsFreeLink ®
Charging Cable
Collision Mitigati on Braking SystemTM
HomeLink® Universal Transceiver
Immobilizer System
Smart Entry System
Wi-Fi
17 CLARITY BEV CSS-31TRV6000.book 523 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

524
Information

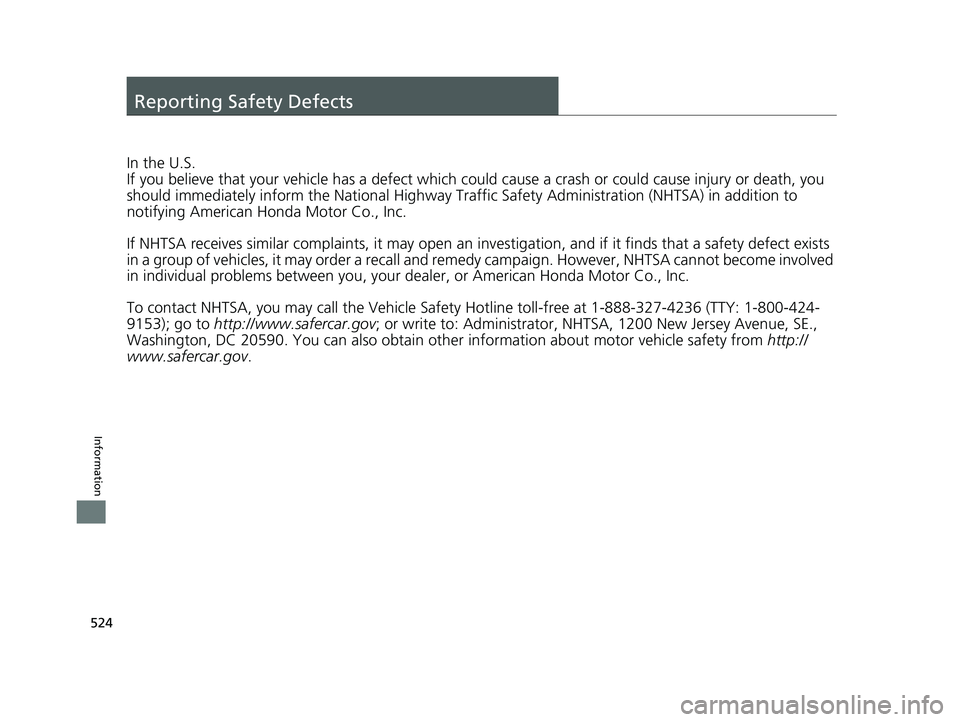

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
17 CLARITY BEV CSS-31TRV6000.book 524 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

525Continued
Information

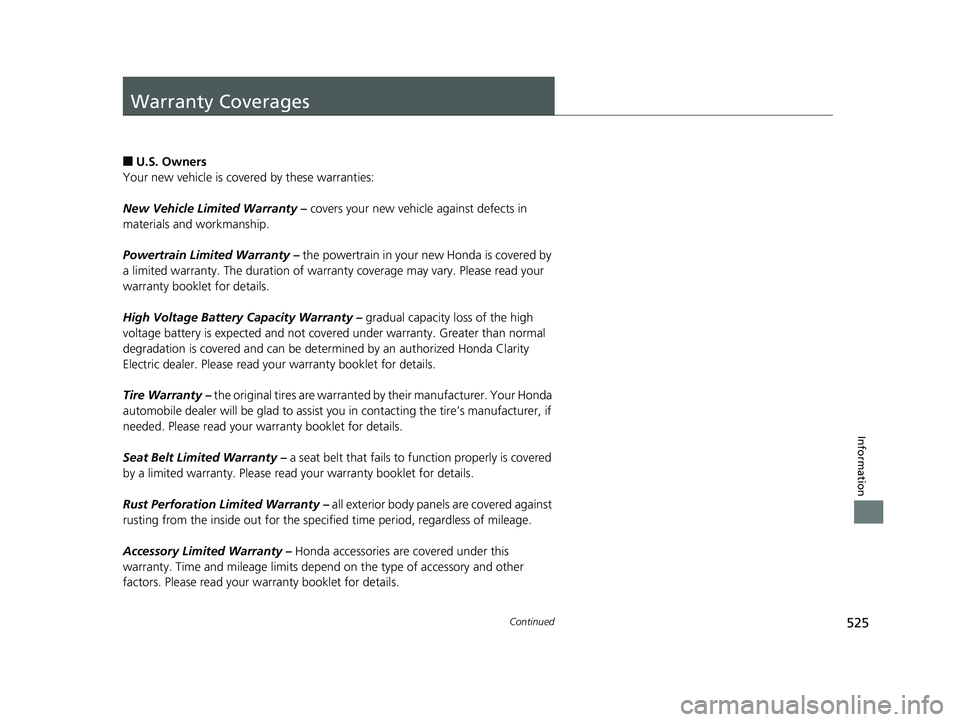

Warranty Coverages
■U.S. Owners
Your new vehicle is cove red by these warranties:
New Vehicle Limited Warranty – covers your new vehicle against defects in
materials and workmanship.
Powertrain Limited Warranty – the powertrain in your new Honda is covered by
a limited warranty. The duration of warrant y coverage may vary. Please read your
warranty booklet for details.
High Voltage Battery Capacity Warranty – gradual capacity loss of the high
voltage battery is expected and not cove red under warranty. Greater than normal
degradation is covered and can be determined by an authorized Honda Clarity
Electric dealer. Please read your warranty booklet for details.
Tire Warranty – the original tires are warranted by their manufacturer. Your Honda
automobile dealer will be glad to assist you in contac ting the tire’s manufacturer, if
needed. Please read your warranty booklet for details.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time peri od, regardless of mileage.
Accessory Limite d Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
17 CLARITY BEV CSS-31TRV6000.book 525 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

526
uuWarranty Coverages u
Information

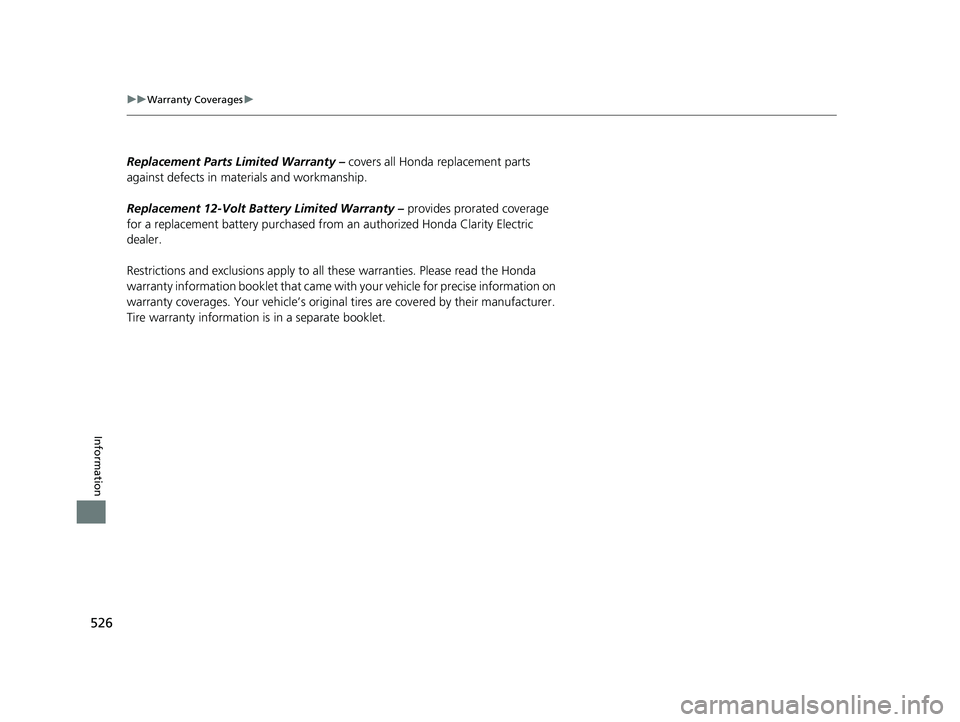

Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.
Replacement 12-Volt Batte ry Limited Warranty – provides prorated coverage
for a replacement battery purchased from an authorized Honda Clarity Electric
dealer.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
