2017 HONDA CLARITY ELECTRIC Owner's Manual (in English)

7
Quick Reference Guide
❙Side Airbags (P 59)
❙Side Curtain Airbags (P 61)
❙Seat Belts (P 42)
❙Seat Belt (Installing a Child Seat) (P 72)
❙Rear Seat
❙Coat Hook (P 180)
❙Map Lights (P 174)
❙Sun Visors
❙Vanity Mirrors
❙Seat Belt to Secure a Child Seat (P 74)
❙Map Lights (P 174)
❙Grab Handle
❙Sunglasses Holder
(P 182)
❙Accessory Power
Socket
(P 179)
❙Front Seat (P 166)
❙USB Ports (P 193)
❙LATCH to Secure a Child Seat (P 70)
17 CLARITY BEV CSS-31TRV6000.book 7 ページ ２０１７年４月１４日　金曜日　午前１１時８分

Visual Index
8
Quick Reference Guide
❙Maintenance Under the Hood (P 449)
❙Windshield Wipers (P 157, 456)
❙Tires (P 459, 482)
❙Door Lock/Unlock Control (P 131)
❙Power Door Mirrors (P 165)
❙Headlights (P 153, 454)
❙Front Turn Signal Lights (P 152, 454)
❙Parking/Daytime Running Lights (P 153, 156, 454)
❙Front Side Marker Lights (P 153, 454)
❙How to Charge (P425, 427)
17 CLARITY BEV CSS-31TRV6000.book 8 ページ ２０１７年４月１４日　金曜日　午前１１時８分

9
Quick Reference Guide
❙High-Mount Brake Light (P 455)
❙Opening/Closing the Trunk (P 141)
❙Tail/Rear Side Marker Lights (P 455)
❙Brake Lights (P 455)
❙Rear Turn Signal Lights (P 455)
❙Back-Up Lights (P 455)
❙Taillights (P 455)
❙Trunk Release Button (P 142)
❙Rear License Plate Light (P 455)
❙Multi-View Rear Camera (P 421)
❙Emergency Trunk Release Lever (P 143)
17 CLARITY BEV CSS-31TRV6000.book 9 ページ ２０１７年４月１４日　金曜日　午前１１時８分

10
Quick Reference Guide

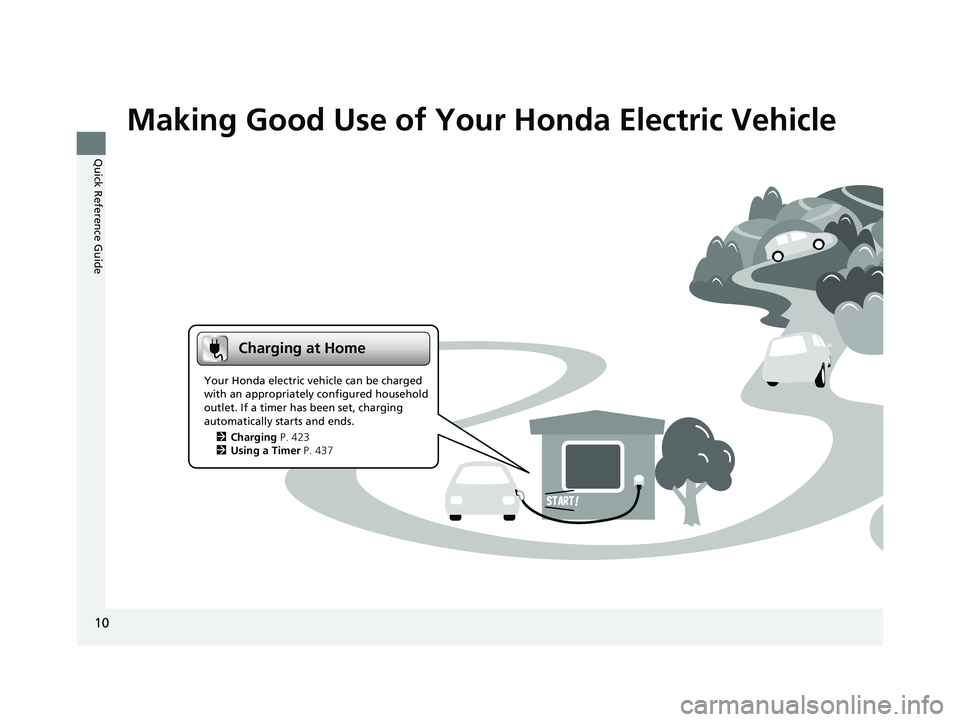

Making Good Use of Your Honda Electric Vehicle
Charging at Home
Your Honda electric vehicle can be charged
with an appropriately configured household
outlet. If a timer has been set, charging
automatically starts and ends.2 Charging P. 423
2 Using a Timer P. 437
17 CLARITY BEV CSS-31TRV6000.book 10 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

11
Quick Reference Guide

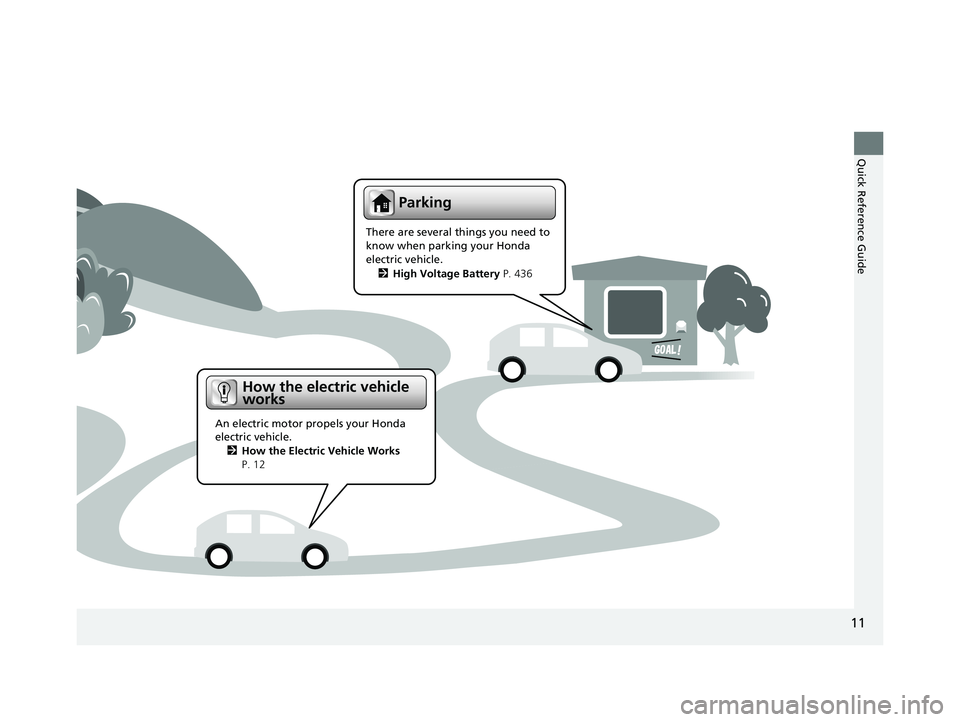

Parking
There are several things you need to
know when parking your Honda
electric vehicle.2 High Voltage Battery P. 436
How the electric vehicle
works
An electric motor propels your Honda
electric vehicle.
2 How the Electric Vehicle Works
P. 12
17 CLARITY BEV CSS-31TRV6000.book 11 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

12
Quick Reference Guide

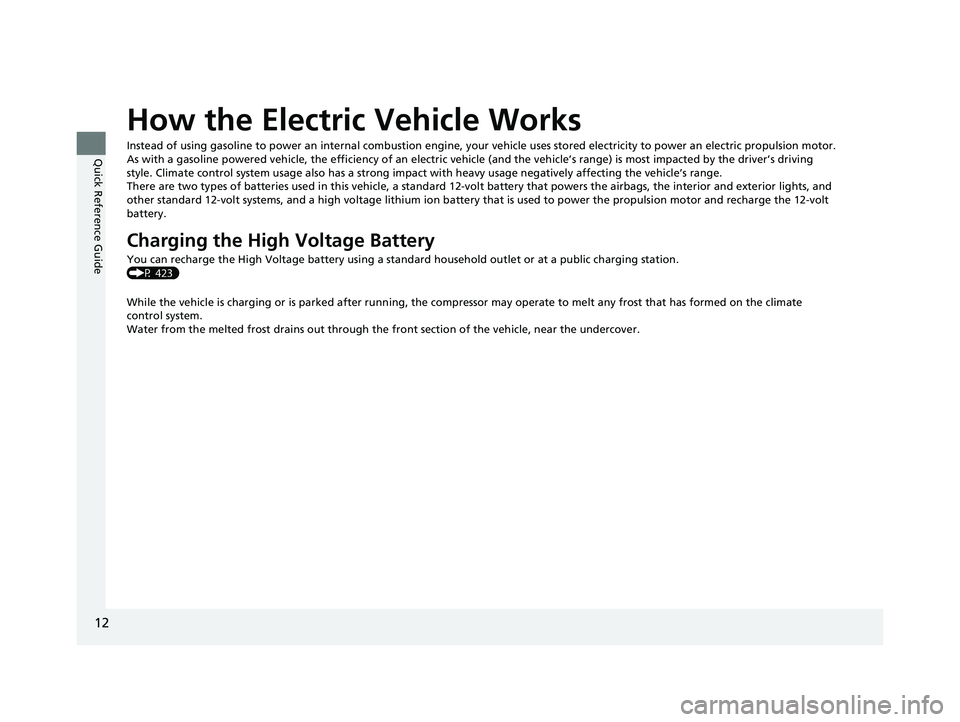

How the Electric Vehicle Works
Instead of using gasoline to power an internal combustion engine, your vehicle uses stored electricity to power an electric pro pulsion motor.
As with a gasoline powered vehicle, the efficiency of an electri c vehicle (and the vehicle’s range) is most impacted by the driver’s driving
style. Climate control system usage also has a strong impact with heavy usage negatively affecting the vehicle’s range.
There are two types of batteries used in this vehicle, a standa rd 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems, and a high voltage lithium ion ba ttery that is used to power the propulsion motor and recharge the 12-volt
battery.
Charging the High Voltage Battery
You can recharge the High Voltage battery using a standar d household outlet or at a public charging station.
(P 423)
While the vehicle is charging or is parked after running, the co mpressor may operate to melt any frost that has formed on the climate
control system.
Water from the melted frost drains out through the fr ont section of the vehicle, near the undercover.
17 CLARITY BEV CSS-31TRV6000.book 12 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

13
Quick Reference Guide

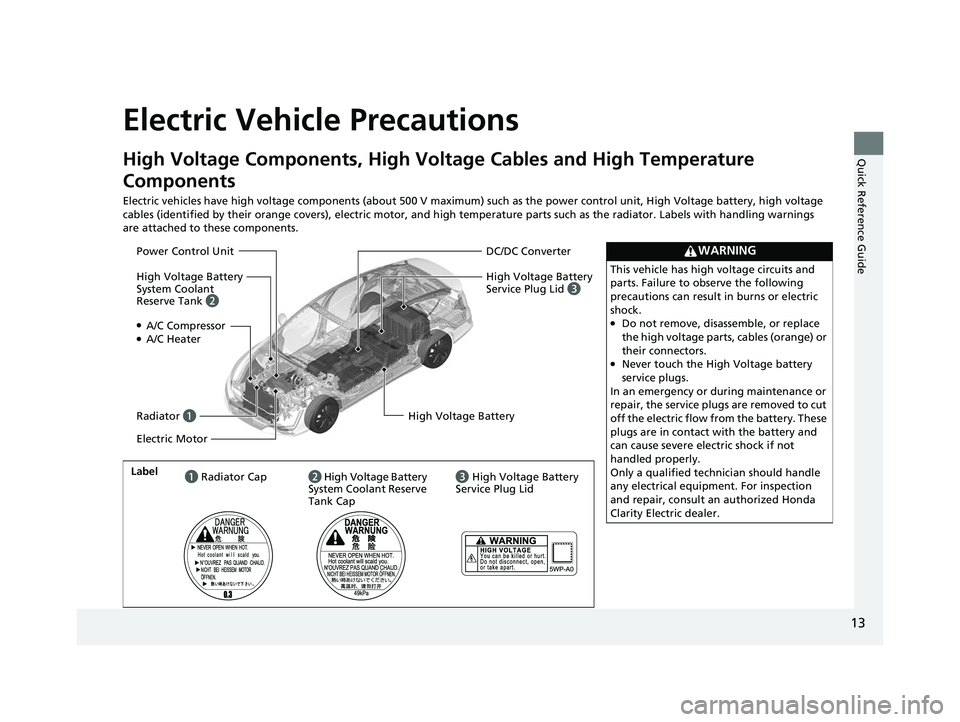

Electric Vehicle Precautions
High Voltage Components, High Voltage Cables and High Temperature
Components
Electric vehicles have high voltage components (about 500 V maximum) such as the power control unit, High Voltage battery, high voltage
cables (identified by their orange covers), electric motor, and high temperature parts such as the radiator. Labels with handli ng warnings
are attached to these components.
WARNING
This vehicle has high voltage circuits and
parts. Failure to observe the following
precautions can result in burns or electric
shock.
●Do not remove, disassemble, or replace
the high voltage parts, cables (orange) or
their connectors.
●Never touch the High Voltage battery
service plugs.
In an emergency or during maintenance or
repair, the service plugs are removed to cut
off the electric flow from the battery. These
plugs are in contact with the battery and
can cause severe electric shock if not
handled properly.
Only a qualified technician should handle
any electrical equipment. For inspection
and repair, consult an authorized Honda
Clarity Electric dealer.
DC/DC Converter
●A/C Compressor●A/C Heater
Radiator a High Voltage Battery
Label
a Radiator Cap
Power Control Unit
Electric Motor
High Voltage Battery
Service Plug Lid c
High Voltage Battery
System Coolant
Reserve Tank b
b High Voltage Battery
System Coolant Reserve
Tank Cap c
High Voltage Battery
Service Plug Lid
17 CLARITY BEV CSS-31TRV6000.book 13 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

14
Quick Reference Guide

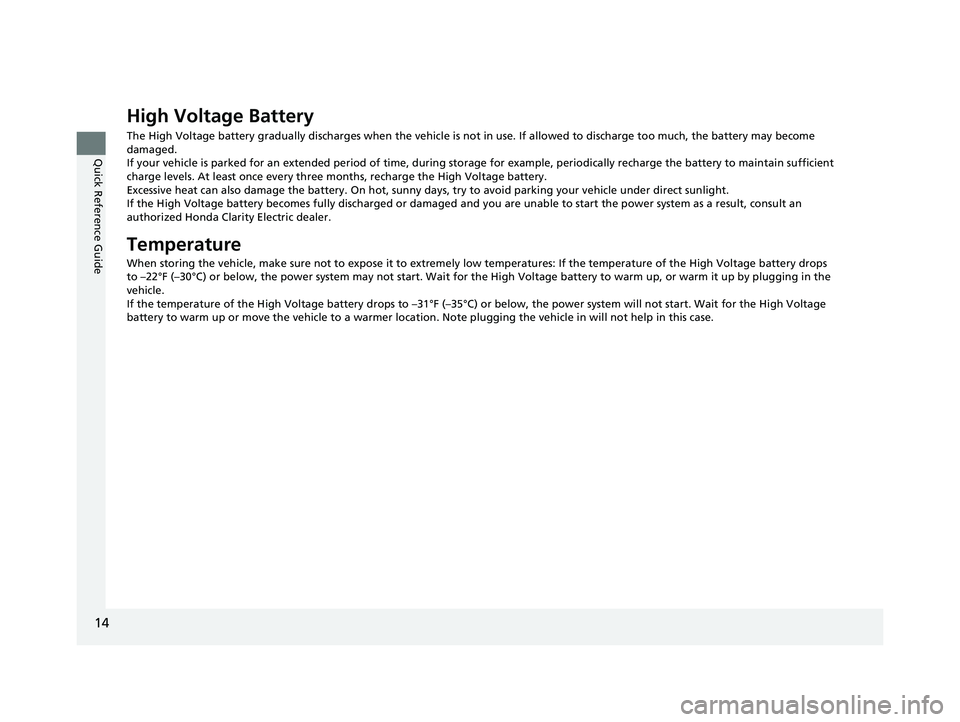

High Voltage Battery
The High Voltage battery gradually discharges when the vehicle is not in use. If allowed to discharge too much, the battery may become
damaged.
If your vehicle is parked for an extended period of time, du ring storage for example, periodically recharge the battery to main tain sufficient
charge levels. At least once every three months, recharge the High Voltage battery.
Excessive heat can also damage the batter y. On hot, sunny days, try to avoid parking your vehicle under direct sunlight.
If the High Voltage battery becomes fully discharged or damaged and you are unable to start the power system as a result, consult an
authorized Honda Clarity Electric dealer.
Temperature
When storing the vehicle, make sure not to expose it to extrem ely low temperatures: If the temperature of the High Voltage batt ery drops
to –22°F (–30°C) or below, the power system may not start. Wait for the High Voltage batt ery to warm up, or warm it up by plugging in the
vehicle.
If the temperature of the High Voltage battery drops to –31°F (– 35°C) or below, the power system will not start. Wait for the High Voltage
battery to warm up or move the vehicle to a warmer location. Note plugging the vehicle in will not help in this case.
