2017 HONDA CLARITY ELECTRIC Owner's Manual (in English)

103
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the charging connector has failed.●Disconnect the charging connector using the release
cord.
2When You Cannot Disengage the Charging
Connector P. 517
●Appears after you set the power mode to VEHICLE
OFF without connecting the charging connector
while the ambient temperature is low.●Connecting the charging connector improves cold
startability.
●Appears when the vehicle cannot be driven.●Immediately stop in a safe place.
17 CLARITY BEV CSS-31TRV6000.book 103 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

104
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you set the power mode to ON
without fastening the driver’s seat belt.
●Appears if the gear position has been automatically
changed to
(P and the driver attempts to take the
vehicle out of
(P but does not have his or her
seatbelt fastened.
●Fasten the seat belt properly before you start to drive.
2 Shift Operation P. 357
●Appears when you try to change the gear position
without depressing the brake pedal while the
transmission is in
(P or (N.
●Depress the brake pedal, then select a shift button.
●Appears when you try to change the gear position
without releasing your foot off the accelerator pedal
while the transmission is in
(P or (N.
●Release your foot off the accelerator pedal, then select
a shift button.
17 CLARITY BEV CSS-31TRV6000.book 104 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

105
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the parking button is pressed while
the vehicle is moving.
●Appears if you change the gear position to (R while
the vehicle is moving forward, or to
(D while the
vehicle is reversing.
●Make sure that the vehicle comes to a stop before
operating the select button.
●Appears if there is a problem with the electric system.●Appears when you set the power mode to OFF while
driving.
●Immediately stop in a safe place and set the parking
brake.
●Resume driving if the message disappears.●If there is a problem with the transmission system, the
transmission system indicator comes on.
2 Transmission System Indicator P. 85
●Appears when the vehicle is stopped with the driver’s
seat belt unfastened and there is a chance that the
vehicle may roll unintentionally.●Press the (P button before releasing the brake pedal
when idling, parking, or exiting the vehicle.
2 Shift Operation P. 357
●Appears for a few seconds if you have not pressed
the
(N button long enough to initiate Neutral-Hold
mode.2 If you want to keep the transmission in (N
position [car wash mode] P. 359
●Appears when you press and hold (N button for
more than 2 seconds.●Disappears when you set the gear position to other than
(N.
2If you want to keep the transmission in (N
position [car wash mode] P. 359
17 CLARITY BEV CSS-31TRV6000.book 105 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

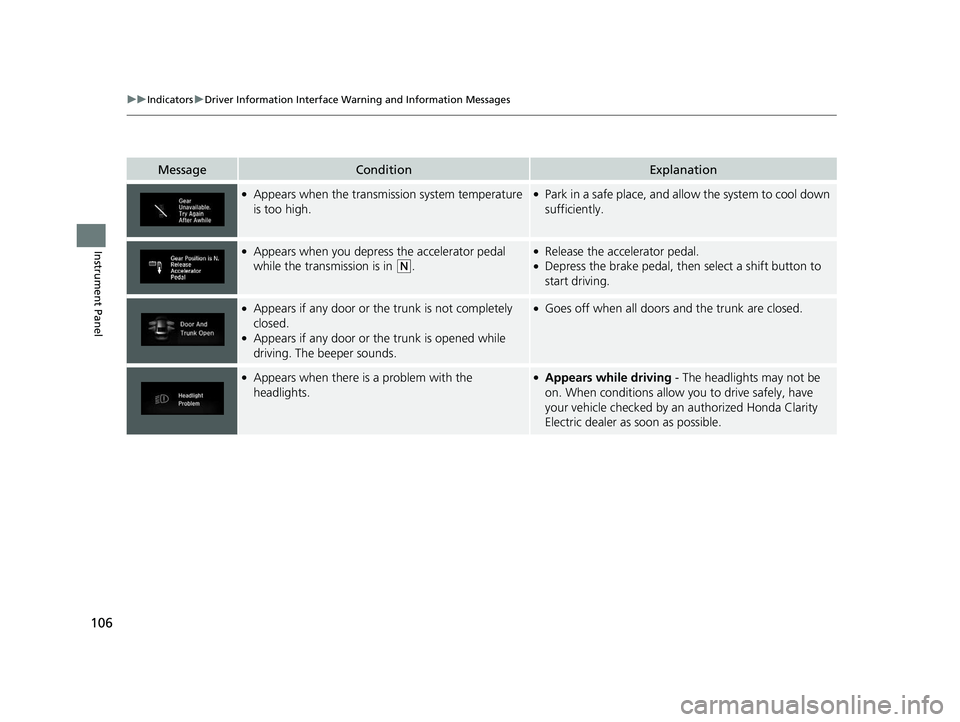

106
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the transmission system temperature
is too high.●Park in a safe place, and allow the system to cool down
sufficiently.
●Appears when you depress the accelerator pedal
while the transmission is in
(N.
●Release the accelerator pedal.●Depress the brake pedal, then select a shift button to
start driving.
●Appears if any door or the trunk is not completely
closed.
●Appears if any door or the trunk is opened while
driving. The b eeper sounds.
●Goes off when all doors and the trunk are closed.
●Appears when there is a problem with the
headlights.●Appears while driving - The headlights may not be
on. When conditions allow you to drive safely, have
your vehicle checked by an authorized Honda Clarity
Electric dealer as soon as possible.
17 CLARITY BEV CSS-31TRV6000.book 106 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

107
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears while you are customizing the settings and
the shift lever is moved out of
(P.2Customized Features P. 280
●Appears if you try to go to vehicle settings from the
driver information interface while the audio/
information screen shows the same menu.●Select either display to cu stomize a setting. You cannot
have vehicle settings displayed on the driver information
interface and audio/information screen simultaneously.
2 Customized Features P. 280
●Appears if you try to go to Charge Timer Setup
while the time is incorrect.
2 Customized Features P. 280
17 CLARITY BEV CSS-31TRV6000.book 107 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

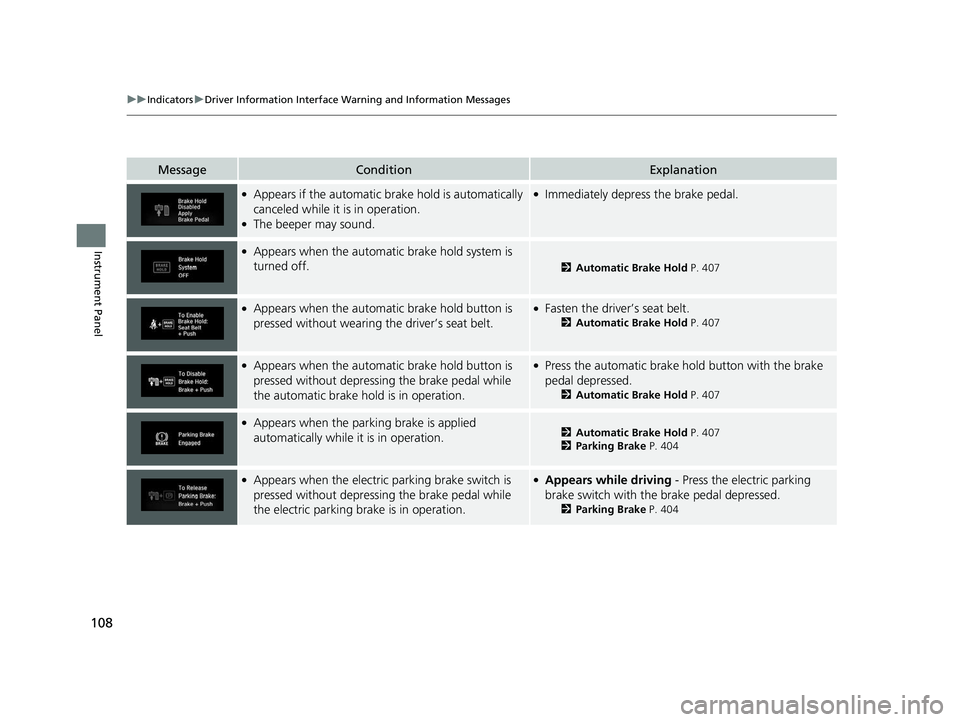

108
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if the automatic brake hold is automatically
canceled while it is in operation.
●The beeper may sound.
●Immediately depress the brake pedal.
●Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 407
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 407
●Appears when the automa tic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 407
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 407
2 Parking Brake P. 404
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.●Appears while driving - Press the electric parking
brake switch with the brake pedal depressed.
2 Parking Brake P. 404
17 CLARITY BEV CSS-31TRV6000.book 108 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Flashes when the system senses a likely collision with
a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2Collision Mitigation Braking SystemTM (CMBSTM)
P. 411
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 373
●Appears when ACC with LSF has been automatically
canceled.●You can resume the set speed after the condition that
caused ACC with LSF to cancel improves. Press the
RES/+ or −/SET switch up.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 373
●Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
with LSF is in operation.●ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 373
●Appears when pressing the RES/+ or −/SET switch
down while the distance between your vehicle and
the vehicle ahead of you is too close.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 373
●Appears when pressing the RES/+ or −/SET switch
down while the driver’s seat belt is unfastened.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 373
●Appears if the VSA ® or traction control function
operates while ACC is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 373
17 CLARITY BEV CSS-31TRV6000.book 109 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

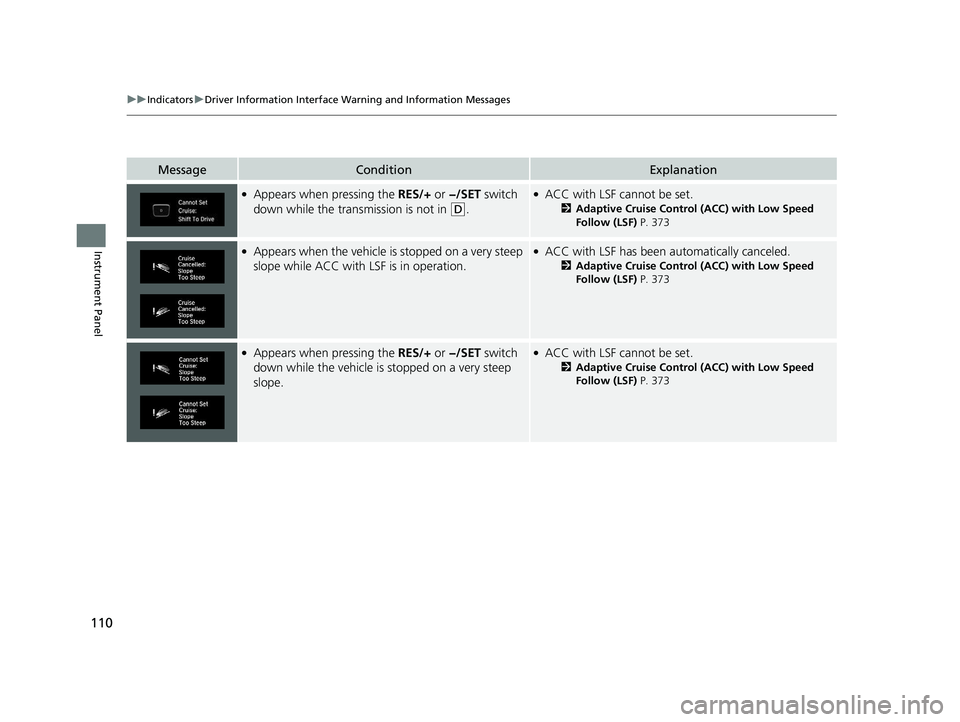

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when pressing the RES/+ or −/SET switch
down while the trans mission is not in
(D.
●ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 373
●Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation.●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 373
●Appears when pressing the RES/+ or −/SET switch
down while the vehicle is stopped on a very steep
slope.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 373
17 CLARITY BEV CSS-31TRV6000.book 110 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分
